MP-Man MPDC706 Bedienungsanleitung

EN User's manual

For Model No.

MPDC706

Tablet Part

Name function

1 Reset press RESET button,Tablet will force to

shutdown

2 Volume down Press the button to decrease the volume

3 Micro-SD slot Insert a micro SD card (up to 32GB)

4 Volume up Press the button to increase the volume

5 MIC Recording Voice

6 USB & OTG Connect to PC / connect peripheral devices(e.g

keyboard, USB flash drive)

7 Earphone jack Connect earphone to this standard 3.5mm jack

8 Power Hold to turn the tablet on or off

Getting Started

Battery Charging

The tablet has a built-in rechargeable Li-polymer battery.

1. To charge connect the AC power adapter to the micro USB jack on

the right side of the tablet.

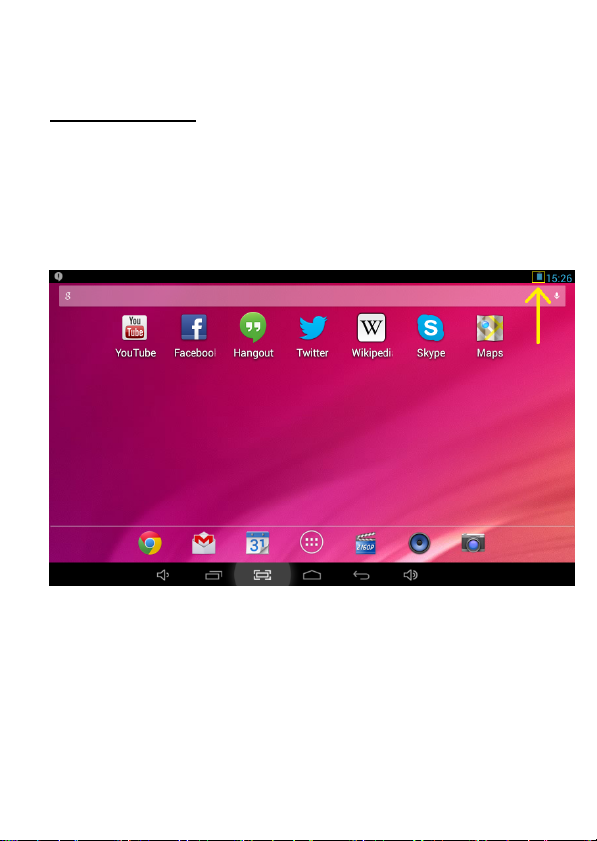

2. The battery icon shows the battery status and charging status

3. The tablet can be used even if the battery is being charged.

the above icons indicate the different level of electricity left in the battery

4. no replacement of battery without authorization, or the explosion

hazard might happen.

5. Recharge it for at least half hour if it has been idle for long time and

fails to start itself.

6. Regularly recharge it at least one time monthly

7. 40°—5°is the optimum temperature for the battery recharging or

the battery performance might deteriorate slightly

Disposal

the battery might contain the polluting material, please give it to the official

recycling-station before disposing the tablet pc, and don’t litter.

Power ON/OFF

ON:

press the button for continuous 5 seconds until the tablet turns “ON”.

OFF:

1.Press the button for continuous 5 seconds and it will appear

2.Select OK to power off the tablet

Screen Lock

This feature locks the screen, at the same time turn OFF the screen’s

backlight after a few seconds.

Screen locks when:

1. System is idle.

2. Manually activated by pressing the Power button once.

Screen unlock :

Home screen

The Home screen will look similar to the picture below. It is actually five

screens, each of which can have a different layout of icons. To switch

between screens, simply slide your finger left or right across the display.

The status bar and navigation buttons are always visible, no matter which

Home screen you can currently viewing.

The Desktop cn contains shortcuts to your most-used applications and widgets

Touch the screen icon to quickly search the World Wide Web using Google.

The icon will launch the Application menu.

The status bar displays system information, such as current time, wireless

connectivity and battery.

Touch to Expand the status bar for more detailed information.

The button moves back one step to the previous menu/page.

The buttons returns immediately to the Android desktop.

The button display a menu of recently opened applications.

Settings Menu

The settings menu allows you to adjust Tablet system configuration.

To change settings:

1. Touch the "Settings" menu icon on the Application menu.The

Settings menu will open.

2. Guide your finger up or down the left side of the screen to scroll through the

list of available categories.

3. Touch a category title to view further options on the right side of the screen.

Wi-Fi - Connect to /disconnect from wireless networks, view connection status

Data usage - Enable / disable mobile data, view current usage, set mobile data limit (note: this

function is available only on devices supplied with 3G card)

Sound - Change volume, touch sound, screen lock sounds etc

Display - Change brightness, wallpaper, sleep settings, font size etc

Storage - Manage NAND and Micro SD card, view available capacity etc

Battery - See battery status and powered-on time

Apps - Manage applications, running services etc

Accounts - Manage accounts etc

Location services - Change approximate location detection, improve search results

Security - Change screen lock type, encryption, password, credential storage etc

Language & input Select language, add to the dictionary, edit on-screen keyboard settings,

vocal search, etc

Backup & reset - Backup & restore data, perform factory reset, etc

Date & time - Set date, time zone, time, clock format etc

Accessibility - Set up large text, auto-rotate screen, speak password etc

Developer options - Advanced functions for Android developers - debugging, HDCP check

etc

About tablet - Information about your Android device

How to Use TF card

1. Insert the TF card into the TF card slot. Gently push TF card into slot

until it clicks into place.

2. A prompt will be seen on the screen saying “ Preparing SD card “

Removing TF card

1. Close all applications and documents which have been opened from

the TF card.

3. Select “Setting” and find “ Storage” then click “Unmount SD card”.

4. A prompt will be seen on the screen saying “ SD card safe to remove”

5. Gently press the TF card to remove and pull out the TF card.

Note: Insert the TF card in correct position, otherwise it will damage the

card and the slot.

Software Keyboard

The tablet has a software keyboard which automatically show up

when you tap the place on screen where text or number are to be

entered.

Touch Screen

The touch screen responds to finger touch.

Note: don’t place any object on the touch screen for it may damage or

crush the screen.

Single Click: single click one icon to choose the icon or option you want.

Long Press: press and hold one icon to make appear a menu related to

the executed function (if available).

Drag: drag on the screen and you can move between magic cube sides or

drag the application icons into the shortcut bar.

How to connect with computer

Note: Turn on your Tablet before connect the Tablet to PC by USB cable.

1 Use USB cable to connect MID with computer. System will notice

USB connected on bottom of screen.

2 Press USB connected on the top bar, then click Turn on USB storage,

click OK.

3. Then the USB connection has been successfully.

Connection to Internet

Wireless:

1 Select “ Settings”

2 Select “Wi-Fi” and slide OFF to ON status.



3 All detected wireless networks in the area will be listed, Click to select

desired wireless connection.

4 Enter WEP key or network key if necessary.

5 Once connected to a wireless network, settings will be saved

6 Wireless icon will appear on the taskbar when connected

successfully.

Note: when the tablet detects the same wireless network in the future, the

device will connect to the network automatically with same password

record.

Web Browsing

Connect to the internet and launch the browser.

Camera

Touch the icon to enter camera mode and the interface is

shown as follows:

1. Touch the icon in the middle to take photo

2. Move the icon on bottom and you can switch camera mode to

camera recording mode.

3. touch the icon on the top right to see the previous picture and

you can also delete, share, set it as the wallpaper. Click return button to

exit camera interface.

Trouble Shooting

Close Application

All running applications take up system memory and will slow down

system response. Please shut down all idle applications to release

memory and get the system speed back to normal.

To close the application, click the icon on the shortcut bar to

enter the system configuration interface. Select the Application →

Running services and the interface is shown as follows:

Tap the application you want to close. A pop-up window will be displayed.

Tap “Stop” to close that application.
