User Manual

Advantage Series

V071420

Page 1 mrcool.com

Read Before Operation

Special notice

Disposing of this appliance in the forest or other natural surroundings endangers your health and is

bad for the environment. Hazardous substances may leak into the ground water and enter the food

chain.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children should not play

with the appliance. Cleaning and user maintenance should not be made by children without supervision.

This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appli-

ance, the law requires special collection and treatment. DO NOT dispose of this product as household waste

or unsorted municipal waste.

When disposing of this appliance, you have the following options:

• Dispose of the appliance at a designated municipal electronic waste collection facility.

• When buying a new appliance, the retailer will receive the old appliance free of charge.

• The manufacturer will receive the old appliance free of charge.

• Sell the appliance to certiﬁed scrap metal dealers.

Contents

Page 2mrcool.com

Safety Precautions

Warnings ................................................................................................................................. 3

Cautions .................................................................................................................................. 4

Overview

Parts Diagram ........................................................................................................................ 5

Display Window ..................................................................................................................... 6

Operating Instructions

Operating Temperature ......................................................................................................... 6

Manual Operation .................................................................................................................. 6

Airow Directional Control .................................................................................................... 7

How the A/C & Heat Pump Work .......................................................................................... 8

Special Functions .................................................................................................................... 9

Care and Maintenance

Before Maintenance .............................................................................................................. 11

Cleaning the Unit ................................................................................................................... 11

Cleaning the Air Filter(s) ........................................................................................................ 11

Preparation for Extended Non-Operation .......................................................................... 12

Pre-Season inspection ........................................................................................................... 12

Troubleshooting Tips

Troubleshooting Tips ............................................................................................................ 13

Troubleshooting Guide ......................................................................................................... 14

Page 3

Safety Precautions

mrcool.com

Read Before Using

Incorrect usage may cause serious damage or injury.

The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION.

WARNING

CAUTION

This symbol indicates ignoring instructions may cause death or serious injury.

This symbol indicates that ignoring instructions may cause moderate injury

to your person, damage to your unit, or other property.

This symbol indicates that you should NEVER perform the indicated action.

WARNING

DO NOT modify the length of the power supply cord or use an extension cord to power the unit.

DO NOT share the electrical circuit with other appliances. Improper or insuﬃcient power supply can

cause ﬁre or electrical shock.

DO NOT expose your body directly to the cool air for prolonged periods of time.

DO NOT insert ﬁngers or foreign objects into air inlet / outlet vents.

DO NOT attempt to repair, relocate, or modify the unit yourself. Always contact your qualiﬁed service

professional if any of this is required.

DO NOT allow combustible materials within 3 feet (1 meter ) of unit; or store combustible gas / vapor

emitting materials (e.g. gas cans, rags used with solvents) within the same enclosed area as operating

unit.

DO NOT allow children to play with the air conditioner. Children should be supervised around the unit at

all times.

Installation must be performed by an authorized technician according to installation instructions.

Improper installation may cause water leakage, electrical shock, or ﬁre.

In North America, installation must be performed in accordance with the requirement of NEC and CEC

(by authorized personnel only.) Contact an authorized service technician for repair or maintenance of the

unit.

This appliance is not intended for use by children under the age of 8, or persons with reduced physical,

sensory or mental capabilities, unless they are supervised or have been given instruction concerning safe

usage and understand the hazards involved by a person responsible for their safety.

In the event of any abnormalities, such as the smell of burning, immediate turn oﬀ power to the unit and

contact an authorized service technician.

Safety Precautions

Page 4

Safety Precautions

mrcool.com

Note about Flourinated Gasses:

This air-conditioning unit contains ﬂourinated gases.

For speciﬁc information on the type of gas and the amount, please refer to the relevant label on the

unit itself.

Installation, service, maintenance and repair of this unit must be performed by a certiﬁed technician.

Product uninstallation and recycling must be performed by a certiﬁed technician.

If the system has a leak-detection system installed, it should be checked for leaks at least every 12

months.

Keep a record of all leak checks for the lifetime of the unit.

CAUTION

DO NOT touch switches with a wet hand. It may cause electric shock.

DO NOT use the device for any other purpose than intended use.

DO NOT expose plants or animals directly to the airﬂow.

DO NOT place food, precision instruments, plants, animals, paint, etc. on the unit.

DO NOT clean the interior unit with water.

DO NOT use combustible cleaning agents as this could cause ﬁre or deformation.

DO NOT place burning objects near the unit or indirectly in the path of its airﬂow.

DO NOT step on or place objects on exterior unit.

DO NOT allow unit to run for extended periods with doors and/or windows open or in extreme

humidity.

If the unit is to be used in conjunction with other heaters, the air should be refreshed periodically,

otherwise there is a risk of reduced oxygen.

Switch unit oﬀ during storms to avoid electrical damage.

On the interior unit, check that the drainage line is correctly connected to avoid leakage.

On the exterior unit, check that condensation water can run oﬀ unhindered to avoid damage.

The unit must be earthed (grounded) in accordance with local codes.

For electrical safety, we recommend that you install an earth leakage circuit-breaker.

If the power cable is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualiﬁed persons in order to avoid a hazard.

Page 5

Safety Precautions

mrcool.com

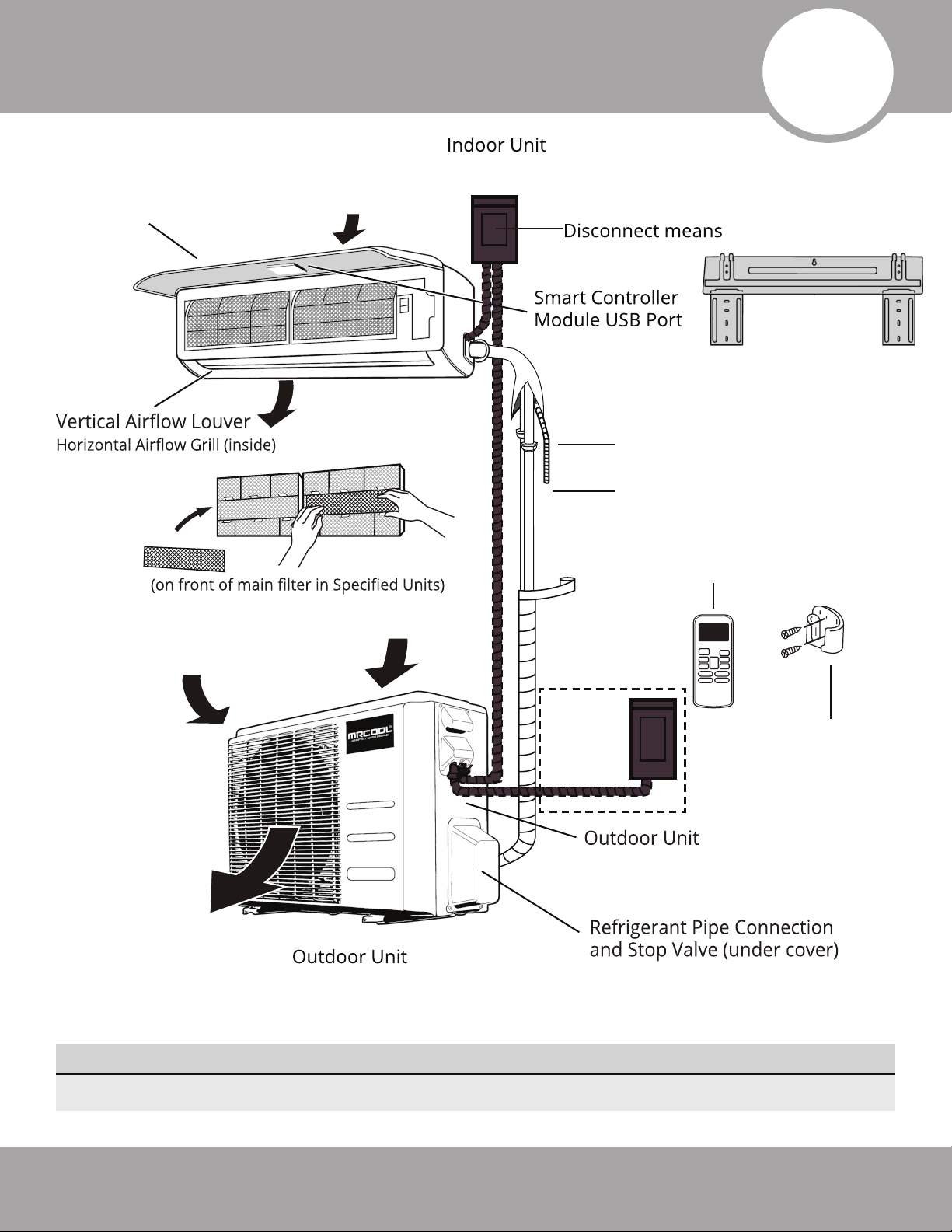

ﬁg. 1.1

Air inlet (rear)

Air inlet (side)

Air outlet

Remote Control

Remote Holder

Refrigerant Piping

Drainage Pipe

Front Panel

(with display)

Wall Mounting Plate

Fresh Air Filter

Air outlet (bottom)

(Interior / Air Handler)

(Exterior / Condenser)

Air inlet (rear)

Power Cable

Overview

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your unit may vary.

Page 6

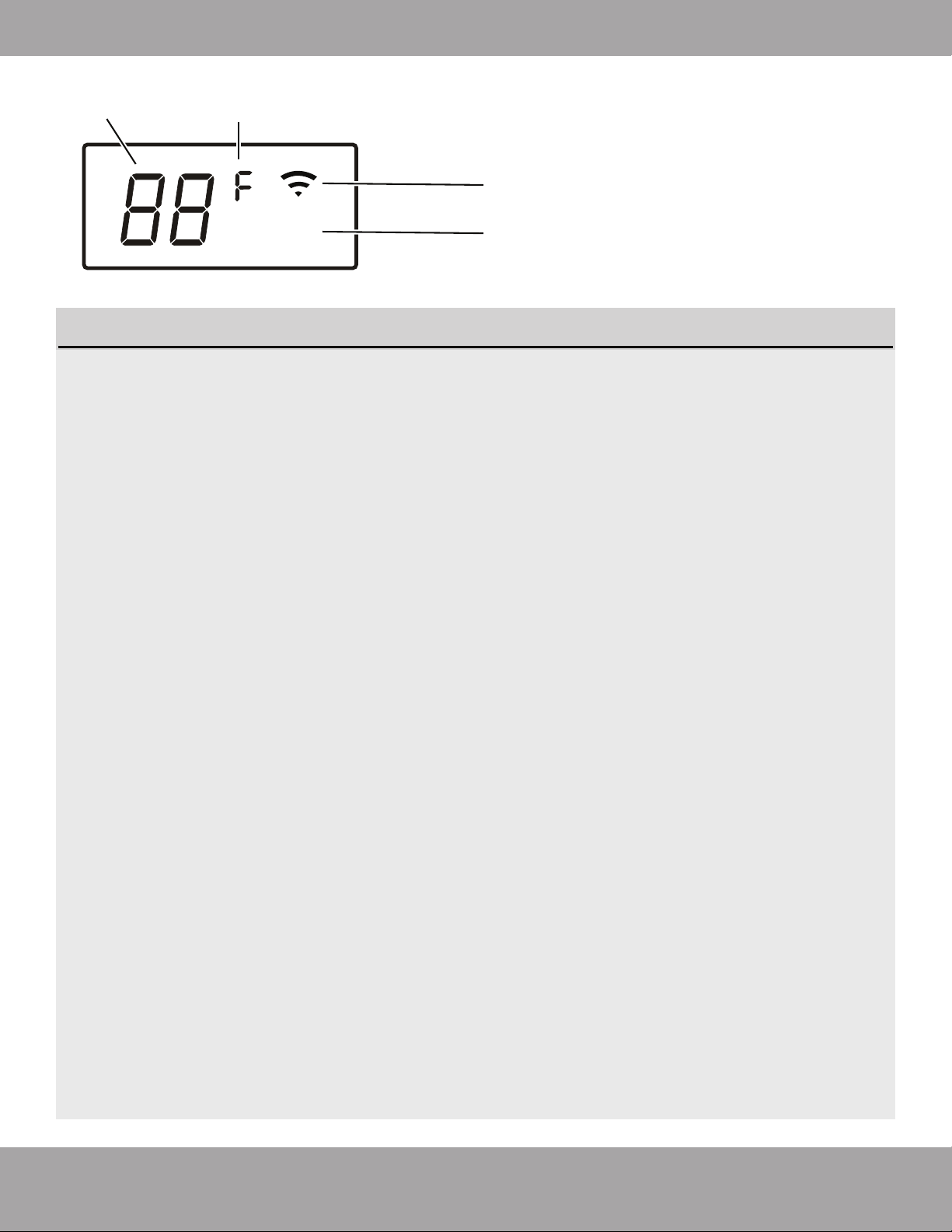

Overview - Display

mrcool.com

1. Digital Display

Displays the Temperature Setting when the air conditioner is operational.

Displays the Room Temperature when in FAN mode.

Displays the self-diagnostic codes.

Displays “ON” for three seconds when the Timer is ON and/or Fresh, Swing, Turbo or Silence feature is

activated.

Displays “OF” for three seconds when the Timer is switched OFF.

Displays “OF” for three seconds when the Fresh, Swing, Turbo or Silence feature is cancelled.

Displays “dF” when Defrosting operation is active.

Displays “cF” when Anti-Cold Air feature is active in HEAT mode (when air temp is low).

Displays “SC” during Self Clean operation (if feature is available).

Displays “FP” when Freeze Protection is active, operating under 46.4 °F (8 °C) (if feature is available).

2. Units of Measurement:

Displays “°C” for Celsius or “°F” for Fahrenheit. Default units are “°F” (Fahrenheit) and can be switched

by simultaneously press and hold both the up and down buttons on the remote control.

According to the operation mode (heat / cool, etc.), the Units of Measurement will display in diﬀerent

colors;

·Under Cool or Dry mode, it always displays as cool colors.

·Under Heat mode, it always displays as a warm color.

3. Wireless Mode:

Displays when the wireless control feature is activated.

NOTE: A guide for using the infrared remote - “Remote Manual” - is included in this literature package.

4. Energy Saving Mode (optional):

Displays when Energy Saving Feature is active. Not available when the unit does not have Energy

Saving Mode

ECO

ﬁg. 1.2

Display (on front panel of indoor unit) see g. 1.2

Page 7

Safety Precautions

mrcool.com

CAUTION

Manual Operation

Units are equipment with a switch to run emergency operation mode. It can be accessed by opening the

front panel. This switch is used for manual operation in case the remote fails to work or maintenance

is necessary.

Manual

Control

Button

NOTE:

The unit must be turned oﬀ before operating the manual

control button. If the unit is operational, continue pressing the

manual control button until the unit is oﬀ.

Open and lift the front panel up to an angle until it remains

ﬁxed with a clicking sound.

One press of the manual control switch will lead to the forced

AUTO operation. If the switch is pressed

twice within ﬁve seconds, the unit will operate under forced COOL

operation.

Close the panel ﬁrmly to its original position.

·This switch is used for testing purposes only.

Please do not use it unless necessary.

· To restore the remote control operation,

use the remote control directly.

ﬁg2.1

Operating Instructions

Room Temperature

Cooling Operation HeatingOperation Drying Operation

(17°C~32°C)

62°F~90°F

(0°C~30°C)

32°F~86°F

(10°C~32°C)

50°F~90°F

(0°C~50°C)

32°F~122°F

5°F~122°F / -15°C~50°C

(For the models with low

ambient cooling system)

(-15°C~30°C)

5°F~86°F

(0°C~50°C)

32°F~122°F

Outdoor

Temperature

NOTE:

1. Optimum performance will be achieved within these operating temperatures. If air conditioner

is used outside of the above conditions, certain safety protection features might come into

operation and cause the unit to function abnormally.

2. If the air conditioner runs for a long time in cooling mode and the humidity is high (over 80%),

condensed water may drip out of the unit. In this case, set the vertical air ﬂow louver to its

maximum angle (vertical toward the ﬂoor), and set it to HIGH fan mode.

Page 8

Operating Instructions

mrcool.com

Range

ﬁg 2.4

ﬁg 2.3

Deﬂector Rod

Horizontal Louver

(Horizontal Airow

Grill inside)

Range

ﬁg 2.2

Vertical

Louver CAUTION

DO NOT Do not put your ﬁngers into the

panel of the blower and suction side. The high

speed fan inside may cause injury.

DO NOT operate the unit for long periods of

time with the airﬂow direction set downward

in cooling or dehumidifying mode. Otherwise,

condensation might occur on the surface of

the vertical louver causing moisture to drop on

to the ﬂoor or furnishings .

DO NOT move the vertical louver manually.

Otherwise, the vertical louver will be out of

sync. IF this happens, cease operation, turn

oﬀ power to the unit, remove the wireless

module from the front cover, turn oﬀ power to

the circuit (at the breaker), wait for a few

seconds and turn power back on at the break-

er, reinstall wireless module and power the

unit back on.

After a quick restart, the vertical louver may

remain static for approximately 10 seconds.

Open angle of the vertical louver should not

be set too small, as it will restrict airﬂow and

reduce COOLING and HEATING performance.

Adjust Vertical (Up / Down) Air Flow using Vertical Louver

(g2.2):

Perform this function while the unit is in operation. Use

the remote control to adjust the Vertical Louver /

Vertical Air Flow direction. The vertical louver can move

in small increments for each press, or continuously

swing up and down automatically. Please refer to the

“REMOTE CONTROL USER MANUAL” for details.

Adjust Horizontal (Left/ Right) Airow using Horizontal

Louver (g 2.3, g 2.4):

Move the Deﬂector Rod manually to adjust the air ﬂow

side to side (left / right) as desired.

Airﬂow Directional Control

· Adjust the airﬂow direction properly.

Otherwise, it might cause discomfort or uneven

room temperatures.

· Adjust the vertical louver using the remote.

· Adjust the horizontal louver manually.

Page 9

Operating Instructions

mrcool.com

Basic Operation MODEs:

AUTO / COOL / DRY / HEAT (Model dependent).

Auto Operation:

When you set the air conditioner in AUTO mode, it will

automatically select cooling, heating or fan-only operation

depending on set temperature and room temperature.

The unit will control the room temperature automatically,

according to the temperature point you set.

SLEEP Operation:

When selected, the temperature will increase while cooling

or decrease while heating by 1C / 2F per hour for the ﬁrst 2

hours. There after it keeps this new temperature for 5

hours before SLEEP mode switches oﬀ.

DRYING Operation:

The temperature is regulated while dehumidifying by

intermittently switching the cooling or fan-only operation on

and oﬀ. The fan speed is set to LOW.

HEATING Operation:

This unit is a heat pump by design. By reversing the air

conditioning process, it absorbs heat from outdoors and

transfers it to the indoor unit. As a result, the operating

performance and eﬃciency is reduced as the outdoor air

temperature drops. If you feel that the heating

performance is insuﬃcient, it is recommended that you

supplement heating with other appliances.

Optimal Operation:

To achieve optimal performance, please note the following:

· Adjust the airﬂow direction correctly, so that it is not

towards people or at an extreme angle.

· Adjust the temperature to achieve moderate comfort

levels. An excessively low or high temperature setting

wastes energy.

· Keep windows and doors closed, as this improves

performance.

· Limit energy usage (run time) by using the TIMER

function.

· Do not put any objects near the air inlets / outlets.

Doing so would impair performance and possible shut

down the unit.

· Inspect the air ﬁlters periodically, and clean them as

needed.

1hour

1 hour

Set

Temperature

Cooling

SLEEP operation

7 hours

timer OFF

Set

Temperature

Heating

1 hour 1hour

SLEEP operation

7 hours

timer OFF

How the air conditioner works

Closing the curtains

while heating also

helps keep the heat

Doors and windows

should be kept

closed

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere MrCool Klimaanlage Handbücher

MrCool

MrCool 18 Series Bedienungsanleitung

MrCool

MrCool DIY-MULTI2-18HP230C Bedienungsanleitung

MrCool

MrCool Signature Series Kurzanleitung

MrCool

MrCool DIY Series Bedienungsanleitung

MrCool

MrCool Oasis Series Bedienungsanleitung

MrCool

MrCool MAC17 A Series Bedienungsanleitung

MrCool

MrCool Signature MCVP Series Bedienungsanleitung

MrCool

MrCool Olympus Hyper Heat Series Bedienungsanleitung

MrCool

MrCool DIY E Star Series Kurzanleitung

MrCool

MrCool Signature Series Bedienungsanleitung

MrCool

MrCool Advantage 9k Bedienungsanleitung

MrCool

MrCool DIY Series Bedienungsanleitung

MrCool

MrCool MWUC 5 Series Betriebsanleitung

MrCool

MrCool Olympus Series Bedienungsanleitung

MrCool

MrCool Advantage Series Bedienungsanleitung

MrCool

MrCool Signature MAC16 A Series Bedienungsanleitung

MrCool

MrCool DIY Series Bedienungsanleitung

MrCool

MrCool DIY E Star Series Technisches Handbuch

MrCool

MrCool Signature Series Kurzanleitung

MrCool

MrCool DIY E Star Series Technisches Handbuch

MrCool

MrCool DIY Series Bedienungsanleitung

MrCool

MrCool Advantage Series Bedienungsanleitung

MrCool

MrCool Advantage Series Bedienungsanleitung

MrCool

MrCool DIYCASSETTE HP-230C25 Series Betriebsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
