MSI MS-S278 Bedienungsanleitung

Network System

User Guide

N1010

2Contents

Revision

V1.0, 2022/08

Contents

Technical Support......................................................................................................... 3

Safety Information ......................................................................................................... 3

WEEE Statement .......................................................................................................... 4

Chemical Substances Information.............................................................................. 4

Battery........................................................................................................................... 4

CE Conformity............................................................................................................... 5

FCC-A Radio Frequency Interference Statement...................................................... 5

System Overview .......................................................................................................... 6

MS-S278.................................................................................................................. 6

System Specifications .................................................................................................. 9

Motherboard Connector ............................................................................................ 10

Motherboard Jumper................................................................................................. 13

Getting Started............................................................................................................ 14

Necessary Tools ................................................................................................... 14

Safety Precautions................................................................................................ 15

System Setup.............................................................................................................. 16

Memory ....................................................................................................................... 16

Recommended Memory Population..................................................................... 17

SATA Disk on Module (Optional) ............................................................................... 18

M.2 Slot (Optional) ...................................................................................................... 19

CON1: E Key (PCIe 3.0 x1, 2230)........................................................................... 19

CON2: B Key (3042/ 3052)..................................................................................... 19

CON3: M Key (PCIe 3.0 x1, 2242/ 2280) ................................................................ 20

Hard Disk Drive (Optional) ......................................................................................... 21

a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names

mentioned may be trademarks of their respective owners. No warranty as to accuracy

or completeness is expressed or implied. MSI reserves the right to make changes to

this document without prior notice.

Technical Support

If a problem arises with your product and no solution can be obtained from the user’s

manual, please contact your place of purchase or local distributor. Alternatively,

please visit https://www.msi.com/support/ for further guidance.

Safety Information

∙Always read the safety instructions carefully.

∙Keep this User’s Manual for future reference.

∙Keep this equipment away from humidity.

∙Lay this equipment on a reliable flat surface before setting it up.

∙The openings on the enclosure are for air convection hence protects the equipment

from overheating. Do not cover the openings.

∙Make sure the voltage of the power source and adjust properly before connecting

the equipment to the power inlet.

∙Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

∙Always unplug the power cord before inserting any add-on card or module.

∙All cautions and warnings on the equipment should be noted.

∙Never pour any liquid into the opening that could damage or cause electrical shock.

∙If any of the following situations arises, get the equipment checked by service

personnel:

∙The power cord or plug is damaged.

∙Liquid has penetrated into the equipment.

∙The equipment has been exposed to moisture.

∙The equipment does not work well or you can not get it work according to User’s

Manual.

∙The equipment has dropped and damaged.

∙The equipment has obvious sign of breakage.

∙Do not leave this equipment in an environment unconditioned, storage

temperature above 60°C (140°F), it may damage the equipment.

4WEEE Statement

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2012/19/EU, products of “electrical and

electronic equipment” cannot be discarded as municipal waste anymore

and manufacturers of covered electronic equipment will be obligated to

take back such products at the end of their useful life.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH

Regulation (Regulation EC No. 1907/2006 of the European Parliament and the

Council), MSI provides the information of chemical substances in products at:

https://csr.msi.com/global/index

Battery

Please take special precautions if this product comes with a battery.

∙Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer.

∙Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or

cutting of a battery, which can result in an explosion.

∙Avoid leaving a battery in an extremely high temperature or extremely low air

pressure environment that can result in an explosion or the leakage of flammable

liquid or gas.

∙Do not ingest battery. If the coin/button cell battery is swallowed, it can cause

severe internal burns and can lead to death. Keep new and used batteries away

from children.

European Union:

Batteries, battery packs, and accumulators should not be disposed of as

unsorted household waste. Please use the public collection system to

return, recycle, or treat them in compliance with the local regulations.

Taiwan:

廢電池請回收

For better environmental protection, waste batteries should be collected

separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires

special handling when recycled or disposed of in California.

For further information please visit: https://dtsc.ca.gov/perchlorate/

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in

compliance with the essential safety requirements and other relevant

provisions set out in the European Directive.

FCC-A Radio Frequency Interference

Statement

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the interference at his

own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply

with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

∙this device may not cause harmful interference, and

∙this device must accept any interference received, including interference that may

cause undesired operation.

6System Overview

System Overview

MS-S278

1 2 3 4 5 6 7

9 9 9 98

System Overview

1Power Connector

Power supplied through this jack supplies power to your system.

2System Power Button

Press the system power button to turn the system on or off.

3System Reset Button

Press the system reset button to reset the system.

4HDMI Connector

Supports 4K@30Hz as specified in HDMI 1.4b.

5USB 3.2 Gen 1 Port

This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)

GbE RJ45 Port

The standard RJ45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Green Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Orange 100 Mbps

Green 1 Gbps

GbE SFP Port

The SFP(Small Form-factor Pluggable) Lan Port is provideed for connection

to the SFP transceivers.

LINK/ ACT LED LINK/ ACT LED

SPEED LED SPEED LED

LED Status Description

Link/ Activity LED

Off Lan link is not established

Green Lan link is established

Blinking Lan activity is occurring

Speed LED Off No link

Green Gigabit mode

8System Overview

RJ45 Serial Console Port

Network routers and switches typically require an RS-232 serial data

connection to interface with the system for initial configuration. Serial data

connections may also be used for diagnostics purposes, especially when

a network device is malfunctioning and unreachable over the network.

Connect a specially configured RJ45 console cable to this jack for network

routers/switches to communicate with the system through a serial

connection.

9Antenna Connector

The antenna connector is provided for WiFi & LTE antennas.

LED Indicators

LED Status Description

1-8

LANs

Off Lan link is not established

Blink in Green Lan activity is occurring

Alarm

Off Running / normal operation

Red CPU or system overheat / fan, monitor &

voltage abnormal

Power Off Power off / ACPI S5 state

Green Power on / ACPI S0 state

System Specifications

Model MS-S278

Model Number N1010

Processor Intel® Atom™ Elkhart Lake, 4C4T, 2.0GHz, 10nm

Cipset Nuvoton NCT6126D

Memory 2 x SO-DIMM slots, DDR4 non-ECC, up to 16GB

Storage ∙1 x M.2 M-key 2242/ 2280 (SATA/ PCIe)

∙1 x Internal 2.5” SSD (SATA 3.0)

Networking ∙6 x GbE RJ45 ports

∙2 x GbE SFP ports

Expansion Slots ∙1 x M.2 E-key 2230 (2T2R -Wifi: 802.11ac/ ax; BT: 4.2/ 5.0)

∙1 x M.2 B-key 3042/3052 (LTE/ 5G)

Front I/O

∙6 x GbE RJ45 ports

∙2 x GbE SFP ports

∙3 x USB 3.0 ports

∙1 x Serial COM RJ45 (Console) port

∙1 x HDMI port

∙4 x Antennas (for Wi-Fi/ LTE supported)

∙1 x Power Switch (w/ LED)

∙1 x reset button (w/ LED)

∙1 x DC 12V Jack (Rear)

Rear I/O ∙2 x LEDs (Power, Status)

∙8 x LEDs (LANs ) (Status/ transfer)

Security TPM header

Power Supply 60W adapter

Environmental ∙Operating Temperature: 0°C ~ 40°C

∙Storage temperature: -20℃~70℃

Certifications CE, FCC (Class A)

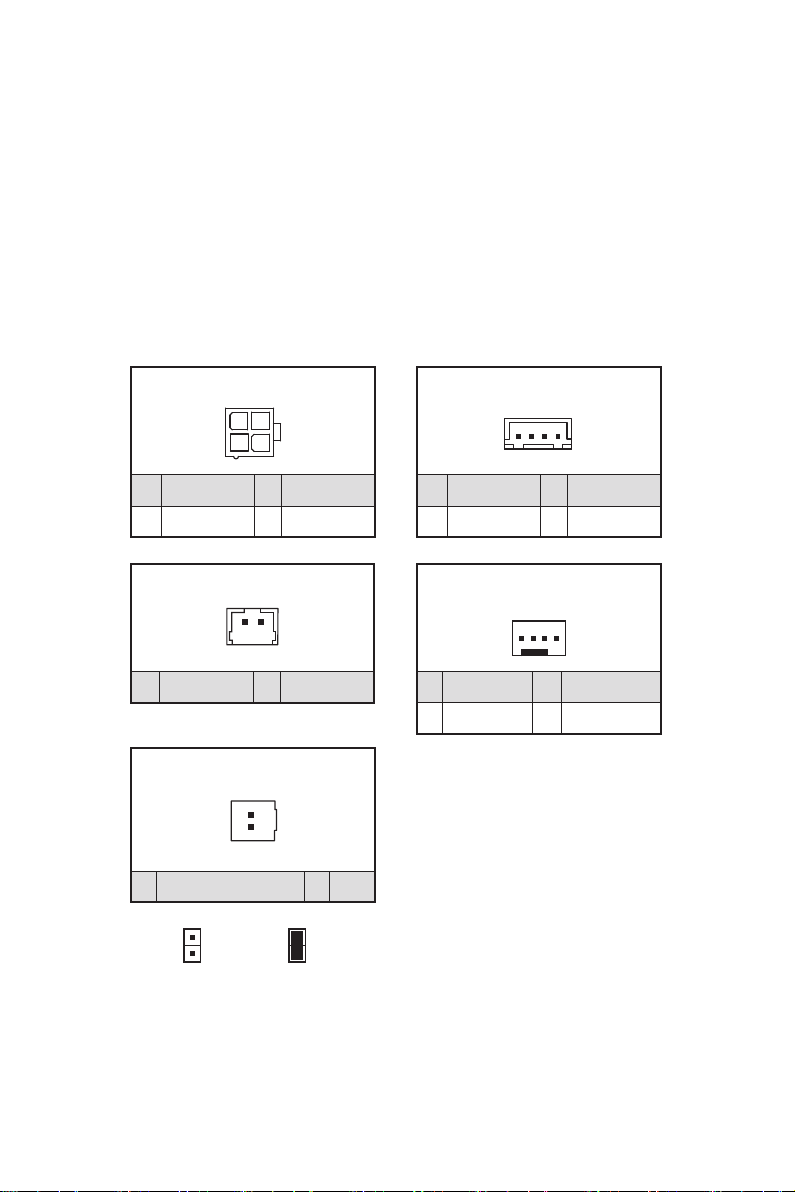

10 Motherboard Connector

Motherboard Connector

JPWR1: ATX 4-pin Power Connector

JHDDPWR1: HDD Power Connector

JSDOMPWR1, JSDOMPWR2: SATA DOM Power Connector

CPU_FAN1, SYS_FAN1: Fan Power Connector

JCI1: Chassis Intrusion Header

JPWR1

2 GND 4 P5V

1 GND 3 P12V

JHDDPWR1

1 P5V 2 GND

3 GND 4 P12V

JSDOMPWR1

2 P5V 1 GND

JCI1

1 FM_INTRUDER_HDR_N 2 GND

Normal

(default)

Trigger the chassis

intrusion event

SYS_FAN1

CPU_FAN1

1 GND 2 FAN POWER

3 FAN SENSE 4 FAN_PWM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere MSI Computerhardware Handbücher

MSI

MSI MS-98G5 Bedienungsanleitung

MSI

MSI KT6M-ILS Bedienungsanleitung

MSI

MSI P55-GD61 Series Bedienungsanleitung

MSI

MSI TV@nywhere Satellite Bedienungsanleitung

MSI

MSI TV@nywhere A/D Bedienungsanleitung

MSI

MSI HMI 2.0 Bedienungsanleitung

MSI

MSI MS-CF03 Bedienungsanleitung

MSI

MSI MPG CORELIQUID K360 V2 Bedienungsanleitung

MSI

MSI msignage LS15 Bedienungsanleitung

MSI

MSI MS-CF05-SKU1 Bedienungsanleitung

MSI

MSI MAG CORELIQUID 360R V2 Bedienungsanleitung

MSI

MSI TV Series Bedienungsanleitung

MSI

MSI Digital@nywhere-ATSC Bedienungsanleitung

MSI

MSI MAG CORELIQUID C360 Bedienungsanleitung

MSI

MSI MS-6593 ATX Bedienungsanleitung

MSI

MSI MS-7846 Bedienungsanleitung

MSI

MSI CB11B Bedienungsanleitung

MSI

MSI MN54G Bedienungsanleitung

MSI

MSI R5750 Series Bedienungsanleitung

MSI

MSI MPG CORELIQUID K360 Bedienungsanleitung

MSI

MSI MS-9856 Bedienungsanleitung

MSI

MSI MEG PROSPECT 700RL Bedienungsanleitung

MSI

MSI MS-9A95 WindBOX IV Advanced Bedienungsanleitung

MSI

MSI PCI-E 4.0 X16 RISER CABLE 180mm Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
