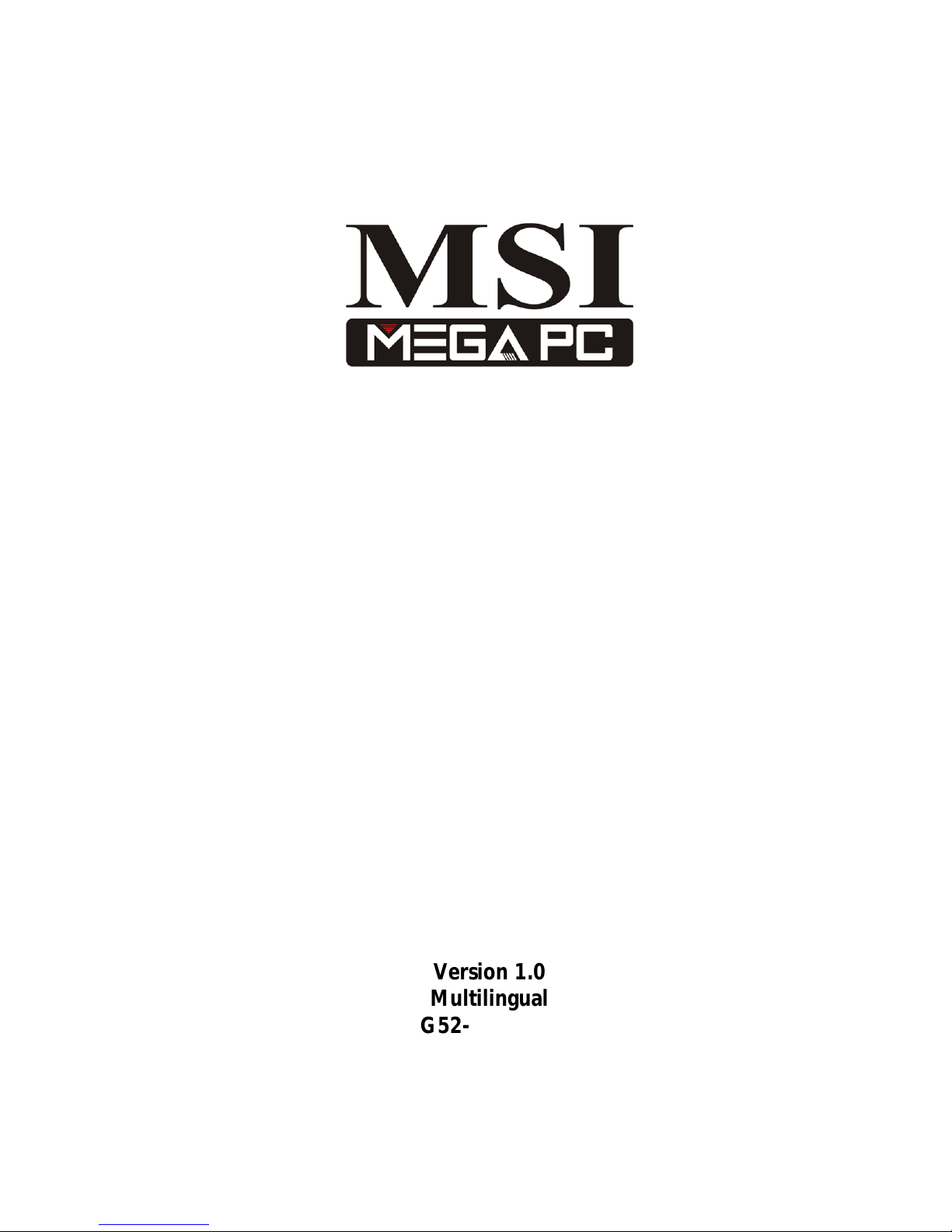

MSI MPC 400 Bedienungsanleitung

○○○○○○○○○○○○○○○○○○○○○○○○○○○

Version 1.0

Multilingual

G52-B6253X2

QuicQuic

Quick Insk Ins

k Insk Ins

k Instt

tallall

allall

allaa

ation Guidetion Guide

tion Guidetion Guide

tion Guide

○○○○○○○○○○○○○○○○○○○○○○○○○○

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document, but

no guarantee is given as to the correctness of its contents. Our products are

under continual improvement and we reserve the right to make changes without

notice.

Trademarks

All trademarks used in this manual are the property of their respective owners.

About this Manual

This manual is designed to provide the user a quick reference for barebone setup.

As MEGA400 is shipped out in a barebone, we assume you need the information

regarding how to assembly the system, such as CPU, RAM, HDD..., etc. Based

on this assumption, we make this manual of quick installation guide. Please

follow the description step by step to assembly the components. If you have any

question in assembling the system, you can contact your dealer or our technical

support.

Revision History

Revision Revision History Date

V 1.0 First Release Dec. 2003

○○○○○○○○○○○○○○○○○○○○○○○○○○○

CONTENTS

English ......................................................................................................... 5

French (FRANÇAIS).............................................................................................. 15

German (DEUTSCH) ............................................................................................. 25

Spanish (ESPAÑOL) .............................................................................................. 35

Italy (ITALIANO).................................................................................................... 45

Russian ( ) ................................................................... 55

Polish (POLSKI)..................................................................................................... 65

Chinese (繁體中文) ..................................................................................................... 75

Simplified Chinese (簡体中文) ................................................................................. 85

Japanese (日本語) ........................................................................................ 95

NOTE: This manual is written just for system assembly. For complete

information about the system, please refer to the user’s manual in CD.

РУССКИЙ

○○○○○○○○○○○○○○○○○○○○○○○○○○

Technical Support

If a problem arises with your system and no solution can be

obtained from the user’s manual, please contact your place

of purchase or local distributor. Alternatively, please try the

following help resources for further guidance.

Visit the MSI website for FAQ, technical guide, BIOS

updates, driver updates, and other information: http://

www.msi.com.tw/

Contact our technical staff at: [email protected]

○○○○○○○○○○○○○○○○○○○○○○○○○○○

overview

The MEGA400 is shipped out as a bare bone. Some components are

equipped while some are optional. See the following for the standard and op-

tional items:

This manual provides you with the information of system setup. Before

assembling your system, please be prepared for the installation tools and appro-

priate items. If you are not clear about the items, contact your dealer for the

information.

Installation Tools

Screws

You will find two types of screws in the package.

Fastening HDD

Screw Driver Gloves

Type 1 Type 2

Standard Mainboard, Power Supply, Case, Cables, Cooler,

Radio Antenna, Remote Controller, Card Reader,

CD, Manual

Optional TV-Tuner Card MS-8606

Fastening CD-ROM

○○○○○○○○○○○○○○○○○○○○○○○○○○

Installation Flowchart

Install HDD Install CPU&

Cooler Install Optical

Drives

Checking the Items

Before starting the assembling, check the items you need.

HDD Module CPU

CPU Cooler

CD-ROM Module DDR DIMM

Radio Antenna

NOTICE!!!

To provide you with the complete steps

from mechanical view, we STRONGLY

suggest you to follow the installation

procedures from p. 7~ p. 13.

Start Remove Cover

Install RAM Replace Cover

○○○○○○○○○○○○○○○○○○○○○○○○○○○

Removing Cover

Check the bare bone inside. The Card Reader

is already equipped in.

Use your hand to free and remove the three

thumb screws on the back panel.

Use your two hands to remove the cover.

Follow the direction indicated to remove the

cover.

Card Reader

○○○○○○○○○○○○○○○○○○○○○○○○○○

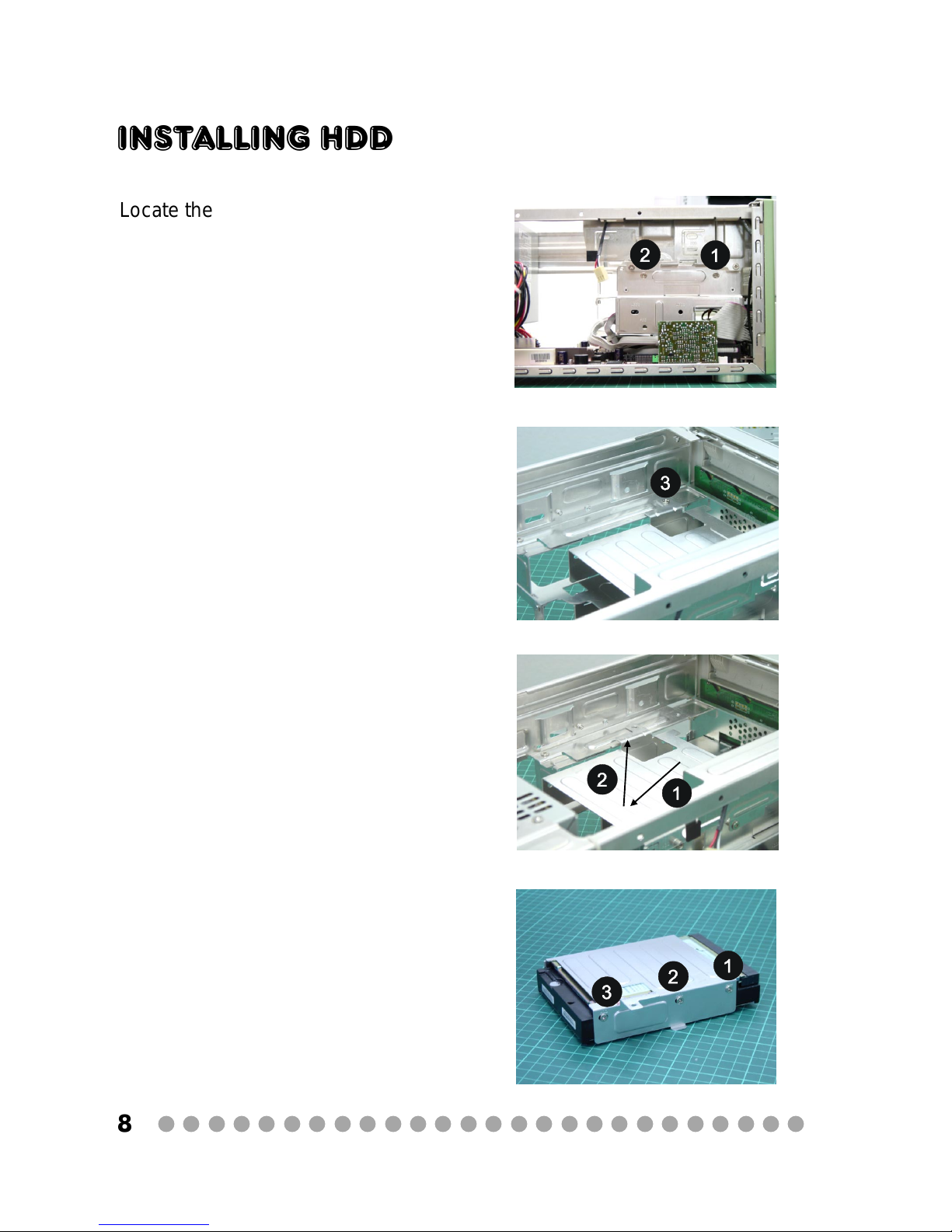

Installing hdd

Locate the bracket. Remove the screws to

take out the bracket.

Insert the HDD module into the bracket. Use

Type 2 screws to secure the module from the

right side.

Follow the direction indicated to take out

the bracket.

○○○○○○○○○○○○○○○○○○○○○○○○○○○

Connect the power cord.

Connect the specific HDD cable which is

marked “HDD Master”.

Insert the HDD bracket into the case. Use

Type 2 screws to secure the HDD bracket

from the left side.

Use Type 2 screws to secure the module from

the left side.

○○○○○○○○○○○○○○○○○○○○○○○○○○

Installing CPU

Put the CPU onto the socket. Make sure the

pins are completely embedded into the

socket. The CPU can only fit in the correct

direction.

Pull the lever away from the socket and raise

it up to a 90-degree angle.

Close the lever to complete the installation.

Locate the CPU socket.
