MSI PRO AP241 Bedienungsanleitung

PRO Series

All-in-one PC

PRO AP241

(MS-AE03)

User Guide

2Contents

Contents

Getting Started.............................................................................................................. 3

Package Contents................................................................................................... 3

Safety & Comfort Tips ............................................................................................ 3

System Overview..................................................................................................... 4

Hardware Setup...................................................................................................... 7

Component Replacement & Upgrade .................................................................. 10

System Operations ..................................................................................................... 11

Power Management ............................................................................................. 11

Network Connection (Windows 10) ...................................................................... 13

System Recovery (Windows 10)............................................................................ 16

System Recovery (F3 Hotkey Recovery) (Optional) .............................................. 20

Troubleshooting.......................................................................................................... 21

Safety Instructions...................................................................................................... 23

Regulatory Notices..................................................................................................... 25

Revision

V1.0, 2021/07

Getting Started

This chapter provides you with the information on hardware setup procedures. While

connecting devices, be careful in holding the devices and use a grounded wrist strap

to avoid static electricity.

Package Contents

All-in-one PC MS-AE03

Documentation

User Guide (Optional)

Quick Guide (Optional)

Warranty Card & Warranty Book (Optional)

Accessories

Mouse (Optional)

Keyboard (Optional)

Webcam (Optional)

AC/DC Adapter

Power Cord

⚠

Important

∙

Contact your place of purchase or local distributor if any of the items is damaged or

missing.

∙

Package contents may vary by country.

∙

The included power cord is exclusively for this personal computer and should not be

used with other products.

Safety & Comfort Tips

∙Choosing a good workspace is important if you have to work with your PC for a long

period of time.

∙Your work area should have enough illumination.

∙Choose the proper desk and chair and adjust their height to fit your posture when

operating.

∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s

back (if available) to support your back comfortably.

∙Place you feet flat and naturally on the floor, so that your knees and elbows have the

proper position (about 90-degree) when operating.

∙Put your hands on the desk naturally to support your wrists.

∙Avoid using your PC in a place where discomfort may occur (such as on the bed).

∙The PC is an electrical device. Please treat it with great care to avoid personal

injury.

4Getting Started

System Overview

789

12 13

10 10

Getting Started

1USB 2.0 Port

This connector is provided for USB peripheral devices. (Speed up to 480

Mbps)

⚠

Important

High-speed devices are recommended for USB 3.2 ports whereas low-

speed devices, such as mouse or keyboard, are suggested to be plugged

into the USB 2.0 ports.

2Ventilator

3Power Button

4Brighness Adjustment Button

5Stereo Speaker

6Kensington Lock

7Power Jack

8HDMI 2.0a Port

Supports a maximum resolution of 4K 60Hz.

⚠

Important

∙

Available for the processor with integrated graphics.

∙

Graphics specifications may vary depending on the installed CPU.

9Serial Port

10 USB 3.2 Gen 1 Port

This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)

6Getting Started

11 LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Green 100 Mbps

Orange 1 Gbps

12 Mic-In Jack

13 Line-Out

Getting Started

Hardware Setup

Installing the Monitor Stand

1. Take out the stand assembly and base from the package.

2. Rotate the stand assembly counter-clockwise and push the it downwards to the

base.

3. Rotate closewise until it locks in place. You can hear an audible “Click” when the

latch is engaged.

4. Align the stand to sockets on monitor groove. Push the stand up until it snaps into

its place. Make sure the stand assembly is properly installed before setting the

monitor upright.

45°

8Getting Started

Connecting the Power

Connect the adapter to the AIO PC and plug in the power cord.

•90W: 100-240V, 19V 4.74A (optional)

•120W: 100-240V, 19.5V 6.15A

Press the power button to power on the AIO PC.

Getting Started

Adjusting the Monitor

This AIO PC is designed to maximize your viewing comfort with its adjustment

capabilities.

⚠

Important

∙

The illustrations are for reference only. Your AIO PC may vary in appearance.

∙

Please make sure the AIO PC has been grounded to earth through the AC power

cord and the electrical outlet before powering on the AIO PC.

∙

Do not use any sharp objects on the display panel.

∙

Avoid pressing the display panel when adjusting.

-5

10 Getting Started

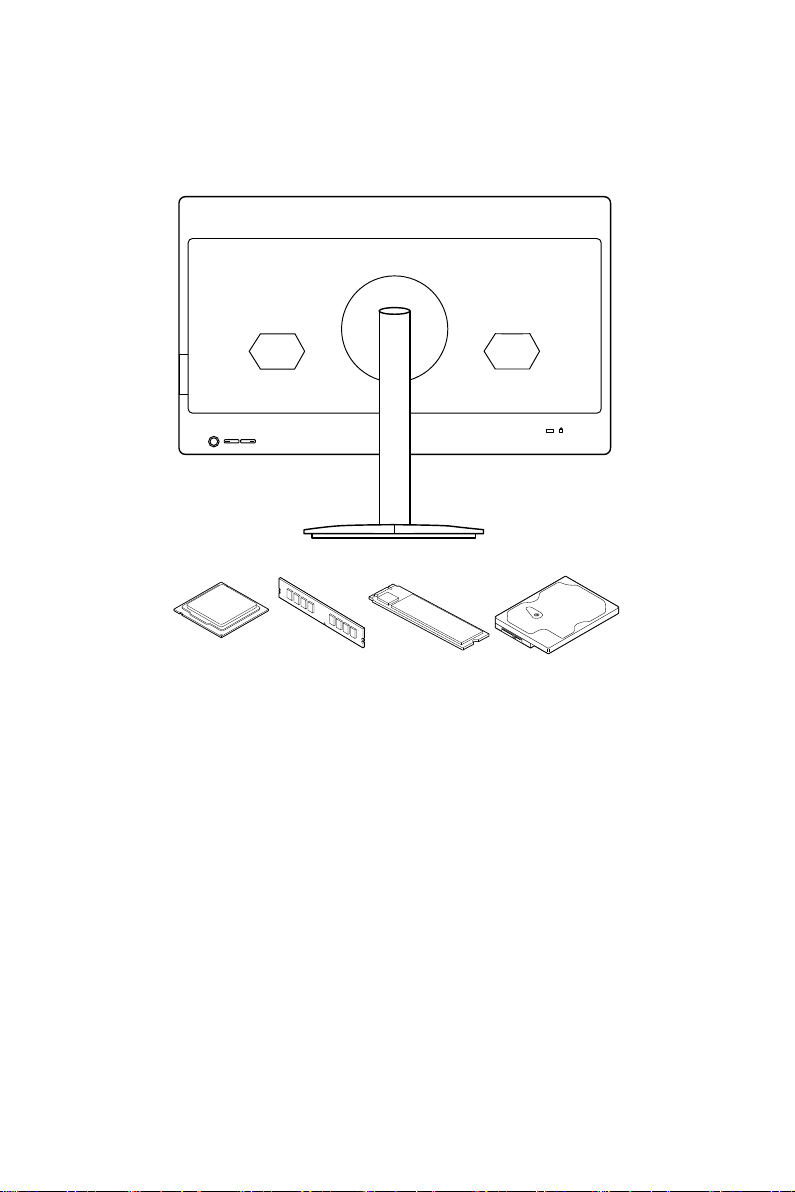

Component Replacement & Upgrade

Please note that certain components preinstalled in the product may be upgradable or

replaceable by user’s request depending on the models users purchased.

For any further information on the product users purchased, please contact the local

dealer. Do not attempt to upgrade or replace any component of the product if you are

not an authorized dealer or service center, since it may cause the warranty void. It is

strongly recommended that you contact the authorized dealer or service center for

any upgrade or replace service.
