110W (MS-N0E1) Disassembly Guide
■ 1、COVER ASSY
■ 2、MB ASSY
■ 3、LCD MODULE ASSY
110W（MS-N0E1）Disassembly Guide
1、COVER ASSY
1.1：Remove the 4 Rubbers, then remove the 4
screws (M2.5*5mm).
Attention: the screw driver torque is 1.5-2.0Kgf-cm
Component P/N Qty
Rubber E2Y-0E10711-Y40 4
Screw E43-1255001-H29 4
1.2：Remove the volume button.
1.3 ：Separate the Cover and Bezel, first
remove the up side, and then remove left
side and right side, last remove the down
side.
UP
LEFTRIGHT
DOWN
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.1：Remove the battery cable.
2.2：Remove the GPS Mylar as pic shows.
2.3：Remove the 2 screws(M2*3mm), then remove
the antenna and GPS card.
Attention: the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
GPS card S5D-0400010-T46 1
Screw E43-1203003-H29 2
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.4：Remove the 1 screw(M2*3mm), then remove
the antenna and wireless card.
Attention: the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Wireless card S57-0800590-T46 1
Screw E43-1203003-H29 1
2.5：Remove the 3 screws (M2*3mm) that stabilize
the battery. Then remove the Battery.
Attention: the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 3
Battery S9N-422A200-SB3 1
2.6：Push the two sides shielding of RAM as pic
shows; Then remove the RAM module according
the direction as pic shows.
Component P/N Qty
RAM Module S7C-S459106-AJ9 1
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.7：Remove the 2 screws (M2*3mm) that stabilize
the USB Board.
Attention: the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
USB Board 607-N0E1A-01S 1
2.8：Remove the USB FFC.
2.9：Remove the GPS and Wlan antenna.
Wlan
GPS
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.10：Remove the 1 screw (M2*3mm) that stabilize
the SSD. Then remove the SSD card.
Attention: the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 1
SSD S78-4405100-S77 1
2.11：Remove the 1 screw (M2*3mm) that stabilize
the FAN.
Attention: the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 1

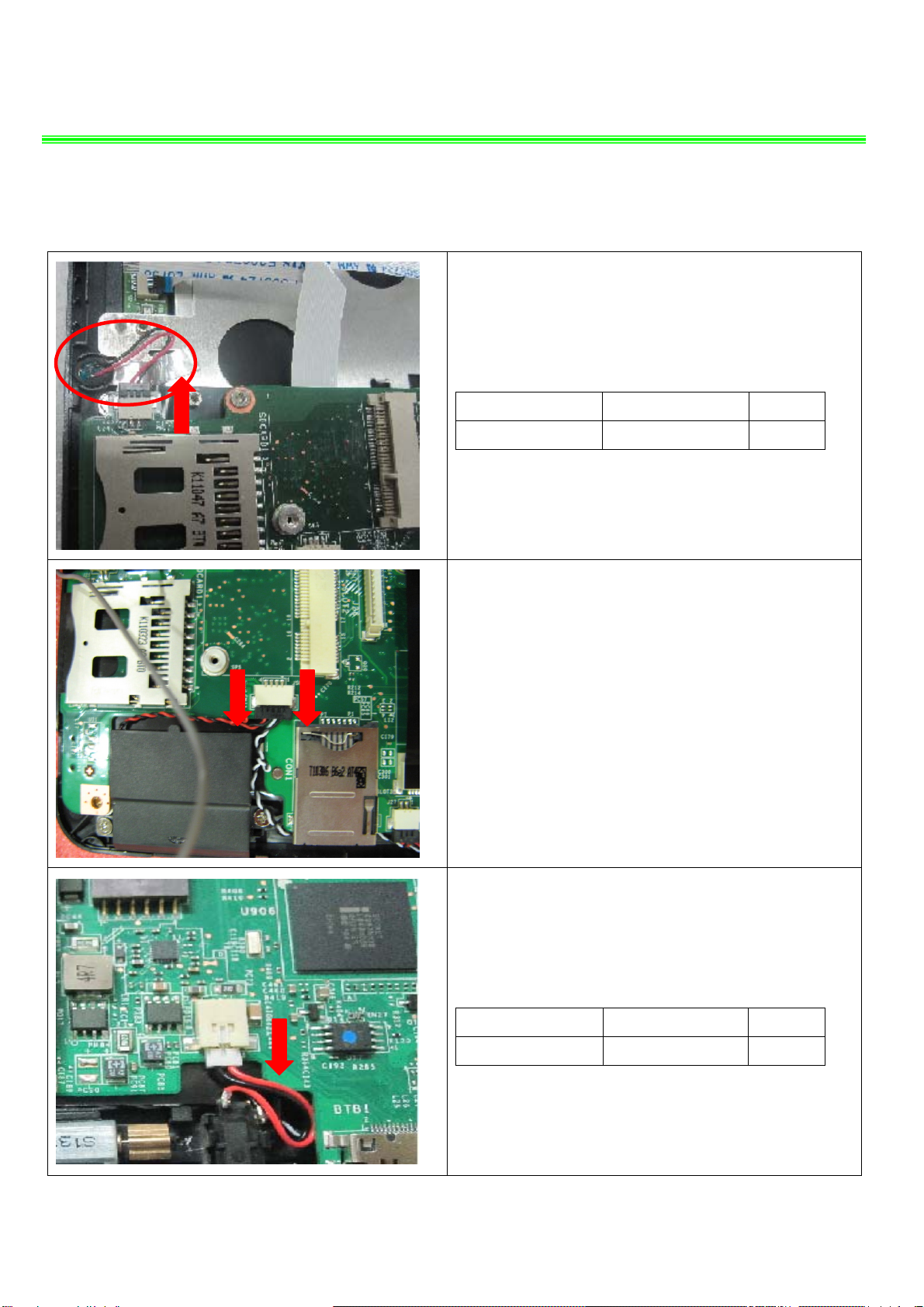

2.12：Remove the LVDS cable as pic shows.
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.13：Remove the MIC cable as pic shows. Then
remove the MIC.
Component P/N Qty
MIC S34-2101270-K03 1
2.14：Remove the Speaker cable as pic shows.
2.15：Remove the Power cable, and then remove the
Power connector.
Component P/N Qty
Power connector N93-02M0031-A81 1
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.16：Remove the Motor cable.
2.17：Remove the Motor.
2.18：Separate the Motor and the rubber.
Component P/N Qty
Motor OS9-N0D1001 1
Rubber E2Y-0D10511-Y40 1
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.19: Remove the left camera, then tear the
golden tape, after that remove the right
camera cable and the camera.
Component P/N Qty
Camera Module S1F-0001870-B36 1
2.20: Remove the 1 screw (M2*4mm), after that
remove the FAN cable and FAN.
Attention：the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1204004-H29 1
Fan E33-0601440-MC2 1
2.21: Remove the 2 screws (M2*3mm), after that
remove the Heatsink.
Attention：the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
Heatsink E31-0802830-Y31 1
2
1
110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.22：Remove the 2 screws (M2*3mm), after that
remove the MB.
Attention：the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
2.23: Remove the FFC.
Component P/N Qty
MB 607-N0E11-01S 1
2.24: Remove the 4 screws (M2*3mm), after that
remove the speaker.
Attention：the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 4
Speaker S78-1310030-SY7 1
