MSI 651M-V Bedienungsanleitung

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LANOTICE D’NSTALLATIONAVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7005

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation

G52-M7005XD

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in

the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are

under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.

Intel® and Pentium® are registered trademarks of Intel Corporation.

PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.

Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered trademarks

of Microsoft Corporation.

NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the

United States and/or other countries.

Netware® is a registered trademark of Novell, Inc.

Award® is a registered trademark of Phoenix Technologies Ltd.

AMI® is a registered trademark of American Megatrends Inc.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.

PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.

Revision History

Revision Revision History Date

V2.0 First release of for PCB 2.x with chipsets SiS651 & SiS962L April 2004

V2.1 First release of Multi-language version for PCB 2.x April 2004

V2.2 USB connector pin definition updated October 2004

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not

cover the openings.

6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the

power inlet.

7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical shock.

11. If any of the following situations arises, get the equipment checked by a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated into the equipment.

- The equipment has been exposed to moisture.

- The equipment does not work well or you can not get it work according to User Manual.

- The equipment has dropped and damaged.

- The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage temperature above 600 C (1400F), it may

damage the equipment.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer.

Table of Content

English.....................................................................1

Deutsch....................................................................15

Français...................................................................25

简体中文...................................................................37

繁體中文...................................................................49

Nederlands..............................................................60

日本語.......................................................................73

Introduction

Thank you for choosing the 651M-V Series (MS-7005 v2.X) microATX mainboard. The 651M-V Series

is based on SiS ® 651 & 962L chipsets for optimal system efficiency. Designed to fit the advanced Intel

® Pentium ® 4 processors in 478 pin package, the 651M-V Series delivers a high performance and

professional desktop platform solution.

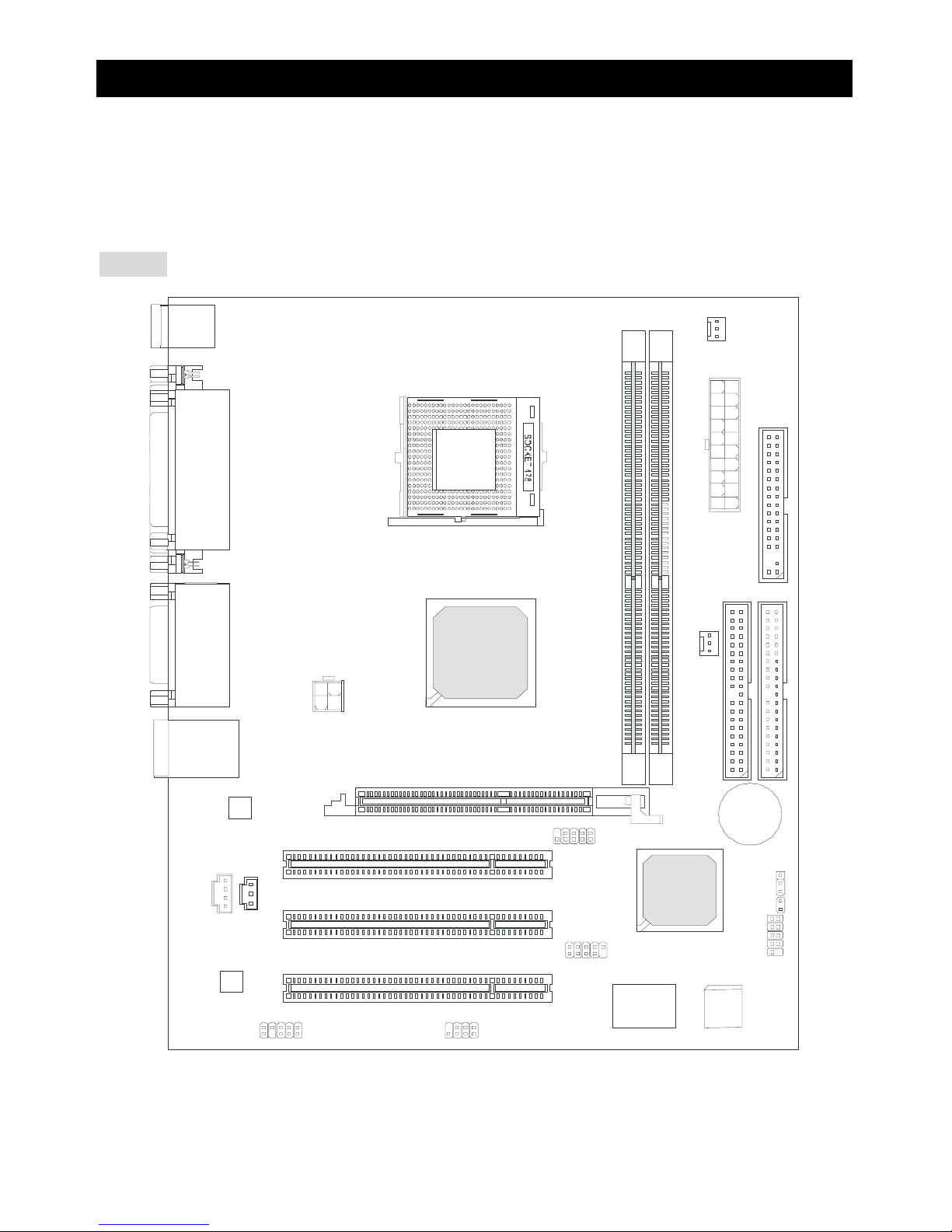

Layout

BATT

SiS

962L

SiS 651

DDR1

DDR2

JAUD1

ATX

PowerSupply

SYSFAN1

CPUFAN1

JFP1

JFP2

Codec

Realtek

8201BL

Winbond

W83697HF

BIOS

PCI Slot 3

PCI Slot 2

PCI Slot 1

IDE2

FDD1

IDE1

ATX12V

Top :mouse

Bottom: keyboard

T: LAN jack

B: USB ports

JCD1

AGPSlot

JCI1

JUSB1

JUSB2

JBAT1

JSP1

Top: Parallel Port

Bottom:

COM A

VGAPort

Top :

Game port

Bottom:

Mic

Line-Out

Line-In

Specifications

CPU

zSocket 478 for P4 processors (Northwood/Prescott) at 400 MHz/533 MHz

zSupports up to 3.06GHz and higher speed CPU

zHyper-Threading CPU

(For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php)

Chipset

zSiS 651 (702 pin BGA)

- High performance host interface 400 MHz/533 MHz

- Supports 64 Bit high performance DDR200/266/333 memory controller

- Supports AGP 4X/2X interface with fast write transaction

- High throughput SiS MuTIOL connect to SiS962L MuTIOL Media I/O

- High performance 2D/3D and Video Accelerator

zSiS 962L MuTIOL Media I/O (371BGA)

- High performance MuTIOL connect to SiS series NB

- Integrated multi-threaded I/O link ensures concurrency of up/down stream data transfer with

1.2GB/s bandwidth

- Integrated USB 2.0/1.1 host controller and Fast Ethernet MAC controller

- Integrated audio controller with AC97 interface

- Advanced power management and PC2001 compliance

- Integrated RTC, DMA, interrupt, and keyboard controllers

- Integrated PCI to LPCC bridge

Main Memory

zSupports two memory banks using two 184-pin unbuffered DDR 200/266/333 DIMMs

zSupports up to 2GB memory size without ECC

(For the updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php)

Slots

zOne AGP (Accelerated Graphics Port) slot that supports AGP 2.0 4X/2X

zThree PCI 2.2 32-bit Master PCI Bus slots (support 3.3V/5V PCI bus interface)

On-Board IDE

zDual IDE controllers integrated in SiS 962L

zSupport Bus Master, Ultra DMA 33/66/100/133 operation modes

zCan connect up to four IDE devices

On-Board Peripherals

zOn-Board Peripherals includes:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port (COMA) and 1 VGA port

- 1 parallel port supports SPP/EPP/ECP mode

- 6 USB 2.0/1.1 ports (Rear * 2 / Front * 4)

- 1 Line-In/Line-Out/Mic-In port

- 1 game port

- 1 RJ-45 LAN connector

Audio

zAC97 link controller integrated in SiS 962L SB

z6 channels S/W audio codec Realtek ALC655 codec

- Compliance withAC97 2.2 Spec

- Meets PC2001 audio performance requirement

LAN

zSiS 962L integrated MAC + Realtek 8201BL PHY

- Support 10Mb/s and 100Mb/s auto-negotiation operation

- Compliance with PCI 2.2 and PC99 standard

zSupports Wake-On-LAN and remote Wake-up

zSupports ACPI power management

BIOS

z4MB Award BIOS with PNP BIOS, ACPI, SMBIOS 2.3, Green and Boot Block

zProvides DMI 2.0, WFM 2.0, WOL, WOR, chassis intrusion, and SMBus for system management

Dimension

zMicro-ATX Form Factor: 24.5 cm (L) x 20.0 cm (W)

Mounting

z6 mounting holes

Others

zLive BIOS/Live Driver Update

zPC2001 Compliant

zSuspends to RAM/Disk

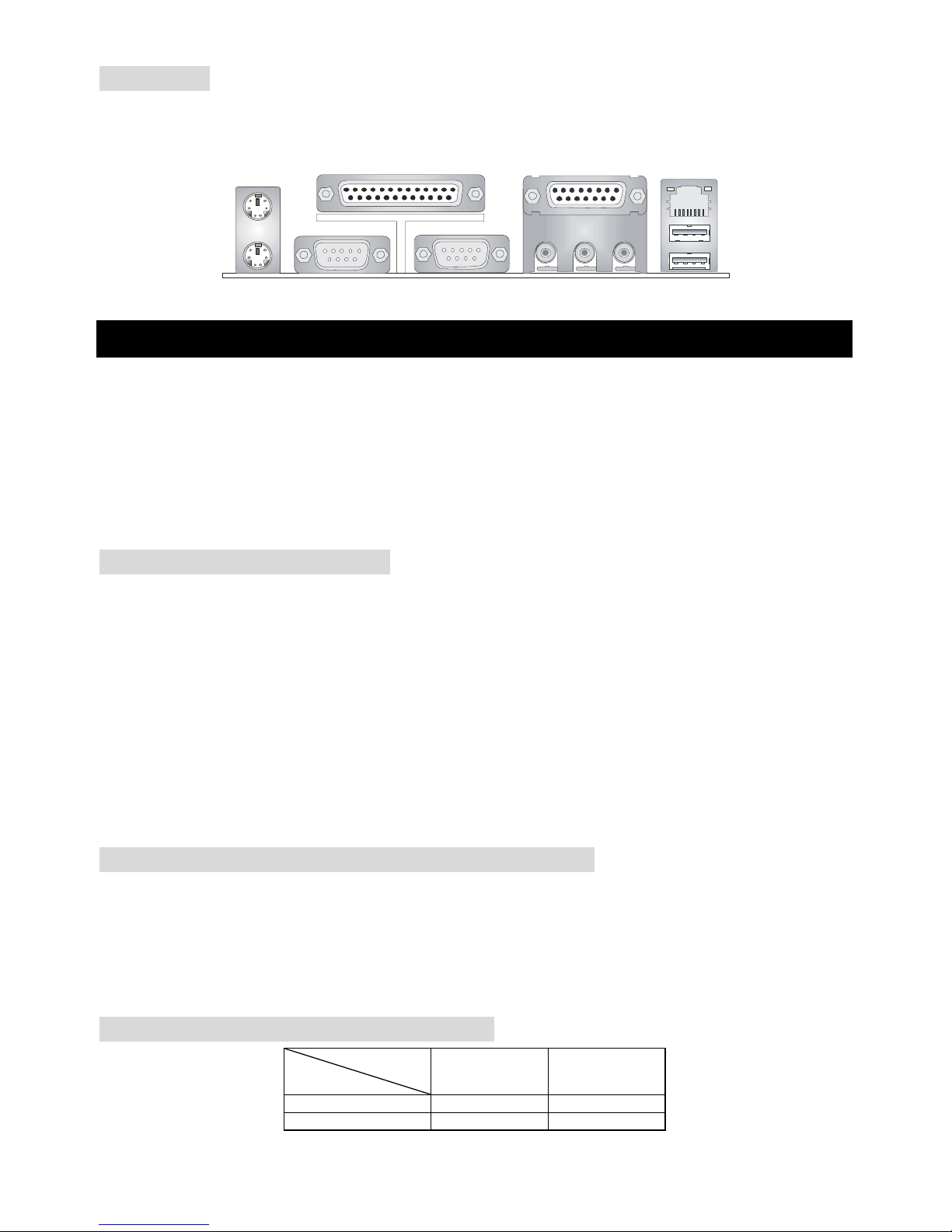

Back Panel

The back panel provides the following connectors:

Mouse

Keyboard

ParallelParallel

COMA VGAPort

L-out L-in MIC

Midi/Joystick LANLAN

USB Ports

Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to

setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral

devices, such as the mouse, keyboard, etc.

While doing the installation, be careful in holding the components and follow the installation

procedures.

Central Processing Unit: CPU

The mainboard supports Intel®Pentium®4 Willamette, Celeron, Northwood and Prescott processor in

the 478 pin package. The mainboard uses a CPU socket called PGA478 for easy CPU installation.

When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached

on the top to prevent overheating. If you do not find the heat sink and cooling fan, contact your

dealer to purchase and install them before turning on the computer.

For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php

Example of CPU Core Speed Derivation Procedure

If CPU Clock = 133MHz

Core/Bus ratio = 23

then CPU core s

eed = Host Clock x Core/Bus ratio

= 133MHz x 23

= 3.06 GHz

Memory Speed/CPU FSB Support Matrix

Memory

FSB DDR 266 DDR 333

400MHz OK OK

533MHz OK OK

CPU Installation Procedures for Socket 478

1. Please turn off the power and unplug the power cord before installing the CPU.

2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree

angle.

3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only

fit in the correct orientation.

4. If the CPU is correctly installed, the pins should be completely embedded into the socket and

can not be seen. Please note that any violation of the correct installation procedures may

cause permanent damages to your mainboard.

5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move

while the lever is being closed, always close the lever with your fingers pressing tightly on top of

the CPU to make sure the CPU is properly and completely embedded into the socket.

Installing the CPU Fan

As processor technology pushes to faster speeds and higher performance, thermal management

becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and

heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:

1. Locate the CPU and its retention mechanism on the motherboard.

2. Position the heatsink onto the retention mechanism.

3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in the

holes of the retention mechanism.

4. Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE

direction.

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector on the

board.

Memory

The mainboard provides two 184-pin unbuffered DDR200/DDR266/DDR333 DDR SDRAM, and

supports the memory size up to 2GB. To operate properly, at least one DIMM module must be installed.

For the updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php

Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any

order. You can install either single- or double-sided modules to meet your own needs.

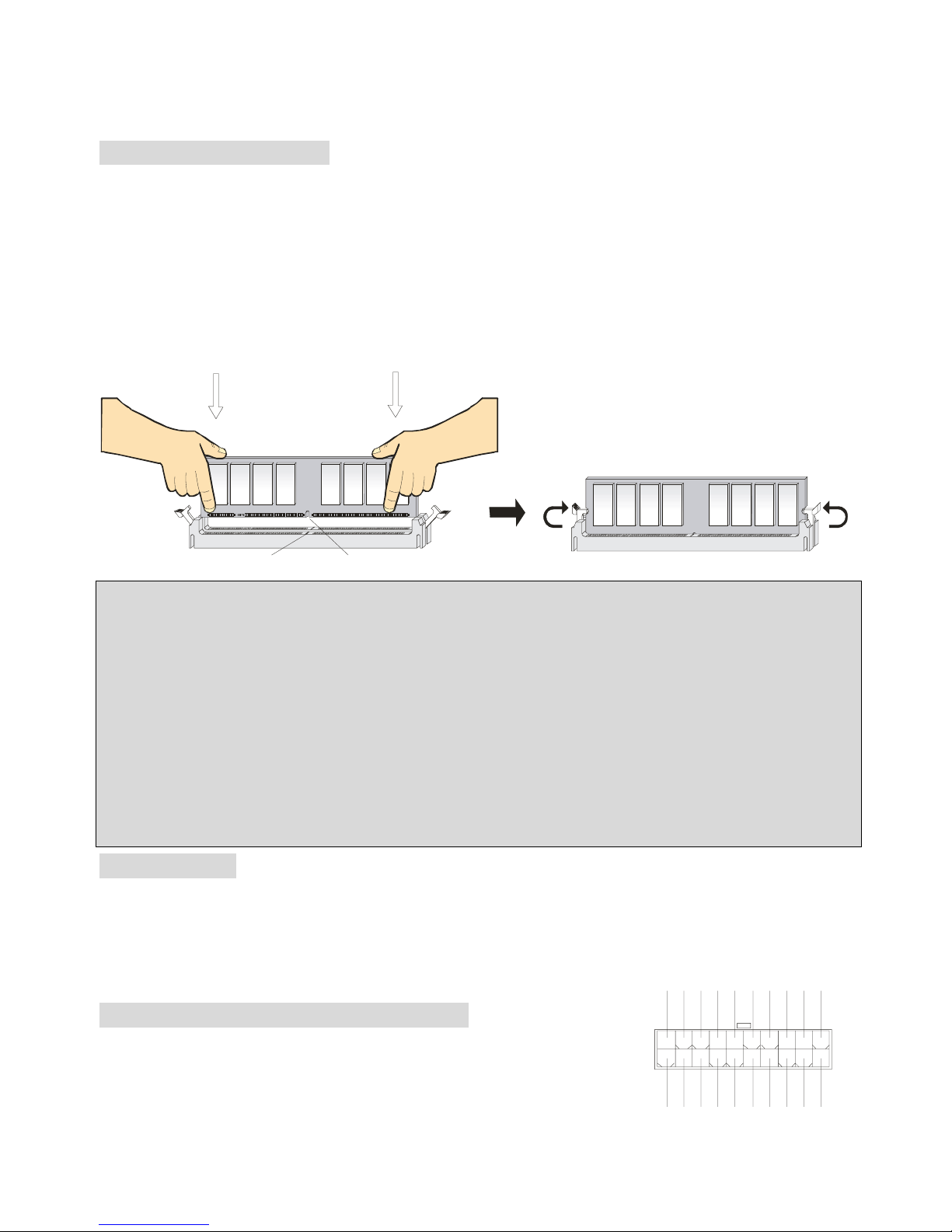

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right

orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden

finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

NotchVolt

MSI Reminds You...

Overheating…

Overheating will seriously damage the CPU and system, always make sure the cooling fan can work

properly to protect the CPU from overheating.

Replacing the CPU…

While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power

cord from grounded outlet first to ensure the safety of CPU.

Power Supply

The mainboard supports ATX power supply for the power system. Before inserting the power supply

connector, always make sure that all components are installed properly to ensure that no damage will

be caused.

ATX 20-Pin Power Connector: CONN1

This connector allows you to connect to an ATX power supply. To

connect to theATX power supply, make sure the plug of the power supply

is inserted in the proper orientation and the pins are aligned. Then push

3.3V

-12V

GND

PW_OK

-5V

5V_SB

12 V 5V

PS_ON

Andere Handbücher für 651M-V

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere MSI Hauptplatine Handbücher

MSI

MSI P45 Neo3 V2 Series Bedienungsanleitung

MSI

MSI B760M PROJECT ZERO Bedienungsanleitung

MSI

MSI B250 GAMING PRO CARBON Bedienungsanleitung

MSI

MSI Z97 GAMING 3 Bedienungsanleitung

MSI

MSI X399 SLI PLUS Bedienungsanleitung

MSI

MSI Z370 GAMING PRO CARBON Bedienungsanleitung

MSI

MSI MS-7260 Bedienungsanleitung

MSI

MSI XPower Series Bedienungsanleitung

MSI

MSI MS-6785 Bedienungsanleitung

MSI

MSI Z97-G43 GAMING Bedienungsanleitung

MSI

MSI B360M PRO-VD Bedienungsanleitung

MSI

MSI K9N2 Diamond Series Bedienungsanleitung

MSI

MSI A320M-A PRO Bedienungsanleitung

MSI

MSI Z170A SLI PLUS Bedienungsanleitung

MSI

MSI MD-3000 Bedienungsanleitung

MSI

MSI MPG B550 GAMING CARBON WIFI Bedienungsanleitung

MSI

MSI 865PE Neo3-F Bedienungsanleitung

MSI

MSI MAG B660M MORTAR WIFI DDR4 Bedienungsanleitung

MSI

MSI MS-6114 Bedienungsanleitung

MSI

MSI Z790-S01 Bedienungsanleitung

MSI

MSI MS-7015 Bedienungsanleitung

MSI

MSI B460M PRO Bedienungsanleitung

MSI

MSI MS-7329 Bedienungsanleitung

MSI

MSI H81M-E34 Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
