MSI MS-6104 Bedienungsanleitung

Version 1.0

PENTIUM is a trademark of the Intel Corporation.

PS/2 is a trademark of the IBM Corporation.

Mainboard Name MS-6104

Manual Rev 1.0

BIOS Version W48X

Release Date June, 1996

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference, in which case

the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in

order to comply with the emission limits.

VOIR L NOTICE D'INST LL TION V NT DE R CCORDER

U RESE U.

Edition

June 1996

This manual is copyrighted. No guarantee is given as to the

correctness of its contents. We reserve the right to make changes

without notification.

Trademarks

All trademarks used in this manual are the property of their respective

owners.

Table of Contents

Chapter 1: Introduction

System Board Specifications ---------------------------------------- 1-1

System Board Layout ------------------------------------------------ 1-4

Chapter 2: Hardware Installation

System Clock Selection JC1--------------------- ------------------ 2-2

Flash ROM Selection JP3------------------------------------------- 2-3

Power Saving Switch Connector JG1----------------------------- 2-3

CMOS RAM Clear JP7---------------------------------------------- 2-4

System Memory Installation SIMM4 -SIMM1 ------------------- 2-4

DRAM Installation----------------------------------------------------

CPU Installation & Fan Power Connector -----------------------

2-6

2-7

Case Block Connector JFP------------------------------------------ 2-8

Power Supply Connector--------------------------------------------- 2-9

Keyboard Connector PS/2-KB or JMS1--------------------------

Mouse Connector JMS or PS/2 Style Mouse---------------------

2-10

Serial Port Connectors COM1 & COM2-------------------------- 2-11

Parallel Port Connectors PRN--------------------------------------- 2-11

Floppy Disk Connector Floppy ------------------------------------ 2-12

Hard Disk Connector IDE1 , IDE2----------------------------- 2-12

IrDA Infrared Module Connector IRCON--------------------- 2-14

USB Connector USB (USB1,USB2) --------------------------- 2-15

Chapter 3: W RD BIOS SETUP (Version 4.51)

Entering Setup------------------------------------------------------- 3-1

Getting Help--------------------------------------------------------- 3-2

The Main Menu----------------------------------------------------- 3-3

Standard CMOS Setup ------------------------------------------- 3-6

BIOS Features Setup ---------------------------------------------- 3-9

Chipset Features Setup -------------------------------------------- 3-16

Power Management Setup----------------------------------------- 3-22

PNP/PCI Configuration Setup ------------------------------------ 3-29

Load BIOS/ Setup Defaults --------------------------------------- 3-32

Integrated Peripherals---------------------------------------------- 3-33

Supervisor/User Password Setting-------------------------------- 3-39

IDE HDD Auto Detection---------------------------------------- 3-40

CHAPTER 1 INTRODUCTION

Chapter 1

INTRODUCTION

The PCI P6 NA2 PCI/ISA system board is an ATX high-performance

personal comp ter system board based on the Penti mä Pro

microprocessor.

System Board Specifications

Po er Selection:

·ATX or PS/2 Power Selection

Hard are Installation:

·The system board provides “Pl g & Play” BIOS which detects

the peripheral devices and expansion cards of the board

a tomatically.

·The system board provides a Desktop Management Interface

(DMI) f nction which records yo r sytem board

specifications.

CPU:

·The system board s pports 150/166/180/200 MHz Intel Penti m

Pro CPUs.

Cache Memory:

·Internal Level 1 Cache: 8KB instr ction code and 8KB data

cache.

·Internal Level 2 Cache: 256KB/512KB(depending on CPU)

1 -

CHAPTER 1 INTRODUCTION

Chip Set:

·The system board tilizes the Intel Penti m Pro Chipset which

incl des SB82441FX (PMC) PCI bridge and memory controller, and

SB82442FX(DBX) Data B s Accelerator and SB82371(P11X3) PCI

to ISA Bridge.

Multi-I/O:

·The system board has a b ilt in Pl g and Play Winbond W83877

and M lti-I/O chipsets to s pport 2 high-speed serial ports, one

parallel port with ECP and EPP capabilities, and one floppy

drive.

Enhanced IDE Support:

·A PCI IDE controller and b ilt-in P11X3 s pports d al channels

and fo r hard drives.

IrDA and PS/2 support:

·This board s pports an infrared port connector for wireless

interface and a j mperless PS/2 mo se connector.

USB support:

·The system board s pports a two channel USB port connector.

AHA SCSI BIOS:

·This optional feat re s pports on-board an AHA AIC 7880 SCSI

controller.

Main Memory:

·S pports fo r memory banks sing fo r 72-pin SIMM sockets.

·Up to 512 Mbytes main memory.

·S pports Fast Page (FP) Mode, Extended Data O tp t (EDO)

Mode, and B rst Extended Data O tp t (BEDO) Mode

DRAM.

1 -

CHAPTER 1 INTRODUCTION

·S pports symmetric or asymmetric DRAM memory, 70ns or

faster.

·Provides ECC (Error Check F nction) F nction.

Slots:

·Fo r 32-bit PCI B s slots and fo r 16-bit ISA b s slots. One

shared slot that can be sed as ISA or PCI.

On-Board I/O:

·A 32-bit enhanced d al channel and 4 enhanced hard drives PCI IDE

controller, s pports fast-ATA2 PIO Mode 0-4 and b s Master

DMA Mode 2.

·One floppy disk drive controllers, two high-speed serial prots,

and one parrallel port with ECP or EPP capabilities.

·IrDA f nction.

·Optional SCSI controller.

·2 channel USB f nction.

Keyboard Connector:

·PS/2 keyboard interface and PS/2 Mo se interface.

·5X2-pin connector for PS/2 Keyboard and Mo se.

Dimensions

· ATX size: 30cm x 24.5cm x 6-layer PCB.

Mounting

·9 mo nting holes

1 -

CHAPTER 1 INTRODUCTION

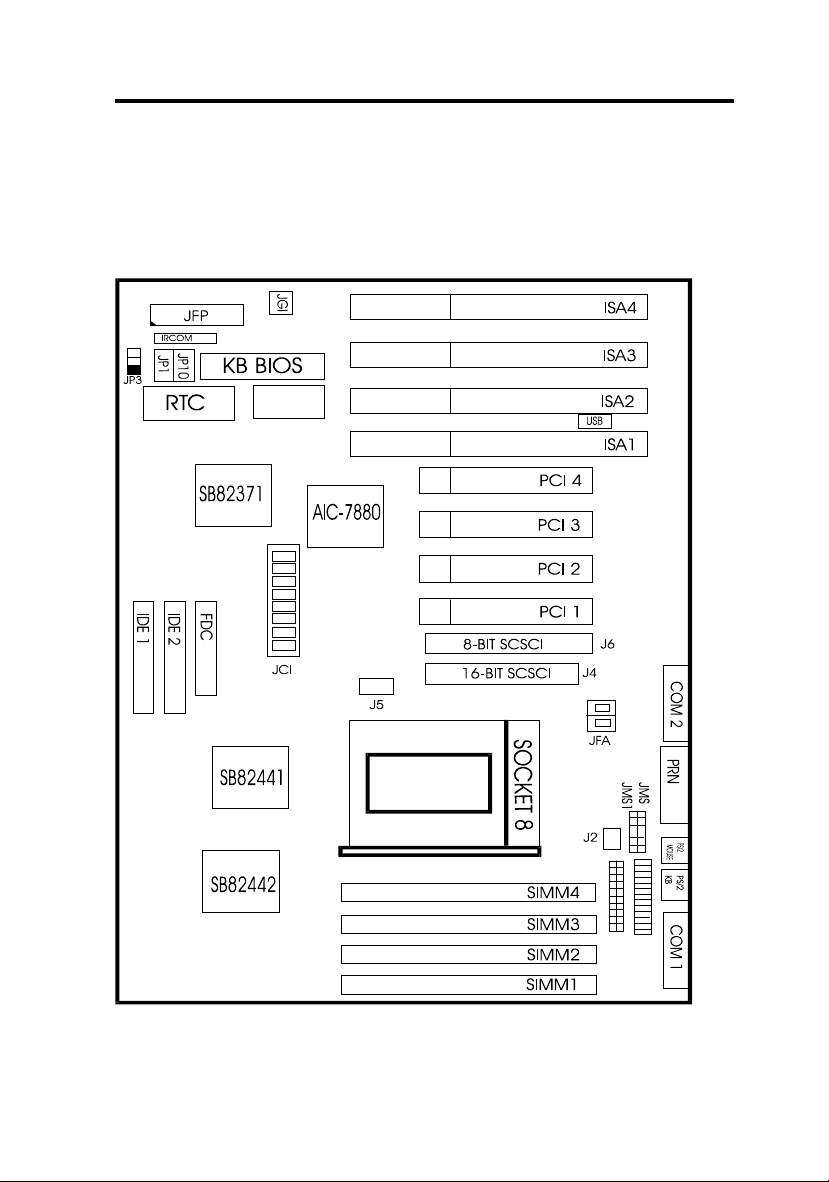

1.2 System Board Layout

Figure 1-1

1 -

CHAPTER 2 HARDWARE INSTALLATION

Chapter 2

HARDWARE INSTALLATION

It is important to set jumpers correctly. Improper jumper setting

will cause system instability, destruction of components, and/or

system hang-up.

Step 1: Set the CPU US CLOCK and Core Frequency Ratio

(see “JC1 Jumper” section)

JC1 is used for CPU US CLOCK and bus to core

frequency ratio. Caution: If these jumpers aren’t set

correctly, it will cause the system to be unstable or system

hang-up, and it may reduce the life cycle of the CPU.

Step 2: Install CPU, VRM, DRAM, Expansion Card, and External

cables (see “Connectors” section)

Caution: All parts need to be set to avoid system board

malfunction.

Step 3: Turn Power on and setup IOS software (see “ IOS Setup”

section)

2 -
