MSI 845 Pro2-C Bedienungsanleitung

Version 1.0

G52-MA00497

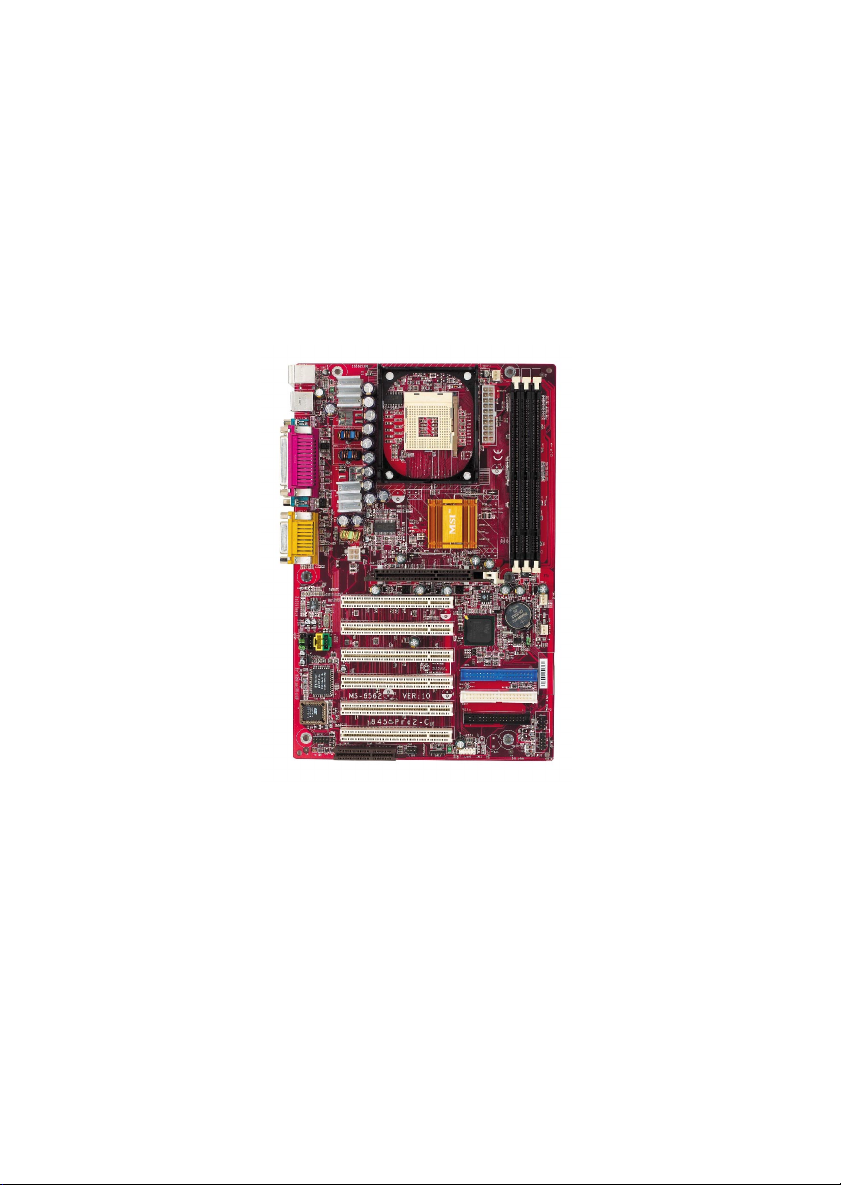

MS-6562 (v1.X) ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

845 Pro2-C

Manual Rev: 1.0

Release Date: Jan. 2002

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the users authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE DINSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6562

Tested to comply

with FCC Standard

For Home or Office Use

iii

Edition

Jan. 2002

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products

are under continual improvement and we reserve the right to make changes

without notice.

Trademarks

All trademarks are the properties of their respective owners.

Intel®and Pentium®are registered trademarks of Intel Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines

Corporation.

Windows®95/98/2000/NT/XP are registered trademarks of Microsoft

Corporation.

Netware®is a registered trademark of Novell, Inc.

Award®is a registered trademark of Phoenix Technologies Ltd.

AMI®is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V1.0 First release Jan. 2002

Safety Instructions

1. Read the safety instructions carefully.

2. Save this Users Guide for possible use later.

3. Keep this equipment away from humidity.

4. Lay this equipment on a stable and flat surface before setting it up.

5. The openings on the enclosure are used for air convection and to prevent

the equipment from overheating. Note: Do not cover the openings.

6. Make sure that the power voltage is within its safety range and has been

adjusted properly to the value of 110/220V before connecting the equip-

ment to the power inlet.

7. Place the power cord in a way that people are unlikely to step on it. Do not

place anything on the power cord.

8. Always unplug the power cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage the equipment

or cause an electrical shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

lthe power cord or plug is damaged

lliquid has penetrated into the equipment

lthe equipment has been exposed to moisture

lthe equipment has not work well or you can not get it work according

to Users Guide

lthe equipment was dropped and damaged

lthe equipment has obvious signs of breakage

12. Do not leave the equipment in an unconditioned environment with a stor-

age temperature of 600 C (1400F) or above, which may damage the

equipment.

CAUTION: To prevent explosion caused by improper battery

replacement, use the same or equivalent type of battery recommended

by the manufacturer only.

CONTENTS

Chapter 1. Getting Started ........................................................................ 1-1

Mainboard Specification ...................................................................... 1-2

Mainboard Layout ............................................................................... 1-4

Quick Components Guide .................................................................... 1-5

Connectors & Jumpers ......................................................................... 1-6

Back Panel ............................................................................................ 1-8

Chapter 2. AMI BIOS Setup ..................................................................... 2-1

Entering Setup...................................................................................... 2-2

Selecting the First Boot Device ..................................................... 2-2

Control Keys ................................................................................. 2-3

Getting Help .................................................................................. 2-3

The Main Menu ................................................................................... 2-4

Standard CMOS Features .................................................................... 2-5

Advanced BIOS Features .................................................................... 2-6

Advanced Chipset Features................................................................. 2-7

Power Management Setup ................................................................... 2-8

PNP/PCI Configurations....................................................................... 2-9

Integrated Peripherals ........................................................................ 2-10

Hardware Monitor Setup .................................................................... 2-11

Load High Performance/BIOS Setup Defaults.................................... 2-12

Supervisor/User Password ................................................................. 2-13

IDE HDD AUTO Detection ................................................................ 2-15

Getting Started

1-1

Chapter 1. Getting Started 1

Getting Started

Thank you for purchasing the 845 Pro2-C v1.X ATX mainboard. The 845

Pro2-C mainboard is based on Intel®82845 & ICH2 chipsets for optimal system

efficiency. Designed to fit the advanced Intel®Pentium®4 processors in the

478 pin package, the 845 Pro2-C v1.X delivers a high performance and profes-

sional desktop platform solution.

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Connectors & Jumpers 1-6

Back Panel 1-8

Chapter 1

1-2

CPU

Support Socket 478 for Intel®Pentium®4 Willamette/Northwood processor

Support1.3GHz,1.4GHz,1.5GHz,1.6GHz,1.7GHz,1.8GHz,1.9GHz,2GHz,

2.2GHz and up* (*not tested yet)

Chipset

Intel®845 chipset (593 FC-BGA)

- Support 100MHz FSB

- Support 400MHz Intel NetBurst micro-architecture bus

- 1.5V AGP interface with 4x data transfer and 4x fast write capability

Intel®ICH2 chipset (360 EBGA)

- AC97 Controller Integrated

- 2 full IDE channels, up to ATA 100

- Low pin count interface for SIO

MainMemory

Support three PC133 SDRAM sockets

Support up to 3 GB memory size

Slots

One AGP (Accelerated Graphics Port) 4x slot (1.5V only)

Six PCI 2.2 32-bit Master PCI bus slots

One CNR (Communication Network Riser) slot

Support 3.3V/5V PCI bus Interface

On-BoardIDE

An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA33/66/100 operation modes

Can connect up to four IDE devices

On-Board Peripherals

On-Board Peripherals include:

- 1floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88

Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear * 2/ Front * 2)

- 1 Line-In/Line-Out/Mic-In/Game port

Mainboard Specification

Getting Started

1-3

Audio

ICH2 chip integrated

AC97 codec supports 2 channel Audio

BIOS

The mainboard BIOS provides Plug & Play function which detects the

peripheral devices and expansion cards of the board automatically

The mainboard provides a Desktop Management Interface (DMI) function

which records your mainboard specifications

Dimension

ATX Form Factor 30.5cm x 20cm

Mounting

6 mounting holes

Others

Support Modem Wake-up function

Support STR/STD

PC 2001 Compliant

Chapter 1

1-4

Mainboard Layout

845 Pro2-C (MS-6562 v1.X) ATX Mainboard

SFAN1

PSFAN1

CFAN1

JDB1

DIM2

DIM3

ATX Power

Supply

IDE 1

IDE 2

Winbond

W83627HF-AW

CNR

USB

ports

Top : mouse

Bottom: keyboard

JCD1

JPW1

JBAT1

JAUX1

JMD1

Codec

JAUD1

To p :

Game port

Bottom:

Line-Out

Line-In

Mic

FDD1

AGP Slot

JIR1 JWR1 JUSB1

JFP1

JFP2

JGS1

BATT

ICH 2

PCI Slot 6

PCI Slot 5

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

FWH

Getting Started

1-5

Quick Components Guide

Component Function

CONN1 ATX 20-pin power connector

JPW1 ATX 12V power connector

JKBMS1 Mouse connector

JKBMS1 Keyboard connector

USB Connectors Connecting to USB devices

COM A & COM B Serial port connector

LPT1 Parallel port connector

FDD1 Floppy disk drive connector

JGS1 Power saving switch connector

IDE1~ IDE2 Hard disk connectors

JCD1 CD-in connector

JAUX1 Aux line-in connector

JMD1 Modem-in connector

CFAN1/SFAN1/PSFAN1 Fan power connectors

JFP1/JFP2 Front panel connectors

JAUD1 Front panel audio connector

JUSB1 Front USB connector

JIR1 IrDA infrared module connector

JDB1 D-Bracket connector

JWR1 Wake on ring connector

JBAT1 Clear CMOS jumper

AGP Slot Connecting to AGP cards

PCI Slots Connecting to expansion cards

CNR Slot Connecting to expansion cards
