MSI K7 Master MS-6341 Bedienungsanleitung

Introduction

1-1

Introduction

The MS-6341 ATX mainboard is a high-performance computer

mainboard based on AMD®761 chipset and VT82C686B. The MS-6341 is

designed for the AMD®Duron & Thunderbird processor for inexpensive

business/personal desktop markets.

The AMD-761 system controller features the AMD Duron system

bus, system memory controller, accelerated graphics port (AGP) controller,

and peripheral component interconnect (PCI) bus controller. The AMD-761

system controller is also designed to support 266-MHz DDR SDRAM

DIMMs.

The VT82C686B integrates all system control functions such as ACPI

(Advances Configuration and Power Interface). The ACPI provides more

Energy Saving Features for the OSPM (OS Direct Power Management)

function. The VT82C686B chipset also improves the IDE transfer rate by

supporting Ultra DMA-33/66/100 IDE that transfers data at the rate 33/66/

100MB/sec.

This chapter contains the following topics:

Mainboard Specifications 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Chapter 1

1-2

Mainboard Specification

CPU

lSocket A for AMD®DuronTM & AthlonTM processor.

lSupport 600MHz, 650MHz, 700MHz or higher processor

Chipset

lAMD®761 chipset. (569 BGA)

- Supports 266MHz High speed, split transaction system bus.

- AGP 4x and PCI Advanced high performance memory controller

- Support 266MHz DDR SDRAM technology

lVIA®VT686Bchipset.(352BGA)

- Enhanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)

- Dual bus Master IDE Ultra DMA33/66

- Integrated Hardware Soundblaster

- Direct Sound AC97 Audio

-ACPI

Clock Generator

l133Mhz clocks are supported. (266MHz Internal System Bus)

Main Memory

lSupport eight memory banks using four 184-pin DDR-DIMM.

lSupporta maximummemory sizeof 4GB.

Slots

lOne AGP(Accelerated Graphics Port) Pro slot.

-AGP 4xmode

lOne CNR(Communication Network Riser) slot.

lFive 32-bit Master PCI Bus slots.

lSupports 3.3v/5v PCI bus Interface.

On-Board IDE

lAn IDE controller on the VIA®VT686B Chipset provides IDE HDD/CD-

ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes.

lCan connect up to four IDE devices.

Introduction

1-3

Audio

lChip Integrated

- Direct Sound AC97 Audio

Onboard Ultra 160 SCSI Connector

lAdaptec AIC-7899

-supports high performance 160Mbytes/sec Single Channel Ultra SCSI

-supports Ultra(SE) devices

On-Board Peripherals

lOn-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.

88Mbytes.

- 2 serial ports (COMA + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (2 Rear Connectors/USB Front Pin Header)

-1IrDA connector forSIR/CIR/FIR/ASKIR/HPSIR.

- 1 Audio/Game port

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

Dimension

lATXFormFactor: 30.5cmx 25.9cm

Mounting

l9 mounting holes.

Chapter 1

1-4

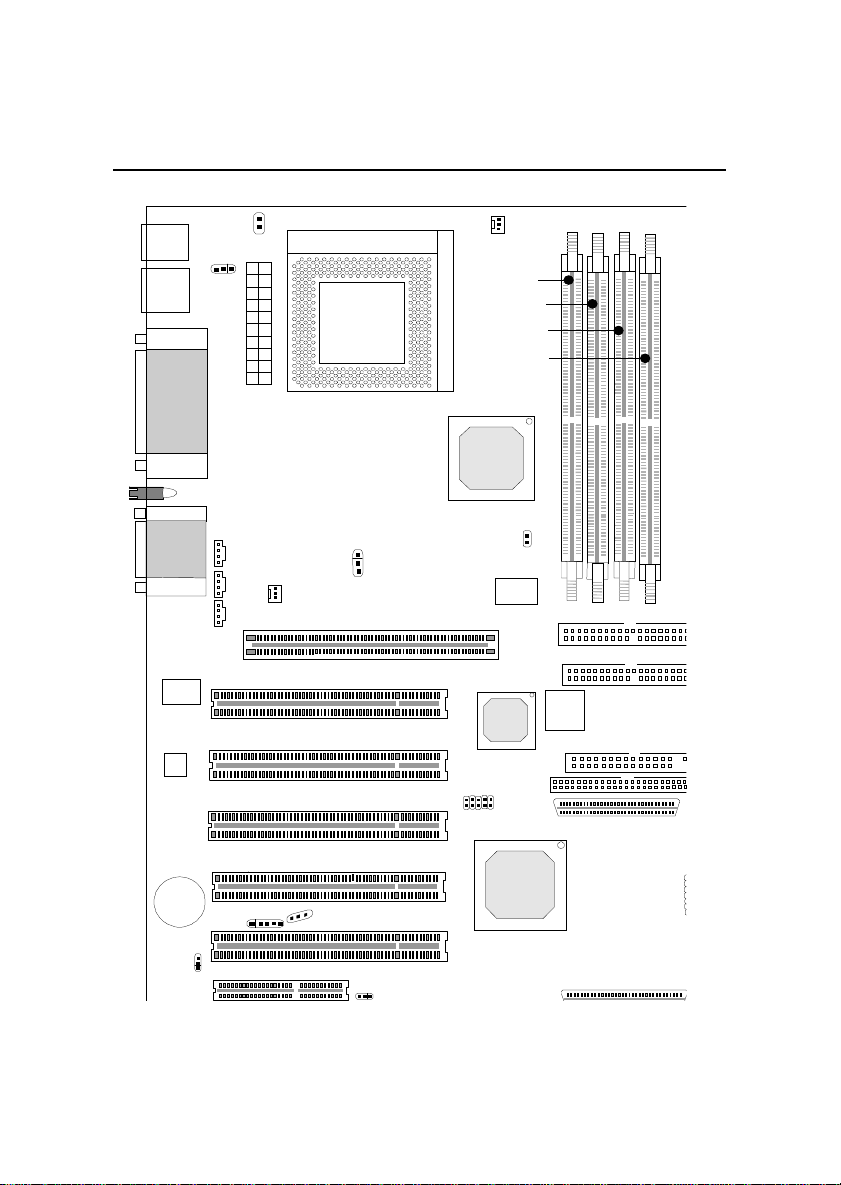

Mainboard Layout

JFP1

FDD

SCSI2

SCSI1

CNR JP1

BIOS

JMDM

SYSFAN

IDE1

JGS1

IDE2

AGP PRO SLOT

PCI Slot 1

PSI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

AGP Power Supply

CD-IN

AUX_IN

MDM_IN

PS_FAN

Codec

DDR-DIMM 2

DDR-DIMM 3

DDR-DIMM 4

JP5

DDR-DIMM 1

D-LED

CPUFAN

Socket A

ATX

PowerSupply

JKBV1

Top: Mouse

Bottom:

Keyboard

USB

Top: Port1

Bottom: Port2

Top: LPT

Bottom:

COMA

COMB

Top: Midi/

Game Port

Bottom:

Line-Out

Line-in, Mic

BATT

JP3

SW1

JWOL1

JBAT1

VT82C686B

Adaptec

7 8 9 9

SCSI3

USB2

JIR1

MSI

SmartD-LED

JP4

AMD761

Chipset

MS-6341 ATX Mainboard

Introduction

1-5

Quick Components Guide

Component Function Reference

DDR-DIMM 1~4 Installing memory modules See p. 2-5~

Socket A Installing CPU See p. 2-2~

CPUFAN Connecting to CPUFAN See p. 2-19

SYSFAN Connecting to SYSFAN See p. 2-19

ATX Power Supply Installing power suppl See p. 2-8

IDE1& IDE2 Connecting to IDE hard disk drive See p.2-14

FDD Connecting to floppy disk drive See p.2-13

SCSI 1~ SCSI 3 Connecting to SCSI interface See p. 2-20

USB2 Connecting to USB interface See p. 2-13

AGP Pro Slot Installing AGP card See p. 2-25

PCI Slot 1~5 Installing expansion boards See p. 2-25

SW1 Setting CPU FSB frequency See p. 2-4

JFP1 Connecting to cas See p. 2-15

JMDM Connecting to modem card See p. 2-17

JWOL1 Connecting to LAN card See p. 2-17

JGS1 Connecting to power saving switch See p. 2-18

JIR1 Connecting to IrDA infrared modul See p. 2-18

JBAT1 Clearing CMOS data See p. 2-21

JKBV1 Setting keyboard wake-up functi See p. 2-22

JP1 Setting audio onboard See p. 2-22

JP3 Setting CPU core bus rati See p. 2-23

JP4

S i S D LED l

S223

Chapter 1

1-6

Key Features

lMicrosoft®PC99 compliant

lD-LEDTM - 4 LEDs embedded in mainboard

lT.O.P TechTM III - accuately detect components’ temperature

lPC AlertTM III system hardware monitor

lCPU: Socket A for AMD®DuronTM Processor, 700MHz or higher

lFormFactor: ATX,30.5 cmx25.9cm

lClock:133MHz (266MHz InternalSystem Bus)

lChip Integrated Audio: Direct Sound Ac97 Audio

lMemory: 4 DIMM. Max, up to 4GB SDRAM

lLAN Wake up Function

lI/O: 2 serial ports. 1 parallel port, 4 USB ports, 1 floppy port, 1 IrDA

connector, 1 Audio/Game port

lSlot: 1 AGP Pro slot, 1 CNR slot, 5 PCI slots

Introduction

1-7

MSI Special Features

The MSI special features are designed by MSI R&D that can be seen

only in MSI mainboards. The 6341mainboard is equipped with PC AlertTM III ,

T.O.P TechTM III and D-LEDTM.

T.O.P TechTM.

The T.O.P TechTM is a extended sensing device that can 100% accu-

rately detect the CPU’s temeprature. You can know the temperature on BIOS

setup menu. The PC AlertTM also can provide the information.

Current CPU Temp.

Current System Temp.

Current CPUFAN Speed

Current SYSFAN Speed

Vcore

2.5V

3.3V

12V

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CPU temperaure on Setup menu

PC Health Status

Chapter 1

1-8

PCAlertTM III

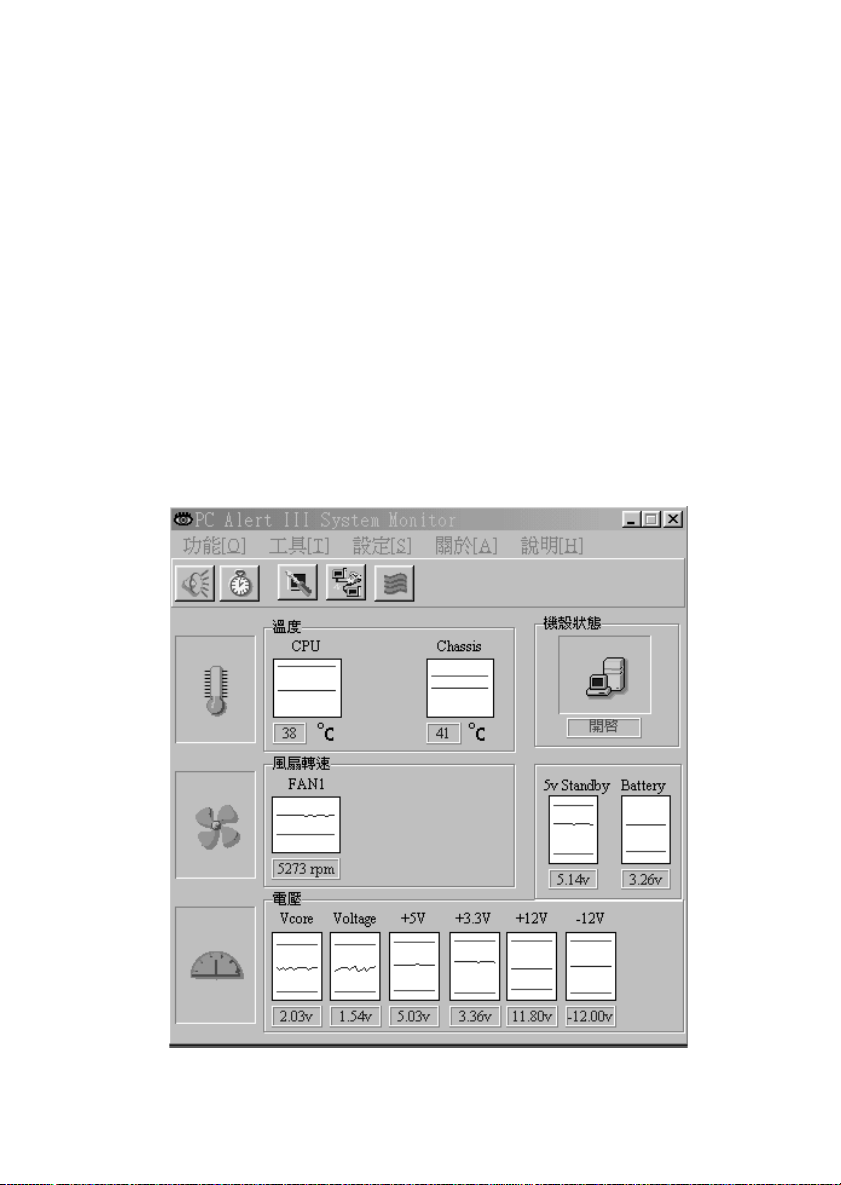

The PC AlertTM III is a utility you can find in the CD-ROM. The utility

is just like your PC doctor that can detect the following PC hardware status

during real time operation:

* monitor CPU & system temperature

* monitor fan speed

* monitor system voltage

* monitor chassis intrusion

If one of the items above is abnormal, the program main screen will be imme-

diately shown on the screen, with the abnormal item highlighted in red. This

will continue to be shown,until user disables warning.

Introduction

1-9

Features:

lNetwork Management

- Monitoring & remote control

lBasic System Utilities

- Scandisk & Defragment to maintain your HDD

l3D Graphics Design

- Enables a more friendly user interface

lSofwareUtilities

- SoftCooler Optimized Cooling

- Doctor Y2K Diagnoses Y2K problems

- BusRacing function adjusts F.S.B under Windows 95/98

- MoSpeed Speeds up your modem transmission

Chapter 1

1-10

The D-LEDTM uses graphic signal display to

help you understand your system. There are 4 LEDs

embedded in the mainboard which provides up to

16 combination of signals to debug system. The 4

LEDs can debug all problems that fail the system,

such as VGA, RAM or other failures. This special feature is very useful for the

overclocking users. The users can use this feature to detect if there are any

problems or failures while doing the overclocking.

D-LEDTM

D-LED Description

System Power ON

- The D-LED will hang here if the processor is damaged or not insta

properly.

Early Chipset Initialization

Memory Detection Test

- Testing onboard memory size. The D-LED will hang if themem

module is damaged or not installed properly.

Decompressing BIOS image to RAM for fast booting.

InitializingKeyboard Controller.

Testing VGA BIOS

- This willstartwriting VGA sign-on message to the screen.

Red Green
