MSI MS-6380 Bedienungsanleitung

Version 3.0

G52-MA00464

MS-6380 ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

Manual Rev: 3.0

Release Date: October 2001

FCC-BRadioFrequencyInterferenceStatement

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

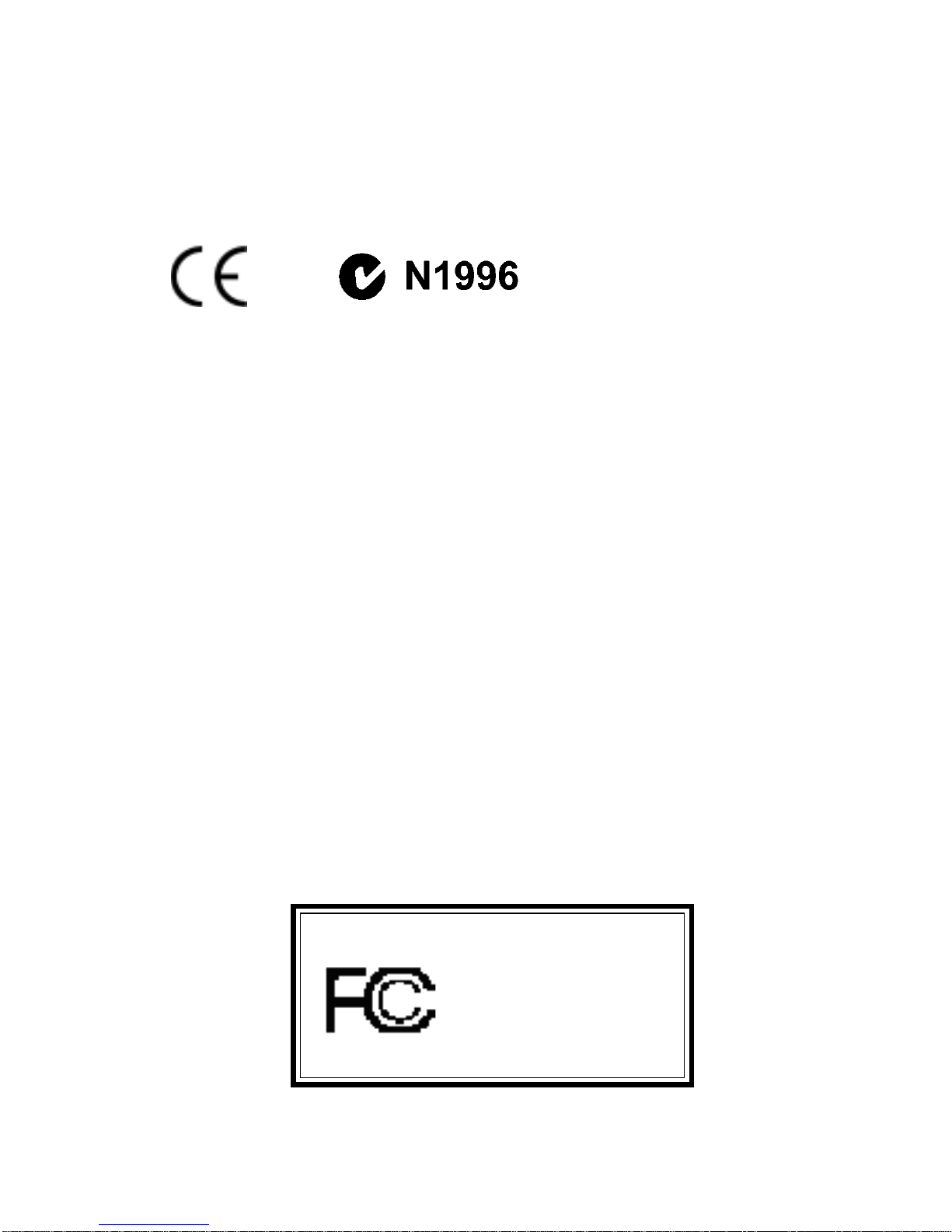

Micro-StarInternational MS-6380

Testedtocomply

withFCCStandard

ForHomeorOfficeUse

iii

Edition

October 2001

The material in this document is the intellectual property of MICRO-

STAR INTERNATIONAL. We take every care in the preparation

of this document, but no guarantee is given as to the correctness of its

contents. Our products are under continual improvement and we re-

serve the right to make changes without notice.

Trademarks

All trademarks used in this manual are the property of their respective

owners.

AMD, Athlon and Duron are registered trademarks of AMD Corporation.

PS/2 and OS/2 are registered trademarks of IBM Corporation.

Windows 98/2000/ME and Windows NT are registered trademarks of

Microsoft.

Netware is a registered trademark of Novell.

Award is a registered trademark of Award Software Inc.

Revision History

Revision RevisionHistory Date

3.0 First release for PCB 3.X October2001

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipmentfromoverheating. DONOTCOVERTHEOPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. AlwaysUnplug the PowerCordbefore inserting anyadd-oncard ormodule.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

zThe power cord or plug is damaged

zLiquid has penetrated into the equipment

zThe equipment has been exposed to moisture

zThe equipment has not work well or you can not get it work according

to User’s Manual.

zThe equipment has dropped and damaged

zIf the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT

UNCONDITIONED,STORAGETEMPERATUREABOVE600C(1400F),IT

MAYDAMAGETHEEQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

CONTENTS

Chapter1. Introduction ............................................................................ 1-1

Mainboard Specification ......................................................................1-2

Mainboard Layout ...............................................................................1-4

Quick Components Guide ....................................................................1-5

Key Features ........................................................................................1-6

MSI Special Features ........................................................................... 1-7

PC Alert™III (Optional) ................................................................1-7

FuzzyLogic™III (Optional) ..........................................................1-9

Chapter2. HardwareSetup ...................................................................... 2-1

Central Processing Unit: CPU ..............................................................2-2

CPU Installation Procedures .........................................................2-2

CPU Core Speed Derivation Procedure .........................................2-4

CPU Clock Selection Jumper: SW1 ................................................2-4

Memory................................................................................................2-6

Introduction to DDR SDRAM.......................................................2-6

DIMM Modules Combination.......................................................2-7

Installing DIMM Modules ............................................................ 2-7

Power Supply .......................................................................................2-8

ATX 20-Pin Power Supply .............................................................2-8

BackPanel ............................................................................................2-9

Mouse Connector ......................................................................... 2-9

Keyboard Connector ................................................................... 2-10

USB Connectors .......................................................................... 2-10

Parallel Port Connector ................................................................ 2-11

Serial Port Connectors: COM A & COM B.................................. 2-12

Joystick/Midi Connectors ........................................................... 2-12

Audio Port Connectors ............................................................... 2-12

Connectors......................................................................................... 2-13

Floppy Disk Drive Connector: FDD1........................................... 2-13

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-14

Case Connectors: JFP1 & F_P2 ................................................... 2-15

Wake On LAN Connector: JWOL1.............................................. 2-17

Wake On Ring Connector: JMDM1............................................. 2-17

IrDA Infrared Module Connector: J7........................................... 2-18

Chassis Intrusion Switch Connector: J3...................................... 2-18

CD-In/Aux Line-In/Modem-In Connector: JCD/JAUX/JMDM ... 2-19

Fan Power Connectors: CFAN1/SFAN1/PSFAN1 ....................... 2-20

Front USB Connectors: JUSB1, JUSB2 (Optional), JUSB3 & JUSB4

(Optional) .................................................................................... 2-21

Front Panel Audio Connectors: JAU1 (Optional) & JAUDIO2 ... 2-22

Jumpers .............................................................................................. 2-24

Clear CMOSJumper: JBAT1 ........................................................ 2-24

Keyboard Wake-up Jumper: JKBV1 ............................................ 2-25

Front USB Wake-up Jumper: J12 ................................................. 2-26

Slots ................................................................................................... 2-27

AGP (Accelerated Graphics Port) Slot......................................... 2-27

PCI Slots ...................................................................................... 2-27

CNR(Communication NetworkRiser) ......................................... 2-27

PCI Interrupt Request Routing .................................................... 2-28

Chapter3. AWARD®BIOSSetup........................................................... 3-1

Entering Setup......................................................................................3-2

Control Keys ........................................................................................ 3-2

Getting Help .........................................................................................3-3

The Main Menu ...................................................................................3-4

Standard CMOS Features ....................................................................3-6

Advanced BIOS Features ....................................................................3-9

Advanced Chipset Features............................................................... 3-13

Integrated Peripherals ........................................................................ 3-17

Power Management Setup ................................................................. 3-23

vii

PnP/PCI Configurations ..................................................................... 3-28

PC Health Status ................................................................................ 3-30

Frequency/Voltage Control ................................................................ 3-32

LoadFail-Safe/OptimizedDefaults ..................................................... 3-34

Set Supervisor/User Password........................................................... 3-36

Save & Exit Setup............................................................................... 3-38

Exit Without Saving ........................................................................... 3-39

Chapter 4. Installing Drivers ................................................................... 4-1

Driver Installation for Windows® 98SE/2000/ME/NT4.0 ..................... 4-2

Glossary ....................................................................................................G-1

Introduction

1-1

Chapter 1. Introduction

Thank you for purchasing MS-6380 (v3.X) motherboard. The MS-

6380 (v3.X) ATX mainboard is a high-performance computer mainboard

based on VIA®Apollo KT266A (VT8366A & VT8233) chipset and de-

signed for the AMD®Athlon™,Athlon XPor Duron™ (PGA) processor for

value business/personal desktop markets.

This chapter includes the following topics:

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Introduction

Chapter 1

1-2

CPU

zSupports Socket A (Socket-462) for AMD®Athlon™/Athlon™ XP /

Duron™ processor

zSupports 800MHz up to 1800+ MHz processor

Chipset

zVIA®VT8366Achipset(552BGA)

-FSB@200/266MHz

- AGP 4X and PCI Advanced high performance memory controller

zVIA®VT8233chipset(376BGA)

- High Bandwidth V-link Client controller

- Integrated Faster Ethernet LPC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 33/66/100 master mode PCI EIDE controller

-ACPI

ClockGenerator

z100/133MHz clocks are supported.

MainMemory

zSupports six memory banks using three 184-pin DDR DIMMs

zSupports a maximum memory size up to 3GB

zSupports 2.5v DDR SDRAM DIMM

Slots

zOne AGP slot

- AGP (Accelerated Graphics Port) specification compliant

- SupportsAGP2.0 1x/2x/4x

zOne CNR (Communication Network Riser) slot

zFive 32-bit Master PCI Bus slots

zSupports 3.3V/5V PCI bus Interface

On-BoardIDE

zAn IDE controller on the VIA® VT8233 chipset provides IDE HDD/CD-

ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes

zCan connect up to 4 IDE devices

Mainboard Specification

Introduction

1-3

Audio

zChip integrated (2 channel S/W audio)

- Direct Sound AC97 Audio

On-BoardPeripherals

zOn-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

- 2 serial ports (COMA + COMB)

- 1 parallel port supporting SPP/EPP/ECP mode

- 6 USB 1.1 ports (Rear * 2/Front * 4)

- 1 IrDA connector for SIR/ASKIR/HPSIR

- 1 Audio/Game port

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface (DMI) func-

tion which records your mainboard specifications.

Dimension

zATX Form Factor (30.4 cm X 23.5 cm)

Mounting

z6 mounting holes

Andere Handbücher für MS-6380

Inhaltsverzeichnis

Andere MSI Hauptplatine Handbücher

MSI

MSI PRO B760-P DDR4 II Bedienungsanleitung

MSI

MSI B460M PRO-VDH WIFI Bedienungsanleitung

MSI

MSI Z87 MPOWER MAX Bedienungsanleitung

MSI

MSI NLX EX3 Bedienungsanleitung

MSI

MSI P55 GD80 - Motherboard - ATX Bedienungsanleitung

MSI

MSI G41M-P26 Bedienungsanleitung

MSI

MSI A320M PRO-VH Bedienungsanleitung

MSI

MSI P45 NEO3-FR - Motherboard - ATX Bedienungsanleitung

MSI

MSI MEG Z490 ACE Bedienungsanleitung

MSI

MSI 745 Ultra-E Bedienungsanleitung

MSI

MSI H170M PRO-DH Bedienungsanleitung

MSI

MSI MS-7250 K9N Platinum Series Bedienungsanleitung

MSI

MSI Z87-G43 Series Bedienungsanleitung

MSI

MSI 915GLM4-F Bedienungsanleitung

MSI

MSI 785GM Bedienungsanleitung

MSI

MSI MPG X570S Carbon EK X Bedienungsanleitung

MSI

MSI 865GM2-LS - Motherboard - Micro ATX Bedienungsanleitung

MSI

MSI PRO Z790-A MAX WIFI Bedienungsanleitung

MSI

MSI MS-6787 Bedienungsanleitung

MSI

MSI MS-7530 Bedienungsanleitung

MSI

MSI B150-ICAFE/ H110 PC MATE Bedienungsanleitung

MSI

MSI RX480M2 MS-7093 Bedienungsanleitung

MSI

MSI PRESTIGE X570 CREATION Bedienungsanleitung

MSI

MSI MS-7646M1 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
