CHAPTER 1 INTRODUCTION
1-1
Chapter 1
INTRODUCTION
The MS-6319 ATX CA10 mainboard is a high-performance computer
mainboard based on Intel®820 chipset. The MS-6319 is designed for the
Intel®PentiumTM III(FC-PGA) processor for high-end business/personal
desktop markets.
The Intel®820 chipset is the first generation chipset for the Intel®Pentium®
III processor. An integrated centralized memory arbiter allocates memory
bandwidth to multiple system agents to optimize system memory utilization.
A new chipset component interconnect, the hub interface, is designed into
the Intel 820 chipset to provide an efficient communication channel between
the memory controller hub and I/O controller hub.
The Intel 820 chipset contains four core components: the Memory Control-
ler Hub (MCH), the I/O Controller Hub (ICH), the Memory Translator Hub
(MTH), and the Firmware Hub (FWH). The MCH integrates a 100MHz/
133MHzCPUFSB,whilethe MTHintegratesa100MHzSDRAMcontroller
and high-speed hub interface for communication with the ICH. The ICH
integratesan Ultra ATA33/66(ICH)controller,USBhostcontroller,LPC
interfacecontroller,FWHintefaceconroller,PCIinterfacecontroller,AC’97
digital controller and a hub interface for communication with the MCH.
The Intel®82802 Firmware Hub (FWH) component is part of the Intel®820
chipset. The FWH is key to enabling future security and manageability
infrastructure for the PC platform.
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSupport Socket 370 for Intel®Pentium III(FC-PGA) processor.
lSupport550/600/650/667/700/733/800/866MHzorhigherprocessor
Chipset
lIntel®820Caminochipset.(324BGA)
-AGP4x/2xuniversalslot
-Support100/133MHzFSB
lIntel®ICHchipset.(241BGA)
- AC’97 Controller Integrated
- 2 full IDE channels, up to ATA66
- Low pin count interface for SIO
lIntel®MTHchipset.(241BGA)
ClockGenerator
l100/133MHz clocks are supported.
MainMemory
lSupports three 168-pin DIMM sockets.
lSupportsa maximumSDRAMmemorysize of512MBor 1GB(32Mx4)
registered DIMM only.
Slots
lOne AMR (Audio Modem Riser)
lOne AGP (Accelerated Graphics Port) slot.
- AGP specification compliant
- AGP66/133/266MHzdevice support
lFive 32-bit Master PCI Bus slots and one 16-bit ISA slot(Optional)
- wherein one PCI/ISA slot is shared.
lSupports 3.3v/5v PCI bus Interface.
CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA33/66 operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
-2serialport(COMA + 1 COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports
- 1 IrDA connector for SIR.
-1 Game Port
-1 Audio Port (Line-In, Line-Out, Mic-In)
Audio
lICH chip integrated
lAC’972.1 Compliant
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
lCPU Voltage setting through BIOS
lFWH Flash BIOS Protect
Dimension
lATX FormFactor: 30.5cmx21.7cm
Mounting
l7 mounting holes.
CHAPTER 1 INTRODUCTION
1-4

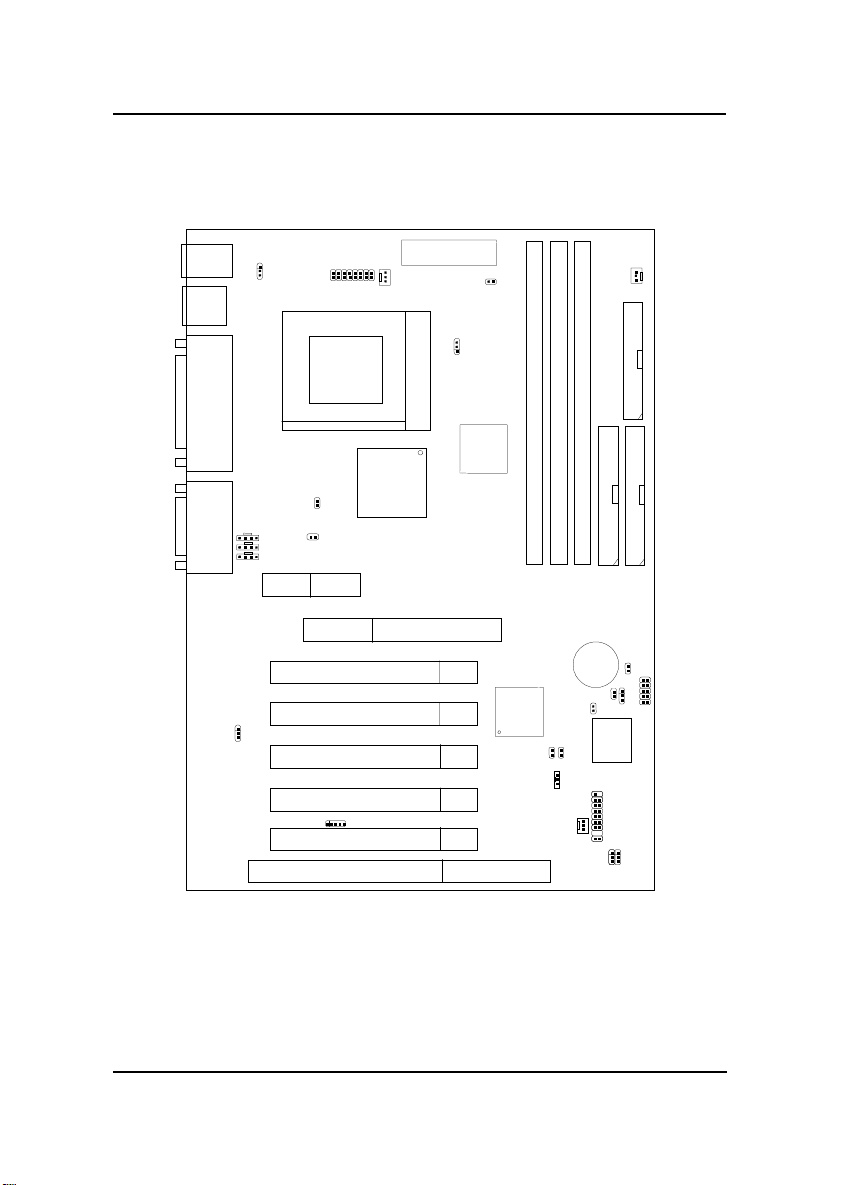

1.2 Mainboard Layout
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel
820
chipset
DIMM 2(shared)
Top: mouse
Bottom:
keyboard
Top:
USBPort
DIMM 1
IDE2
Bottom:
USBPorts
IDE1 FDD
ICH
JFP1
JGS1
CD_IN
AUX_IN
PSFAN
BATT
+
Top: LPT
Bottom:
COMA
COMB
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
MS-6319ATXCA10Mainboard
MODEM_IN
CPUFAN
JVSB1
AMR
AGP Slot 1
JBAT1
SW2
JMDM1
DIMM 3(shared)
PCI SLOT 4
PCI SLOT 5
ISA SLOT 1
SYSFAN
JP4 FWH
JRMS1
J7 JGL1
JP2 J6
J5
J13
JP3
JWOL1
JSTR
MTH
Socket 370
JP7
JP1
CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
Themainboardoperates with Intel®PentiumIIICoppermineprocessor. The
mainboard uses a CPU socket called Socket 370 for easy CPU installation.
The CPU should always have a Heat Sink and a cooling fan attached to
prevent overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin1
2.1-1 CPU Installation Procedures
CHAPTER 2 HARDWARE INSTALLATION
2-2
The BIOS can be used to set the CPU Host Bus Frequency Clock.
If CPUClock = 100MHz
Core/Bus ratio = 4
then CPU core speed = Host Clockx Core/Bus ratio
= 100MHzx 4
= 400MHz
2.1-2 CPU Core Speed Derivation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-3
SW2
SW2 Function
Automatically detect Intel CPU
Bus Frequency
Automatically detect Cyrix
CPU Bus Frequency
13 2 1
13 2 1
13 2 1
Short
Allows CPU overclocking.
Set 100MHz to 133MHz
Short
Open
2.1-3 Overclocking Jumper: SW2
Overclocking is operating a CPU/Processor beyond its specified
frequency. SW2 jumper is used for overclocking.
Note: Intel Celeron Processor are basically a 66MHz FSB processor.
Using Intel Celeron Processor on this mainboard will auto-
maticallychangethe66MHzFSBinto100MHzFSB. However,
not all Intel Celeron processor will run properly on this
mainboard.
1
2
3
CHAPTER 2 HARDWARE INSTALLATION
2-4

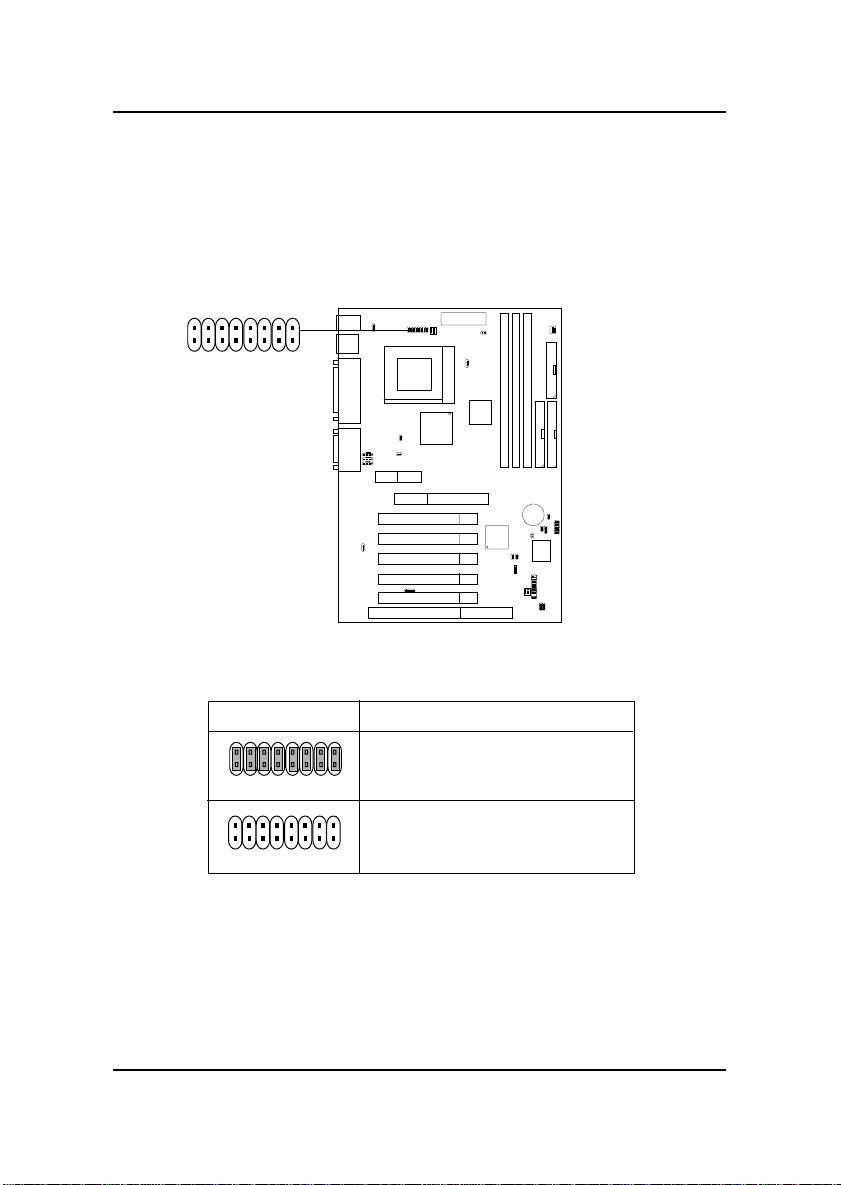

2.1-4 Processor Selector Jumper: JP7
This jumper must be short to support different kind of processor.
JP7
JP7 Function
For Coppermine Proces-
sor or 1GHz Processor
For Cyrix or Celeron
Processor
Short
Open
Note: Intel Celeron Processor are basically a 66MHz FSB processor.
Using Intel Celeron Processor on this mainboard will auto-
maticallychangethe66MHzFSBinto100MHzFSB. However,
not all Intel Celeron processor will run properly on this
mainboard.
CHAPTER 2 HARDWARE INSTALLATION
2-5
2.1-5 CPU Core/Bus Ratio strap to Safe Mode: JP3
This jumper is used to adjust the CPU core/ratio to safe mode.
JP3
JP3 Function
Short
Open
Safe Mode
(Core/Bus Ratio by 2)
Core/Bus Ratio in ICH
Register (Default)
Warning: If CPU Core/Bus ratio is set too high, the system may
hang. Short pin JP3, then restart the system until boot up.
The CPU core/bus ratio will then be set to the default
setting of 2. Properly shutdown the system, and remove
the short on JP3.
CHAPTER 2 HARDWARE INSTALLATION
2-6
2.1-6 Fan Power Connectors: PSFAN/CPUFAN/SYSFAN
These connectors support system cooling fan with + 12V. It supports
three pin head connector. When connecting the wire to the connector,
always take note that the red wire is the positive and should be con-
nected to the +12V, the black wire is Ground and should be connected to
GND. If your mainboard has System Hardware Monitor chipset on-
board, you must use a specially designed fan with speed sensor to take
advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
CPUFAN
PSFAN: PowerSupply Fan
CPUFAN:Processor Fan
SYSFAN: System Fan
+12V
GND
SENSOR
SYSFAN
+12V
GND
SENSOR
PSFAN
+12V
GND
SENSOR
