MSI MS-6555 Bedienungsanleitung
Getting Started
1-1
Chapter 1. Getting Started 1
Getting Started
Thank you for purchasing the MS-6555 v1.X Micro ATX mainboard. The
MS-6555 is based on Intel®Brookdale-G & ICH4 chipsets for optimal system
efficiency. Designed to fit the advanced Intel®Pentium®4 processors in the
478 pin package, the MS-6555 delivers a high performance and professional
desktop platform solution.
TOPICS
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
MSI Special Features 1-6
Chapter 1
1-2
CPU
Supports Intel®Pentium®4 processor in 478-pin package.
Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GH z, 2GHz and up.
Chipset
Intel®Brookdale-G/GL chipset
- Integrated video accelerator.
- AGP 4x universal slot (G).
- Support 100/133 MHz FSB.
- Support 400/533 MHz Intel NetBurst micro-architecture bus.
Intel®ICH4 chipset
- 2 channel Ultra ATA 100 bus Master IDE controller.
- PCI Master 2.2.
- I/O APIC.
- AC’97 2.2 interface.
- 3 UHCI Host controllers and 1 EHCI Host controller.
MainMemory
Supports four memory banks using two 184-pin DDR DIMM.
Supports up to 2GB PC2100/PC1600 DDR SDRAMs.
Supports 2.5v DDR SDRAM.
Slots
One AGP(Accelerated Graphics Port) 4x slot (1.5V only).
Three PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI bus interface).
On-BoardIDE
An IDE controller on the ICH4 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66/100 operation modes.
Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.
88Mbytes.
- 2 serial ports (COMA / COMB)
- 1 parallel port supports SPP/EPP/ECP mode
Mainboard Specification
Getting Started
1-3
- 6 USB 2.0 ports (Rear * 2 / Front * 4)
- PS2 K/B connector
- 1 Line-In/Line-Out/Mic-In/Game port
- 1 RJ45 connector (optional)
Audio
AC97 2.2 interface provided by ICH4
2 channel S/W audio codec
- AC'97 2.2 Compliant
- Meet PC2001 audio performance requirement
LAN(optional)
RealTek RTL8100BL.
BIOS
PnP (Plug & Play) BIOS to detect peripheral devices and expansion cards
automatically.
DMI (Desktop Management Interface) function to record motherboard
specification.
Provide WOL, chassis intrusion and SMBus for system management.
Dimension
Micro-ATX Form Factor (9.6" x 8.82").
Mounting
6 mounting holes.
Others
Modem (External/Internal) Ring Wake Up Function.
LAN Wake Up Function.
Suspend to RAM/Disk.
PC2001 Compliant.
Chapter 1
1-4
AGP Slot
BATT
+
Intel
Brookdale-G/GL
chipset
ICH4
WOM
(optional)
ATX_POWER
PANE L1
(optional)
CLR_CMOS
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
IDE2
WOL
(optional)
JAUDIO1
IR1
F_AUDIO
(optional)
T:LAN Jack
B:USB ports
Top :
Parallel Port
Bottom:
COM A
VGA Port
Top : mouse
Bottom: keyboard
JCASE
(optional)
Codec
RTL8100BL
Winbond
83627HF-AW
CD_IN2
(optional)
CD_IN1
ATX12V
PWR_FAN
CPU_FAN
PWRSW1
(optional)
SYS_FAN
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD1
COM 2
DIMM1
DIMM2
JFP1
USB3
(optional)
USB4
(optional)
USB1 USB2
LAN_EN
(optional)
BIOS_WP
(optional)
CNR
Mainboard Layout
MS-6555 v1.X Micro ATX Mainboard
Getting Started
1-5
Quick Components Guide
Component Function Reference
Socket 478 Installing CPU See p. 2-2
DDR1~2 Installing DDR modules See p. 2-5
ATX Power Connector Installing power supply See p. 2-7
USB Connectors Connecting to USB devices See p. 2-9
COM A & COM 2 Serial port connector See p. 2-10
VGA DB15 Connector Connecting to VGA monitor See p. 2-10
RJ-45 LAN Jack Connecting to LAN devices See p. 2-11
LPT1 Parallel port connector See p. 2-12
FDD1 Floppy disk drive connector See p. 2-13
PWRSW1 Independent power switch See p. 2-13
IDE1~ IDE2 Hard disk connectors See p. 2-14
CDIN1/CDIN2 CD-in connector See p. 2-15
MDM_IN1 Modem-in connector See p. 2-15
CPUFAN1/PWR/SYS_FAN Fan power connectors See p. 2-16
JCASE Chassis intrusion switch See p. 2-17
IR1 IrDA infrared module connector See p. 2-17
WOM1 Wake On Ring connector See p. 2-18
WOL1 Wake On LAN connector See p. 2-18
JFP1 or PANEL1 Front panel connector See p. 2-19
JAUDIO1 or F_AUDIO Front panel audio connector See p. 2-20
USB1/2 or USB3/4 Front USB connector See p. 2-22
CLR_CMOS Clear CMOS jumper See p. 2-23
LAN_EN LAN enable/disable jumper See p. 2-24
AGP Slot Connecting to AGP cards See p. 2-25
PCI Slots Connecting to expansion cards See p. 2-25
Chapter 1
1-6
MSI Special Features
PC Alert™ III
The PC AlertTM III is a utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can de-
tect the following PC hardware status during
real time operation:
* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion
If one of the items above is abnormal,
the program main screen will be immediately
shown on the screen, with the abnormal item
highlighted in red. This will continue to be
shown until users disable the warning.
Note: Items shown on PC Alert III vary depending on your system’s
status.
Hardware Setup
2-1
Chapter 2. Hardware Setup
TOPICS
Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7
Back Panel 2-8
Connectors 2-13
Jumpers 2-23
Slots 2-25
2
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.
Chapter 2
2-2
Central Processing Unit: CPU
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2. Look for the dot/cut edge. The
dot/cut edge should point to-
wards the lever pivot. The
CPU will only fit in the correct
orientation.
3. Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your finger pressing
tightly on top of the CPU to
make sure the CPU is properly
& completely embedded into
the socket.
CPUInstallationProcedures
Open Lever
Dot / Cut edge
Sliding
Plate
Close
Lever
The mainboard supports Intel®Pentium®4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sinkandacoolingfanattachedonthetoptopreventoverheating. Ifyoudonot
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.
Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.
WARNING!
Hardware Setup
2-3
InstallingtheCPU Fan
As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly important. To dissi-
pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:
2. Position the heatsink onto the reten-
tion mechanism.
1. Locate the CPU and its retention
mechanism on the motherboard.
3. Mount the fan on top of the heatsink.
Press down the fan until its four clips
get wedged in the holes of the reten-
tion mechanism.
4. Press the two levers down to fasten
the fan. Each lever can be pressed
down in only ONE direction.
retention mechanism
levers
Chapter 2
2-4
CPU Core Speed Derivation Procedure
If CPUClock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHzx14
= 1.4GHz

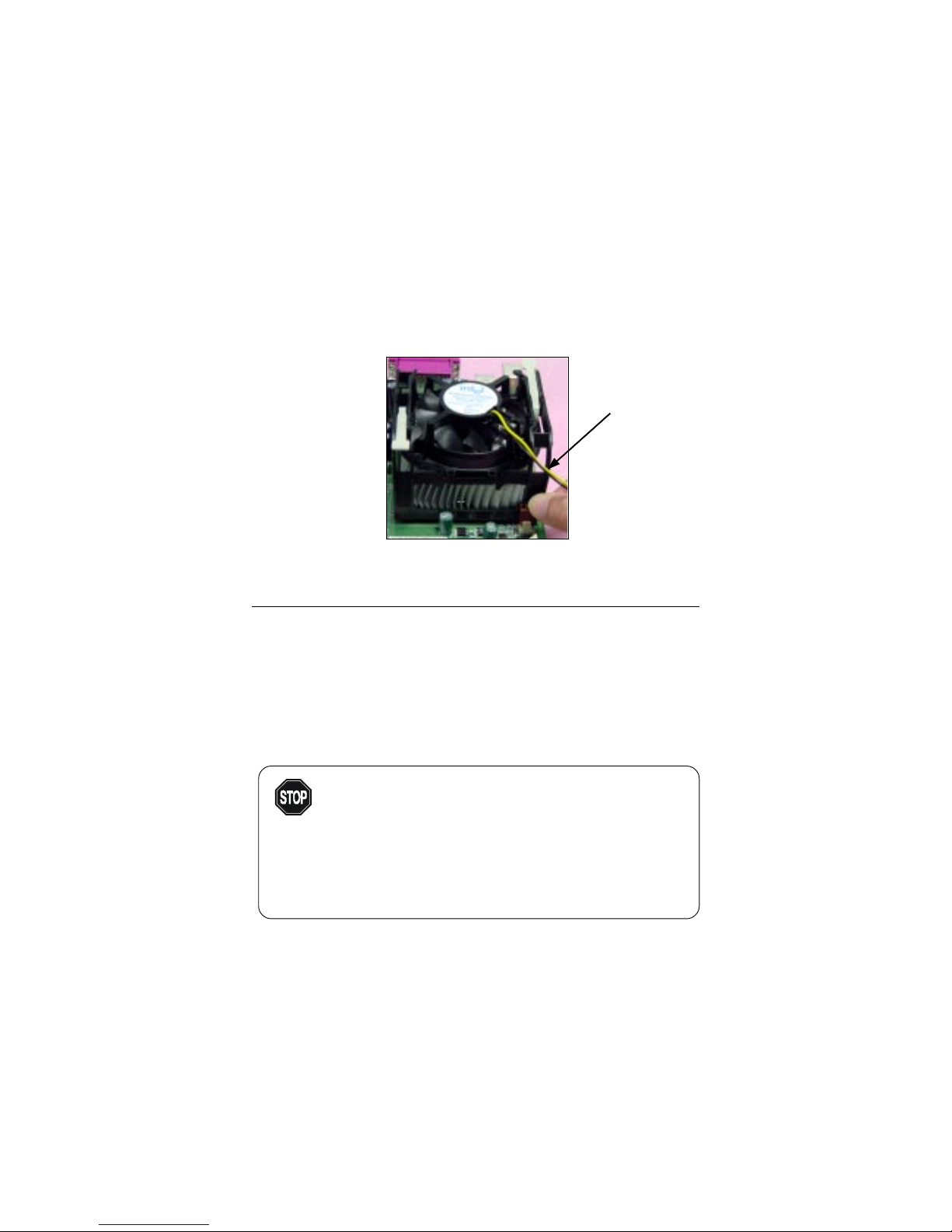

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector
on the board.
fan power cable
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks
caused by inadequate operation or beyond product
specifications.
WARNING!
