OPERATION AND PARTS MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

LITTLE SUB™

SUBMERSIBLE PUMP

Revision #0 (09/03/19)

To ﬁnd the latest revision of this

publication, visit our website at:

www.multiquip.com

PAGE 2 — LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19)

PROPOSITION 65 WARNING

LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19) — PAGE 3

TABLE OF CONTENTS

Little Sub™

Submersible Pump

Proposition 65 Warning ........................................... 2

Safety Information ................................................ 4-7

Speciﬁcations ........................................................... 8

Performance Curve.................................................. 9

General Information .............................................. 10

Components ......................................................... 11

Operation ......................................................... 12-13

Troubleshooting .................................................... 14

Cable Selection ..................................................... 15

Component Drawing

Pump Assembly ............................................... 16-17

NOTICE

Speciﬁcations and part numbers are subject to change

without notice.

PAGE 4 — LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19)

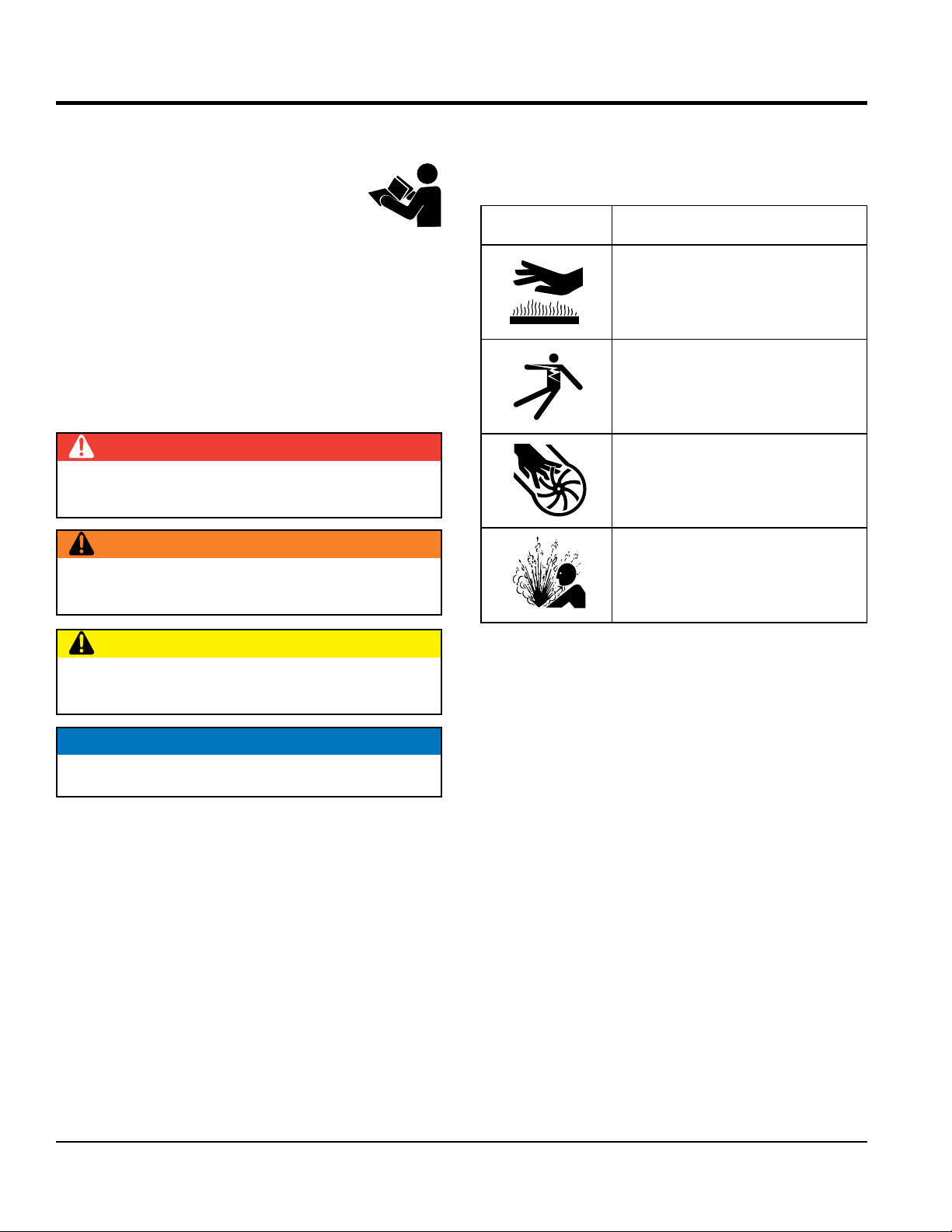

SAFETY INFORMATION

Do not operate or service the equipment before reading

the entire manual. Safety precautions should be followed

at all times when operating this equipment.

Failure to read and understand the safety

messages and operating instructions could

result in injury to yourself and others.

SAFETY MESSAGES

The four safety messages shown below will inform you

about potential hazards that could injure you or others.The

safety messages speciﬁcally address the level of exposure

to the operator and are preceded by one of four words:

DANGER, WARNING, CAUTION

or NOTICE.

SAFETY SYMBOLS

DANGER

Indicates a hazardous situation which, if not avoided,

WILL result in DEATH or SERIOUS INJURY.

WARNING

Indicates a hazardous situation which, if not avoided,

COULD result in DEATH or SERIOUS INJURY.

CAUTION

Indicates a hazardous situation which, if not avoided,

COULD result in MINOR or MODERATE INJURY.

NOTICE

Addresses practices not related to personal injury.

Potential hazards associated with the operation of this

equipment will be referenced with hazard symbols which

may appear throughout this manual in conjunction with

safety messages.

Burn hazards

Symbol Safety Hazard

Electric shock hazards

Rotating parts hazards

Pressurized fluid hazards

LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19) — PAGE 5

SAFETY INFORMATION

GENERAL SAFETY

CAUTION



NEVER operate this equipment without proper protective

clothing, shatterproof glasses, respiratory protection,

hearing protection, steel-toed boots and other protective

devices required by the job or city and state regulations.



Avoid wearing jewelry or loose ﬁtting clothes that may

snag on the controls or moving parts as this can cause

serious injury.



NEVER operate this equipment when not

feeling well due to fatigue, illness or when

under medication.



NEVER operate this equipment under the

inﬂuence of drugs or alcohol.



ALWAYS clear the work area of any debris, tools, etc.

that would constitute a hazard while the equipment is

in operation.



No one other than the operator is to be in the working

area when the equipment is in operation.



DO NOT use the equipment for any purpose other than

its intended purposes or applications.

NOTICE



This equipment should only be operated by trained and

qualiﬁed personnel 18 years of age and older.



Whenever necessary, replace nameplate, operation and

safety decals when they become difﬁcult read.



Manufacturer does not assume responsibility for any

accident due to equipment modiﬁcations. Unauthorized

equipment modiﬁcation will void all warranties.

NEVER

use accessories or attachments that are not

recommended by Multiquip for this equipment. Damage

to the equipment and/or injury to user may result.

ALWAYS know the location of the nearest

ﬁre extinguisher.

ALWAYS know the location of the nearest

ﬁrst aid kit.

ALWAYS know the location of the nearest phone or

keep

a phone on the job site.

Also, know the phone numbers

of the nearest ambulance, doctor and

ﬁre department.

This information will be invaluable in the case of an

emergency.

PAGE 6 — LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19)

SAFETY INFORMATION

PUMP SAFETY

DANGER



NEVER operate the equipment in an explosive

atmosphere or near combustible materials.An

explosion or ﬁre could result causing severe

bodily harm or even death.

WARNING



Accidental starting can cause severe injury

or death. ALWAYS place the ON/OFF

switch in the OFF position.



DO NOT place hands or fingers inside

pump when pump is running.



NEVER disconnect any emergency or

safety devices. These devices are intended for operator

safety. Disconnection of these devices can cause severe

injury, bodily harm or even death. Disconnection of any

of these devices will void all warranties.



Risk of Electric Shock - Do not enter the pool or spa

if the pump is operating.

CAUTION



Be careful of discharge hose whipping under pressure.



ALWAYS check pump oil level only when pump is cool.

Expansion due to heat may cause hot oil to spray from

the oil plug when the oil plug is removed. The possibility

of severe scalding may exist.

NOTICE



ALWAYS place the pump in an upright position on a

platform before using.The platform will prevent the pump

from burrowing itself on soft sand or mud.



NEVER operate pump on its side.



DO NOT allow the pump to freeze in water.



NEVER leave an open pump chamber unattended.



ALWAYS keep the machine in proper running condition.

DO NOT attempt to thaw out a frozen pump by using

a torch or other source of ﬂame. Application of heat in

this manner may heat the oil in the seal cavity above the

critical point, causing pump damage.

DO NOT

pump water with a temperature greater than

140°F (60°C).

DO NOT pump liquids containing acid or alkali.

ALWAYS

check strainer before pumping. Make sure

strainer is not clogged. Remove any large objects, dirt

or debris from the strainer to prevent clogging.

ALWAYS

use a large basket strainer when pumping

water that contains large debris.

ALWAYS

ﬂush pump (clean) after use when pumping

water concentrated with heavy debris. It is very important

to always ﬂush the pump before turning it off to prevent

clogging.



Fix damage to machine and replace any broken parts

immediately.

ALWAYS

store equipment properly when it is not being

used. Equipment should be stored in a clean, dry location

out of the reach of children and unauthorized personnel.

NEVER

lubricate components or attempt service on a

running machine.

NEVER run pump dry.

ALWAYS

allow the machine a proper amount of time to

cool before servicing.

Keep machine in proper running condition.

ELECTRICAL SAFETY

DANGER

The electrical voltage required to operate

pump can cause severe injury or even death

through physical contact with live circuits.

ALWAYS disconnect electrical power from

pump before performing maintenance on

pump.

WARNING



To reduce the risk of electric shock, connect to a circuit

protected by a Ground-Fault Circuit-Interrupter (GFCI).

LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19) — PAGE 7

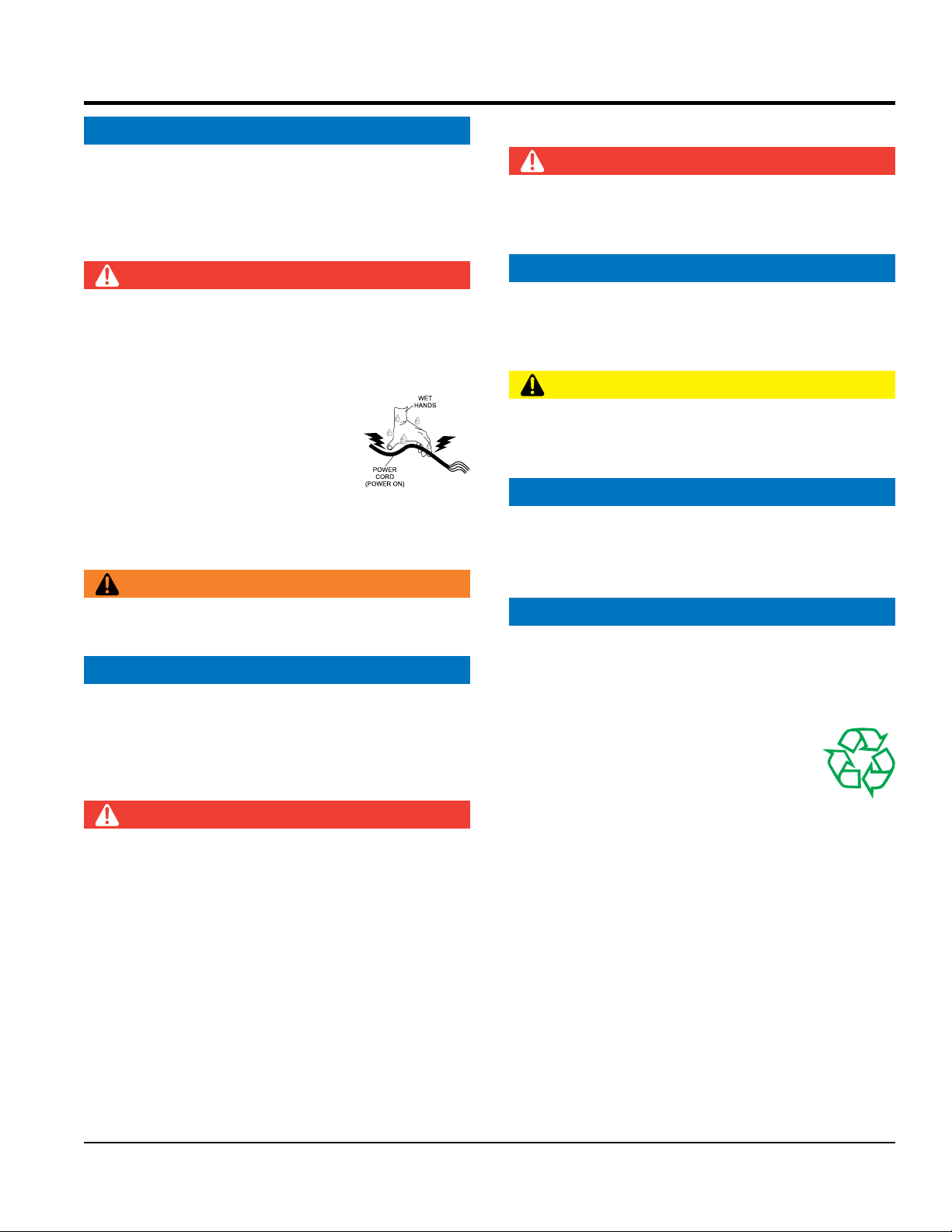

SAFETY INFORMATION

NOTICE



ALWAYS make certain that the voltage supplied to the

pump is correct. Always read the pump’s nameplate to

determine what the power requirements are.

Power Cord/Cable Safety

DANGER



NEVER stand in water while AC power cord is connected

to a live power source.



NEVER use damaged or worn cables or cords. Inspect

for cuts in the insulation.



NEVER grab or touch a live power

cord or cable with wet hands. The

possibility exists of electrical shock,

electrocution or death.



Make sure power cables are securely connected to the

motor's output receptacles. Incorrect connections may

cause electrical shock and damage to the motor.

WARNING



NEVER attempt to use the power cord as a lifting or

lowering device for the pump.

NOTICE



ALWAYS make certain that proper power or extension

cord has been selected for the job. See Cable Selection

Chart in this manual.

Grounding Safety

DANGER



ALWAYS make sure pump is grounded.



NEVER use gas piping as an electrical ground.



ALWAYS make sure that electrical circuits are properly

grounded to a suitable earth ground (ground rod) per

the National Electrical Code (NEC) and local codes

before operating generator. Severe injury or death by

electrocution can result from operating an ungrounded

motor.

Control Box Safety

DANGER

ALWAYS

have a qualiﬁed electrician perform the control

box installation. The possibility exists of electrical shock

or electrocution.

NOTICE

ALWAYS

mount control box in a vertical position

protected from harsh environmental elements.

LIFTING SAFETY

CAUTION



When raising or lowering of the pump is required, always

attach an adequate rope or lifting device to the correct

lifting point (handle) on the pump.

NOTICE

NEVER

lift the equipment while the electric motor is

running.

TRANSPORTING SAFETY

NOTICE

ALWAYS shut down pump before transporting.

ALWAYS tie down equipment during transport.

ENVIRONMENTAL SAFETY/DECOMMISSIONING

DO NOT pour waste or oil directly onto

the ground, down a drain or into any water

source.

Contact your country's Department of Public

Works or recycling agency in your area and arrange for

proper disposal of any electrical components, waste or

oil associated with this equipment.



When the life cycle of this equipment is over it is

recommended that the pump casing and all other metal

parts be sent to a recycling center

Metal recycling involves the collection of metal from

discarded products and its transformation into raw

materials to use in manufacturing a new product.

Recyclers and manufacturers alike promote the process

of recycling metal. Using a metal recycling center

promotes energy cost savings.

PAGE 8 — LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19)

SPECIFICATIONS

Table 1. Speciﬁcations

Model Little Sub™

Type Submersible Pump

Impeller Plastic

Suction and Discharge Size 1.125 in. and 0.75 in.

(28.575 mm and 19.05)

Maximum Pumping Capacity 33 gallons/minute

(125 liters/minute)

Discharge Height

Above Pumping Level

5 ft (1.5 meters) 1,800 gallons/hr (6,814 liters)

10 ft (3.0 meters) 1,320 gallons/hr (4,997 liters)

15 ft (4.5 meters) 720 gallons/hr (2,725 liters)

20 ft (6.0 meters) 120 gallons/hr (454 liters)

Power 0.25 HP

(0.37 kW)

Voltage Phase 1Ø 115V

Starting Amps 11.5

Running Amps 2.3

Thermal Overload Protection YES

Rotation1CCW

Power Cable Length 9.0 ft.

(274 cm.)

Dimensions (Dia x Height) 6-1/4 in. (15.9 cm.) x 9.5 in. (24 cm.)

Dry Net Weight (Shipping) 8.5 lbs.

(3.85 Kg.)

Dry Net Weight 6.0 lbs.

(2.72 Kg.)

1 Motor Rotation - Upon start-up, the pump "kicks" in the opposite direction of motor rotation. The

correct rotation is ounterclockwise (CCW) as viewed from the impeller end of the pump.

LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19) — PAGE 9

PERFORMANCE CURVE

PAGE 10 — LITTLE SUB™ SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #0 (09/03/19)

GENERAL INFORMATION

The MQ Little Sub™ is a lightweight, portable, submersible

pump designed to move fresh water in the following

common applications: ﬂooded rooms and roofs, fountains

and waterfalls, swimming pools and spas, simple fill-

tank requirements, and general low-ﬂow water transfer

operations.

The Little Sub™ can discharge a very limited size and

amount of debris, and is not designed to handle chemicals,

salts, or other low pH liquids. The unit best operates with

water temperatures under 104° F.

For optimum performance and pump longevity, it is best

to always position the pump in a vertical, upright position

and ensure that the proper electricity (115V single-phase)

power is always introduced.

Always raise/lower the pump in position by attaching a rope

cord to the molded handle. NEVER use the power cord to

act as a raise/lowering device.

For discharge, the pump provides two discharge port

diameter options: 1 ¼” NPT thread or ¾” common garden

hose thread. Excessive discharge hose or pipe lengths

will affect ﬂow and head performance (see Performance

Curve Chart).

The pump ON/OFF operations occur automatically with the

connection of the power cord to the electrical source (there

is no switch located on the pump). An optional Control Box

(model CB3) is available through MQ Sales if the operator

requires cycling the pump via the convenience of an ON/

OFF switch.

The pump provides internal overload protection if extreme

motor over-heating occurs, but this feature should not

be relied upon as a common means of operations.

Continual over-heating of the motor often caused by

improper electricity, extreme extension cord lengths and/

or incorrect extension cord gauge, operating dry, continual

operations for extended periods of time, and excessive

high temperature ﬂuid operations will shorten the life of

the pump motor.

Performance of the Little Sub™ (Flow, Head, Velocity and

Pressure) is based upon the application givens that include:

discharge hose diameter and length, friction loss factors,

and general rise and run discharge ﬁgures. The pump

permits dewatering levels down to approximately 1/8”.

DO NOT allow the pump to run ‘dry’, or be allowed to freeze

with water still in the unit.

TOTAL DISCHARGE HEAD FLOW

PSI

VELOCITY

Inhaltsverzeichnis

Andere MULTIQUIP Wasserpumpe Handbücher

MULTIQUIP

MULTIQUIP ST-2010 Series Leitfaden

MULTIQUIP

MULTIQUIP st41230 Leitfaden

MULTIQUIP

MULTIQUIP MG30T2D Bedienungsanleitung

MULTIQUIP

MULTIQUIP MAYCO LS300GK Bedienungsanleitung

MULTIQUIP

MULTIQUIP QP402B Bedienungsanleitung

MULTIQUIP

MULTIQUIP QP3Ti Leitfaden

MULTIQUIP

MULTIQUIP QP-3TY Leitfaden

MULTIQUIP

MULTIQUIP LS600P Bedienungsanleitung

MULTIQUIP

MULTIQUIP ST-3050D Leitfaden

MULTIQUIP

MULTIQUIP MAYCO LS300 Leitfaden

MULTIQUIP

MULTIQUIP MQ41TDH Leitfaden

MULTIQUIP

MULTIQUIP QP4TE Leitfaden

MULTIQUIP

MULTIQUIP QP3TB Bedienungsanleitung

MULTIQUIP

MULTIQUIP ST-45HRM Anwendungshandbuch

MULTIQUIP

MULTIQUIP QP205SB Bedienungsanleitung

MULTIQUIP

MULTIQUIP MAYCO LS300G Bedienungsanleitung

MULTIQUIP

MULTIQUIP QP-402H Leitfaden

MULTIQUIP

MULTIQUIP MQ ST1 Leitfaden

MULTIQUIP

MULTIQUIP SS233 Leitfaden

MULTIQUIP

MULTIQUIP ST-1500 Leitfaden

MULTIQUIP

MULTIQUIP MAYCO LS300G Handbuch

MULTIQUIP

MULTIQUIP ST2037F Leitfaden

MULTIQUIP

MULTIQUIP QP4TB Bedienungsanleitung

MULTIQUIP

MULTIQUIP QP3TZ Leitfaden

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
