Multitech MULTIVOIP MVP-210 Handbuch

MultiVOIP®SIP Gateways

MultiVOIP®Analog Models

MultiVOIP®SS Models

MultiVOIP®FX Models

Cabling Guide

2 Multi-Tech Systems, Inc.

Cabling Guide

MultiVOIP SIP Gateway

MultiVOIP®FX Models MVP210-FX, MVP410-FX & MVP810-FX

MultiVOIP®SS Models MVP210-SS, MVP410-SS & MVP810-SS

MultiVOIP®Analog Models MVP210, MVP410 & MVP810

82100277L Rev. C

This publication may not be reproduced, in whole or in part, without prior expressed

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the

contents hereof and specifically disclaims any implied warranty of merchantability or

fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves

the right to revise this publication and to make changes from time to time in the

content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or

organization of such revisions or changes. Check Multi-Tech’s web site for current

versions of our product documentation.

Revision Date Description

A 04/16/07 Initial release.

B 06/25/07 Add MultiVOIP-SS models

C 11/26/07 Support updates. Add analog series

Trademarks

Multi-Tech, the Multi-Tech logo, and MultiVOIP are registered trademarks of Multi-

Tech Systems, Inc. All other brand and product names mentioned in this

publication are trademarks or registered trademarks of their respective companies.

Patents

This Product is covered by one or more of the following U.S. Patent Numbers:

6151333, 5757801, 5682386, 5.301.274; 5.309.562; 5.355.365; 5.355.653;

5.452.289; 5.453.986. Other Patents Pending.

GENERAL

CONTACT TECHNICAL SUPPORT

Country By E-mail By Phone

Europe,

Middle East,

Africa support@multitech.co.uk (+44) 118 959 7774

Multi-Tech

Systems, Inc.

2205 Woodale Drive

Mounds View,

Minnesota

55112, USA

(763) 785-3500

(800) 328-9717

Fax: 763-785-9874

www.multitech.com

U.S.,

Canada,

All Others support@multitech.com

(800) 972-2439;

(763) 717-5863

MultiVOIP Analog/FX/SS

Multi-Tech Systems, Inc. 3

Introduction

This guide shows you how to make the cable connections to set up your

MultiVOIPP

®Analog, FX or SS SIP Gateway unit. See your MultiVOIP User Guide

included on the MultiVOIP CD for more information.

Safety Warnings

Lithium Battery Caution

A lithium battery on the voice/fax channel board provides backup power for the

timekeeping capability. The battery has an estimated life expectancy of ten years.

When the battery starts to weaken, the date and time may be incorrect. If the battery

fails, the board must be sent back to Multi-Tech Systems for battery replacement.

Warning: There is danger of explosion if the battery is incorrectly

replaced.

Ethernet Ports Caution

Caution: The Ethernet ports and command ports are not designed to

be connected to a Public Telecommunication network.

Safety Warnings Telecom

•Use this product only with UL- and CUL-listed computers (US).

•Never install phone wiring during a lightning storm.

•Never install a phone jack in a wet location unless the jack is specifically

designed for wet locations.

•Never touch uninsulated phone wires or terminals unless the phone line has

been disconnected at the network interface.

•Use caution when installing or modifying phone lines.

•Avoid using a phone during an electrical storm; there is a risk of electrical

shock from lightning.

•Do not use a phone in the vicinity of a gas leak.

•To reduce the risk of fire, use only 26 AWG or larger telephone line cord.

•This product must be disconnected from power source and telephone

network interface when servicing.

Safety Recommendations for Rack Mounting

•Ensure proper installation of the MultiVOIP in a closed or multi-unit

enclosure by following the recommended installation as defined by the

enclosure manufacturer. Do not place the MultiVOIP directly on top of other

equipment or place other equipment directly on top of the MultiVOIP.

•If installing the MultiVOIP in a closed or multi-unit enclosure, ensure

adequate airflow within the rack so that the maximum recommended

ambient temperature is not exceeded.

Cabling Guide

4 Multi-Tech Systems, Inc.

Safety Recommendations for Rack Mounting (continued)

•Ensure that the MultiVOIP is properly connected to earth ground via a grounded power

cord. If a power strip is used, ensure that the power strip provides adequate grounding

of the attached apparatus.

•Ensure that the mains supply circuit is capable of handling the load of the MultiVOIP.

Refer to the power label on the equipment for load requirements.

•Maximum ambient temperature for the MultiVOIP is 60 degrees Celsius (140°F) at 20-

90%s non-condensing relative humidity.

•This equipment should only be installed by properly qualified service personnel.

•Only connect like circuits. In other words, connect SELV (Secondary Extra Low

Voltage) circuits to SELV circuits and TN (Telecommunications Network) circuits to TN

circuits.

•To reduce the risk of shock, all access doors should be closed during normal operation

of the equipment.

Package Contents: MVP-410/810 Models

•One 4-port or 8-port MultiVOIP Analog or MultiVOIP SS or MultiVOIP FX unit

•One power cord

•One Command Cable (DB25-to-DB9 connectors)

•Two rack mount brackets and four mounting screws

•One printed Cabling Guide

•One MultiVOIP CD containing software and user documentation.

Package Contents: MVP210 Models

•One 2-port MultiVOIP unit (MVP210 or MVP210-SS or MVP 210-FX)

•One two-part power cord

•One Command Cable (DB9-to-RJ45 connectors)

•One printed Cabling Guide

•One MultiVOIP CD containing software and user documentation.

MultiVOIP Analog/FX/SS

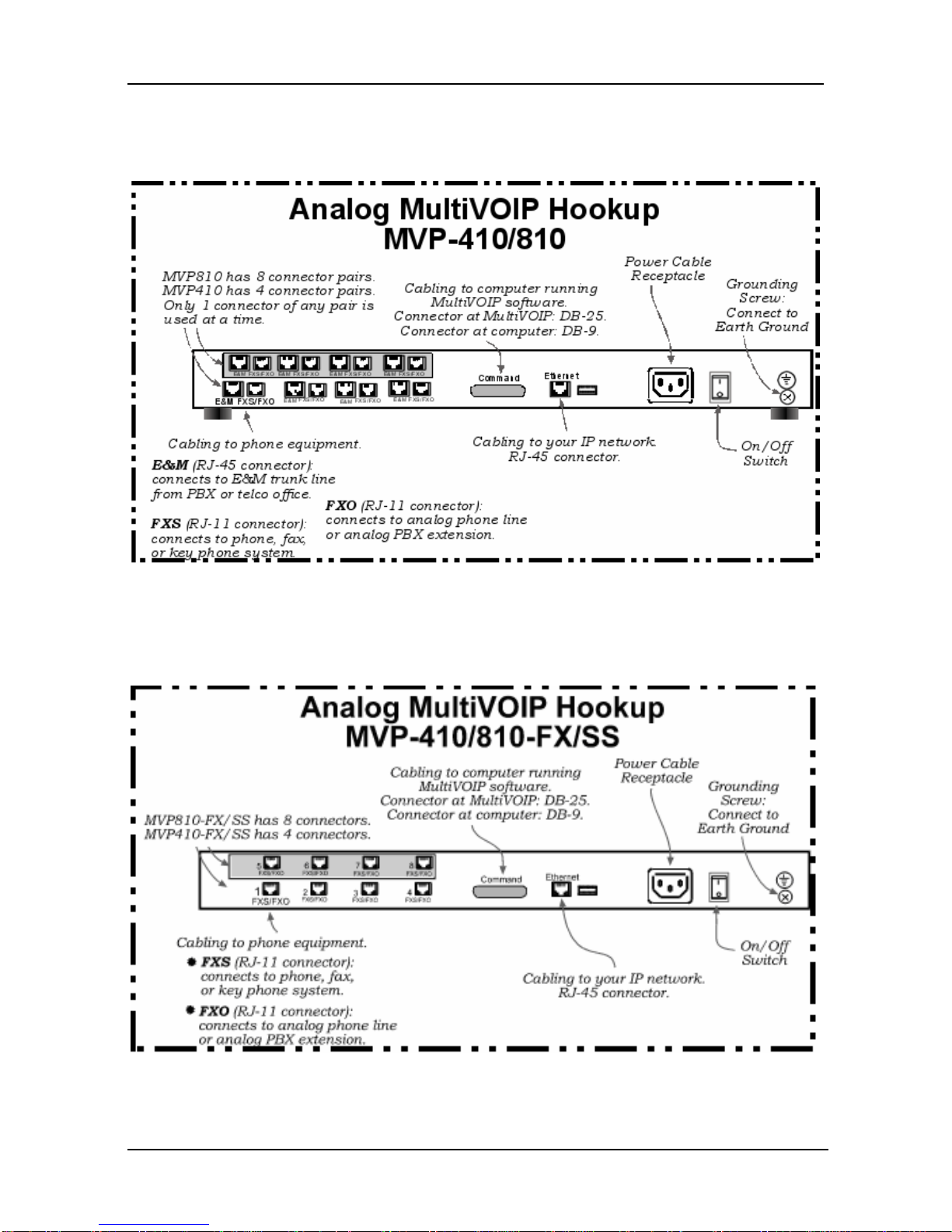

Quick Hookup for MVP-410/810 Analog

Quick Hookup for MVP-410/810 SS/FX

Multi-Tech Systems, Inc. 5

Cabling Guide

Earth Grounding for MVP-410/810 Models

Quick Hookup for MVP210 Analog

6 Multi-Tech Systems, Inc.

MultiVOIP Analog/FX/SS

Quick Hookup for MVP210-FX/SS

Multi-Tech Systems, Inc. 7

Earth Grounding for MVP210 Models

Power-Up

Turn on power to the MultiVOIP by placing the ON/OFF switch on the back

panel to the ON position. Wait for the Boot LED on the MultiVOIP to go off

before proceeding. This will take about one minute.

VOIP Configuration

When the cabling connections above have been made, go to the installation

chapter of the User Guide (on your MultiVOIP CD) for detailed instructions

about configuration.

82100277L
