Multitech CC1600-11L Bedienungsanleitung

Rackmount Modem System

Beneﬁts

• Consolidate modems

• Easily scaled

• Proven reliability

• Easy to install

The scalable CC1600-Series 19" rackmountable card cage consolidates up to 16 V.92/56K modem cards for

dial-up or 2- and 4-wire leased line service. This system is ideal for businesses that want to provide dial-in remote

access, dial-in/dial-out datacomm or dial-out faxing.

Rackmount Chassis Features

• Supports up to 16 V.92/56K modem cards

• Hot-swappable modem cards

• Hot-swappable, dual redundant power supplies*

• Easily scaled capacity to accommodate increased load/usage

Modem Card Features

• V.92/56K download speeds and 48K upload speeds when

connecting with V.92 servers

• Class 1 and Class 2 faxing at 14.4K

• V.44 compression improves data throughput rates

• Synchronous and asynchronous support

• Dial-up and 2-wire leased line support

• 4-wire leased line support and dial backup

• Remote conﬁguration for centralized setup and management

• Pass-through and ﬁxed callback security

• U.S. caller ID reporting

• Flash memory for easy updates

• Two-year warranty

CC1600-Series

* Sold separately.

World Headquarters

Tel: (763) 785-3500

(800) 328-9717

www.multitech.com

EMEA Headquarters

Multi-Tech Systems (EMEA)

United Kingdom

Tel: +(44) 118-959 7774

Multi-Tech Systems (EMEA)

France

Tel: +(33) 1 64 61 09 81

Applications

Remote Access. Give your telecommuters and road warriors

access to the central site LAN and the Internet with the

CC1600-Series rackmountable card cage.

Dial-Out Services. In addition to dial-in services, the CC1600-

Series rack can also provide dial-out Internet access to LAN

users. This eliminates the cost and hassle of installing and

maintaining modems and phone lines for every desktop.

Fax Services. The CC1600-Series rack is an ideal solution for

dedicated fax servers. The easily installed, reliable modems

provide fax send and receive capabilities in one small rack.

System Architecture

Cost-Effective. The CC1600-Series rack conserves back

ofﬁce space and minimizes administration expenses by

consolidating up to 16 modems in one standard equipment

rack using a single power outlet.

Scalable. Scaling dial-in/dial-out services through the CC1600-

Series rack is easy and cost-effective. Select the number of

modem cards to meet today’s networking needs. As demand

grows simply add more cards to your system and preserve

your initial investment.

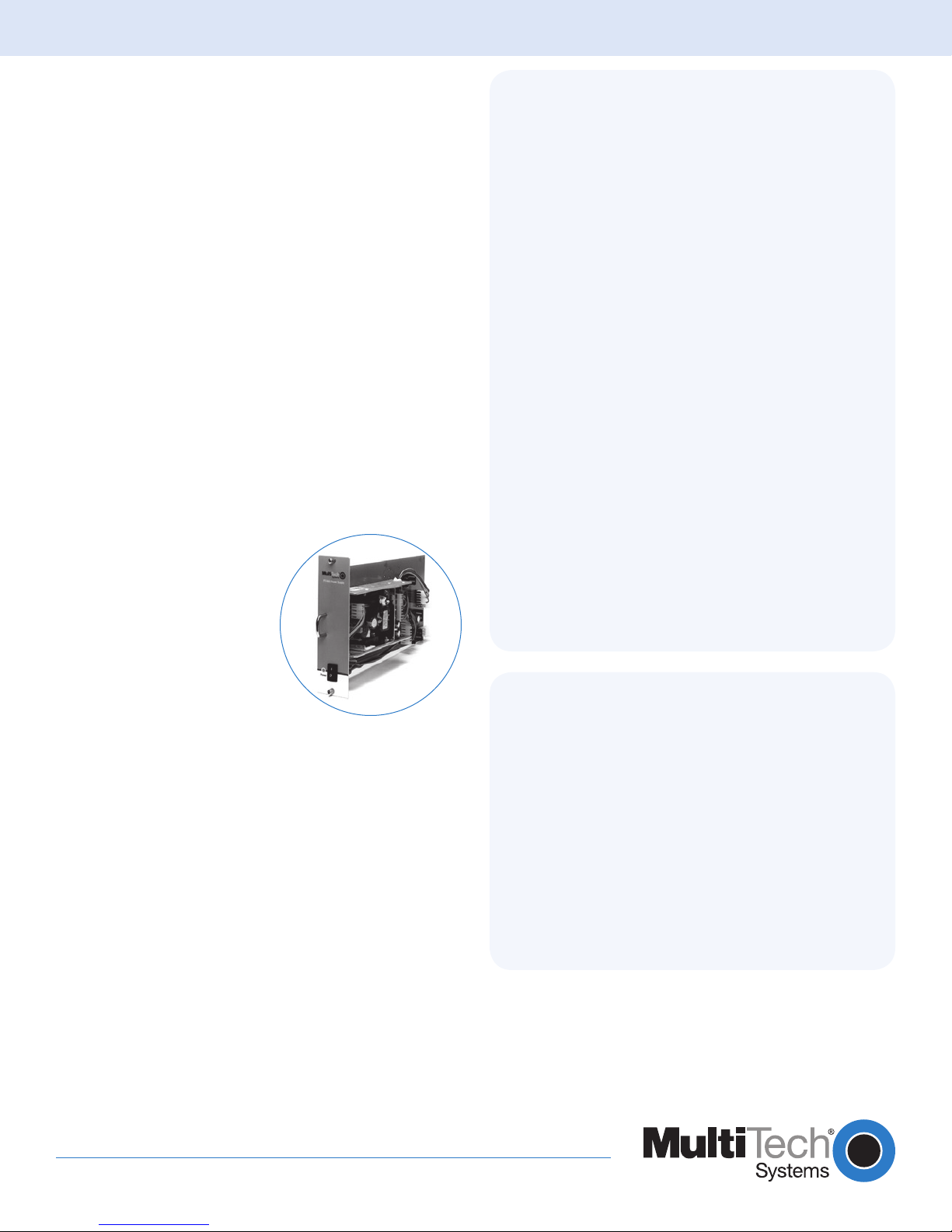

Serviceability. The CC1600-Series

rack provides the option for

dual-redundant power supplies

that are hot-swappable. In

addition, individual modem

cards are hot-swappable so

a card can be installed or

removed without interrupting

service to the other cards on the

system.

Diagnostics. The power-on self-test,

local analog loop, local digital loop, and remote digital loop

diagnostics provide valuable information on the CC1600-

Series rack.

Fully Tested and Supported. All CC1600-Series rack

components are fully tested and supported by Multi-Tech

so there is only one place to call when you need technical

support.

Comprehensive Service and Support. The Multi-Tech

commitment to service means we provide a two-year product

warranty and service that includes free telephone technical

support, 24-hour web site and ftp support.

Ordering Information

Product Description Region

Card Cage

CC1600-11L RJ-11 Chassis (Dial-Up) US/Can

CC1600-11L-EURO/INTL RJ-11 Chassis (Dial-Up) Euro/ROW

Power Supply

PS1600* 90-245v AC Power Supply Global

Modem Card

MT5600BR-V92 56K Rack Modem US/Euro

Speciﬁcations

Card Cage

Description: Metal construction with vent holes, built-

in mounting brackets, & connections for power, data

ports, & phone line or digital service

Power Supply: 70W fully loaded; 5VDC & ±15VDC

regulated

Cooling Fan: 1

Connectors: One 3-prong grounded receptacle, 16 DB25

data ports, & 16 RJ-11 jacks

Physical Description

19" w × 7" h × 15" d

(48 cm × 18 cm × 38 cm)

Weight: 21 lbs. with 1 power supply (9.6 kg)

Operating Temp: +32° to +120° F (0 to +50° C)

Modem Cards

Rates

Data: V.92/56K downloads & 48K upload speeds from

V.92 servers; V.90/56K downloads from V.90 servers,

33.6K bps transfers with other servers

Fax: 14.4K & below

Error Correction: V.42

Data Compression: V.44, V.42bis, MNP® Class 5

Fax Standards: V.17, Group 3; Class 1 & Class 2

DTE Interface: RS-232C/D

Physical Description

10.5" w × 5.5" h × 0.9" d; 1.5 lbs.

(26.7 cm × 14.0 cm × 2.2 cm; 0.68 kg)

Operating Temp: +32° to +120° F (0 to +50° C)

* Specify North American, European, or British-style power cord and voltage

when ordering the PS1600. Power supplies are sold separately from rackmount

chassis.

Made in Mounds View, MN, U.S.A.

Features and speciﬁcations are subject to change without notice.

Trademarks / Registered Trademarks: Multi-Tech, and the Multi-Tech logo:

Multi-Tech Systems, Inc. / All other products and technologies are the

trademarks or registered trademarks of their respective holders.
