Multitech MultiModemISDN MTA128ST-USB Bedienungsanleitung

MTA128ST-USB

External ISDN Terminal Adapter

Quick Start Guide

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 2

Quick Start Guide

Product: MTA128ST-USB

External ISDN Terminal Adapter

PN S000340A Rev A

This publication may not be reproduced, in whole or in part, without prior expressed written permission

or warranty with respect to the contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves

the right to revise this publication and to make changes from time to time in the content hereof without

obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or

changes.

Record of Revision

Revision Date Description

A04/15/04 Initial release for CD publication.

Patents

Thisdevicecoveredbyoneormoreofthefollowingpatents:6,031,867;6,012,113;6,009,082; 5,905,794;

5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589;

5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586;

5,577,041; 5,574,725; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616;

5,453,986; 5,452,289; 5,450,425;D353,598; 5,355,365; 5,309,562; 5,301,274 Other Patents Pending

Trademark

Trademarks of Multi-Tech Systems, Inc. are as follows: Multi-Tech logo and MultiModem.

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(763) 785-3500 or (800) 328-9717

FAX (763) 785-9874

Technical Support

Country By Email By Phone

France: [email protected] (33) 1-6461 09 81

India: [email protected] 91 (124) 6340778

U.K.: [email protected] (44) 118 959 7774

U.S. and Canada: [email protected] (800) 972-2439

Rest of the World: [email protected] (763) 717-5863

Internet Address: http://www.MultiTech.com

Table of Contents

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 3

Contents

Chapter 1 – Introduction and Description ..........................................................................................4

Introduction....................................................................................................................................................................................4

Product Description......................................................................................................................................................................4

Universal Serial Bus (USB).........................................................................................................................................................4

Safety Warning Telecom/ISDN-ST............................................................................................................................................5

Unpacking your MTA128ST-USB..............................................................................................................................................5

Assembling the MTA128ST-USB..............................................................................................................................................6

Connecting the MTA128ST-USB...............................................................................................................................................6

Connecting to Your Computer....................................................................................................................................................6

Connecting to Power....................................................................................................................................................................7

Connecting to Your ISDN Network Terminator.......................................................................................................................7

Connecting to Analog Equipment..............................................................................................................................................7

Chapter 2 – Software Installation .......................................................................................................8

Software Installation.....................................................................................................................................................................8

Installing in Windows 2000/XP...............................................................................................................................................8

Installation in Windows 98/ME.............................................................................................................................................16

Changing the Modem Descriptor (Windows 98)..................................................................................................................17

Removing Your Old Device from Windows /2000/XP.........................................................................................................20

Chapter 3 – Configuration................................................................................................................ 21

Configuration..............................................................................................................................................................................21

Network Configuration..............................................................................................................................................................21

Network Switch Type............................................................................................................................................................21

Call Control Configuration........................................................................................................................................................22

ISDN MTA128ST-USB Configuration Utility..........................................................................................................................23

To Install in Windows 98/2000/XP.......................................................................................................................................24

To Use the ISDN MTA128ST-USB Configuration Utility.....................................................................................................24

AT Commands...........................................................................................................................................................................25

Using AT Commands to Configure the MTA128ST-USB...................................................................................................25

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 4

CHAPTER1–INTRODUCTIONANDDESCRIPTION

Introduction

Welcome to the world of data communications. You have acquired one of the finest ISDN

terminal adapters (TA) available today from one of America’s oldest and most respected modem

manufacturers: Multi-Tech Systems, Inc. This Quick Start Guide will help you unpack, install,

configure, and use your MTA128ST-USB.

Product Description

The MTA128ST-USB is a desktop terminal adapter with an ST port used for connection to an

ISDN network, a USB port for connection to a PC or laptop, and an analog port to connect it to a

telephone, modem, or fax machine. It ships with a software configuration utility for Windows

98/2000/XP. In addition, the MTA128ST-USB accepts AT commands that enable it to use the

same communications software as an analog modem.

MTA128ST-USB

The MTA128ST-USB is compatible with the popular EuroISDN switch protocol, it communicates

using ISDN BRI (2B+D) service, which provides up to 128 Kbps data and voice communications.

The device automatically detects whether an incoming call is voice or data and handles it

appropriately.

Universal Serial Bus (USB)

Universal Serial Bus (USB), defined by a consortium of industry leaders, permits connection of

multiple low-speed and medium speed computer peripheral devices such as telephones,

modems, printers, keyboards, mice, and scanners; all from a single personal computer port. The

specification, based on open architecture is quickly becoming a standard feature in new desktop

and notebook computers.

For more details, refer to the USB Public Web Board on the World Wide Web at:

http://www.usb.org/

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 5

Safety Warning Telecom/ISDN-ST

1. Never install telephone wiring during a lighting storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed for

wet locations.

3. This product is to be used with CE approved/marked computers.

4. Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

5. Use caution when installing or modifying telephone lines.

6. Avoid using a telephone (other than a cordless type) during an electrical storm. There

may be a remote risk of electrical shock from lightning.

7. Do not use the telephone to report a gas leak in the vicinity of the leak.

8. To reduce the risk of fire, use only No. 26 AWG or larger Telecommunication line cord.

9. If S/T - interface ISDN network connection cable is used, the ISDN phone cord

should be connected between the ISDN network connection cable and a NT1

device.

Unpacking your MTA128ST-USB

Remove all items from the box.

Unpacking

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 6

Assembling the MTA128ST-USB

The only assembly required is to mount the feet on the bottom of the unit. Peel the four self-

adhesive plastic feet off the backing strip and press them into the recesses on the bottom.

Connecting the MTA128ST-USB

Place the MTA128ST-USB terminal adapter in a convenient location. In a typical configuration,

you will need to connect your MTA128ST-USB to your computer’s USB port, to its own power

supply, to the ISDN network terminator, and to any optional analog equipment you are using

(e.g., a telephone).

MTA128ST-USB Connection

Connecting to Your Computer

1. Plug the 4-pin flat end (Type A) into a USB port connector on your computer or laptop.

Note: Do NOT plug the “D-shaped” end (Type B) of the USB cable into the USB

connector on the back panel of the MTA128ST-USB at this time. You will be directed to

make the connection during the software driver installation process.

Chapter 1 – Introduction and Description

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 7

Connecting to Power

1. Plug the power supply into the unit’s POWER connector.

2. Plug the power supply into a live AC outlet.

3. Turn on the unit by sliding the power switch to ON.

4. Verify operation by observing the LED indicators on the front panel. The LEDs will initially

flash in a self-test pattern. Then the LS LED will remain on. (See LED descriptions in the

on-line User Guide.) If the terminal adapter does not appear to be working, see Chapter 5

in the on-line User Guide for troubleshooting help.

Caution: Only use the power supply shipped with your MTA128ST-USB; any other power

supply could damage the unit and void its warranty.

Connecting to Your ISDN Network Terminator

1. If you need a longer line cord than the RJ-45 line cord provided with your MTA128ST-

USB, select a cord that is wired straight through (pin 1 to pin 1; pin 2 to pin 2, etc.) with at

least the middle four pins connected (pins 2, 3, 4, and 5).

2. Plug one end of the provided RJ-45 S/T line cord into the ISDN jack on the MTA128ST-

USB and the other end into the S/T jack on your network terminator.

Note: The AUX jack and ISDN jack are not interchangeable.

Connecting to Analog Equipment

You can connect an analog device such as an analog telephone, modem, or fax machine to the

unit. Simply plug the device’s modular RJ-11 telephone cord into the RJ-11 AUX connector.

Note: The AUX jack and the ISDN jack on the unit are not interchangeable.

Chapter 2 – Software Installation

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 8

CHAPTER2–SOFTWAREINSTALLATION

Software Installation

MTA128ST-USB driver software is installed in Windows 2000/XP and 98/ME operating

environments.

Installing in Windows 2000/XP

1. Power up your Windows 2000/XP system.

2. Turn on your MTA128ST-USB. The LS (Power) LED will light.

3. Plug the “D-shaped” end (Type B) of your USB cable into the USB connector on the back

of the unit

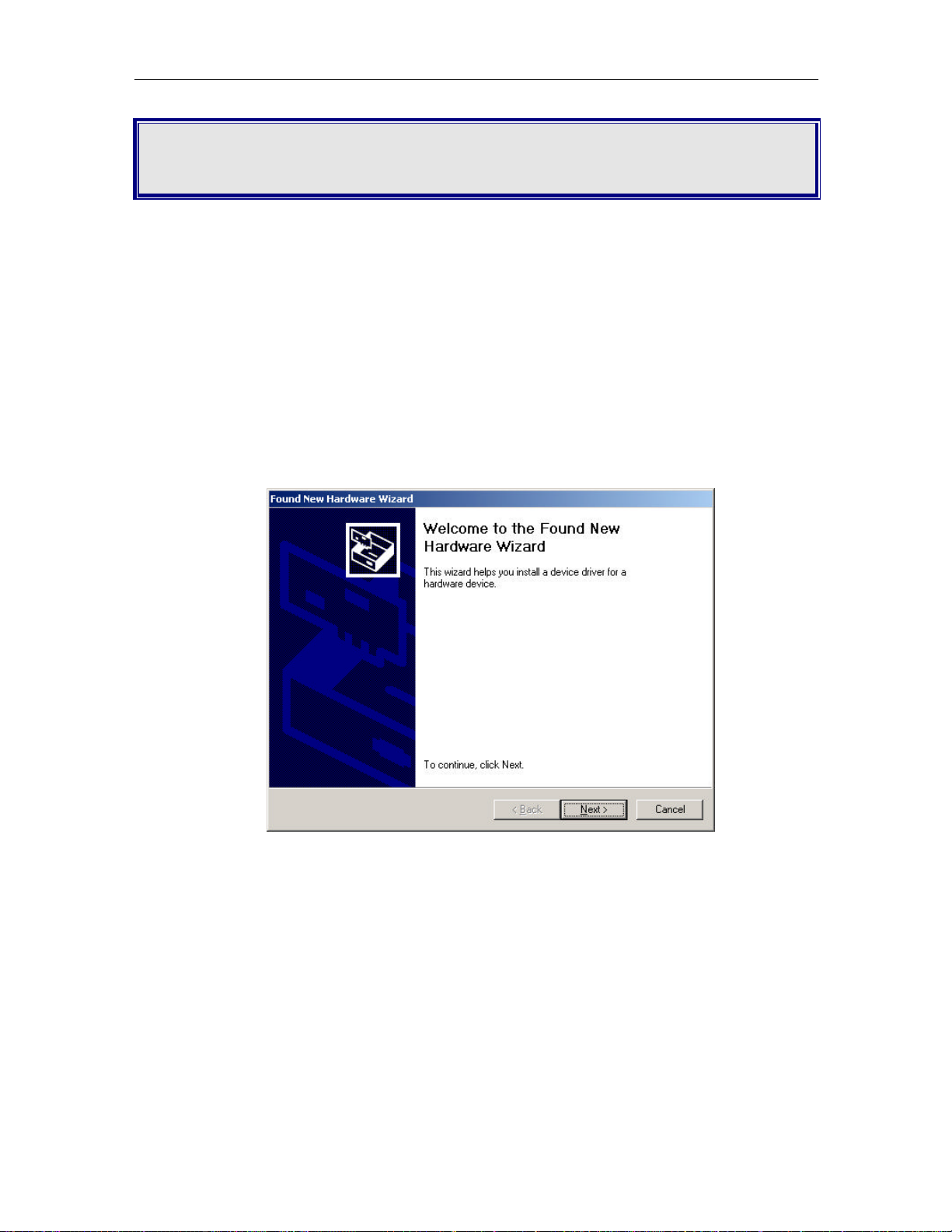

4. Windows will detect that the new modem is present and launch the Found New

Hardware Wizard.

Place the Installation CD provided with your modem into your CD-ROM drive and click

Next > to proceed with the installation.

Chapter 2 – Software Installation

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 9

5. The Install Hardware Device Drivers dialog box displays.

Verify that the “Search for a suitable driver for my device (recommended” option is selected

and click Next>.

6. The Locate Driver Files Dialog box displays.

Verify that the “CD-ROM drive” option is selected and click Next>.

Chapter 2 – Software Installation

Multi-Tech Systems, Inc. MTA128ST-USB External ISDN Terminal Adapter PN S000340 10

7. The Digital Signature Not Found dialog box might display.

Click Yes to continue.

8. The Found New Hardware Wizard displays, asking you to insert the installation CD.

In the Copy manufacturer’s files from: box, use the browse button to find D:\Win2k, or

type D:\Win2k in the box. “D:\” is used as an example of your CD-ROM drive letter.

Make certain that the installation CD is in the computer’s CD-ROM drive and click OK.

Andere Handbücher für MultiModemISDN MTA128ST-USB

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Multitech Modem Handbücher

Multitech

Multitech MultiModem MT5634ZPW-PCI Bedienungsanleitung

Multitech

Multitech MT5656ZDX Series Bedienungsanleitung

Multitech

Multitech MultiModem MT2834ZDX Series Bedienungsanleitung

Multitech

Multitech MultiModem MT5634ZPX-PCI-U-NV Bedienungsanleitung

Multitech

Multitech MTSMC-H5 Anwendungshandbuch

Multitech

Multitech etherFAX A2E Bedienungsanleitung

Multitech

Multitech MultiModem MT5600ZDX Bedienungsanleitung

Multitech

Multitech MTD100U Bedienungsanleitung

Multitech

Multitech MULTI MODEM II MT5600BA Bedienungsanleitung

Multitech

Multitech MTCBA-G-U Bedienungsanleitung

Multitech

Multitech CC1600-11L Bedienungsanleitung

Multitech

Multitech MT2834BA Bedienungsanleitung

Multitech

Multitech MultiModem MT2834ZPW Bedienungsanleitung

Multitech

Multitech MultiModem GPRS with Ethernet Interface Bedienungsanleitung

Multitech

Multitech MultiModem MT5600ZDX Bedienungsanleitung

Multitech

Multitech MultiModem MTCBA-G-UF1 Bedienungsanleitung

Multitech

Multitech MultiModem MT9234ZPX-UPCI Bedienungsanleitung

Multitech

Multitech MultiModem II MT5600BA-V.92 Bedienungsanleitung

Multitech

Multitech MTCBA-C-U-N1 Bedienungsanleitung

Multitech

Multitech MTCBA-E Bedienungsanleitung

Multitech

Multitech MMCModem MTMMC-G-F4 Bedienungsanleitung

Multitech

Multitech MMCModem GPRS (MTMMC-G) Bedienungsanleitung

Multitech

Multitech MultiModem MTCBA?H3?U1 Bedienungsanleitung

Multitech

Multitech QuickCarrier USB-D MTD-H5 Bedienungsanleitung

Beliebte Modem Handbücher anderer Marken

Davicom

Davicom DM562AP Bedienungsanleitung

EpiValley

EpiValley TATA indicom SXC-1080 Bedienungsanleitung

Zte

Zte WiMAX Bedienungsanleitung

Intelimax

Intelimax MA-2060 Bedienungsanleitung

SMC Networks

SMC Networks D3CM1604V Gebrauchs- und Pflegehandbuch

Telstra

Telstra Wi-Fi 4G Advanced Pro X Bedienungsanleitung

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Bedienungsanleitung

Samsung

Samsung AceLink SAM-335A Bedienungsanleitung

Enfora

Enfora Enabler-G Kurzanleitung zur Einrichtung

iRZ

iRZ ATM2-232 Bedienungsanleitung

Zhone

Zhone 6310 Bedienungsanleitung

Paradyne

Paradyne Hotwire 7976 Bedienungsanleitung

US Robotics

US Robotics 3453C Bedienungsanleitung

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Bedienungsanleitung

Zte

Zte MF823 Bedienungsanleitung

Four-Faith

Four-Faith F1403 Bedienungsanleitung

Sierra Wireless

Sierra Wireless AIRLINK MP595W Bedienungsanleitung

Gemtek

Gemtek WiMAX WIXFBR-103 Bedienungsanleitung
