Multitech IWay MTA128ST Bedienungsanleitung

User Guide

Models MTA128ST and MTA128NT

External ISDN Terminal Adapter

User Guide

Model MTA128ST/NT

S000305B Rev. B

This publication may not be reproduced, in whole or in part, without prior written permission from Multi-Tech Sys-

Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifi-

cally disclaims any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-

Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the

content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revi-

sions or changes.

Revision Date Description

A7/25/03 The manual replaces 82052305 Rev. G. Manual updated with NT info. AT commands

and S registers moved into additional documentation on CD.

B 11/05/04 Changed temperature from -50 to-40 C.

Trademarks

IWay, IWay Hopper, Multi-Tech, and the Multi-Tech logo are trademarks of Multi-Tech Systems, Inc. AT&T and

5ESS are registered trademarks of American Telephone and Telegraph. Microsoft, Windows, and Windows 95

are registered trademarks of Microsoft Corporation. NETCOM is a registered trademark of NETCOM On-Line

Communication Services, Inc. Netscape and Navigator are trademarks of Netscape Communications Corp.

DMS-100 is a trademark of Northern Telecom. All other trademarks are owned by their respective companies.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112

U.S.A

Telephone (763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

Technical Support (800) 972-2439

Internet

http://www.multitech.com

Contont

ontont

ontentsents

entsents

ents

Chapter 1: Introduction and Description ..................................................................................................................... 4

Welcome to the world of ISDN communications. .............................................................................................................. 4

Product Description .......................................................................................................................................................... 4

Features ........................................................................................................................................................................... 5

LED Indicators .................................................................................................................................................................. 8

Technical Specifications.................................................................................................................................................... 10

Chapter 2: Hardware Installation ................................................................................................................................... 11

Safety Warnings ............................................................................................................................................................... 11

Connecting your TA .......................................................................................................................................................... 11

Chapter 3: Configuration Utilities .................................................................................................................................. 13

Introduction ....................................................................................................................................................................... 13

Before You Start ................................................................................................................................................................ 13

Configuring your TA .......................................................................................................................................................... 17

Chapter 4: AT Commands, S-Registers, and Result Codes ......................................................................................... 26

MTA128ST/NT Commands and S-Registers .................................................................................................................... 26

S-Registers....................................................................................................................................................................... 29

Chapter 5:Troubleshooting ........................................................................................................................................... 34

Troubleshooting the TA ..................................................................................................................................................... 34

Chapter 6: Point-to-Point Communications: PPP/MLPPP ........................................................................................... 41

Chapter 7: Warranty, Service, and Tech Support .......................................................................................................... 44

Multi-Tech Systems, Inc. Warranty & Repairs Policies ...................................................................................................... 44

Online Warranty Registration ............................................................................................................................................ 45

Service ............................................................................................................................................................................. 45

Replacement Parts ........................................................................................................................................................... 46

Technical Support ............................................................................................................................................................. 47

Appendix A:Configuration Profiles ............................................................................................................................... 48

Quick Setup Factory Profiles ............................................................................................................................................ 48

Quick Setup Example ....................................................................................................................................................... 48

Appendix B: Ordering Your ISDN Line .......................................................................................................................... 49

Loop Qualification ............................................................................................................................................................. 49

Bearer Service.................................................................................................................................................................. 50

Using ISDN Ordering Codes (IOCs) ................................................................................................................................. 50

Ordering ISDN Without IOCs ............................................................................................................................................ 52

Appendix C: FCC and Canadian Regulation ................................................................................................................ 56

FCC .................................................................................................................................................................................. 56

Canadian Limitations Notice ............................................................................................................................................. 57

Appendix D: Configuration Methods ............................................................................................................................ 58

Firmware-based Configuration Utility ................................................................................................................................ 58

Configuration via AT Commands ...................................................................................................................................... 58

Glossary .......................................................................................................................................................................... 59

Index ................................................................................................................................................................................ 65

Introduction and Description

MTA128ST/NT 4

Chapthapt

hapthapt

hapter 1: Intrer 1: Intr

er 1: Intrer 1: Intr

er 1: Introo

oducduc

ducduc

duction and Dtion and D

tion and Dtion and D

tion and Descriptionescription

escriptionescription

escription

Welcome to the world of ISDN communications.

You have acquired one of the finest ISDN terminal adapters (TAs) available today, model MTA128ST/NT

from Multi-Tech Systems. The MTA128ST is a desktop TA with an S/T interface port to connect it to the

ISDN network and an analog port to connect it to a telephone, modem, or fax machine. The MTA128NT is

a desktop TA with a U-interface to connect it to the ISDN network and an analog port to connect it to a

telephone, modem, or fax machine.The TAs ship with a software configuration utility for Windows® 98/NT/

ME, and ConfigMenu, a built-in configuration utility for Windows and non-Windows operating systems. In

addition, the MTA128ST/NT accepts AT commands that enable it to use the same communications

software as an analog modem.

The MTA128ST is compatible with the popular EuroISDN switch protocol, it communicates using ISDN BRI

(2B+D) service, which provides up to 128 Kbps data and voice communications, and it automatically

detects whether an incoming call is voice or data and handles it appropriately.

The MTA128ST/NT provides dial-up asynchronous communication capability with other personal

computers, terminals, on-line computer services, or other computer systems. Connection to your

computer/terminal device is made via the RS232 connector (ISDN). Connection to analog devices is

accomplished with an RJ11 connector and one RJ45 connector is used for your ISDN connection.

This User Guide will help you install, configure, and operate your MTA128ST/NT.

Product Description

There are two ISDN interface options,

S/T

and

. If you purchased the S/T interface adapter

(MTA128ST), you need an ISDN NT1 device connection to the ISDN switch. If you purchased the U

interface adapter (MTA128NT), it can directly connect to the ISDN switch (figure 1-1).

ISDN

central office

customer site

NT1

ISDN U interface

T interface

ISDN

ISDN U interface

MTA128NT

MTA128ST

customer site

Figure 1-1. ”S/T” and “U” Interface Options

Your ISDN TA is compatible with prevalent ISDN switch protocols. It communicates using ISDN BRI

(2B+D) service, which provides up to 128K bps data communications.

Introduction and Description

MTA128ST/NT 5

This manual documents the following models:

• MTA128ST for S/T interface with one POTS port

• MTA128NT for U interface with one POTS port

Some analog devices, including telephone set, answering machine, and modem, can be connected to the

POTS port via an RJ-11 jack.

This User Guide will help you install, configure, and operate your terminal adapter.

Features

The MTA128ST/NT communicates over public ISDN telephone lines. Features include:

• Compatibility with EuroISDN (ETSI/DSS1/NET3), French VN4, and Japanese INS64 switch protocols

• Compatibility with U.S. NI-1, AT&T 5ESS, and DMS-100 switch protocols

• Compatibility with V.110 (some models only), V.120, ML-PPP, and X.75 protocols

• Transparent synchronous communication capability (CLEAR)

• ISDN BRI (2B+D) and analog ports

• RS232E serial port

• Serial port speeds to 460.8 Kbps

• Support of PPP (Point-to-Point Protocol) for high speed ISDN connections

• Tone detection to allow use of a standard telephone for ISDN line access (an ISDN telephone is not

required)

• Automatic detection of incoming calls as voice or data

• Windows 98/NT/ME software utility and a firmware utility for easy ISDN line configuration

• AT commands, S-registers, and result codes

• Ability to use the same communications software as analog modems

• Flash memory for easy firmware upgrades

ISDN BRI Line

Before running the ISDN adapter, you need to get an ISDN BRI (Basic Rate Interface) line from your local

telephone company. Your ISDN service provider will provide information to you about the ISDN central

switch type, pertinent subscriber information and SPID (Service Profile ID) number(s) if required .

SPID (Service Profile ID)

The Service Profile ID (SPID) is applicable in the U.S. only. SPIDs are a series of numbers that inform the

central office switch which services and features to provide to an ISDN device. The generic SPID format

comprises 14 digits. The first 10 digits are the main telephone number on the terminal. The last 4 digits

are dependent on the number of terminals on the interface and the services they support.

NT1 Connection

An ISDN Basic Rate (BRI) U-Loop consists of 2 conductors from the CO (telephone company central

office) to the customer premises. The equipment on both sides of the U-loop has been designed to deal

with the long length of the U-loop and the noisy environment it operates in. At the customer premises the

U-loop is terminated by an NT1 (network termination 1) device. An NT1 is a device which provides an

interface between the two-wire twisted-pairs used by telephone companies in their ISDN BRI network and

an end-user's four wire terminal equipment. The NT1 drives an S/T-bus which is usually made up of 4

wires, but in some cases may be 6 or 8 wires.

The name of the S/T bus comes from the letters used in the ISDN specifications to refer to two reference

points,

and

. Point

refers to the connection between the NT1 device and customer supplied

equipment. Terminals can connect directly to NT1 at point

, or there may be a PBX (private branch

exchange, i.e. a customer-owned telephone exchange). When a PBX is present, point

refers to the

connection between the PBX and the terminal. Note that in ISDN terminology, "

terminal

" can mean any

sort of end-user ISDN devices, such as data terminals, telephones, FAX machines, etc. The diagram

which follows reflects interface points in a typical ISDN network.

Introduction and Description

MTA128ST/NT 6

If your ISDN product operates with a S/T outlet interface, you need an NT1 device to connect to the ISDN

switch. MTA128ST adapters need an NT1 device to connect to the ISDN switch, but the MTA128NT

adapter does not require NT1 device. In the UK, and in many European countries, NT1 device is supplied

by your telephone company.

Terminal

NT2

(PBX)

NT1

Point “S”

4-8 Wires

Point “S” Point “S”

Point “T”

4-8 Wires

Point “U”

2 Wires

Figure 2-1 ISDN Interface Points

S/T Interface

The S/T interface uses an 8-conductor modular cable terminated with an 8-pin RJ-45 plug. An 8-pin RJ-45

jack located on the terminal is used to connect the terminal to the DSL (Digital Subscriber Loops) using

this modular cable.

Table 2-1 shows the Pin Number, Terminal Pin Signal Name and SILC Pin Signal name for the S/T

interface.

niPlangiSET

1desutoN

2desutoN

3+xT

4-xR

5+xR

6-xT

7desutoN

8desutoN

Introduction and Description

MTA128ST/NT 7

U Interface

The U interface uses a 2-conductor twisted pair cable terminated with an RJ-45 jack. An RJ-45 jack

located on the terminal is used to connect the terminal to the Digital Subscriber Loops using this twisted

pair cable.

In Table 2-2 the Pin Number, Terminal Pin Signal Name and UILC Pin Signal Names for the U interface are

listed.

niP

1AN

2AN

3AN

4tupnIevitisoP

5tupnIevitageN

6AN

7AN

8AN

Introduction and Description

MTA128ST/NT 8

LED Indicators

The ten LED indicators on the front panel (see figure below) of the MTA128ST/NT report status and line

activity.

Transmit Data

Flashes when data is being transmitted (on for a space, off for a mark).

RD Receive Data

Flashes when data is being received (on for a space, off for a mark).

Link Status

For EuroISDN NET3, INS64, and VN4 switch protocols, lights when the TA is turned on. For US NI-1, DMS-100,

and AT&T 5ESS switch protocols: On Steady, Link with central office is established (requires correct configuration

of SPIDs) Flashing, Physical layer is down or one or both SPIDs have not been verified with central office

Bearer Channel 1

When lit, indicates active data or voice connection on bearer channel 1.

Bearer Channel 2

When lit, indicates active data or voice connection on bearer channel 2.

Terminal Ready

Lights to indicate that the computer is communicating with the MTA128ST/NT, so the MTA128ST/NT can answer

an incoming call.

Off Hook

Lights when analog equipment on AUX port is active or off-hook.

128

128 Kbps

Lights to indicate that the B channels have been multiplexed into a single 128 Kbps communications link.

Data Protocol

Lights in combination with P2 and 128 LEDs to indicate which data protocol (V.110, V.120, X.75, PPP, MLPPP) is in

use as shown in the table below.

Data Protocol

Lights in combination with P1 and 128 LEDs to indicate which data protocol (V.110, V.120, X.75, PPP, MLPPP) is in

use as shown in the table below.

Introduction and Description

MTA128ST/NT 9

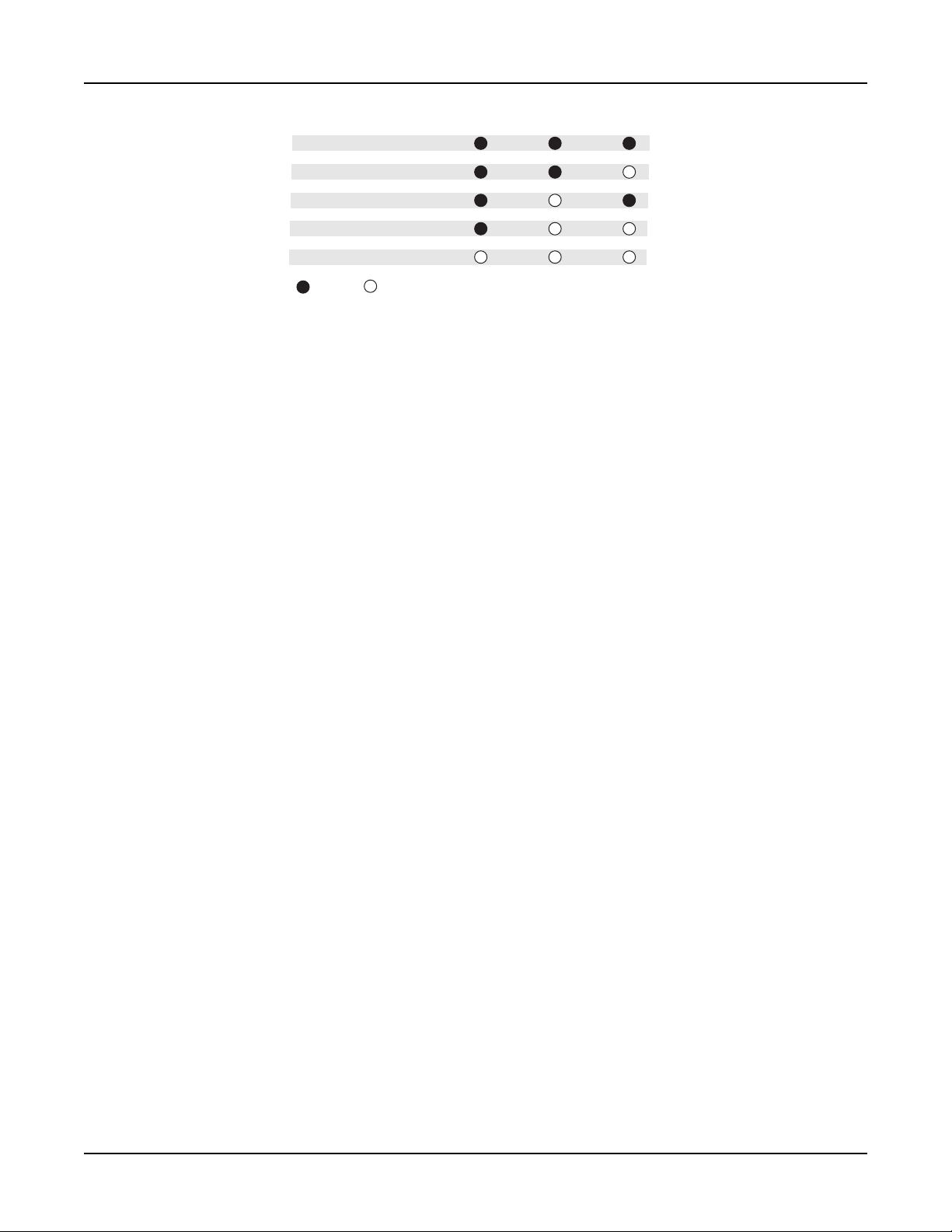

Data Protocol 128 LED P1 LED P2 LED

V.110

V.120

X.7 (1 channel)

PPP (1 channel)

MLPPP (2 channels)

OFF ON

Introduction and Description

MTA128ST/NT 10

Technical Specifications

Trade Name

IWay Hopper™

Model Number

MTA128ST (International),

MTA128NT

Network Interface

ST-Four-wire S/T interface

NT– 2-wire “U” interface

Switch Compatibility

EuroISDN (ETSI/DSS1/NET3), VN4, INS64, U.S. NI-1, AT&T 5ESS,

DMS-100 (both models support all of the switch protocols)

B-Channel Protocols

V.110 (some models only),V.120, X.75, PPP, ML-PPP, CLEAR

Voice Coding

PCM: A-Law ; µ-Law (switch protocol dependent)

LED Indicators

10 front panel LED indicators: Transmit Data, Receive Data, Link Status, B1 Active,

B2 Active, Terminal Ready, Off Hook (AUX port), 128 Kbps, P1 Active (data

protocol), P2 Active (data protocol)

Data Rates

300, 1.2K, 2.4K, 4.8K, 9.6K, 19.2K, 38.4K, 56K, 57.6K, 64K, 115.2K, 230.4K, and

460.8K bps

Async Data Format

7 bit data + odd/even parity + 1 start/stop, 8 bit no parity. 36 baud rate/parity settings

via S-register. Baud rates of 300–460.8K bps with even, space, mark, odd, or no

parity.

Data Connections

Two ISDN B-channels

One ISDN D-channel

One analog port for connecting a standard telephone, modem, or fax machine

Command Interface

AT commands, S-registers, result codes, ConfigMenu firmware configuration utility,

Windows 98/NT/ME configuration utility, Dial-Up Networking (DUN)

Connectors

ISDN: RJ-45 female receptacle, 4-wire S/T (accepts connection cable to the network

provider’s NT1 device) or 2-wire U interface

AUX: RJ-11 female receptacle, 2-wire voice service

Serial Port: female DB-25 RS232E/V.24

Serial Interfaces

ITU-T V.24, EIA/TIA RS232E

Switches

Two-position power switch

Power Requirements

Two-prong outlet-mounted transformer (included), 240 VAC 50/60 Hz

Dimensions

15.0 cm × 10.7 cm × 2.8 cm (L × W × D)

Environmental

Temperature range 0°–40° C (32°–104°F)

Humidity range 20–90% (noncondensing)

Power Consumption

4 watts

Weight

224 g (8 oz)

Warranty

5 years

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Multitech Modem Handbücher

Multitech

Multitech MTCBA-C-EN-N1 Bedienungsanleitung

Multitech

Multitech Dragonfly Nano MTQN-MNG3-B02 Anwendungshandbuch

Multitech

Multitech MultiModem ZBA Series Installationshandbuch

Multitech

Multitech SocketModem Cell MTSMC-LVW3 Anwendungshandbuch

Multitech

Multitech RJModem MT5656RJ Bedienungsanleitung

Multitech

Multitech MTE-Series Bedienungsanleitung

Multitech

Multitech MultiModem ZPX MT5634ZPX-PCI Series Bedienungsanleitung

Multitech

Multitech Multimodem MTCBA-G-F1 Bedienungsanleitung

Multitech

Multitech MultiModem MTCBA?H3?U1 Bedienungsanleitung

Multitech

Multitech MultiModem MT5634ZBA-V.92 Bedienungsanleitung

Multitech

Multitech MultiModem MT5634ZPX-PCI-U Bedienungsanleitung

Multitech

Multitech MultiMobile MT9234MU Bedienungsanleitung

Multitech

Multitech MT9234ZBA-USB Bedienungsanleitung

Multitech

Multitech MultiModem II MT5600BA-V.92 Bedienungsanleitung

Multitech

Multitech MTCBA-E Bedienungsanleitung

Multitech

Multitech MultiConnect microCell MTCM2-L4G1 Bedienungsanleitung

Multitech

Multitech MultiModem MT5634ZBA-V-V92 Bedienungsanleitung

Multitech

Multitech QuickCarrier USB-D MTD-MNA1 Bedienungsanleitung

Multitech

Multitech MultiModem MT2834ZPW Bedienungsanleitung

Multitech

Multitech MultiMobile MT9234MU-CDC Bedienungsanleitung

Multitech

Multitech MultiConnect Cell 100 Series MTC-EV3 Bedienungsanleitung

Multitech

Multitech MultMobile MT9234MU Bedienungsanleitung

Multitech

Multitech MultiModem Cell MTCBA-E1 Bedienungsanleitung

Multitech

Multitech MultiModem IND MT5634IND Bedienungsanleitung

Beliebte Modem Handbücher anderer Marken

Davicom

Davicom DM562AP Bedienungsanleitung

EpiValley

EpiValley TATA indicom SXC-1080 Bedienungsanleitung

Zte

Zte WiMAX Bedienungsanleitung

Intelimax

Intelimax MA-2060 Bedienungsanleitung

SMC Networks

SMC Networks D3CM1604V Gebrauchs- und Pflegehandbuch

Telstra

Telstra Wi-Fi 4G Advanced Pro X Bedienungsanleitung

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Bedienungsanleitung

Samsung

Samsung AceLink SAM-335A Bedienungsanleitung

Enfora

Enfora Enabler-G Kurzanleitung zur Einrichtung

iRZ

iRZ ATM2-232 Bedienungsanleitung

Zhone

Zhone 6310 Bedienungsanleitung

Paradyne

Paradyne Hotwire 7976 Bedienungsanleitung

US Robotics

US Robotics 3453C Bedienungsanleitung

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Bedienungsanleitung

Zte

Zte MF823 Bedienungsanleitung

Four-Faith

Four-Faith F1403 Bedienungsanleitung

Sierra Wireless

Sierra Wireless AIRLINK MP595W Bedienungsanleitung

Gemtek

Gemtek WiMAX WIXFBR-103 Bedienungsanleitung
