Multitech RouteFinder MTASR2-201 Bedienungsanleitung

LAN-to-LAN Routing

for Central-Site and

Branch Office Networks

Model MTASR2-201

Quick Start Guide

82087301 Revision B

DSU RouteFinder (Model No MTASR2-201)

This publication may not be reproduced, in whole or in part,

without prior expressed written permission from Multi-Tech

Multi-Tech Systems, Inc. makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right

to revise this publication and to make changes from time to time in

the content hereof without obligation of Multi-Tech Systems, Inc. to

notify any person or organization of such revisions or changes.

Record of Revisions

Revision Description

AManual released. All pages at revisionA.

(8/31/98)

BManual revised. All pages at revision B.

(11/30/99) Patents

This Product is covered by one or more of the following U.S.

Patent Numbers:

5.301.274; 5.309.562

;

5.355.365; 5.355.653;

5.452.289; 5.453.986

. Other Patents Pending.

TRADEMARK

Trademark of Multi-Tech Systems, Inc. is the Multi-Tech logo.

Windows is a registered trademark of Microsoft.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(612) 785-3500 or (800) 328-9717

Fax 612-785-9874

Tech Support (800) 972-2439

InternetAddress: http://www.multitech.com

iii

Contents

Introduction ................................................................................... 4

Related Documentation................................................................. 5

Safety Warnings ............................................................................ 6

Unpacking your DSU RouteFinder ................................................ 6

8-Position DIP Switch.................................................................... 7

V.35 Shunt Procedure ................................................................... 8

Cabling your DSU RouteFinder................................................... 10

Cabling Procedure .......................................................................11

Loading your Software ............................................................... 12

Limited Warranty ......................................................................... 20

Service ........................................................................................ 21

DSU RouteFinder Quick Start Guide

Introduction

Welcome to Multi-Tech's new DSU RouteFinder, Model

MTASR2-201, which provides secure and seamless LAN-to-

LAN routing capability and can also provide dial-up capability.

This unit supports multiple WAN services and supports a wide

range of routing protocols including IP, IPX, TCP, and RIP

version 2. When the WAN 2 port is configured to support it,

this unit also supports a secondary capability of dial-up

Remote Access Server (RAS) access for telecommuters and

mobile users from any Point-to-Point Protocol (PPP) or Serial

Line Internet Protocol (SLIP) networking client.

The DSU RouteFinder features a 10BaseT port for local LAN

connection, a command port for configuration, a 56K bps DDS

4-wire WAN connection, and an RS232/V.35 port for an

optional Data Communications Equipment (DCE) device (i.e.,

external modem, T1/E1 CSU/DSU, etc.). System management

is provided through the command port using bundled

Windows®based software which provides easy-to-use

configuration menus.

RD TD CL LK RD TD CD NS DS RD TD CD

V35

Figure 1. DSU RouteFinder

* Some DSU RouteFinder units may be marked “MultiRouter”

or “MultiRouter 200-Series”; they are equivalent to the “DSU

RouteFinder” referred to throughout this quick start guide.

Introduction

Related Documentation

This DSU RouteFinder Quick Start Guide is intended to be

used by qualified systems administrators and network

managers. This quick start guide provides the necessary

information for a qualified person to unpack, cable, load

software, and configure the unit for proper operation.

A detailed DSU RouteFinder User Guide is also provided with

your unit. The user guide provides in-depth information on the

features and functionality of Multi-Tech’s DSU RouteFinder.

The User Guide is provided in disk form and is also available

from our web site.

The disk version is produced usingAdobeAcrobat. To view or

print your copy of a user guide, loadAdobeAcrobat Reader on

your system.AdobeAcrobat Reader can be downloaded from

Adobe’s Web site at:

http://www.adobe.com/prodindex/acrobat/readstep.html

Launch the Reader and open the .pdf file that is on the disk.

Viewing and printing a user guide from the web also requires

that you have theAdobeAcrobat Reader loaded on your

system. The DSU RouteFinder User Guide is also available on

Multi-Tech’s Web site at:

http://www.multitech.com

From the MTS home page, click Support | Manuals | DSU

RouteFinder and choose DSU RouteFinder to download the

.pdf file.

DSU RouteFinder Quick Start Guide

Safety Warnings

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless

the jack is specifically designed for wet locations.

3. Never touch uninsulated telephone wires or terminals unless

the telephone line has been disconnected at the network

interface.

4. Use caution when installing or modifying telephone lines.

5. Avoid using a telephone (other than a cordless type) during an

electrical storm. There may be a remote risk of electrical shock

from lightning.

6. Do not use the telephone to report a gas leak in the vicinity of

the leak.

Unpacking your DSU RouteFinder

Remove all items from the box. See Figure 2.

MADE IN U.S.A

RD TD CL LK RD TD CD NS DS RD TD CD

V35

Figure 2. Unpacking

8-Position DIP Switch

The DSU RouteFinder is equipped with a 8-position DIP

switch. Figure 3 shows the DIP switch, and the chart that

follows details the default positions and other options.

56781234

Figure 3. 8-position DIP switch

Position 1: OPEN* (up) Normal Mode operation

Closed (down) Loopback Mode operation

Position 2: OPEN* (up) DDS clocking

Closed (down) Internal Clocking

Positions 3 - 8: Reserved for future use.

* Denotes Factory Default setting

Note: The DIP switch settings cannot be changed externally;

you must remove the circuit board from the chassis. Refer to

the steps in the next section, V.35 Shunt Procedure, for

instructions on removing the circuit board.

DSU RouteFinder Quick Start Guide

V.35 Shunt Procedure

If you are using an external DCE device on the WAN 2 RS232/

V.35 port, and the connection will be a V.35 connection, the

internal shunt must be moved from the RS232C (default)

position prior to cabling and power-up. The following steps

detail the procedures for switching the shunt.

Step Procedure

1 Ensure that the external power supply is disconnected

from the DSU RouteFinder.

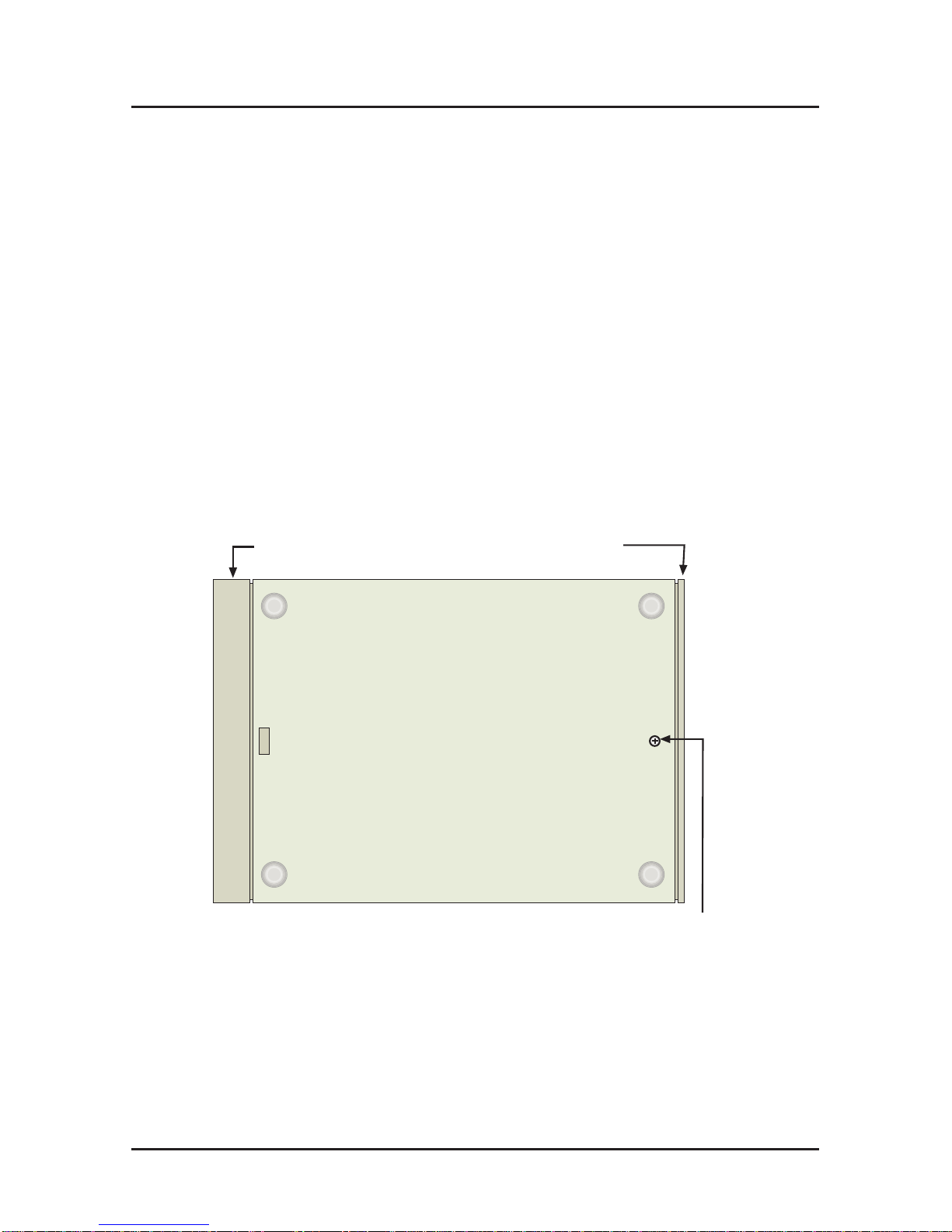

2 Turn the DSU RouteFinder over and remove the cabinet

mounting screw (Figure 4) from the chassis.

Front Panel Back Panel

Cabinet Mounting Screw

Figure 4. Cabinet Mounting Screw Location

3 Being sure to support the back panel, turn the DSU

RouteFinder right side up, tilt the back panel down, and

slide the circuit board out of the chassis.

V.35 Shunt Procedure

4 Place the unit on a flat, grounded surface.

5 Pry the shunt out of the RS232 position, and insert it in the

V.35 position. See Figure 5.

5678

V.35 Shunt Position

RS232C Shunt Position

Back Panel Connectors

8-Position DIP Switch

RAM Sockets

LEDs

Figure 5. Shunt Positions

Note: if you wish to make changes to the 8-position DIP

switch, do so at this time. For details on DIP switch

settings, refer to the previous section, “8-Position DIP

Switch”.

6 Align the board with the guide slots on the inside of the

chassis and carefully slide the board back into the chassis.

7 While supporting the back panel, turn the DSU

RouteFinder over again, and replace the cabinet mounting

screw.

8 Turn the DSU RouteFinder right side up again and

proceed to the next section to connect the cables.

DSU RouteFinder Quick Start Guide

Cabling your DSU RouteFinder

Cabling your DSU RouteFinder involves making the proper

Power, Command Port, and DSU connections, and optionally,

the RS232/V.35 connection. Figure 6 shows the back panel

connectors and associated cable connections. The procedure

that follows lists the steps for connecting the external cables to

your DSU RouteFinder.

Power Connection

PC Connection

10BASET COMMAND56K DSU POWER

OFF

RS232/V.35

Ethernet Connection

DDS WAN Connection

To DCE

Device Command Cable

Figure 6. Cable Connections
