Multitech RoteFinder RF500S Bedienungsanleitung
Model RF500S
Broadband Router
User Guide
User Guide
Broadband Router
Model RF500S
PN S000125D Revision D
Copyright
This publication may not be reproduced, in whole or in part, without prior expressed written
permission from Multi-Tech Systems, Inc. All rights reserved.
Copyright © 2001by Multi Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to the content hereof
and specifically disclaims any implied warranties of merchantability or fitness for any particular
purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to
make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc.
to notify any person or organization of such revisions or changes.
Record of Revisions
Revision Date Description
A10/09/00 Manual updated for release in MTS case.
All pages at Software Version 7.12
B10/05/01 Manual updated to include a section on using an Internet
browser to configure your RouteFinder, a clarification of the
FDX/COL LED’s function, a new FAQ section, and minor edits.
All pages at Software Version 7.26
C 01/03/02 All pages at Software Version 7.29
D07/17/02 Changed RF500S back panel graphics
Patents
This device is covered by one or more of the following patents: 6,219,708; 6,031,867; 6,012,113;
6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532;
5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594;
5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222;
5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986;
5,452,289; 5,450,425; D361,764; D355,658; D355,653; D353,598; D353,144; 5,355,365;
5,309,562; 5,301,274. Other Patents Pending
Trademarks
Trademark of Multi-Tech Systems, is the Multi-Tech logo. Windows, Windows 95, 98, Me, NT and
2000 are trademarks of Microsoft. All other trademarks are owned by their respective companies.
World Headquarters
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112 U.S.A.
(763) 785-3500 or (800) 328-9717
U. S. FAX (763) 785-9874
Technical Support (800) 972-2439
Internet Address: http://www.multitech.com
Table of Contents
RouteFinder RF500S User Guide 3
Contents
Contents ...................................................................................................................... 3
Chapter 1 - Introduction ............................................................................................. 6
RF500S Front Panel................................................................................................... 7
Back Panel ................................................................................................................. 8
Application Examples ................................................................................................. 9
Example 1 – Connecting a Local LAN to the Internet ................................................. 9
Example 2 – Local LAN to Internet / Remote Site .................................................... 10
Example 3 – LAN to LAN via an Async Port............................................................. 11
Specifications ........................................................................................................... 15
Chapter 2 - Hardware Installation ............................................................................ 17
Safety ....................................................................................................................... 17
Unpacking the RF500S............................................................................................. 17
Requirements ........................................................................................................... 17
Cabling ..................................................................................................................... 18
Cabling Directions..................................................................................................... 19
Chapter 3 – Configure and Manage Using a Web Browser ................................... 21
Overview of Configuration and Management............................................................ 21
Using the Web Browser............................................................................................ 22
Setup Wizard ............................................................................................................ 23
Setup Wizard Screen................................................................................................ 24
Device Information.................................................................................................... 29
Device Status ........................................................................................................... 30
Advanced Settings.................................................................................................... 31
System Tools............................................................................................................ 40
Chapter 4 - Software Installation and Configuration.............................................. 48
RouteFinder Wizard Screen Flow............................................................................. 49
Using the RouteFinder Setup Wizard ....................................................................... 50
Testing Your Connection .......................................................................................... 64
Chapter 5 - RouteFinder Manager............................................................................ 66
General Settings Screen........................................................................................... 67
Port Settings ............................................................................................................. 79
LAN DHCP Server.................................................................................................... 86
Routing Settings ....................................................................................................... 88
Filter Settings............................................................................................................ 92
Refresh Device List................................................................................................... 98
Device Name and Password .................................................................................... 98
Table of Contents
RouteFinder RF500S User Guide 4
Save Settings to File................................................................................................. 99
Load Settings.......................................................................................................... 100
Upgrade Firmware .................................................................................................. 101
General Diagnostic ................................................................................................. 102
Chapter 6 - RouteFinder Monitor ........................................................................... 104
RouteFinder Monitor TCP/IP Tab ........................................................................... 105
RouteFinder Monitor Time Tab............................................................................... 106
RouteFinder Monitor Status Tab............................................................................. 107
RouteFinder Monitor Statistics Tab......................................................................... 108
RouteFinder Monitor Main Screen Buttons............................................................. 109
Chapter 7 - Troubleshooting .................................................................................. 113
Chapter 8 – Frequently Asked Questions ............................................................. 117
Appendix A – Warranty, Service, and Technical Support ...................................121
Appendix B – Software User License Agreement ................................................ 124
Appendix C – Regulatory Compliance Information.............................................. 126
Appendix D – Tools for Your RF500S.................................................................... 127
Appendix E – Writing a Login Script ..................................................................... 129
Glossary................................................................................................................... 132
Index......................................................................................................................... 136
RouteFinder RF500S User Guide 5
Chapter 1
Introduction
Chapter 1 – Introduction
RouteFinder RF500S User Guide 6
Chapter 1 - Introduction
Welcome to the world of broadband connectivity to the Internet.
The Multi-Tech Broadband RouteFinder connects a cable modem or DSL modem to an
Ethernet LAN to provide high-speed broadband access to the Internet for up to 253 users.
The Broadband Router features a built-in 4-port 10/100M bps switch, one asynchronous
port for backup Internet access or dial-in remote access, firewall services, and network
security. This product is ideal for any business looking for cost-effective broadband access
to the Internet for every user on the LAN or for the home user looking to share their DSL
cable connection.
Connects up to 253 internal IP addresses to the Internet with broadband speed.
With the RouteFinder, up to 253 users are connected to the Internet with only one IP
account. The WAN Ethernet port has a bandwidth of 10M bps which is 179 times faster
than a 56K modem and can support DSL or cable speeds of up to 4M bps.
Built-in 10/100 Switch. The integrated 4-port 10/100 switch eliminates the need for an
additional hub or switch to connect users not on a LAN. It ensures high-speed transmission
and can serve as a completely dedicated full duplex backbone.
Network Security. The RouteFinder uses the NAT protocol to provide security from
hackers attempting to access the office LAN without the extra cost of a firewall. It
implements firewall and gateway security for LAN-based resources. Additionally, the
RouteFinder supports Internet access restriction by IP address, client protocols or port
number.
Dial Backup or Dial-in RAS Port. The RouteFinder also provides an additional
asynchronous port that, when connected to a dial-up modem or ISDN terminal adapter,
can serve as a backup resource for Internet access if your cable or DSL service goes down.
It can also serve as dial-in remote access for your telecommuters or mobile users.
Virtual Server Support. In addition to providing shared Internet access, the RouteFinder
can support Web, FTP or other Internet servers. Once configured, the RouteFinder accepts
only unsolicited IP packets addressed to the Web, FTP, or other specified servers.
LAN Segmentation. For added LAN security, the RouteFinder can be used to segment
the LAN by connecting the corporate servers to one RouteFinder Ethernet port and the
Internet servers to the other Ethernet port. This configuration puts the corporate servers
behind a firewall and the Internet servers outside the firewall. To continue to provide
Internet access, connect a modem or ISDN terminal adapter to the RouteFinder’s
asynchronous port.

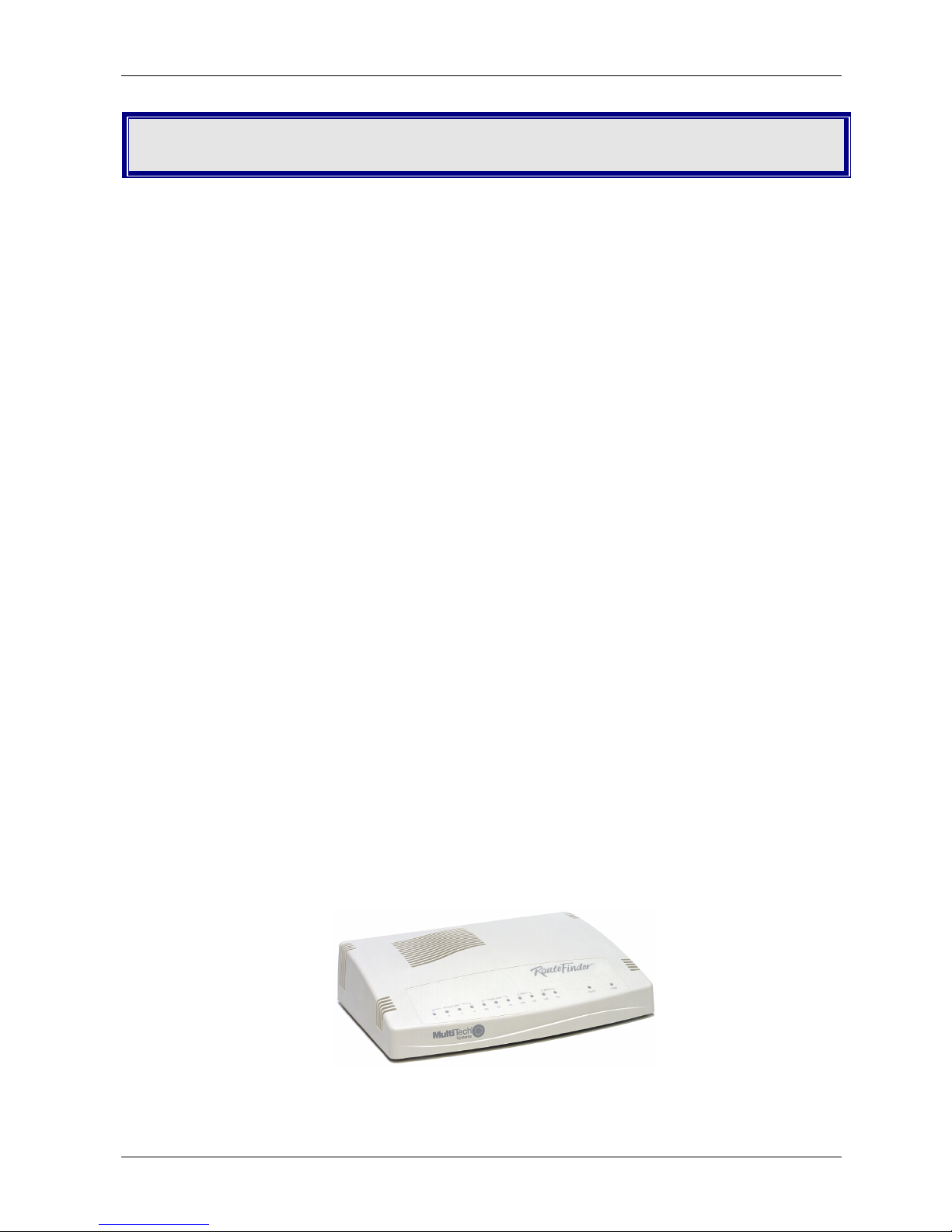

The RouteFinder RF500S
Chapter 1 – Introduction
RouteFinder RF500S User Guide 7
RF500S Front Panel
LAN LEDs
Link/ACT Lights when the LAN client is correctly connected to the Ethernet port.
Blinks when the LAN client is correctly connected to the Ethernet port.
100 Lights when the LAN client is connected at 100MB. Off when the LAN client
is connected at 10MB.
FDX/COL Lights when the LAN client is connected as full duplex. Off when the LAN
client is connected as half duplex. Blinks when there are collisions on the
network.
Serial LEDs
Data Blinks when the Serial async port is receiving or transmitting data.
DCD Lights when the Serial async port is properly connected to a remote site.
WAN LEDs
Link Lights when a successful connection to the 10BaseT WAN is established.
RXD Lights when the LAN port is receiving data.
TXD Lights when the LAN port is transmitting data.
Power Lights when power is being supplied to the router.
Chapter 1 – Introduction
RouteFinder RF500S User Guide 8
Back Panel
Power 5VDC Connect one end of the power cord to power socket and the other
end to the power outlet.
10 BT WAN The WAN port is used to connect the router to a DSL or Cable
modem.
ASYNC The Serial async port connects the router to a standard modem
(optional).
Reset The Reset button is used to reset the router to factory defaults.
10/100 BT LAN The 4-10/100 ports are used to connect the router to LAN client
workstations. If the RF500S is set to use the Uplink feature, the
number 1 LAN port is inactive as a LAN port.
Uplink/Normal Slide the switch to the Uplink position to use the number 1 LAN
10/100 port to expand your network by connecting a network cable
to another router, switch or hub. To connect the number 1port to a
LAN client workstation, slide the switch to the Normal position.
Chapter 1 – Introduction
RouteFinder RF500S User Guide 9
Application Examples
The following examples provide information about RF500S typical applications. The three
examples include:
1. Connecting a local LAN to Internet.
2. Connecting a local LAN to the Internet and setting up a remote site.
3. Setting up a LAN to LAN via the Async Port.
Example 1 – Connecting a Local LAN to the Internet
Chapter 1 – Introduction
RouteFinder RF500S User Guide 10

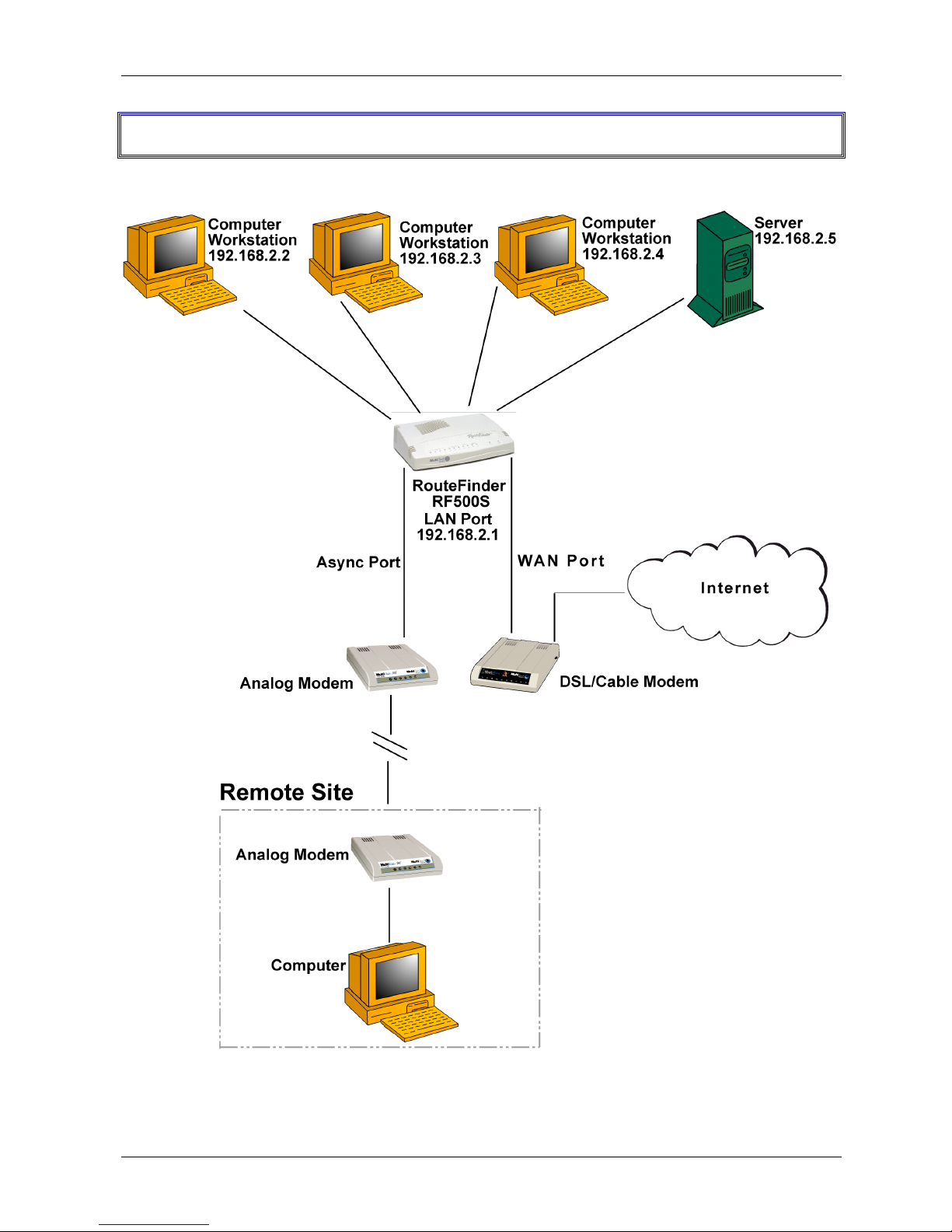

Example 2 – Local LAN to Internet / Remote Site
Andere Handbücher für RoteFinder RF500S
3
Inhaltsverzeichnis
Andere Multitech WLAN-Router Handbücher
Multitech
Multitech MultiModem rCell MTCBA-H3-EN3-P1 Bedienungsanleitung
Multitech
Multitech MultiModem rCell MTCBA-Xx-EN2 Series Bedienungsanleitung
Multitech
Multitech RoteFinder RF500S Bedienungsanleitung
Multitech
Multitech MultiModem rCell Bedienungsanleitung
Multitech
Multitech RouteFinder RF802EW Bedienungsanleitung
Multitech
Multitech RouteFinder RF802EW Bedienungsanleitung
Multitech
Multitech MultiModem rCell Bedienungsanleitung
Multitech
Multitech MultiModem rCell Bedienungsanleitung
Multitech
Multitech MultiModem rCell MTCBA-H3-EN3-P1 Bedienungsanleitung
Multitech
Multitech MultiModem rCell Bedienungsanleitung
Multitech
Multitech MultiModem MTCBA-G2-EN2 Bedienungsanleitung
Multitech
Multitech RouteFinder RF802EW Bedienungsanleitung
Multitech
Multitech MultiModem rCell Bedienungsanleitung
Multitech
Multitech MultiModem rCell MTCBA-H-EN2 Bedienungsanleitung
Multitech
Multitech MultiModem rCell MTCBA-X-EN2 Bedienungsanleitung
Multitech
Multitech MultiModem rCell MTCBA-H-EN2 Bedienungsanleitung
