Musikelectronic geithain TS34 Bedienungsanleitung

musikelectronic geithain

TS 34

Instructions for installation and use

TABLE OF CONTENTS II

musikelectronic geithain GmbH TS 34

Table of contents

1 Introduction 1

2 Disclaimer 2

3 System description 3

4 Specications 4

4.1 Technicalspecications 4

4.2 Acousticaldiagramms 5

4.3 Technicaldrawing 6

5 Basic information 7

5.1 Guidelines 7

5.2 Disposal 7

5.3 Safetyinstructions 9

5.4 Deliverycontents 11

5.5 Cleaning 11

5.6 Environmentalconditions 11

5.7 Guaranteeacknowledgements 11

6 Installation and operation 12

6.1 Mountingandpositioning 12

6.2 Startingupthespeakers 13

6.3 Wiring 14

7 Troubleshooting 15

8 Notes 16

INTRODUCTION 1

musikelectronic geithain GmbH TS 34

1 Introduction

Dearcustomer,

Thankyouforthetrustyouhaveputinusbybuyingthesespeakers.Youdecideduponaquality

productthatinregardtotonalandtechnicalcharacteristicscompliestotheutmostexpectations.

Theusualburn-inperiodisnotrequired,becausethespeakersarearticiallyagedin-house.

Please read the technical description and manual to take advantage of the capabilities

of these speakers and ensure safe operation.

DISCLAIMER 2

musikelectronic geithain GmbH TS 34

2 Disclaimer

Technical data and appearances are subject to changes without notice. Errors and omissions

excepted.MusikelectronicGeithainGmbHassumesnoliabilityforanylosswhichmaybesuffered

byanypersonwhorelieseitherwhollyorinpartuponanydescription,photographorstatement

contained herein. Musikelectronic Geithain GmbH products are sold through authorized fulllers

and resellers only. Fulllers and resellers are not agents of Musikelectronic Geithain GmbH and

have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied

undertakingorrepresentation.Thismanualiscopyrighted.Nopartofthismanualmaybereproduced

ortransmittedinanyformorbyanymeans,electronicormechanical,includingphotocopyingand

recording,orbyanyinformationstorageorretrievalsystemwithoutthepriorwrittenpermissionof

MusikelectronicGeithainGmbH.

Allrightsreserved

SYSTEMDESCRIPTION 3

musikelectronic geithain GmbH TS 34

3 System description

TheTS30seriescoverclassicsoundreinforcementsystemsininlinetechnology.Highdynamicsand

limitinglevelareachievedbyspecialcompressiondriverswithhorns.Thereforetheseproductsare

compatibletoexistinginstallations.

The two-way sound reinforcement system TS34 features linearity and high dynamics. As an all-

roundsystemitisusefulforspeechandmusicreproductioninsmallandmiddlesizedauditoria.In

additionitremainsopticallydiscretebecauseofitssmalldimensions.Duringthedevelopmentthe

highfrequencysoundtransmissionwasoptimisedforsmallestpossiblecolouration.

The components include one 8-inch cone woofer and one 1-inch compression driver. The latter

are effectively secured fromdestruction by an internal protective circuit. With bass reex tuning

TS34reachesalowercut-offfrequencyof70Hz.Theresultingbasslevelenablestheuseasafull-

rangesysteminmanysituations.OptionallyourTT-subwooferscanbeemployedtoextendthebass

transmissionrangebymorethanoneoctave.

Avarietyofavailablemountingsprovideeasyassemblyforalmosteveryapplication.

SPECIFICATIONS 4

musikelectronic geithain GmbH TS 34

4 Specications

4.1 Technicalspecications

Cabinettype ventedcabinet

MaximumSPL 118dBpeak/r=1m(3′3″)

Frequencyresponse 70Hz…18kHz−6dB

Coverageanglef>2 kHz 90°×40°(H×V)

60°×40°(H×V)

Transducers

1× 8″cone

1× 1″compressiondriver

Sensitivity

measuredat1W 92dB/r=1m(3′3″)

Maximuminputpower 400W

Nominalinputpower 200W

Nominalimpedance 8 Ω

Electroniccrossoverfrequency 2.1kHz

Directivityindex seediagram

Inputconnector 2×SpeakonNL4(parallel)

Overloadprotection self-resetting

Dimensions(h×w×d) 440×265×280mm(17.4″×10.5″× 11.1″)

Weight 12kg(26.5lbs)

Environmentalspecications

Operatingtemperature

Storagetemperature

Relativehumidity

+15°C…+35°C(+59°F...+95°F)

−25°C…+45°C(−13°F...+113°F)

45%…75%

Designofthecabinet lumbercoreplywoodwithscratchproofstructure

coating

blackRAL9005,othercoloursonrequest

Additionalaccessories(optional) securitylug

stand,wallandceilingmountelements

SPECIFICATIONS 5

musikelectronic geithain GmbH TS 34

4.2 Acoustical diagramms

20 50 100 200 500 1k 2k 5k 10k 20k

[dB]

[Hz]

0° 45°h

20 50 100 200 500 1k 2k 5k 10k 20k

[dB]

[Hz]

FREE FIELD FREQUENCY RESPONSE

DIRECTIVITY INDEX (coverage angle 90° x 40°)

SPECIFICATIONS 6

musikelectronic geithain GmbH TS 34

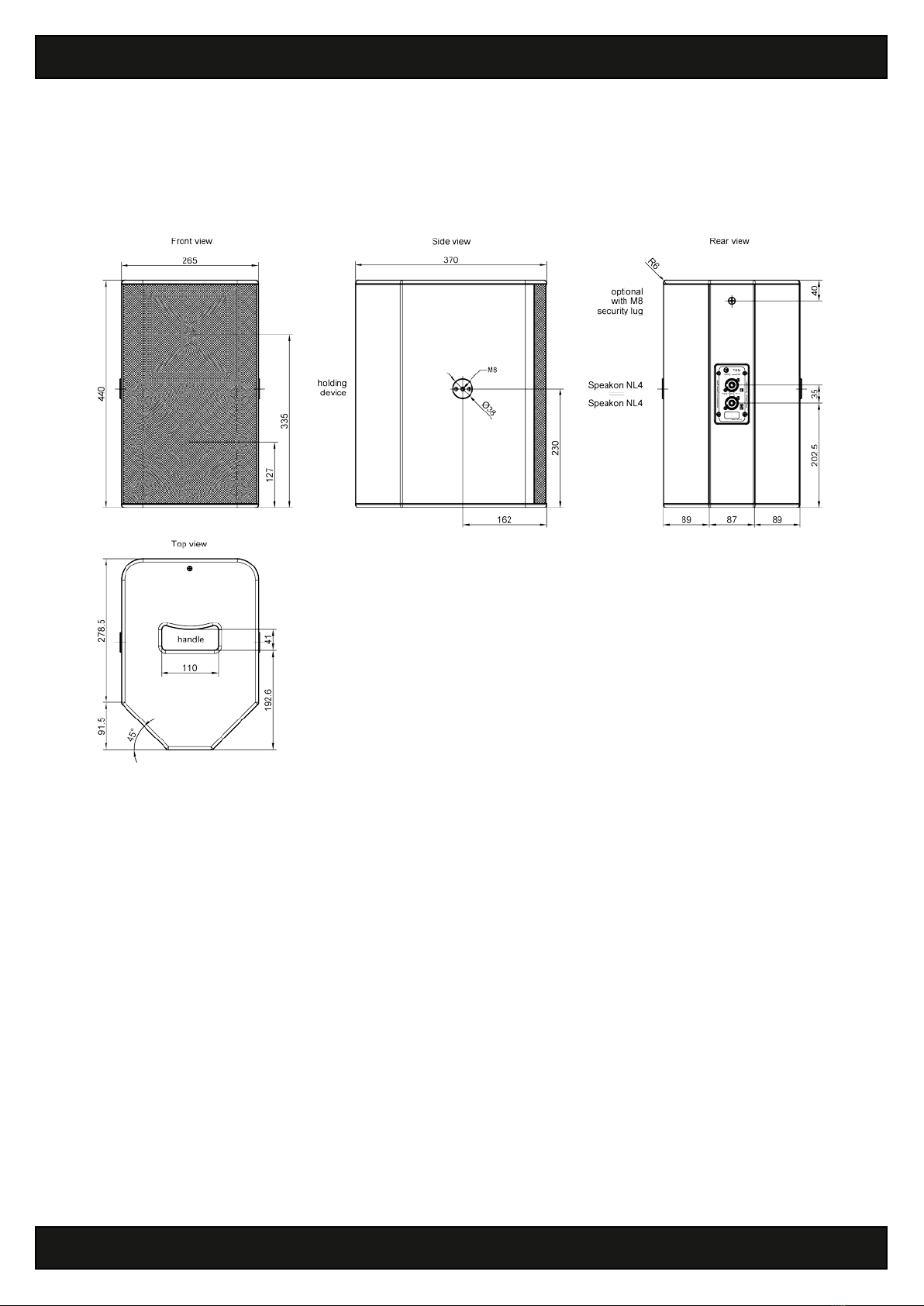

4.3 Technical drawing

BASICINFORMATION 7

musikelectronic geithain GmbH TS 34

5 Basic information

5.1 Guidelines

ThisproductcompliestorequirementsofcurrentEuropeanandnationalguidelines.Theconformity

isascertained,correspondingdeclarationsandrecordsaredepositedwiththemanufacturer.

EC Declaration of Conformity in accordance to EC Directives

;ElectromagneticCompatibility(2004/108/EG)

;LowVoltageDirective(2006/95/EG)

This product conforms to the following standards:

;EN55103-1 Emission

;EN55103-2 Immunity

5.2 Disposal

ProductsbuiltbyusbelongtoB2C-classoftheWEEEguidelinesandmustnotbe

disposedwithdomesticwaste.

5.2.1 Germany

Itisnotallowedtodisposeofusedelectricalequipmentasdomesticwaste.

Non-reusable parts of the mounting accessories have to be disposed according to national

environmentalregulations.

Ensuredisposalofdamagedmountingaccessoriesbeforetheycouldbereused.

Butdonotdisposetheseproductsandaccessoriesatofcialcollectingpointsforrecyclingeither!

DisposalofMusikelectronicGeithainGmbHproductslabelledwithawastebinsignhavethustobe

disposedofbyMusikelectronicGeithainGmbHalone.PleasecallMusikelectronicGeithainGmbHat

thenumberstatedbelowifyouhaveaMusikelectronicGeithainGmbHproducttobedisposed.We

willofferyouastraightforwardandprofessionaldisposalnotaffectingcost.

IfthereisnowastebinsignononeofyourMusikelectronicGeithainGmbHproducts,becausethey

havebeensoldbeforeMarch2006thenbylawtheownerisinchargeofthedisposal.Forthesewe

willbehappytoassistandofferyouproperwaysofdisposal.

Declaration:WiththeElektroG(lawrelatingtoelectricalandelectronicequipmentandappliances)we

havecompliedwiththeEU-directiveonwasteelectricalandelectronicequipment(WEEE,2002/96/

EC).

BASICINFORMATION 8

musikelectronic geithain GmbH TS 34

The Musikelectronic Geithain GmbH has thus labelled all products mentioned in the WEEE from

03/24/2006onwardswith asign with acrossedout waste bin anda whitebar below.This sign

indicatesthatthedisposalintothedomesticwasteisprohibitedandthattheproducthasbeenput

intocirculationatthe03/24/2006earliest.

TheMusikelectronicGeithainGmbHhasbeenlegallyregisteredasamanufacturerwiththeregistration

ofceEAR.OurWEEEregistrationNo.is:DE72404519

5.2.2 EU, Norway, Iceland and Liechtenstein

Itisnotallowedtodisposeofusedelectricalequipmentasdomesticwaste.

The Musikelectronic Geithain GmbH has thus labelled all products coming from EU-Member

countriesas wellasNorway, IcelandandLiechtenstein(exceptGermany)mentionedintheWEE

from08/13/2005onwardswithasignwithacrossedoutwastebinandawhitebarbelow.Thissign

indicatesthatthedisposalintothedomesticwasteisprohibitedandthattheproducthasbeenput

intocirculationatthe08/13/2005earliest.

UnfortunatelytheEuropeandirectiveWEEEhasbeencompliedwithimplementingdifferentnational

provisionsoflawthroughoutallmembercountries,whichmakesitimpossibleforustoofferconsistent

solutionsforthedisposalthroughoutEurope.

Responsibleforcomplying with theseprovisionsoflawisthelocaldistributor(importer)of each

country.

Forproperdispositionofusedproductsinaccordancewiththeselocalprovisionsinthementioned

countriesoftheEuropeanUnion(exceptGermany)pleaseaskyourlocaldealerorthelocalauthorities.

5.2.3 Other countries

Forproperdispositionofusedproductsinaccordancewiththeselocalprovisionsinothercountries

pleaseaskyourlocaldealerorthelocalauthorities.
