TABLE OF CONTENTS II

musikelectronic geithain GmbH TS 52 / TS 52K

Table of contents

1 Introduction 1

2 Disclaimer 2

3 System description 3

4 Specications 4

4.1 Technicalspecications 4

4.2 Acousticaldiagramms 5

4.3 Technicaldrawings 6

5 Basic information 8

5.1 Guidelines 8

5.2 Disposal 8

5.3 Safetyinstructions 10

5.4 Deliverycontents 12

5.5 Cleaning 12

5.6 Environmentalconditions 12

5.7 Guaranteeacknowledgements 12

6 Installation and operation 13

6.1 Mountingandpositioning 13

6.2 Startingupthespeakers 14

6.3 Wiring 15

7 Troubleshooting 16

8 Notes 17

INTRODUCTION 1

musikelectronic geithain GmbH TS 52 / TS 52K

1 Introduction

Dearcustomer,

Thankyouforthetrustyouhaveputinusbybuyingthesespeakers.Youdecideduponaquality

productthatinregardtotonalandtechnicalcharacteristicscompliestotheutmostexpectations.

Theusualburn-inperiodisnotrequired,becausethespeakersarearticiallyagedin-house.

Please read the technical description and manual to take advantage of the capabilities

of these speakers and ensure safe operation.

DISCLAIMER 2

musikelectronic geithain GmbH TS 52 / TS 52K

2 Disclaimer

Technical data and appearances are subject to changes without notice. Errors and omissions

excepted.MusikelectronicGeithainGmbHassumesnoliabilityforanylosswhichmaybesuffered

byanypersonwhorelieseitherwhollyorinpartuponanydescription,photographorstatement

contained herein. Musikelectronic Geithain GmbH products are sold through authorized fulllers

and resellers only. Fulllers and resellers are not agents of Musikelectronic Geithain GmbH and

have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied

undertakingorrepresentation.Thismanualiscopyrighted.Nopartofthismanualmaybereproduced

ortransmittedinanyformorbyanymeans,electronicormechanical,includingphotocopyingand

recording,orbyanyinformationstorageorretrievalsystemwithoutthepriorwrittenpermissionof

MusikelectronicGeithainGmbH.

Allrightsreserved

SYSTEMDESCRIPTION 3

musikelectronic geithain GmbH TS 52 / TS 52K

3 System description

The coaxial two-way sound reinforcement systems TS52 and TS52K feature a compact cabinet,

neutral sound colour, strong vertical focusing and high dynamics. These passive systems are

engineeredforhighclassspeech and musicreproductioninsmall and middlesizedauditoria.In

additiontheyremainopticallydiscretebecauseoftheirsmalldimensions.Theabandonmentofhorn

speakersresultsinaneutralityyouonlyknowfromrstclassstudiomonitors.

The components include one 6.5-inch cone woofer and four 1-inch dome tweeters. Both are

effectivelysecuredfromdestructionbyaninternalprotectivecircuit.Thecoaxialarrangementensures

a homogeneous coverage and this also reduces the size of these powerful sound reinforcement

systems.TheTS52Kemploysourreliablecardioidtechnology.Becauseofthestrongverticalfocusing,

distractionsbyceilingandoorreectionsareeffectivelyreduced.Thankstobothofthesetechnical

featurestheoperationofthesespeakersystemsinacousticallydifcultenvironmentsissimplied.

Avarietyofavailablemountingsprovideeasyassemblyforalmosteveryapplication.Specialadapters

enableaverticalcolumnofuptofourTS52orTS52Ktoexiblyadjusttheacousticreachtothe

actualcaseofapplication.

SPECIFICATIONS 4

musikelectronic geithain GmbH TS 52 / TS 52K

4 Specications

4.1 Technicalspecications

Cabinettype

TS52

TS52K

ventedcabinet

cardioiddirectivityinlowfrequencies

MaximumSPL 116dBpeak/r=1m(3′3″)

Frequencyresponse

TS52

TS52K

100Hz…20kHz−6dB

150Hz…20kHz−6dB

Coverageanglef>2 kHz 90°×25°(H×V)

Transducers

1× 6.5″cone

4× 1″dome

Sensitivity

measuredat1W 92dB/r=1m(3′3″)

Maximuminputpower 240W

Nominalinputpower 120W

Nominalimpedance 16Ω

optional100V(100/200/400Ωswitchable)

Electroniccrossoverfrequency 2.2kHz

Directivityindex seediagram

Inputconnector 2×SpeakonNL4(parallel)

optional2×XLR4(at100V)

Overloadprotection self-resetting

Dimensions(h×w×d) 250×210×250mm(9.9″×8.3″× 9.9″)

Weight

without100Vtransformer(standard)

with100Vtransformer(optional)

5.5kg(12.2lbs)

6.3kg(13.9lbs)

Environmentalspecications

Operatingtemperature

Storagetemperature

Relativehumidity

+15°C…+35°C(+59°F...+95°F)

−25°C…+45°C(−13°F...+113°F)

45%…75%

Designofthecabinet lumbercoreplywoodwithscratchproofstructure

coating

blackRAL9005,othercoloursonrequest

Additionalaccessories(optional) securitylug

stand,wallandceilingmountelements

SPECIFICATIONS 5

musikelectronic geithain GmbH TS 52 / TS 52K

4.2 Acoustical diagramms

25 50 100 200 500 1k 2k 5k 10k 20k

[dB]

[Hz]

0° (TS52) 0° (TS52K) 45°h 180°h (TS52K)

20 50 100 200 500 1k 2k 5k 10k 20k

[dB]

[Hz]

FREE FIELD FREQUENCY RESPONSE

DIRECTIVITY INDEX

SPECIFICATIONS 6

musikelectronic geithain GmbH TS 52 / TS 52K

4.3 Technical drawings

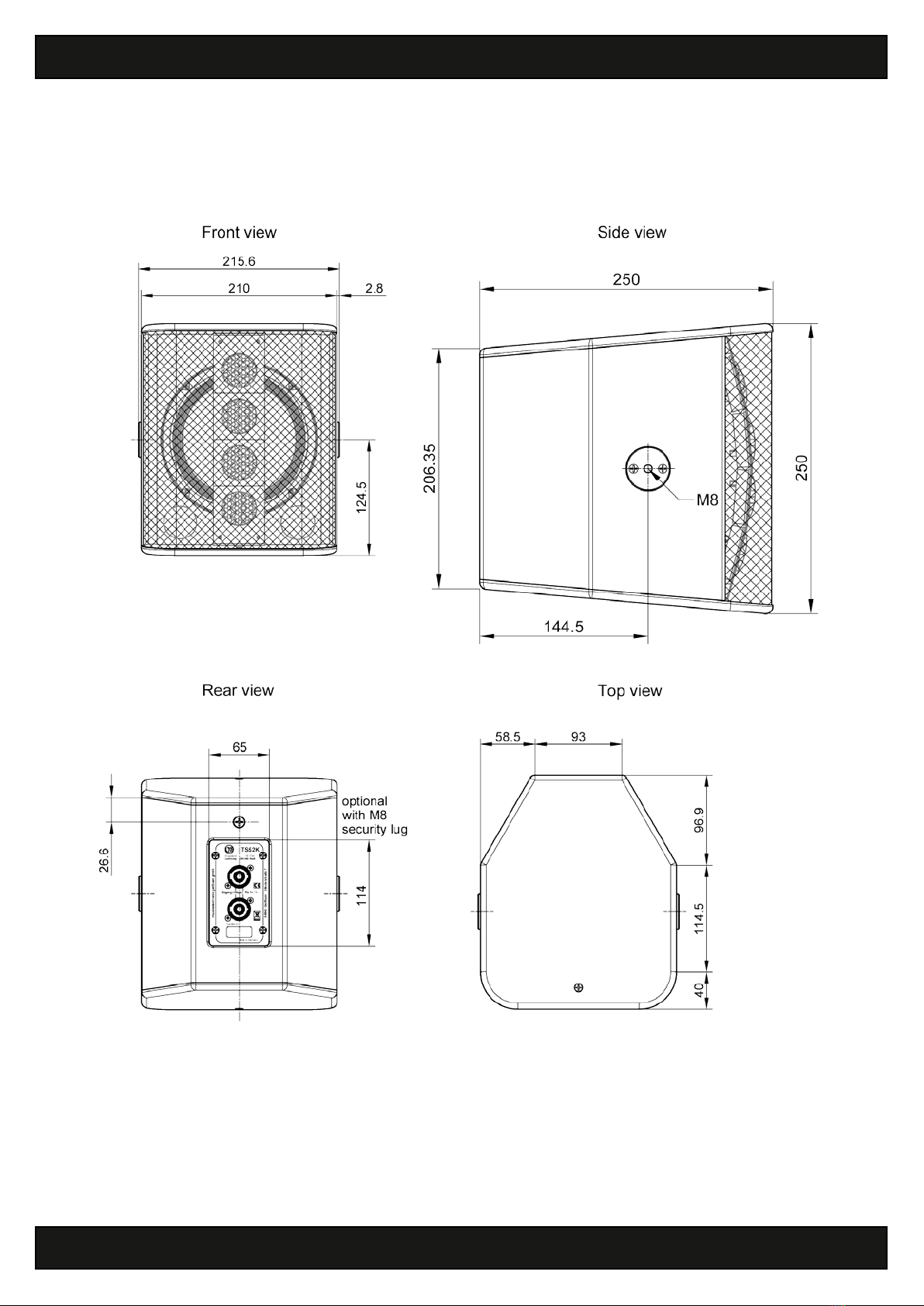

4.3.1 TS 52

SPECIFICATIONS 7

musikelectronic geithain GmbH TS 52 / TS 52K

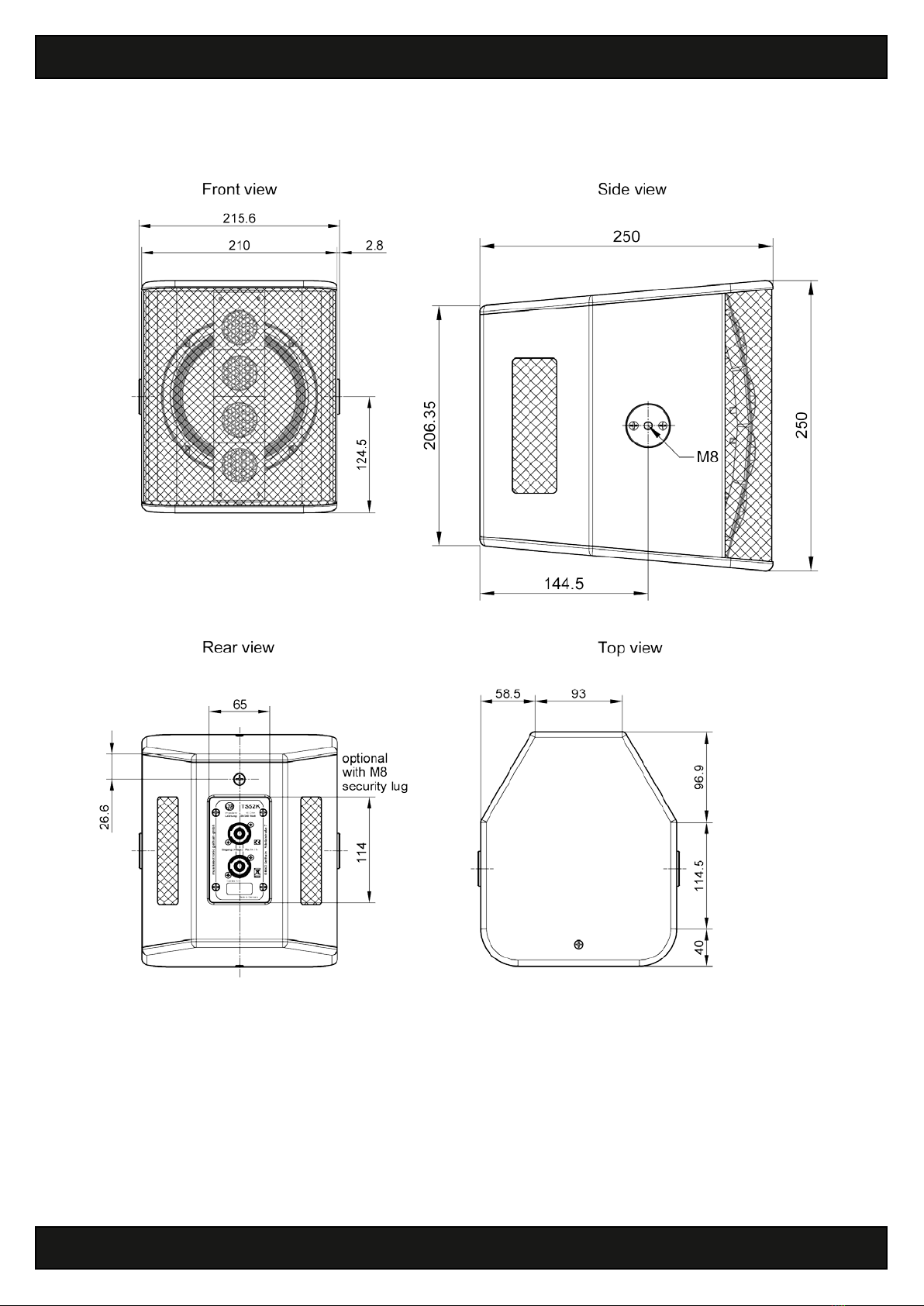

4.3.2 TS 52K

BASICINFORMATION 8

musikelectronic geithain GmbH TS 52 / TS 52K

5 Basic information

5.1 Guidelines

ThisproductcompliestorequirementsofcurrentEuropeanandnationalguidelines.Theconformity

isascertained,correspondingdeclarationsandrecordsaredepositedwiththemanufacturer.

EC Declaration of Conformity in accordance to EC Directives

;ElectromagneticCompatibility(2004/108/EG)

;LowVoltageDirective(2006/95/EG)

This product conforms to the following standards:

;EN55103-1 Emission

;EN55103-2 Immunity

5.2 Disposal

ProductsbuiltbyusbelongtoB2C-classoftheWEEEguidelinesandmustnotbe

disposedwithdomesticwaste.

5.2.1 Germany

Itisnotallowedtodisposeofusedelectricalequipmentasdomesticwaste.

Non-reusable parts of the mounting accessories have to be disposed according to national

environmentalregulations.

Ensuredisposalofdamagedmountingaccessoriesbeforetheycouldbereused.

Butdonotdisposetheseproductsandaccessoriesatofcialcollectingpointsforrecyclingeither!

DisposalofMusikelectronicGeithainGmbHproductslabelledwithawastebinsignhavethustobe

disposedofbyMusikelectronicGeithainGmbHalone.PleasecallMusikelectronicGeithainGmbHat

thenumberstatedbelowifyouhaveaMusikelectronicGeithainGmbHproducttobedisposed.We

willofferyouastraightforwardandprofessionaldisposalnotaffectingcost.

IfthereisnowastebinsignononeofyourMusikelectronicGeithainGmbHproducts,becausethey

havebeensoldbeforeMarch2006thenbylawtheownerisinchargeofthedisposal.Forthesewe

willbehappytoassistandofferyouproperwaysofdisposal.

Declaration:WiththeElektroG(lawrelatingtoelectricalandelectronicequipmentandappliances)we

havecompliedwiththeEU-directiveonwasteelectricalandelectronicequipment(WEEE,2002/96/

EC).
