Mxr M196 Bedienungsanleitung

92503010850revB

M196 A/B BOX

M196 A/B BOX

DESCRIPTION

• Routes instrument signal to two

separate output paths

• Select between two separate

signal paths or run both at the

same time

• Thru jack allows you to connect

to a tuner or amp that receives a

constant signal from your guitar,

unaected by the A/B switches

• Output jacks are terminated to

ground in bypass

• All switching is true hardwire

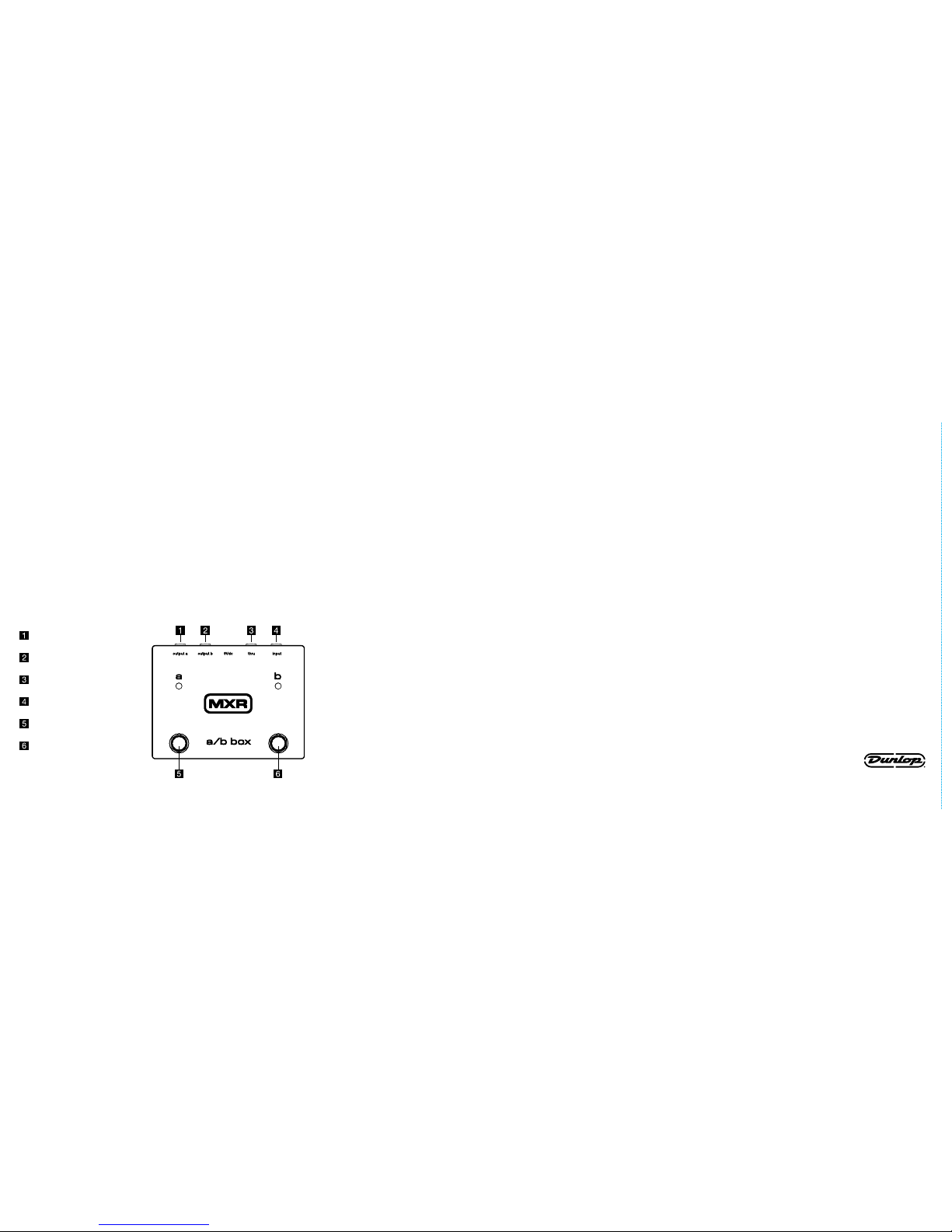

CONTROLS

INPUT receives

instrument signal

THRU to tuner or sends

constant signal to an amp

OUTPUT A sends instrument

signal to Amp A

OUTPUT B sends instrument

signal to Amp B

FOOTSWITCH A activates

OUTPUT A

FOOTSWITCH B activates

OUTPUT B

DIRECTIONS

• Run a cable from your instrument

to the A/B Box’s Input jack.

• OPTIONAL: If you want to

connect a tuner or have an amp

receive a constant signal from

your instrument, run a cable to

the A/B Box’s Thru jack.

• Run a cable from Amp A to

the A/B Box’s Output A jack,

and another from Amp B to

the Output B jack.

• When both footswitches are

depressed, both signal paths

are active.

SPECIFICATIONS

Switching True hardwire

Current Draw 1.4 mA

Power Supply DC 9 volts

POWER

The MXR A/B BOX is powered

by one 9 volt battery (remove

bottom plate to install), a 9 volt

AC Adapter such as the Dunlop

ECB003/ECB003EU or a power

supply such as the DC Brick™.

DUNLOP MANUFACTURING, INC.

P.O. BOX 846 BENICIA, CA 94510 U.S.A.

TEL: 1-707-745-2722 FAX: 1-707-745-2658
