Mxr M299 Bedienungsanleitung

Carbon Copy

Mini Analog Delay

This pedal packs the organic analog warmth and

ease of use of the original Carbon Copy Analog

Delay into an MXR mini housing with added sonic

versatility so that you can make the most out of

your pedalboard real estate.

M299

jimdunlop.com/m299

®

M299 | Carbon Copy®Mini Analog Delay 2

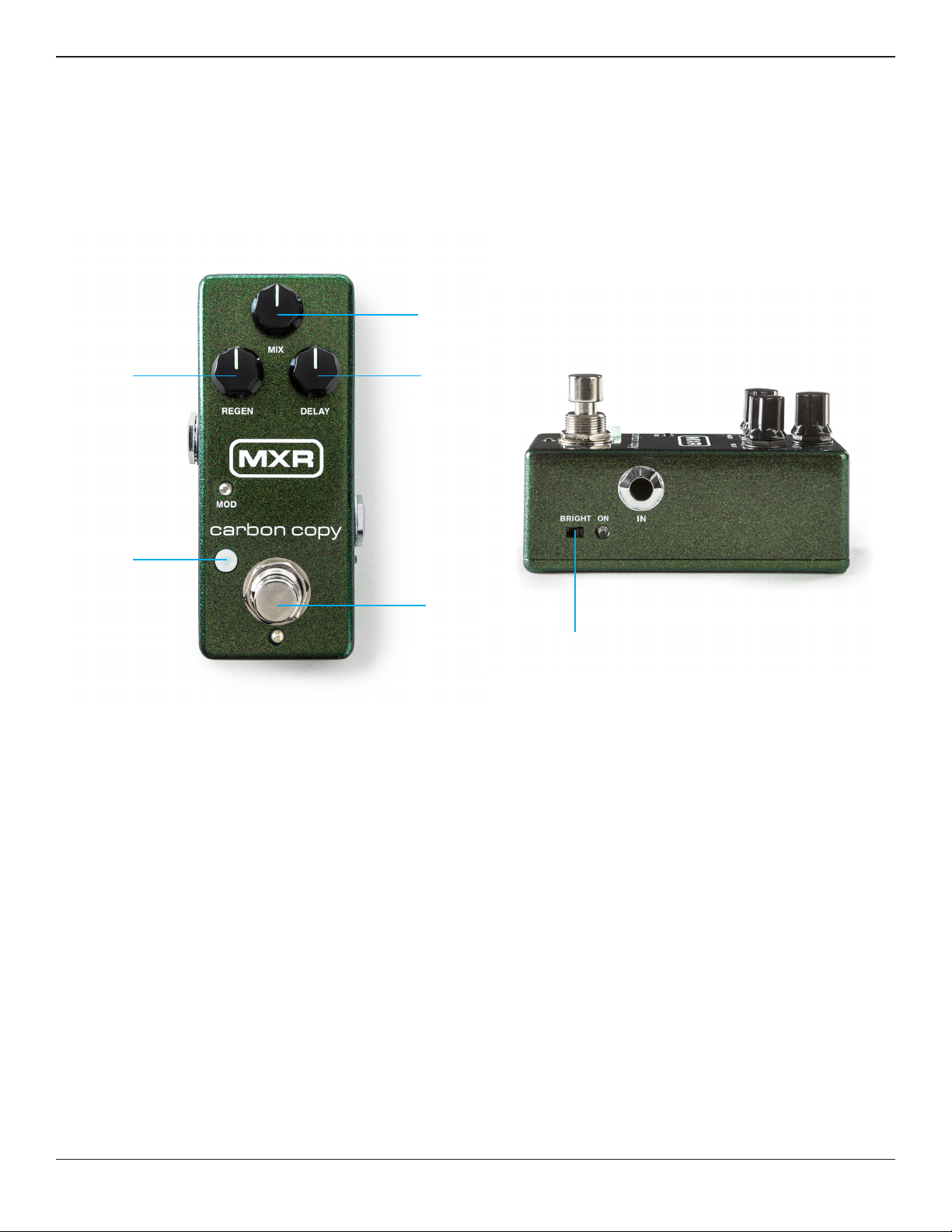

1MOD switch toggles modulation on/off (orange LED indicates on)

2REGEN knob sets number of repeats

3MIX knob controls blend of wet and dry signals

4DELAY knob sets time between repeats

5FOOTSWITCH toggles effect on/bypass (blue LED indicates on)

6 BRIGHT switch accentuates delay signal's high end frequencies (blue LED indicates on)

1

24

3

5

External Controls

6

M299 | Carbon Copy®Mini Analog Delay 3

Basic Operation

1 Run a cable from your guitar to M299’s INPUT jack and another

cable from M299’s OUTPUT jack to your ampliﬁer.

2Start with all knobs set to 12 o’clock.

3 Turn effect on by depressing the footswitch.

4Rotate REGEN knob clockwise to increase number of repeats or

counterclockwise to decrease it.

5Rotate MIX knob clockwise to increase ratio of wet to dry signal

or counterclockwise to decrease it. Fully clockwise results in

half wet/half dry mix while fully counterclockwise results in

100% dry signal.

6 Rotate DELAY knob clockwise to increase delay time or

counterclockwise to decrease it.

7 Use a jeweler’s ﬂathead screwdriver to ﬂip the BRIGHT switch

toward heel of pedal to accentuate delay signal’s high end

frequencies (indicated by blue LED).

8Push in MOD switch to add modulation to your delay signal.

Modulation width and speed can be adjusted internally (remove

bottom plate) with a 3mm slotted screwdriver (see Diagram A).

The Carbon Copy®Mini Analog Delay is powered by the

Dunlop ECB003 9-volt adapter or the DC Brick™

, Iso-Brick™

,

and Mini Iso-Brick™power supplies. This pedal cannot be

powered by a battery.

Power

Directions

DIAGRAM A

M299 | Carbon Copy®Mini Analog Delay 4

Speciﬁcations

*Regen at max CCW, A-weighted

Input Impedance 1MΩ

Output Impedance 1kΩ

Max Input Level +5 dBV, 500 Hz

Max Output Level +8 dBV

Noise Floor**

Mix at Max CW -96 dBV

Mix at Max CCW -104 dBV

Delay Distortion <1%, 1 kHz -5 dBV Input

Delay Time 20 ms to 600 ms

Noise Reduction 2:1 ratio

Modulation Speed 0.2 Hz to 2.2 Hz

Bypass True Hardwire

Current Draw 26 mA

Power Supply 9 volts DC
