UShow US165 User Manual
The USB 2.0 to DVI/VGA/HDMI Adapter US165 enables you to connect any monitor, LCD or
projector to your PC or notebook. By using the included adapter DVI to VGA and DVI to HDMI,
you can also connect VGA and HDMI monitors. In order to connect several monitors, etc. to a PC,
you simply need an additional adapter for each display. You can connect up to 6 adapters to one
PC. The USB 2.0 Adapter can mirror and extend the display. If you use this external USB 2.0
technology, you do not need an additional VGA card.
Feature List
Now you can add another VGA adapter by an external USB device.
The extra monitor can be configured to either mirror or extension Screen.
The USB to DVI/VGA adapter supports all analogue displays with a DVI connector. VGA display
can also be connected using a suitable DVI to VGA converter.
You can connect up to 6 pieces The USB to DVI/VGA adapters to one PC at same time, and
each one can be different contents.
Applocation
Office View your large spreadsheets across two screens with display continuity. Multitask more
effectively without overlapping windows. Open attachments on one screen while reading the
e-mail on the other.
Graphics Studio/Editing workstation Use second display for pallets/tools. Type documents on
one screen while viewing reference material on the other.
Stock Market Use a notebook for viewing multiple screens. View charts and live data at the same
time.
Entertainment View video/TV on one screen and 2
nd
video/TV window on the other.
System Requirements
1.2GHz CPU or above
256MB RAM
One available USB 2.0 port
Microsoft windows 2000/XP/Vista/7
MAC operating system
Output
DVI, can be adapted to VGA and HDMI(Video only) by optional converter
Resolutions:
640*480, 800*600, 1024*768, 1280*768, 1280*1024,1440*900,1680*1050,1920*1080
Package Contents:
USB 2.0 DVI Adapter
USB cable,
DVI to VGA Adapter
DVI to HDMI Adapter (option)
Driver CD,
User manual
2
Drive and Software Install
Installation:
Turn on the PC. Insert the install CD to CD ROM. Then plug the into one of the USB port:

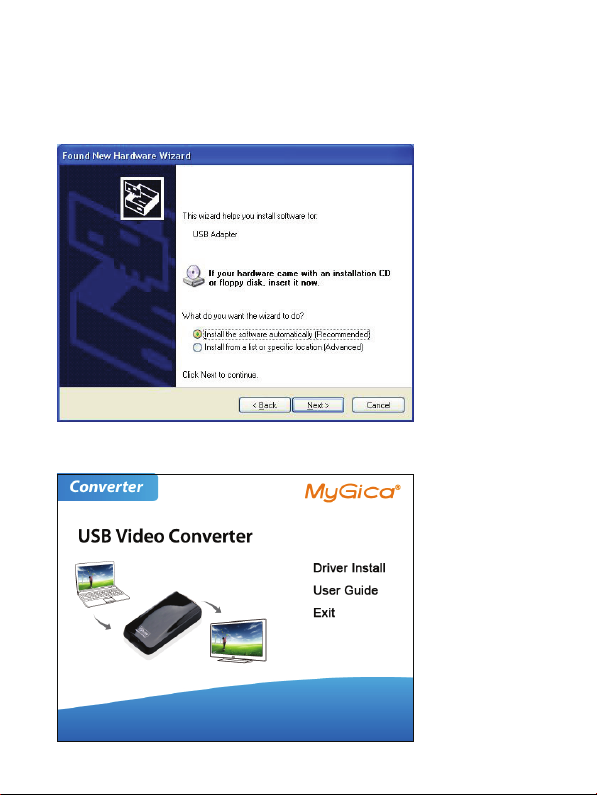

Step1: OS will remind a new hardware-- “USB Adapter”. Please choose “Cancel”.
Step2: When insert CD, Open CD-ROM,Run Driver Install or Windows\ Setup.exe.
3

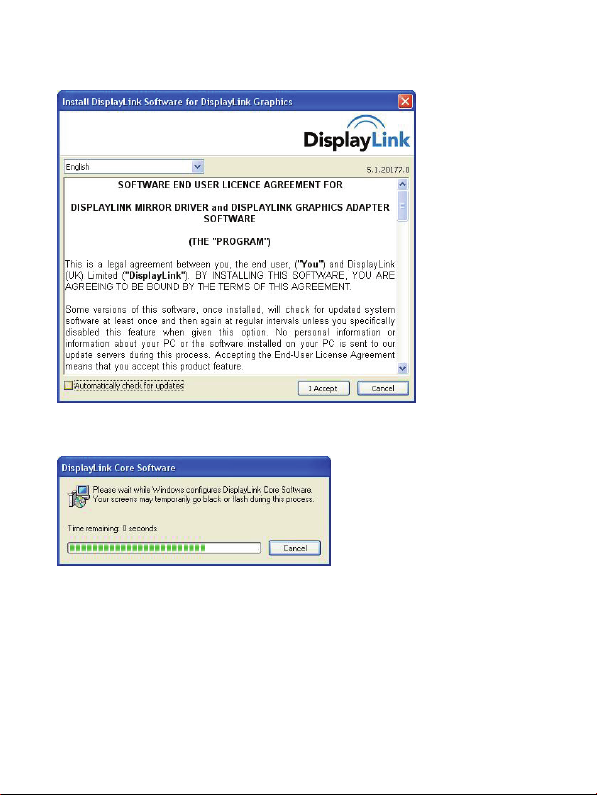

Step3: Click “I Accept” and then it will install “DisplayLink Graphics” driver and software.
Step4: Program starts to copy files.
4
Step5: When all finished, please check on Control panel, select “System”—“System
properties”—“Device Manager”, you can see one device installed.
Step6: You will see that application icons will appear on your desktop.
5
Software Users
Mouse Right Click
Screen Resolutio
Color Quality
Screen Rotation
Extend To
Extend: Extended desktop
Set as Main Monitor
Notebook Monitor off
Mirror: Desktop mirror
Off: off software
Advanced
Mygica Support
If you have further questions, please contact our customer support www.mygica.com
