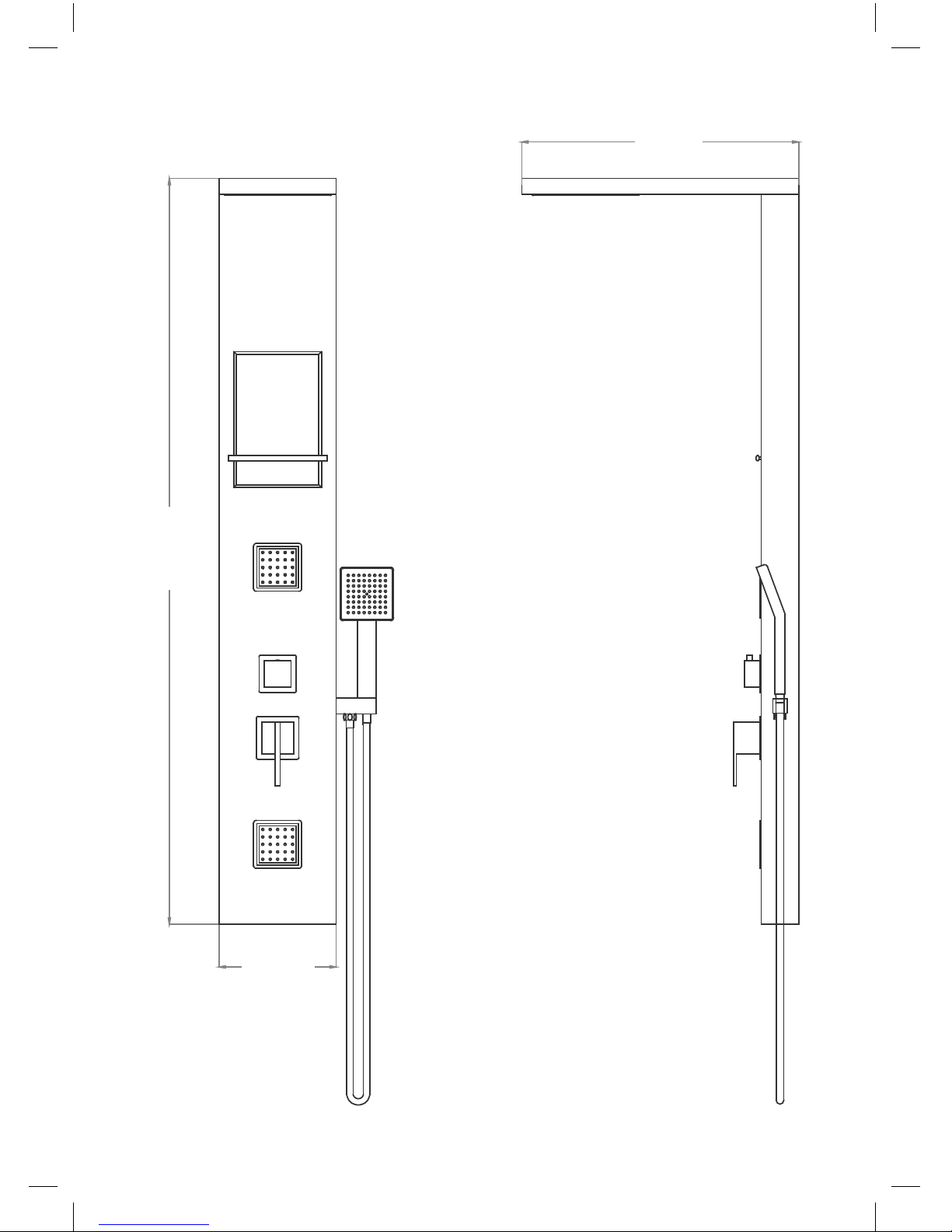

1400mm

220mm

520mm

520

220

1400

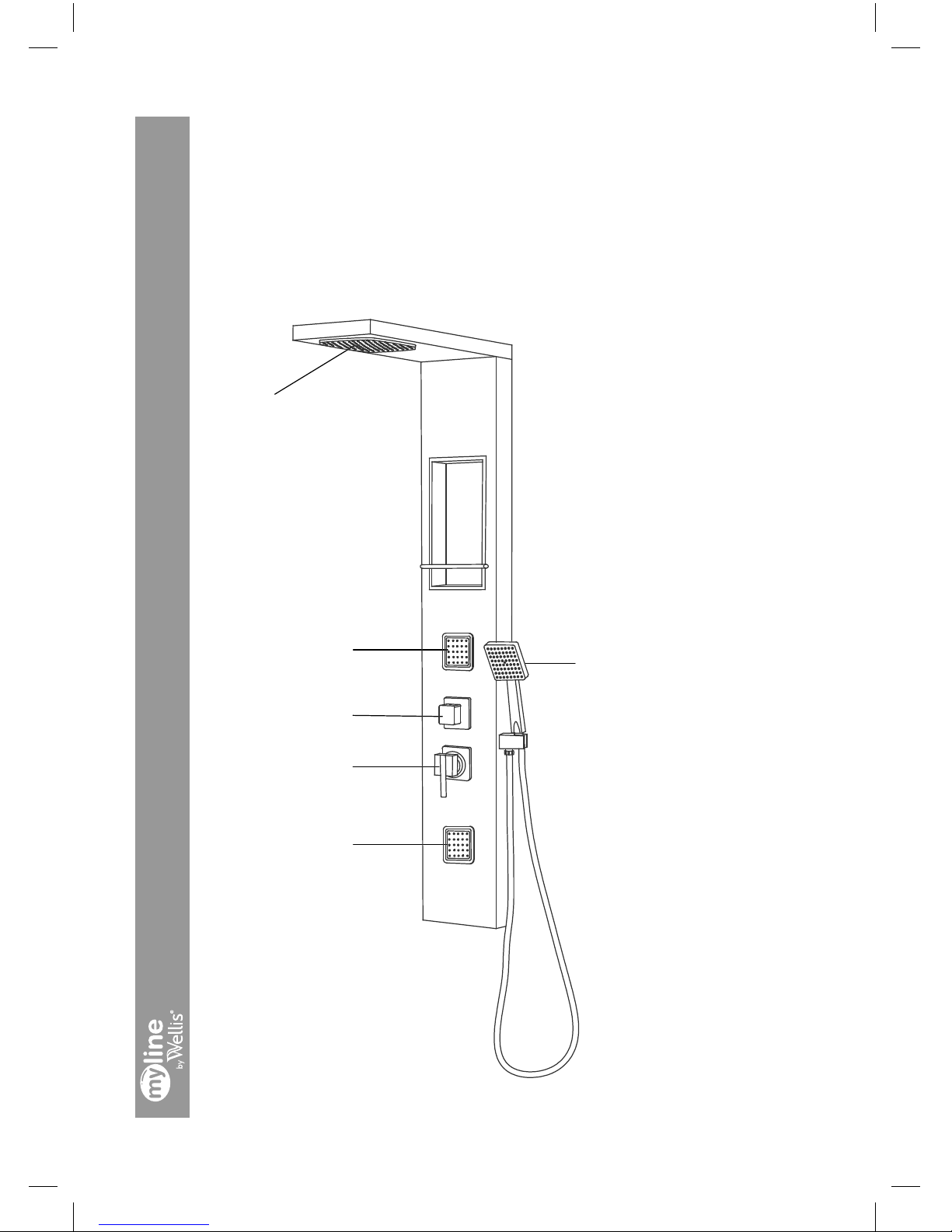

I. Function

1. Shower Head

2. Body jets

3. Diverter

4. Mixer

5. Hand shower

INSTRUCTION MANUAL

Modica Shower panel

WZ00082

EN I. Function

1. Shower Head

2. Body jets

3. Diverter

4. Mixer

5. Hand shower

Parts List

Please unpack and inspect all packages and components carefully, and

make sure they are complete. Examine for shipping damage. If some

parts are damaged or missing, notify your dealer immediately.

Before assembly, flush the water

supply pipes thoroughly to

remove debris(allow the water to

run with the main stopcock open

for about 3 mins), otherwise dirt

particles might affect the function

of the shower panel!

Note!

For lnstallation You may Require the Following Tools

Parts List

Please unpack and inspect all packages and components carefully, and

make sure they are complete. Examine for shipping damage. If some

parts are damaged or missing, notify your dealer immediately.

Before assembly, flush the water

supply pipes thoroughly to

remove debris(allow the water to

run with the main stopcock open

for about 3 mins), otherwise dirt

particles might affect the function

of the shower panel!

Note!

For lnstallation You may Require the Following Tools

Parts List

Please unpack and inspect all packages and components carefully, and

make sure they are complete. Examine for shipping damage. If some

parts are damaged or missing, notify your dealer immediately.

Before assembly, flush the water

supply pipes thoroughly to

remove debris(allow the water to

run with the main stopcock open

for about 3 mins), otherwise dirt

particles might affect the function

of the shower panel!

Note!

For lnstallation You may Require the Following Tools

Please unpack and inspect all packages and components carefully, andmake

sure they are complete. Examine for shipping damage. If someparts are

damaged or missing, notify your dealer immediately.

Part list

For lnstallation You may Require the Following Tools

Note!

Before assembly, flush the watersupply

pipes thoroughly toremove debris (allow

the water torun with the main stopcock

openfor about 3 mins), otherwise

dirtparticles might affect the functionof

the shower panel!

Parts List

Please unpack and inspect all packages and components carefully, and

make sure they are complete. Examine for shipping damage. If some

parts are damaged or missing, notify your dealer immediately.

Before assembly, flush the water

supply pipes thoroughly to

remove debris(allow the water to

run with the main stopcock open

for about 3 mins), otherwise dirt

particles might affect the function

of the shower panel!

Note!

For lnstallation You may Require the Following Tools

Select the shower function

Volume and temperature control

required by rotating the control knobs.

175cm

160cm

22cm

54cm

N o t e ! Before drilling any holes for fixing your shower panel ensure that

there are no hidden cables or pipework within the wall.

COLD

HOT

Wall-mounting

Insert the wall plugs inside

the holes Tighten the screws to the wall

with wall mounting brackets

Note!

The height can be altered to suidt individual requirements.

The dimensions are for reference only.

123

wall

Drill the holes in the wall

Hang the shower panel on the mounting bracket

wall wall

6mm Drill

25mm

Dimensions

Choose a suitable place to install the shower panel, adjust the shower panel’s

vertical position based on the user’s height and your sanitary room. Usually,

install the panels at the distance of 210cm from the top to the ground, but you

can assemble according to your preference.

1060mm145mm

Select the shower function

Volume and temperature control

required by rotating the control knobs.

175cm

160cm

22cm

54cm

N o t e ! Before drilling any holes for fixing your shower panel ensure that

there are no hidden cables or pipework within the wall.

COLD

HOT

Wall-mounting

Insert the wall plugs inside

the holes Tighten the screws to the wall

with wall mounting brackets

Note!

The height can be altered to suidt individual requirements.

The dimensions are for reference only.

123

wall

Drill the holes in the wall

Hang the shower panel on the mounting bracket

wall wall

6mm Drill

25mm

Dimensions

Choose a suitable place to install the shower panel, adjust the shower panel’s

vertical position based on the user’s height and your sanitary room. Usually,

install the panels at the distance of 210cm from the top to the ground, but you

can assemble according to your preference.

1060mm145mm

Wall-mounting

Before drilling any holes for fixing your

shower panel ensure thatthere are no

hidden cables or pipework within the wall.

NOTE!

Drill the holes in the wall Insert the wall plugs

insidethe holes

Tighten the screws

to the wallwith wall

mounting brackets

Hang the shower panel on the mounting bracket

Select the shower function

Volume and temperature control

required by rotating the control knobs.

175cm

160cm

22cm

54cm

N o t e ! Before drilling any holes for fixing your shower panel ensure that

there are no hidden cables or pipework within the wall.

COLD

HOT

Wall-mounting

Insert the wall plugs inside

the holes Tighten the screws to the wall

with wall mounting brackets

Note!

The height can be altered to suidt individual requirements.

The dimensions are for reference only.

123

wall

Drill the holes in the wall

Hang the shower panel on the mounting bracket

wall wall

6mm Drill

25mm

Dimensions

Choose a suitable place to install the shower panel, adjust the shower panel’s

vertical position based on the user’s height and your sanitary room. Usually,

install the panels at the distance of 210cm from the top to the ground, but you

can assemble according to your preference.

1060mm145mm

Select the shower function

Volume and temperature control

required by rotating the control knobs.

175cm

160cm

22cm

54cm

N o t e ! Before drilling any holes for fixing your shower panel ensure that

there are no hidden cables or pipework within the wall.

COLD

HOT

Wall-mounting

Insert the wall plugs inside

the holes Tighten the screws to the wall

with wall mounting brackets

Note!

The height can be altered to suidt individual requirements.

The dimensions are for reference only.

123

wall

Drill the holes in the wall

Hang the shower panel on the mounting bracket

wall wall

6mm Drill

25mm

Dimensions

Choose a suitable place to install the shower panel, adjust the shower panel’s

vertical position based on the user’s height and your sanitary room. Usually,

install the panels at the distance of 210cm from the top to the ground, but you

can assemble according to your preference.

1060mm145mm

Select the shower function

Volume and temperature control

required by rotating the control knobs.

175cm

160cm

22cm

54cm

N o t e ! Before drilling any holes for fixing your shower panel ensure that

there are no hidden cables or pipework within the wall.

COLD

HOT

Wall-mounting

Insert the wall plugs inside

the holes Tighten the screws to the wall

with wall mounting brackets

Note!

The height can be altered to suidt individual requirements.

The dimensions are for reference only.

123

wall

Drill the holes in the wall

Hang the shower panel on the mounting bracket

wall wall

6mm Drill

25mm

Dimensions

Choose a suitable place to install the shower panel, adjust the shower panel’s

vertical position based on the user’s height and your sanitary room. Usually,

install the panels at the distance of 210cm from the top to the ground, but you

can assemble according to your preference.

1060mm145mm

EN Dimensions

Choose a suitable place to install the shower panel, adjust the shower

panel’s vertical position based on the user’s height and your sanitary

room. Usually, install the panels at the distance of 210cm from the top

to the ground, but youcan assemble according to your preference.

Note!

The height can be altered to suidt individual requirements.

The dimensions are for reference only.

Select the shower function

required by rotating the

control knobs.

Volume and temperature

control

I. Function

1. Shower Head

2. Body jets

3. Diverter

4. Mixer

5. Hand shower

INSTRUCTION MANUAL

Modica Shower panel

WZ00082

DE I.Funktionen

1. Duschkopf

2. Körperdüsen

3. Schalter

4. Mischer

5. Handbrause
