MYSON

DÉCOR KH11 & KH22

Mounting and Fixing instructions.

DÉCOR radiators are high performance,

universal radiators that come with a choice of

connection options;

lTop bottom same end (TBSE)

lTop bottom opposite end (TBOE)

lBottom bottom opposite end (BBOE).

These instructions show you how to correctly

install the radiator based on your connection

requirements.

IMPORTANT: Screws must be fastened and tightened

as shown in this document. Failure to correctly fasten

the screw will result in the product not functioning

correctly and may cause the product to leak.

Contents*

Model No. of screws required

Horizontal KH11 2 (1 on each side)

Horizontal KH22 4 (2 on each side)

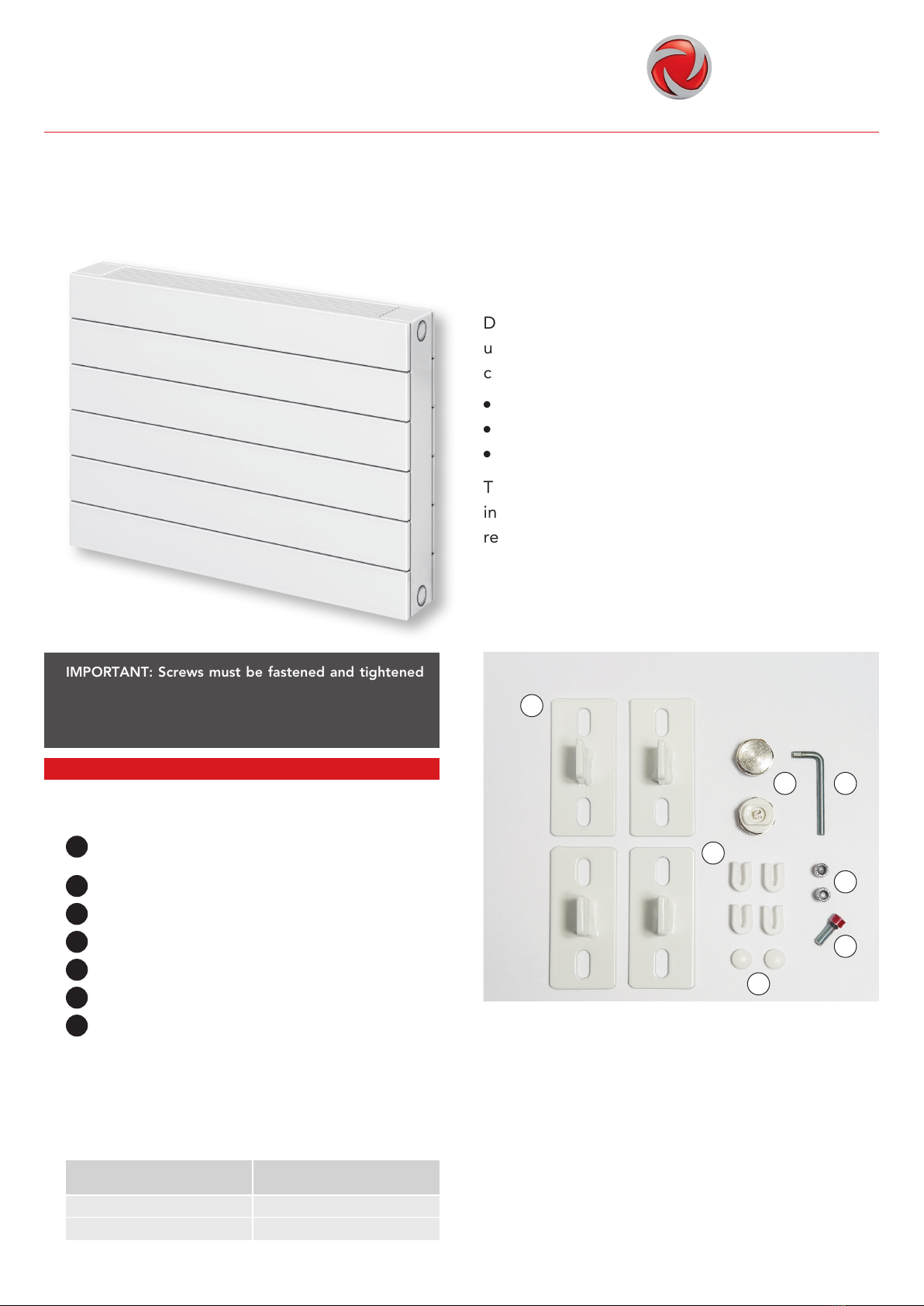

Your DÉCOR radiator comes with a pack of brackets and screws

that contains the following:

Brackets for horizontal models x 4

(or 6 for larger radiators)

Short plug screws*

Long separating screw (red end)*

Decorative screw covers*

Anti vibe clip (horizontal and vertical only)

Plug and vent

Allen key

Please unpack and carefully check the contents, in the event that

items are missing please contact MYSON immediately and do

not commence the installation.

*quantities vary depending on the model. For full details see table below.

Table of model variations

Bracket packet kit for horizontal models.

Installation

For the correct water ﬂow, the screws must be ﬁtted, and secured, as

demonstrated in the diagrams below. The longer, separating screws

(with a red end) will direct the water ﬂow through the radiator, while

the smaller metal screw plugs will blank off the unused tappings

(see Fig 1).

Once the screws are ﬁtted, cover with the decorative screw caps

supplied (see Fig 2). The radiator is now ready to be mounted to the wall

or ﬂoor. Fit the anti vibe clip to the bracket as shown in Fig 3, and then

afﬁx the radiator to the wall using the brackets supplied (measurements

can be found in the Universal Instructions found in the packaging).

MYSON Eastern Avenue, Team Valley, Gateshead, Tyne & Wear NE11 0PG, UK

T: 0845 402 3434, F: 0191 491 7568, [email protected], www.myson.co.uk

MYSON

LSS LSSSPS

SPS SPS SPS SPS

SPS

PV P V

TBSE

LSS LSSSPS

SPS SPS SPS SPS

SPS

PV P V

TBOE

LSS LSSSPS

SPS SPS SPS SPS

SPS

PV P V

BBOE

DÉCOR Horizontal Flow and Return

KEY

Flow water inlet

Flow water outlet

VVent

PPlug

LSS Long Separation Screw (red end)

SPS Short Plug Screw

www.myson.co.uk

Fig 1. Fig 3. Horizontal & vertical models onlyFig 2.

COMPLETE HEATING SOLUTIONS
