Nanight Sport 2 Bedienungsanleitung
User Manual Nanight Sport 2 Dive light
Thank you for choosing a dive light from Nanight! The light is
designed for diving at depths of up to 200m. We at
Nanight hope your new light will give you many rewarding
days and nights of diving!
PRODUCT DESCRIPTION
●LED Type: Cree XHP35
●Battery: 14,4V Panasonic Li-Ion, 3350 mAh
●4-step dimming
●Operating temperature: 0 – 35°C
●Light output 4000lm
●Burn time at full power: 45min. See burn time graph at
end.
NANIGHT SPORT 2 INCLUDES
●Dive light
●Charger
●Lens 10 and 35°
●Soft goodman handle
●Case
WARNING:
The battery pack in this light is of Li-Ion type. This kind of
battery may explode if charged incorrectly, short circuited
or damaged in any way. Charge the light outside away
from flammable materials. Never charge the light in direct
sunlight or in temperatures above 35°C. If the light or
battery becomes hot, immediately disconnect the charger,
open the light and place the light in a fire proof area
outside and don’t use the light again until a Nanight
service center has checked the light. Never use a light that
has been flooded. Regularly open the light and check for
over pressure if the light is equipped with an external
charging port. Replace the battery if the battery is
damaged or have significantly lost capacity. Only use
original Nanight battery packs with this product.
When diving in dark water, a backup dive light should always
be brought.
Nanight Sport 2 is a bright light. Never direct the light directly
into the eyes of yourself or others.
When using the dive light above water, it may become hot.
Be careful not to burn yourself or others.
Do not disassemble the dive light while it’s still wet.

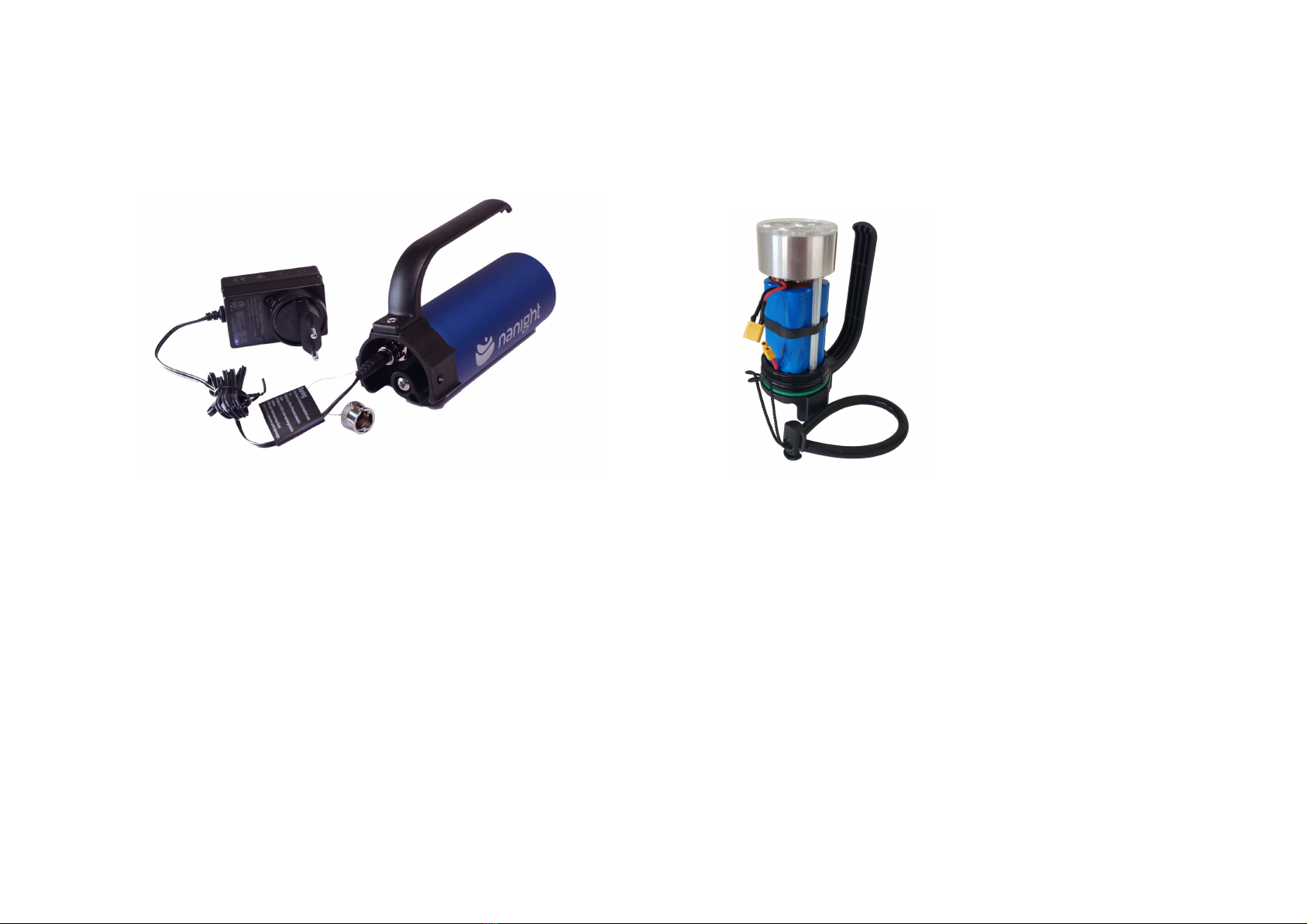

CHARGE THE BATTERY
Charge with external charge port:
●Open the lid of the charge port by pressing the lid and
unscrew counterclockwise.
●Connect the charger to the wall and plug in the DC
connector to the light.
●The charger will indicate charging by a red LED. A green led
will indicate completed charge.
●Disconnect the charger, inspect the o-ring for damages
and dirt. Replace o-rings or clean them if necessary, refit
the lid and make sure it is in the locked position.
Charge without charge port
●Open the dive light by unscrewing tube.
●Disconnect the battery connector by pulling the connector
apart. Never pull the cables!
●Connect the charger connector to the battery connector. It
is important that the connectors are connected to each
other in the correct orientation.
●Plug the charger into a wall outlet. The charger's indicator
LED changes from red to green when the battery is fully
charged.
●When the battery is fully charged, disconnect the charger
connector and reconnect the dive light connector. It is
important that the connectors are connected to each
other in the correct orientation.
●Inspect the o-ring for damages and dirt. Replace o-rings or
clean them if necessary.
●Make sure that the rubber band around the battery is tight
and keeps cable and connector in place.
●Check that the lens is seated correctly.
●Close the dive light by pushing the tube past the first
o-ring. Tighten the tube by turning it clockwise. Be careful
so that the parts threading properly against each other.
Make sure that the tube cover the o-rings completely.
CHANGING THE LENS
●Open the dive light by unscrewing the housing tube
counterclockwise and pull the tube carefully.
●Remove the lens manually by gently wiggling it.
●Insert the new lens, being careful so that its legs are
aligned correctly in the light base.
●Inspect the o-ring for damages and dirt. Replace o-rings or
clean them if necessary.
●Close the dive light by pushing tube past the first o-ring.
Tighten the housing tube by turning clockwise. Be careful
so that the parts threading correctly to each other. Make
sure that the tube cover both o-rings.
USAGE
The drop-shaped knob controls the functionality of the light.
Loosening or tightening the screw can adjust knob friction.
SWITCH THE LIGHT ON
●Turn the knob clockwise.
●If the battery level falls below 10%, the amount of light will
automatically be reduced to optimize the battery
performance and allow the user to terminate the dive
safely.
SWITCH THE LIGHT OFF
●Turn the knob counterclockwise until it touches the
locking position, the light will go off with a delay of 2
seconds.
●Turn the knob counterclockwise past the locking position,
to ensure that the light does not come by accident, for
example during transport.

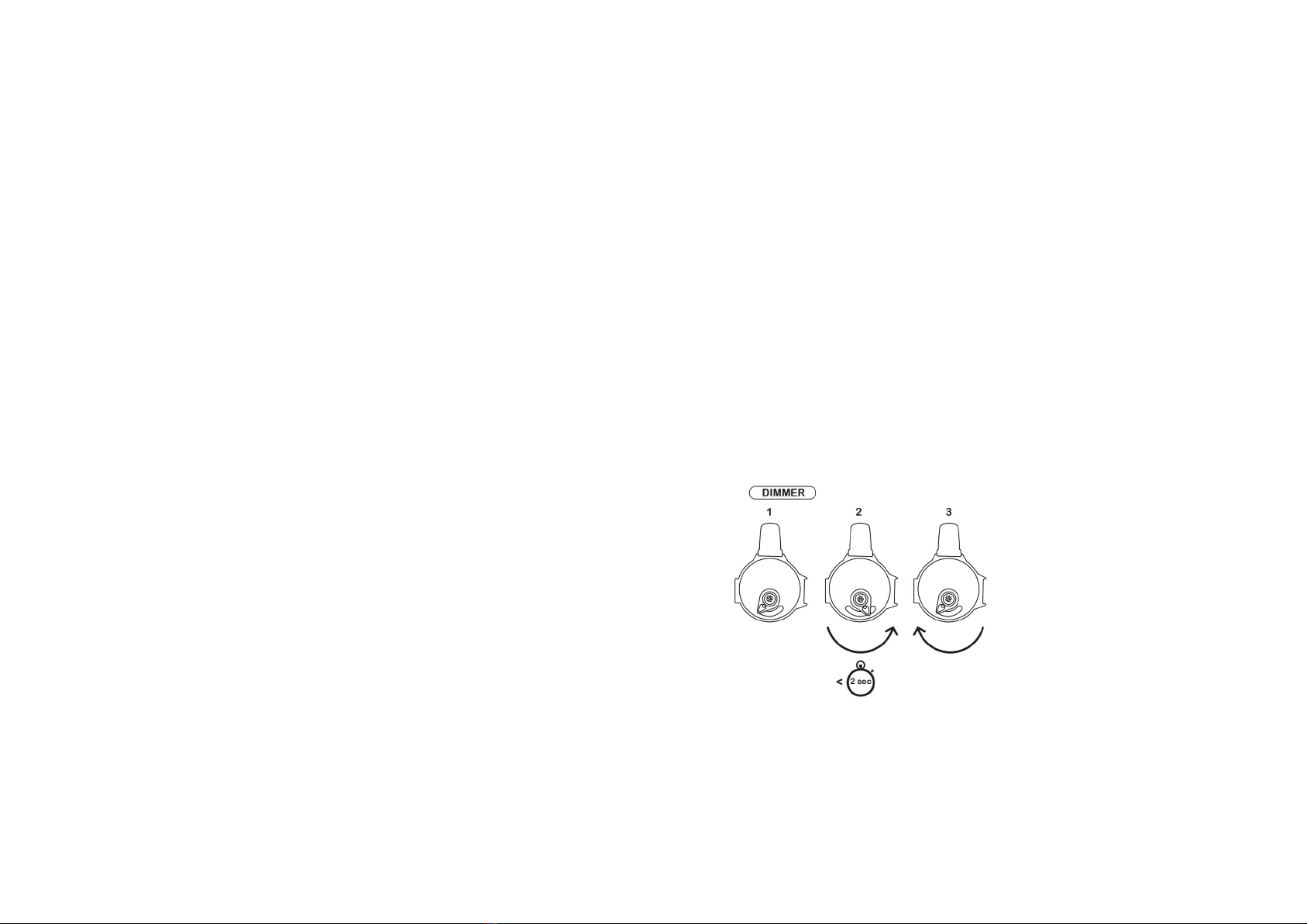

DIM THE LIGHT
●Turn the knob counterclockwise until it touches the
locking position, and back again within 2 seconds.
●Repeat the maneuver for further dimming.
●In this way, the light is dimmed gradually in four steps, and
back again to the highest brightness
Note that the light automatically dims down when the
battery level drops below 10%.
Battery level indication
There are two different versions of the battery indication on
the market, flashing and colored leds.
Flashing: Turn the light on and immediately off. The light will
indicate the battery level with 1-4 flashes where 4 flashes
indicates 100% charge level.
Colored leds: A colored led seen in the lens, indicates the
battery level each time the light is switched off.
Green : 100-65%
Amber: 65-33%
Red : 33-0%
USE OF SOFT GOODMAN HANDLE
The soft goodman handle is mounted on the hand as the
picture below. One sling in the palm and the other around
the wrist.
AFTER USE MAINTENANCE
●Rinse the dive light with fresh water after use.
●Lubricate the o-rings with silicone grease if necessary.
●Disconnect the battery if the light is not used for long
periods or when transporting by air.
●Inspect the o-ring for damages and dirt. Replace o-rings or
clean them if necessary.
●Charge the light at least every 6 month.
RECYCLING
This product contains electronic components and must not
be disposed of with household waste. Leave the product
for recycling in designated areas, such as municipal
recycling center.
WARRANTY
Provided the product is used as intended, one year of
warranty is given on the light. The warranty is valid
provided that a receipt of the purchase can be presented,
and includes repair or replacement of defective parts.
CONTACT INFORMATION
Nanight AB
Åkeredsvägen 1
421 63 Västra Frölunda
www.nanight.se
