OWNERS MANUAL
MANUAL DEL USUARIO
GUIDE D’UTILISATION
85-915_Manual-01
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use the work light safely and effectively. Please
read and follow these instructions and precautions carefully.
POR FAVOR CONSERVE ESTE MANUAL DEL USUARIO Y LEALO ANTES
DE CADA USO. En este manual le explica cómo utilizar la luz de trabajo de
manera segura y conable. Por favor, lea y siga las siguientes instrucciones
y precauciones.
ESSAYER DE GARDER LE MANUEL D’INSTRUCTIONS ET LE LIRE AVANT
CHAQUE UTILISATION. Ce manuel explique comment utiliser l’unité d’une
façon sûre et efcace. S’il vous plaît lisez et suivez ces instructions et précautions.
Model / Modelo / Modèle :
85-915

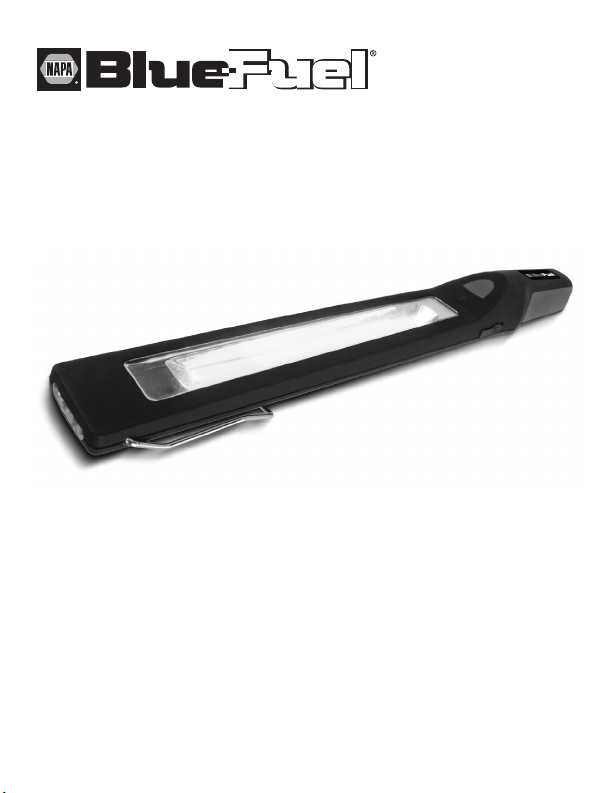

3W COB LED Rechargeble Inspection Lamp
3W COB LED Lámpara de inspección recargable
3W COB LED Lampe d’inspection rechargeable
Contact the equipment supplier
for details on how to properly dispose of this product
within a specic country, per WEEE requirements.
Póngase en contacto con el proveedor del equipo
para recibir información detallada sobre cómo desechar
este producto correctamente en un país especíco,
según los requisitos de Residuos de Aparatos Eléctricos
y Electrónicos (WEEE, por sus siglas en inglés).
Contactez le fournisseur d’équipements
pour plus de détails sur la façon de disposer correctement
de ce produit dans un pays spécique,
conformément aux exigences du WEEE.
• 3 •
1. IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS.
1.1 SAVE THESE INSTRUCTIONS – This manual contains important safety and
operating instructions.
1.2 Read, understand and follow all instructions, cautions and warnings listed in this
manual. Failure to follow all instructions and abide by all cautions and warnings
could result in personal injury, injury to others and property damage.
1.3 IMPORTANT! CHARGE WORK LIGHT IMMEDIATELY AFTER PURCHASE,
AFTER EACH USE, AND AT LEAST EVERY 6 MONTHS.
1.4 DO NOT turn on the work light while it is being charged.
1.5 DO NOT handle or move the work light while it is being charged.
1.6 DO NOT look directly into the light or shine the light directly into the eyes of any
person or animal.
1.7 DO NOT allow children to use the work light.
1.8 DO NOT operate the work light if it has received a sharp blow, been dropped, or
otherwise damaged in any way; take it to a qualied service person.
1.9 DO NOT leave the battery in a discharged state.
1.10 WARNING! Do not use any other charger except the one provided to charge the
internal battery. Use of a charger not supplied by the manufacturer may result in a
risk of re, injury to persons and/or damage to property.
1.11 DO NOT use the work light with a charger which has a damaged cord or plug,
replace the cord or plug immediately.
1.12 IMPORTANT! Make sure the voltage marked on the charger plug is the same as
the work light.
1.13 To reduce the risk of damage to the charger plug, pull by the plug, rather than the
cord when disconnecting the charger.
1.14 DO NOT use the provided charger to charge or power any other electrical item.
1.15 AC CHARGER FOR INDOOR USE ONLY. DO NOT expose the charger to water
or use in damp conditions.
2. PERSONAL SAFETY PRECAUTIONS
WARNING! TO REDUCE THE RISK OF BURNS OR FIRE, FOLLOW THESE
SAFETY PRECAUTIONS:
2.1 DO NOT disassemble the work light; take it to a qualied service person when
service or repair is required. Incorrect reassembly may result in a risk of re.
2.2 DO NOT crush, puncture, short external contacts or dispose of in re or water.
• 4 •
2.3 DO NOT expose to temperatures above 140°F (60°C).
2.4 Replace the battery pack ONLY with one designed for this product.
2.5 Recycle or dispose of the used battery as required by local regulations.
2.6 If the electrolyte in the cells gets on your skin, wash thoroughly with soap
and water. If it gets into your eyes, rinse thoroughly with cool water and seek
immediate medical attention.
2.7 This product contains a lithium ion battery. In case of re, you may use water, a
foam extinguisher, Halon, CO2, ABC dry chemical, powdered graphite, copper powder
or soda (sodium carbonate) to extinguish the re. Once the re is extinguished, douse
the product with water, an aqueous-based extinguishing agent, or other nonalcoholic
liquids to cool the product and prevent the battery from re-igniting. NEVER attempt to
pick up or move a hot, smoking, or burning product, as you may be injured.
3. SET UP INSTRUCTIONS
3.1 Remove any cord wraps and uncoil the cable between the charger and the work light.
4. FEATURES
1 2 3 4
56
7
89
1. ON/OFF power button
2. Charging socket
3. Charging status LED indicator
4. 3W COB LED
5. Magnets
6. Hook
7. SMD LED
8. USB/Micro USB charging cable
9. 100V~240V AC wall charger
with USB port
• 5 •
5. CHARGING
IMPORTANT! CHARGE THE WORK LIGHT IMMEDIATELY AFTER PURCHASE,
AFTER EACH USE, AND AT LEAST EVERY 6 MONTHS. Failure to do this will
reduce the battery’s capacity and may void the warranty.
5.1 Connect the micro USB end of the charging cable to the micro USB port on the
side of the work light. Insert the USB end of the cable into the USB port on the
wall charger. Plug the AC charger into a live AC outlet.
5.2 The green charging LED will light, to indicate charging has begun.
5.3 Charging will take approximately 3-4 hours.
5.4 Recharge the work light after use, and at least every 6 months.
6. OPERATING INSTRUCTIONS
6.1 Hang the work light, using the hook on the back.
6.2 The magnets may be used instead. Attach to any ferrous metal surface.
6.3 Direct the lens away from your eyes before turning on the work light.
6.4 Press once to turn on the end SMD LED.
Press a second time to turn on the high-power COB LED.
Press to turn off.
6.5 Recharge the work light after use, and at least every 6 months. VOTING
7. MAINTENANCE INSTRUCTIONS
7.1 After use and before performing maintenance, disconnect the work light from
the charger.
7.2 Use a dry cloth to wipe any dirt or oil from the charger, cord and case.
7.3 Any servicing should be performed by qualied service personnel.
8. STORAGE INSTRUCTIONS
8.1 Store inside, in a cool, dry place.
8.2 Take care to avoid/prevent damage to the charger, cord and unit. Failure to do so
could result in personal injury or property damage.
8.3 Charge the work light’s internal battery immediately after purchase, after every
use and every 6 months.
8.4 All batteries are affected by temperature. The ideal storage temperature is at
70°F. The internal battery will gradually self-discharge (lose power) over time,
especially in warm environments. Leaving the battery in a discharged state may
result in permanent battery damage. To ensure satisfactory performance and avoid
permanent damage, charge the internal battery every 6 months.
• 6 •
9. TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The work light does
not operate. The battery is not charged.
The battery may be bad.
Recharge the battery to full
charge.
Have the battery replaced
by a qualied service
technician.
10. BEFORE RETURNING FOR REPAIRS
If these solutions do not eliminate the problem,
or for more information about troubleshooting, call:
Schumacher Electric Corporation Customer Service
1-800-621-5485
Return products under warranty to your local NAPA Auto Parts Store.
11. SPECIFICATIONS
Battery ................................................................... Lithium Ion, 3.7V, 2600 mAh
Light (main) ...................................................................................3W COB LED
Light (top) ............................................................................................ SMD LED
Lumen output (main) ................................................................................ 250 lm
Lumen output (top) ..................................................................................... 30 lm
Operating time ......................................................................................2-3 hours
Charging time .......................................................................................3-4 hours
Operating temperature ............................................ -14˚
–
+104˚ F (-10˚
–
+40˚ C)
Charger input .....................................................100V~240V AC, 0.2A, 50-60Hz
Charger output ................................................................................... 5V DC, 1A
12. REPLACEMENT PARTS
Charger replacement kit
(includes wall charger and USB/Micro USB cable) .........................2299002953Z
• 7 •
13. LIMITED WARRANTY
WARRANTY NOT VALID IN MEXICO.
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE,
MOUNT PROSPECT, IL 60056-2179, MAKES THIS LIMITED WARRANTY TO
THE ORIGINAL RETAIL PURCHASER OF THIS PRODUCT. THIS LIMITED
WARRANTY IS NOT TRANSFERABLE OR ASSIGNABLE.
Schumacher Electric Corporation (the “Manufacturer”) warrants this work light
for one (1) year from the date of purchase at retail against defective material or
workmanship that may occur under normal use and care. If your unit is not free
from defective material or workmanship, Manufacturer’s obligation under this
warranty is solely to repair or replace your product with a new or reconditioned
unit at the option of the Manufacturer. It is the obligation of the purchaser to
forward the unit, along with proof of purchase and mailing charges prepaid
to the Manufacturer or its authorized representatives in order for repair or
replacement to occur.
Manufacturer does not provide any warranty for any accessories used with this
product that are not manufactured by Schumacher Electric Corporation and
approved for use with this product. This Limited Warranty is void if the product
is misused, subjected to careless handling, repaired, or modied by anyone
other than Manufacturer or if this unit is resold through an unauthorized retailer.
Manufacturer makes no other warranties, including, but not limited to, express,
implied or statutory warranties, including without limitation, any implied warranty
of merchantability or implied warranty of tness for a particular purpose. Further,
Manufacturer shall not be liable for any incidental, special or consequential damage
claims incurred by purchasers, users or others associated with this product, including,
but not limited to, lost prots, revenues, anticipated sales, business opportunities,
goodwill, business interruption and any other injury or damage. Any and all such
warranties, other than the limited warranty included herein, are hereby expressly
disclaimed and excluded. Some states do not allow the exclusion or limitation of
incidental or consequential damages or length of implied warranty, so the above
limitations or exclusions may not apply to you. This warranty gives you specic legal
rights and it is possible you may have other rights which vary from this warranty.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED WARRANTY
AND THE MANUFACTURER NEITHER ASSUMES OR AUTHORIZES ANYONE
TO ASSUME OR MAKE ANY OTHER OBLIGATION TOWARDS THE PRODUCT
OTHER THAN THIS WARRANTY.
• 8 •
1. INSTRUCCIONES DE SEGURIDAD IMPORTANTES
GUARDE ESTAS INSTRUCCIONES.
1.1 GUARDE ESTAS INSTRUCCIONES: Este manual contiene instrucciones de
seguridad y operación importantes.
1.2 Lea, entienda y siga todas las instrucciones, precauciones y advertencias
incluidas en este manual. Si no sigue todas las instrucciones ni respeta todas las
precauciones y advertencias, podría sufrir una lesión personal, lesionar a otras
personas y generar daños a la propiedad.
1.3 IMPORTANTE: CARGUE LA LUZ DE TRABAJO INMEDIATAMENTE DESPUÉS
DE LA COMPRA, DESPUÉS DE CADA USO Y AL MENOS CADA 6 MESES.
1.4 NO encienda la luz de trabajo mientras se está cargando.
1.5 NO manipule ni mueva la luz de trabajo mientras se está cargando.
1.6 NO mire directamente hacia la luz ni dirija la luz directamente a los ojos de una
persona o de un animal.
1.7 NO permita que los niños usen la luz de trabajo.
1.8 NO haga funcionar la luz de trabajo si ha recibido un golpe fuerte, si se ha caído o
si se ha herido de alguna forma; llévela a una persona de mantenimiento calicada.
1.9 NO deje la batería descargad.
1.10 ADVERTENCIA: No use otros cargadores a excepción de los provistos para
cargar la batería interna. El uso de un cargador no provisto por el fabricante
podría provocar un riesgo de incendio, lesiones en las personas o daño a la
propiedad.
1.11 NO use la luz de trabajo con un cargador que tiene un cable o un enchufe
dañados; reemplace el cable o el enchufe de inmediato.
1.12 IMPORTANTE: Asegúrese de que el voltaje marcado en el enchufe del cargador
sea el mismo que el de la luz de trabajo.
1.13 Para reducir el riesgo de daños al enchufe del cargador, al momento de
desconectar el cargador, tire del enchufe y no del cable.
1.14 NO use el cargador provisto para cargar o alimentar ningún otro artículo eléctrico.
1.15 CARGADOR AC SOLO PARA USO EN INTERIORES. NO exponga el cargador
al agua ni lo use en condiciones húmedas.
• 9 •
2. PRECAUCIONES DE SEGURIDAD PERSONAL
ADVERTENCIA: PARA REDUCIR EL RIESGO DE QUEMADURAS
O INCENDIO, SIGA ESTAS PRECAUCIONES DE SEGURIDAD:
2.1 NO desarme la luz de trabajo; llévela a una persona de mantenimiento
calicada cuando se requiera mantenimiento o reparación. Si la vuelve a armar
incorrectamente, puede producirse un riesgo de incendio.
2.2 NO aplaste, perfore ni provoque un cortocircuito con los contactos externos ni los
deseche en fuego o agua.
2.3 NO exponga el producto a temperaturas mayores a 140 °F (60 °C).
2.4 Reemplace el paquete de baterías SOLAMENTE con uno diseñado para este
producto.
2.5 Recicle o deseche la batería usada según las exigencias de las regulaciones
locales.
2.6 Si el electrolito de las células cae en su piel, lávela meticulosamente con agua
y con jabón. Si cae en sus ojos, enjuáguelos bien con agua fría y busque
atención médica inmediata.
2.7 Este producto contiene una batería de ión-litio. En caso de incendio, puede
utilizar agua, extintor de espuma, halón, CO2 polvo químico seco ABC, grato en
polvo, polvo de cobre o soda (carbonato de sodio) para extinguir el fuego. Una
vez que el fuego se haya extinguido, empape el producto con agua, un agente
de extinción basado en agua u otros líquidos sin alcohol para enfriar el producto
y evitar que la batería se vuelva a encender. NUNCA intente levantar o mover
un producto caliente, que emita humo o que esté en llamas, ya que puede
resultar herido.
3. INSTRUCCIONES DE INSTALACIÓN
3.1 Retire el envoltorio de los cables y desenrede el cable ubicado entre el cargador
y la luz de trabajo.
• 10 •
4. CARACTERÍSTICAS
1 2 3 4
56
7
89
1. Botón de alimentación con
“ON/OFF” (encendido / apagado)
2. Enchufe de carga
3. Indicador de estado de carga
4. 3W COB LED
5. Imanes
6. Gancho
7. SMD LED
8. Cable de carga USB / Micro USB
9. Cargador de pared
de 100 VCA~240 VCA
con puerto USB
5. CARGANDO
IMPORTANTE: CARGUE LA LUZ DE TRABAJO INMEDIATAMENTE DESPUÉS
DE LA COMPRA, DESPUÉS DE CADA USO Y AL MENOS CADA 6 MESES.
Si no lo hace, se reducirá la capacidad de la batería y la garantía puede anularse.
5.1 Conecte el extremo micro USB del cable de carga al puerto micro USB en la
parte posterior de la luz de trabajo. Inserte el extremo USB del cable en el puerto
USB en el cargador de pared. Conecte el cargador de CA a una toma de CA.
5.2 La carga LED verde se iluminará, para indicar que la carga ha comenzado.
5.3 La carga tomará aproximadamente 3-4 horas.
5.4 Recargue la luz de trabajo después de usarla y por lo menos cada 6 meses.
6. INSTRUCCIONES DE OPERACIÓN
6.1 Cuelgue la luz de trabajo con el gancho ubicado en la parte posterior.
6.2 Los imanes pueden usarse en su lugar. Acople a cualquier supercie de metal férrico.
6.3 Dirija la lente lejos de sus ojos antes de encender la luz de trabajo.
Inhaltsverzeichnis
Sprachen:
Andere Napa Arbeitsleuchte Handbücher
Beliebte Arbeitsleuchte Handbücher anderer Marken
PowerSmith
PowerSmith PWLD080T Bedienungsanleitung
MaxLite
MaxLite 73683 Bedienungsanleitung
Heitronic
Heitronic Trend 27867 Bedienungsanleitung
Monzana
Monzana Gore MZCL10 Bedienungsanleitung
EINHELL
EINHELL TE-CL 18/2000 LiAC Bedienungsanleitung
Bayco
Bayco NIGHTSTICK Dual-Light Xtreme Lumens... Bedienungsanleitung
