OPERATING GUIDE for your

GEM-K3DGTL KEYPAD

ARMED

COMPUTERIZED SECURITY SYSTEM

STATUS

GEMINI

R1 2 3

B 4 5 6

C 7 8 9 0

INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

NEXT / YES

PRIOR / NO

AREA

OI281B 8/06

The GEM-K3DGTL is a “smart”,

interactive, menu-driven keypad designed

for your Napco control panel. A digital

display is provided to show the status of

your system.

This booklet contains important

information about the operation of your

system with this GEM-K3DGTL Keypad.

Read it carefully and keep it handy for

future reference. Check the Glossary for

an explanation of terms that may be

unfamiliar to you.

You'll probably find subjects mentioned in

this booklet that do not apply to your

system. Napco control panels have such

a wide variety of features that few security

systems, if any, will ever need them all.

Your alarm professional has chosen

appropriate features for your particular

needs.

Regardless of how your system has been

configured, rest assured that it has been

carefully designed and engineered to the

highest industry standards. To assure

optimum safety and security, familiarize

yourself with this equipment. Periodically

check its condition and state of readiness

by testing it at least once a week in both

the ac/battery and battery-only modes

(ask your alarm professional how to make

these tests). Note: The "K Series" GEM-

K3DGTL keypad is compatible with the

GEM-P816/1632/3200/9600 series con-

trol panels. However, some exclusive "K

Series" keypad features can only be used

with the GEM-P1632 v.10 control panel.

INTRODUCTION

Test your sounding device and backup battery

1. While disarmed, press R.

2.Answer NO (press Q) until “3” (Bell Test) appears in the

window.

3. Press YES (P) to execute the test. The alarm will sound

for about two seconds.

•If the alarm does not sound, call for service.

•If the battery is low, a system trouble E02 will appear in

the display. Allow 24 hours for the battery to recharge. If

the trouble continues, call for service.

Test your central station communicator

(Telephone Test programmed? YES NO)

1. While disarmed, press R.

2. Answer NO (press Q) until “15” (Telephone Test)

appears in the window.

3. Press YES (P) to send a test code to the central station.

4. If the test is not successful, “E03” will display, indicating a

communication failure. Call for service.

IMPORTANT - TEST YOUR SYSTEM WEEKLY

TABLE OF CONTENTS

Section Page

KEYPAD CONTROLS & INDICATORS............................................... 4

ARMING AWAY: SETTING THE ALARM WHEN LEAVING............... 6

ARMING STAY: PROTECTING YOURSELF AT HOME .................... 8

TURNING OFF THE ALARM (DISARMING) WHEN RETURNING...... 10

FIRE PROTECTION............................................................................ 11

FUNCTION MENU .............................................................................. 15

CENTRAL-STATION MONITORING ................................................... 20

ADVANCED FEATURES .................................................................... 21

PROGRAMMING USER CODES ........................................................ 22

GLOSSARY ........................................................................................ 24

SYSTEM TROUBLE ERROR CODES ................................................ 27

TROUBLESHOOTING ........................................................................ 31

TO SILENCE AN ALARM, ENTER YOUR

CODE, AND PRESS J.

FOR SERVICE, CALL: __________________

CENTRAL STATION: __________________

EXIT DELAY: _________________________

ENTRY DELAY: ______________________

FIRE ALARM SOUND*:

________________________________

BURGLAR ALARM SOUND*:

________________________________

KEYPAD FIRE ENABLED? YES NO

KEYPAD PANIC ENABLED? YES NO

KEYPAD AUX. ENABLED? YES NO

*FIRE HAS PRIORITY OVER BURGLARY.

KEYPAD CONTROLS & INDICATORS

ARMED

COMPUTERIZED SECURITY SYSTEM

STATUS

GEMINI

R1 2 3

B 4 5 6

C 7 8 9 0

INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

AREA

PRIOR / NO

NEXT / YES

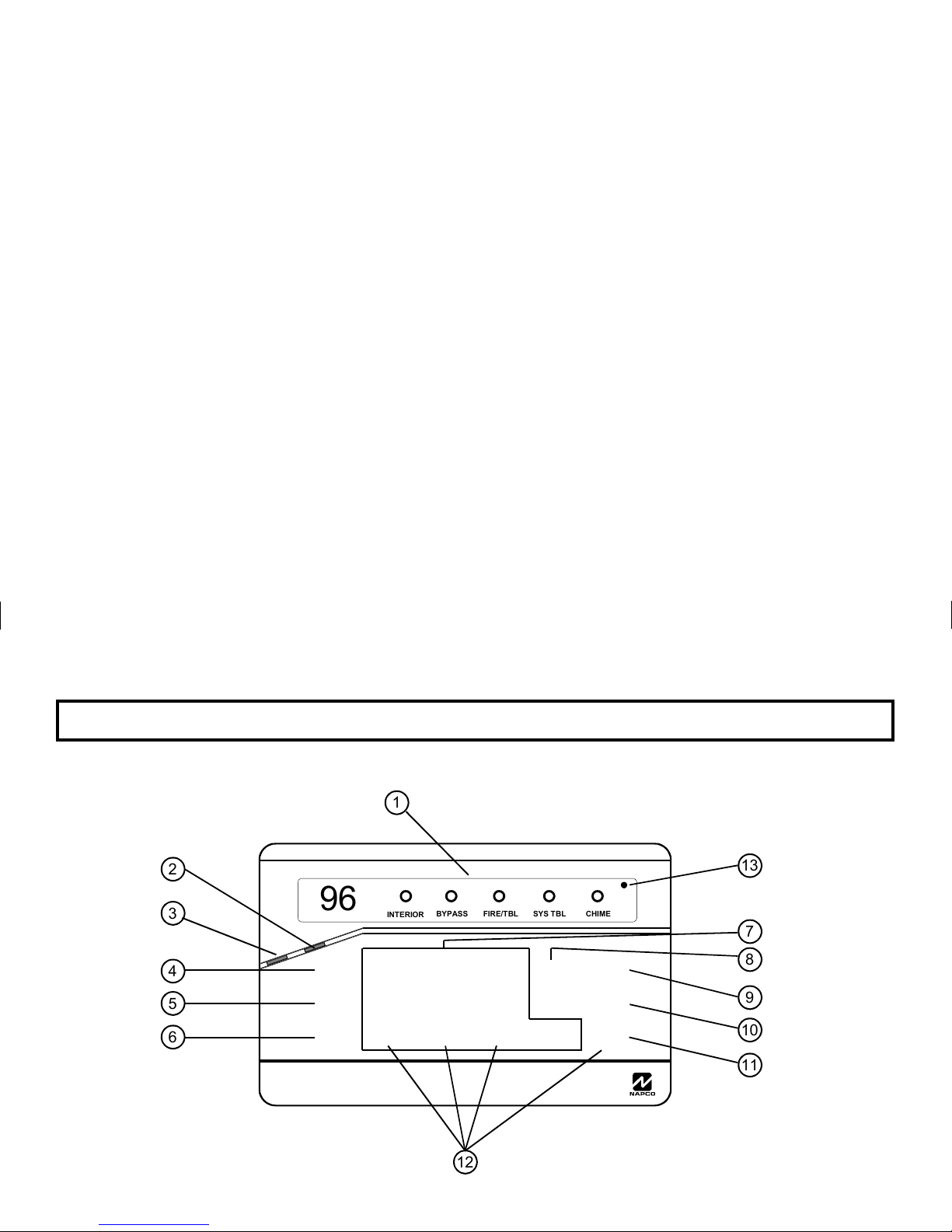

KEYPAD CONTROLS & INDICATORS

Window. Lights indicate system

status messages; digit display

indicates related zone, function or

error message numbers.

STATUS Light. Lights (green) to

indicate that the system is ready for

arming. If a zone is not secured the

light will be off and the zone will

display in the window. If a zone has

been bypassed, the STATUS light will

blink while armed.

ARMED Light. Lights (red) to indicate

that the system is armed. If an alarm

has occurred, the ARMED LED will

be flashing.

MENU Button. Selects available

system functions as displayed in the

window. The selected function is

executed by pressing the Ubutton.

BYPASS Button. (1) Deactivates

selected zones from the system. (2)

Unbypasses a bypassed zone. (GEM-

P3200/9600 panels only).

RESET Button. (1) Resets various

system troubles, displays, etc. (See

text.) (2) Resets residential smoke

detectors.

Numerical Keys (1-9, 0). Used to

enter codes, zone numbers, etc.

ENTER Button. Entry key. Causes

the entered code or selected function

to be executed.

STAY Button. (1) Bypasses all

Interior Zones simultaneously ("STAY

Mode") to allow free movement within

the premises. Hold down P

when the system is armed in "STAY

Mode" to cancel entry delay on Exit/

Entry Zones, causing an instant alarm

upon violation. (2) Scrolls the window

display forward (NEXT). (3) Answers

“YES” to questions in the window

display.

AWAY Button. (1) Arms all zones in

the system. (2) Scrolls window

display backward (PRIOR). (3)

Answers “NO” to questions in the

window display.

AREA Button (G). Selects other

areas and is used with emergency

buttons.

Emergency Buttons. Used with the

Gbutton to signal an

emergency, as follows:

•Press the 7and the G

buttons for Fire Emergency.

•Press the 8and the G

buttons for Auxiliary Emergency.

•Press the 9and the G

buttons for Police Emergency.

ARMING AWAY: SETTING THE ALARM WHEN LEAVING

Arming the System

1. Check the keypad. The green STATUS light must be on in order to arm.

If the green light is off, the number(s) of any unsecured zone(s) will display in

the window. Refer to the pull-up zone list for the location of each problem

zone and secure by closing windows, doors, etc.. When all zones are secure,

the green STATUS light will come on.

2. Arm the system. Enter your User Code followed by Q. The green

STATUS light will go off, the red ARMED light will come on. Note: If you enter

an invalid code, the keypad will beep 4 times, indicating an error. Re-enter

your code.

3. Leave the premises. Leave through the exit door before the exit time expires.

Priority Arming

If you attempt to arm the system with a faulted Zone, a 3-second tone will sound

at the keypad and “P” will display in the window, indicating that the zones must be

secured before the panel can be armed.

Selectively Bypassing Zones

If you cannot locate or repair a faulted zone, it can be removed from the system,

or bypassed. Bypass the zone(s) from the system by pressing B, followed by

the zone number (or vice versa). The yellow BYPASS light will turn on to indicate

that the zone has been bypassed.

Note: Bypassed zones are unprotected. If a faulted zone cannot be secured,

have the system checked as soon as possible.

12 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

P INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

ARMING AWAY: SETTING THE ALARM WHEN LEAVING

System Trouble If you attempt to arm with the SYS TBL light on, a 3-second tone will

sound and a “P” will display in the window. This indicates that the system has detected

a problem which may prevent it from operating properly. A number corresponding to the

trouble will then appear in the display. Refer to SYSTEM TROUBLE ERROR CODES

for descriptions of these troubles. If you cannot correct the problem immediately, press

Cand you will then be able to arm the system in this condition. Note: If you

cannot clear the trouble, have the system checked as soon as possible.

Area Arming (Optional)

In a system that has been partitioned into multiple areas, one or more areas may be armed while others remain disarmed.

Manager's Mode.

The Manager's Mode allows the user to arm / disarm other areas in a partitioned system. To arm a different area:

1. Press the numerical key representing the other area number.

2. Press Gfollowed by U. The keypad will now provide status and control of that area.

3. Enter your code followed by Qto arm.

4. Press Gfollowed by Uto return to the home area.

Global Arming (Optional) (GEM-P3200/9600 panels only).

To arm all areas simultaneously (including the area you are in), press 9, Gand enter your code followed by U.

To disarm all areas simultaneously, press 0, Gand enter your code followed by U.

•The User Code must be valid in all area(s).

•If any zone is not secured, the keypad will display “P”. All faulted zones in the respective area(s) must be secured or

bypassed. Note: If a system trouble is indicated, the system cannot be armed using this method.

P INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

Arming in STAY Mode

Interior Zones, when bypassed, allow free movement within the home while the

protection of armed perimeter zones is maintained. To bypass Interior Zones, enter

your User Code followed by P. The red ARMED light will light and the green

STATUS light will blink, indicating zones bypassed. The INTERIOR and BYPASS lights will display in the window.

Instant Protection

When retiring for the evening, after all family members are home, you can cancel the entry delay on the Entry Zone(s).

To arm with instant protection, press and hold Pfor 2 seconds after arming. When armed with Instant Protection opening

the entry door will cause an immediate alarm.

•When arming with Instant Protection, the exit delay will remain in effect, allowing exit of the house just after arming.

•While armed, the red ARMED light will flicker rapidly to indicate instant protection.

ARMING STAY: PROTECTING YOURSELF AT HOME

INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

ARMING STAY: PROTECTING YOURSELF AT HOME

Emergency Buttons (Only available if programmed)

The Blue Emergency Buttons (7, 8& 9), if programmed, are always active,

whether the system is armed or disarmed. The emergency signal will only be transmitted

when an Emergency Button and Gare pressed at the same time.

•Fire Emergency Simultaneously press 7and Gto alert the central station of a

fire emergency. *(Fire Emergency programmed? YES NO)

•Auxiliary Emergency Simultaneously press 8and Gto alert the central station

of an Auxiliary emergency.*(Auxiliary Emergency programmed? YES NO)

•Police Emergency Simultaneously press 9and Gto alert the central station of a

police emergency. *(Police Emergency programmed? YES NO)

Easy Exit (Optional - Easy Exit programmed? YES NO)

Your system may have been programmed for Easy Exit, which allows a user to exit the premises while the system is armed STAY. By

activating Easy Exit while the system is armed STAY, the Exit Delay countdown will take place, during which time you are permitted to

leave through the exit door. The Easy Exit Delay time will be identical to the Exit Delay time the system gives you each time it is

armed STAY. This will allow, for example, an early morning commuter to exit the house, without having to disarm and rearm the

system, awaking the family.

Press Uto activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V20 or greater, GEM-P816/P1632 V9A or greater)

*Note: Discuss your Emergency

Features with your Installation

Company.

STAY

AWAY

TURNING OFF THE ALARM (DISARMING) WHEN RETURNING

Disarming the System

1. Enter your premises through the Entry/Exit door. The keypad will sound a steady tone to remind you to disarm the system

before your Entry Delay time expires.

2. Enter your User Code and press U. The red ARMED light will go out, indicating that the system has been disarmed.

•If you enter an invalid code, the keypad will beep 4 times, signifying an error. Re-enter your code immediately. 10 seconds

before Entry Delay expires, the keypad will emit a pulsing warning tone.

Alarm Indication / Silencing an Alarm

If the red ARMED light is flashing upon entry, an alarm occurred while you were out. (The display will scroll the number(s) of the

violated zone(s).) Proceed with caution! If you suspect that an intruder may still be on the premises, leave immediately and call

authorities from a neighbor's phone.

To silence an audible alarm:

1. Enter your code and press U. After the system is disarmed, the window will continue to display the number(s) of the zone(s)

violated.

2. To reset the display, note the zones violated, then press C.

Ambush (Optional) Your Ambush Code Type is: TYPE 1 (Prefix) TYPE 2 (Unique) My Ambush Code is ___________________

If an intruder forces you to disarm your system, enter your Ambush Code and press U. There are two types of Ambush Codes:

(1) A 2-digit code (prefix) entered just prior to your normal User Code and (2) A separate and unique User Code.

Example Type 1 (Prefix): If your User Code is 1234 and your Ambush Code is 99, press 991234U.

Example Type 2 (Unique): If your User Code is 1234 and your Ambush Code is 8899, press 8899U.

Using your Ambush Code will send a silent alarm to the central station. The red ARMED light will go out and the window will display

“SYSTEM READY” as if the system were normally disarmed. There will be no indication that a silent alarm has been sent.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NAPCO Tastenfeld Handbücher

NAPCO

NAPCO Gemini GEM-DXRP1 Bedienungsanleitung

NAPCO

NAPCO MAGNUM ALERT RP1016E KEYPAD Bedienungsanleitung

NAPCO

NAPCO Magnum Alert RP2000LCD Bedienungsanleitung

NAPCO

NAPCO Gemini GEM-TOUCH K Series Bedienungsanleitung

NAPCO

NAPCO RP1016LCD Bedienungsanleitung

NAPCO

NAPCO GEM-RP1CAE KEYPAD Bedienungsanleitung

NAPCO

NAPCO MAGNUM ALERT RP3000 KEYPAD Bedienungsanleitung

NAPCO

NAPCO Security System Bedienungsanleitung

NAPCO

NAPCO Gemini GEM-RP1CAe2 Bedienungsanleitung

NAPCO

NAPCO Magnum Alert RP1000ELCD Bedienungsanleitung

NAPCO

NAPCO RPXP6GT Bedienungsanleitung

NAPCO

NAPCO GEM-RP1Ca Bedienungsanleitung

NAPCO

NAPCO MAGNUM ALERT RP1000E LCD KEYPAD Bedienungsanleitung

NAPCO

NAPCO RP1054D KEYPAD Bedienungsanleitung

NAPCO

NAPCO GEM-RP1CAE KEYPAD Bedienungsanleitung

NAPCO

NAPCO GEMINI C Series Installationshandbuch

NAPCO

NAPCO Gemini GEM-RP1CAe2 Bedienungsanleitung

NAPCO

NAPCO LIBRA DXK4RF-319 Bedienungsanleitung

NAPCO

NAPCO Magnum Alert RP1000ELCD Bedienungsanleitung

NAPCO

NAPCO RP1016LCD Bedienungsanleitung

NAPCO

NAPCO GEMINI GEMC-255 Bedienungsanleitung

NAPCO

NAPCO Gemini GEM-K1CA Bedienungsanleitung

NAPCO

NAPCO MAGNUM ALERT RP3000 KEYPAD Bedienungsanleitung

NAPCO

NAPCO iSecure ISEC-WL-KEYPAD Bedienungsanleitung

Beliebte Tastenfeld Handbücher anderer Marken

BFT

BFT SELETTO Bedienungsanleitung

Micro Id

Micro Id MP7G3BL Gebrauchsanweisung

WindowMaster

WindowMaster WLI 130 Bedienungsanleitung

ACT

ACT ACT PRO 1030 Bedienungsanleitung

Cardin

Cardin SSB Series Bedienungsanleitung

Harman Kardon

Harman Kardon KP 1 Bedienungsanleitung

Chamberlain

Chamberlain KPR2000 Benutzerhandbuch

CYP

CYP CR-KP1 Bedienungsanleitung

Aeware

Aeware k-35 Series Referenzhandbuch

Aritech

Aritech CS-175 Series Bedienungsanleitung

GE NetworX NX-1600E Series Bedienungsanleitung

Lenze AC Tech

Lenze AC Tech MC SERIES Bedienungsanleitung

Burg Wächter

Burg Wächter secuENTRY 7711 Bedienungsanleitung

Aeware

Aeware in.k450 Bedienungsanleitung

Lenze

Lenze EPM-H410 Bedienungsanleitung

Toshiba

Toshiba RKP007Z Bedienungsanleitung

Gemini

Gemini GEM-DXK1 KEYPAD Bedienungsanleitung

Russound

Russound MDK-C5 Betriebsanleitung
