Nauticam NA-NEX6 Bedienungsanleitung
0
1
Thank you for your purchase of a NAUTICAM camera housing.
At NAUTICAM, we pride ourselves on the ability to recognise the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Each NA-NEX6 housing is individually inspected and water pressure
tested to ensure optimum quality.
Please read this manual carefully before using the housing, this will
maximise its performance as well as its lifetime.
2
1. All NAUTICAM Products are warranted against any material and
manufacturing defects for one year from the date of purchase for
consumer use.
2. NAUTICAM accepts no liability for any damage to and defects in the
housing caused by improper use and/or poor maintenance; it is the
responsibility of the owner to carefully follow the instructions in
this manual.
3. NAUTICAM does not hold responsibility for damage, of any nature,
to any equipment used with and/or placed within the housing.
4. NAUTICAM accepts no liability for any loss of captured images or
the inability to capture images even if it is due to the
malfunctioning or leakage of the housing.
5. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail
purchaser.
6. Unauthorised modifications and/or repairs of the housing will
automatically invalidate this warranty.
7. To return products for service, please contact our regional
distributor, normally you would need to notify them by email first
and ship them the product by registered mail, along with your
contact details and a brief description of the defect.
3

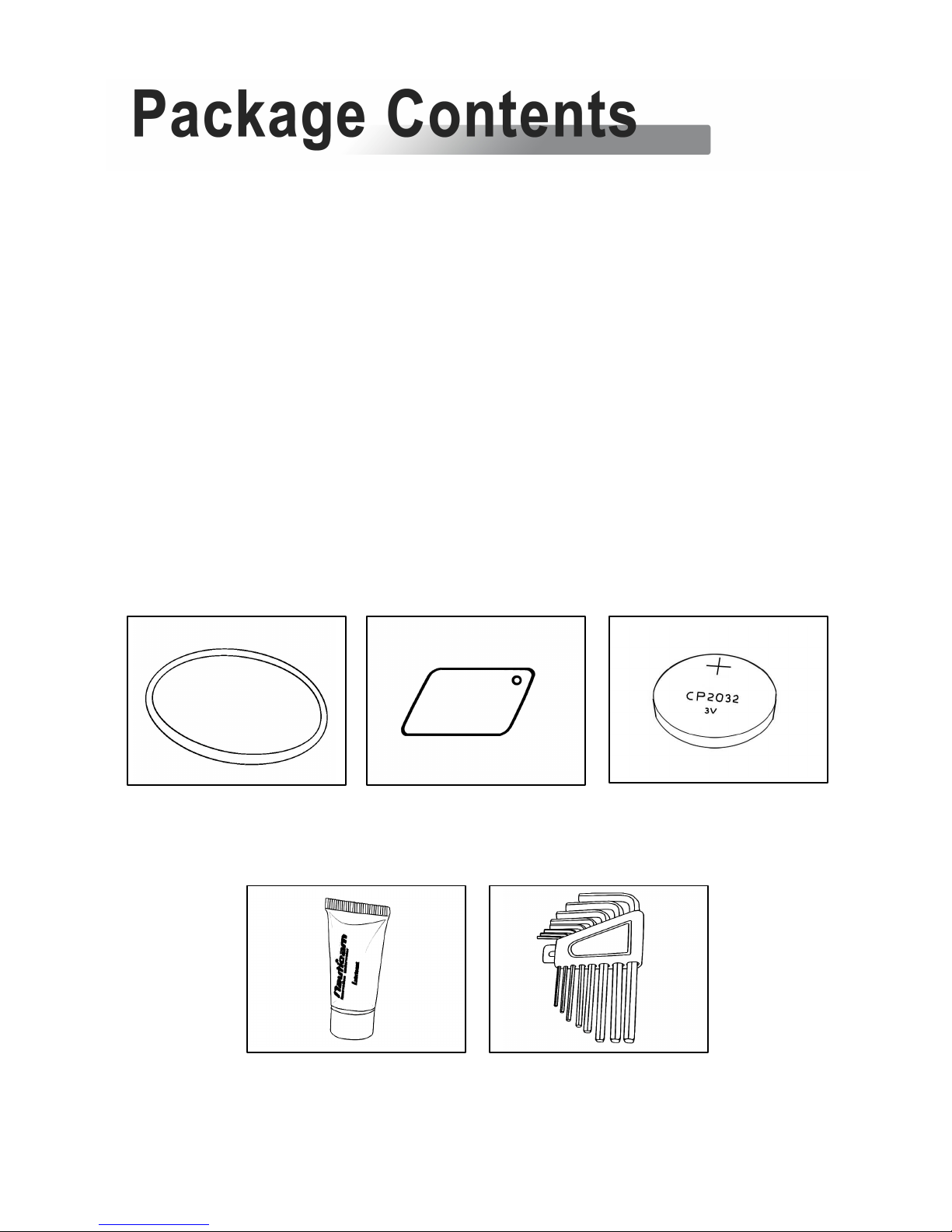

1. NA-NEX6 housing
2. Instruction manual
3. Spare silicone rubber housing o-ring
4. O-ring remover
5. CR2032 battery (for moisture alarm)
6. Lubricant
7. Set of Allen keys
Spare silicone rubber o-ring
Lubricant Set of Allen keys
CR2032 battery
O-ring remover
4
1. A water-tight test without the camera inside the housing is highly
recommended when using the system for the first time and after
the changing of port and O-ring(s).
2. Do not use lubricants from other brands with the silicone rubber O-
ring on this housing, only use the lubricant provided by NAUTICAM.
3. Discontinue use immediately should you notice any leakage.
4. Store the housing in a robust, shock-proof container during
transportation; avoid transporting with any equipment, such as a
camera, inside the housing.
5. When travelling by air, do not close the housing if the port is
installed, as this may lead to a pressure difference between the
atmosphere and inside the housing.
6. Care must be taken when opening the housing, as pressure may
build up inside the housing which increases the opening force.
7. Do not open the product in a wet or sandy environment. Protect
the interior from moisture and debris in order to prevent
malfunction or leakage.
8. Do not store the product in an environment of high humidity.
9. Do not leave the housing and the camera in direct sunlight for
prolonged periods.
10. Keep out of reach of children, failure to do so could result in injury.
11. Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.
5
Specifications 6
Identification of Parts 7
Preparation of the Housing 10
Opening and Locking the Housing 12
Installing the Camera 13
Mounting the Port 14
Care and Maintenance 16
Optional Accessories 17
6
Construction
Housing body: Aluminium alloy
Surface treatment: Hard anodised
Display window: Abrasion resistant polycarbonate
Dimensions
Width: 178mm
Height: 120mm
Depth: 86mm
Weight Approx. 0.93kg (without camera)
Buoyancy Slightly negative
Depth rating 100 metres
Features
Moisture alarm: Blinking LED and audible alarm
TTL capability:
Optical fibre mount included for
external strobes connection,
utilising the camera’s pop-up flash
as trigger.
Port mount: Patented easy port installation
system.
Control dial: Easily reached by thumb.
Flash up/off lever: Allows the camera's built-in flash
to be disabled underwater.
7

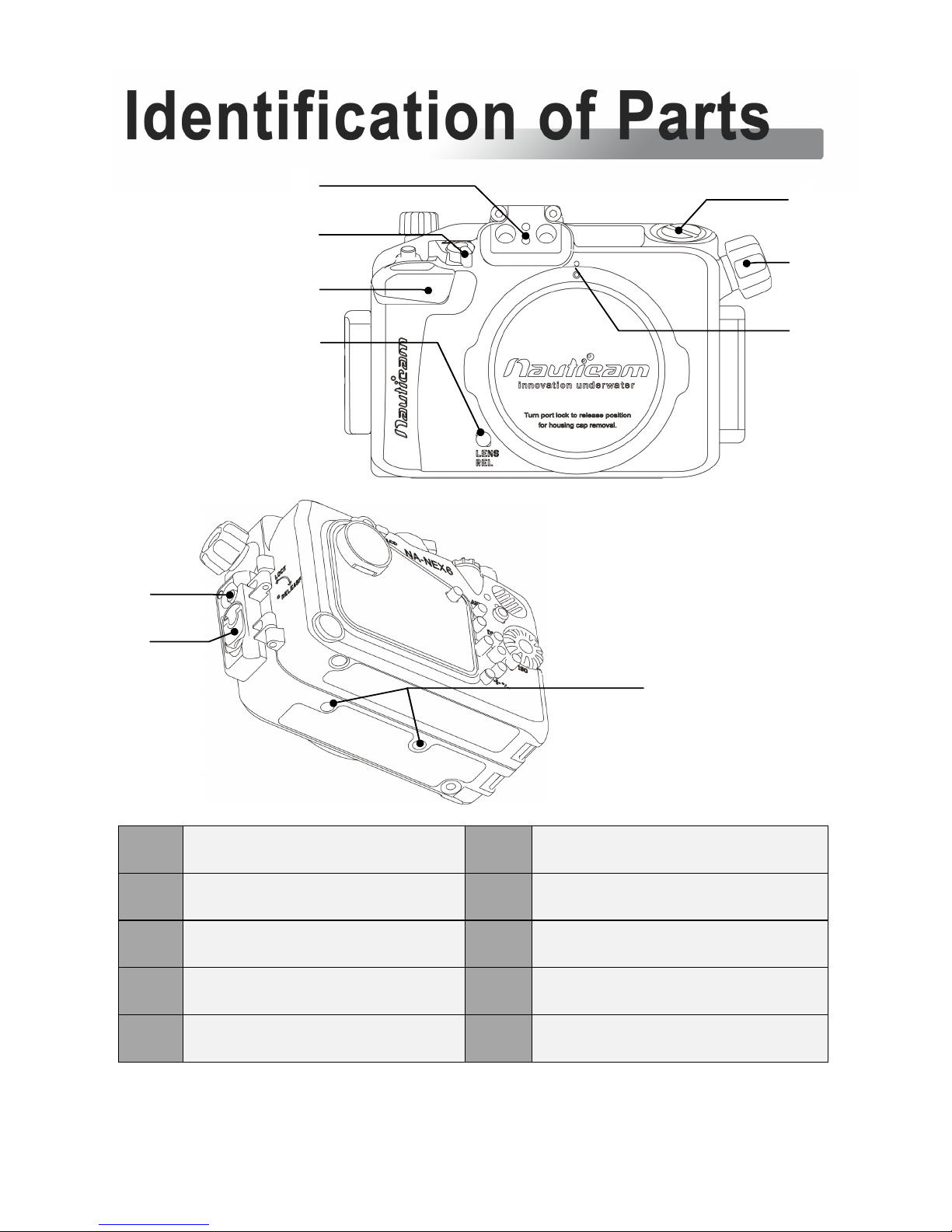

1 Optical fibre mount 6 Zoom/Focus knob
2 On/off lever 7 Port alignment index
3 Shutter release lever 8 Port release safety button
4 Lens release button 9 Port lock/release latch
5 M16 accessory port 10 1/4”–20UNC tripod socket x 2*
1
2
3
4
7
6
10
9
8
5
* The maximum length of screws that can be
used with the tripod sockets is 4mm
8
11 Flash up/off lever 15 M10 strobe mounting base
12 Control dial 16 Fn button
13 Mode dial 17 Housing lock safety button
14 Accessory coldshoe 18 Housing lock
11
12 16
17
18
14
15
13
9

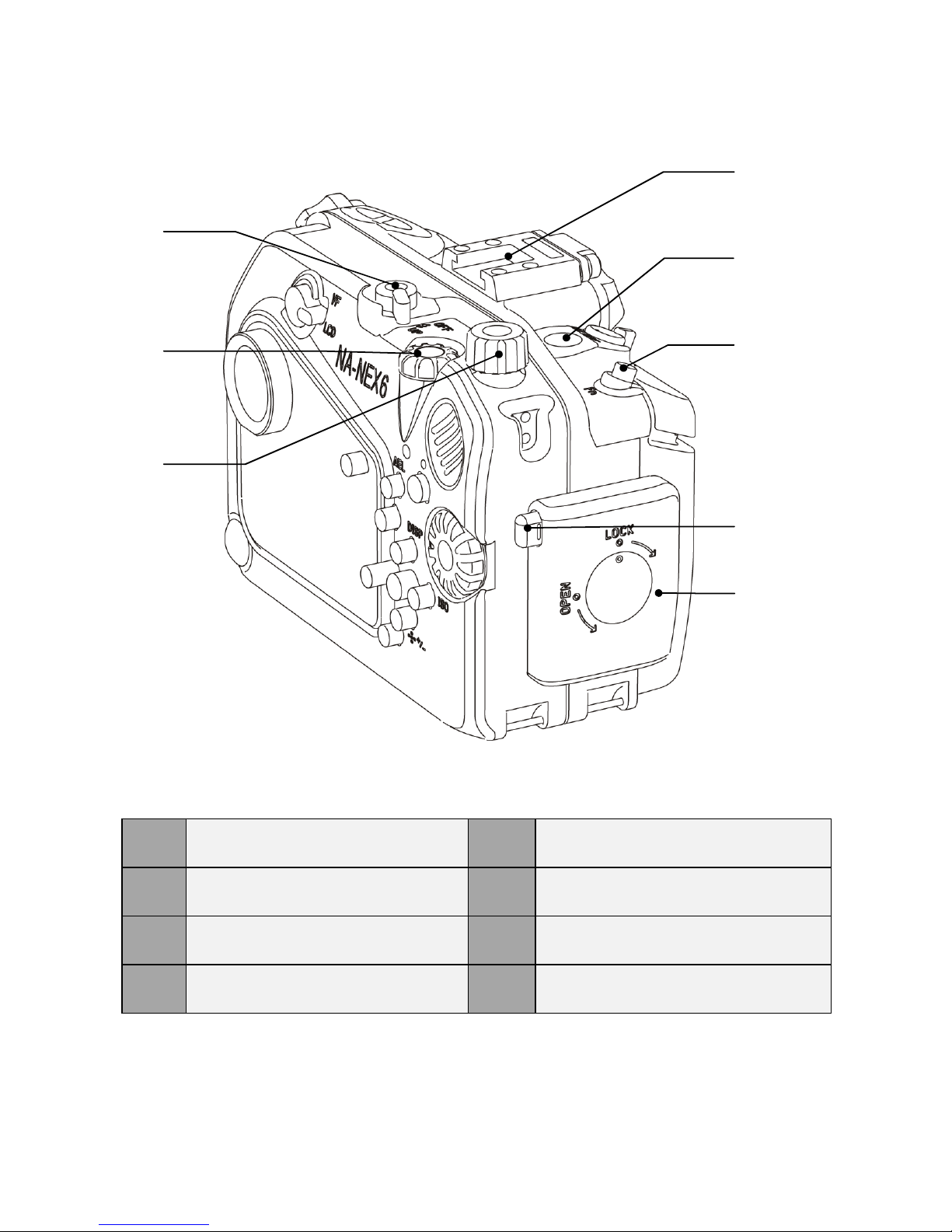

19 Viewfinder/LCD lever 26 Control wheel
20 Moisture alarm window 27 Right selection/ISO button
21 Playback button 28 Soft key C button
22 AEL button 29 Left selection/Drive mode
button
23 Movie button 30 Down selection/Exposure
comp./Image index button
24 Soft key A button 31 Soft key B button
25 Up selection/Display button
19
20
21
22
23
24
25
26
27
28
31
30
29
