Nauticam NA - XT5 Bedienungsanleitung
NA - XT5
For Fujilm X-T5 Camera
User Manual
Housing
MIL
PN 17159
Introduction 2
2
3
4
7
8
Package Contents
Important Instructions
Part Names and Functions
Housing Mount
Opening the housing
9Closing the housing
10
16
Preparation for Use
Optional Accessories
19
20
21
Care/Storage
Warranty
Specications
February, 2023
2
INTRODUCTION

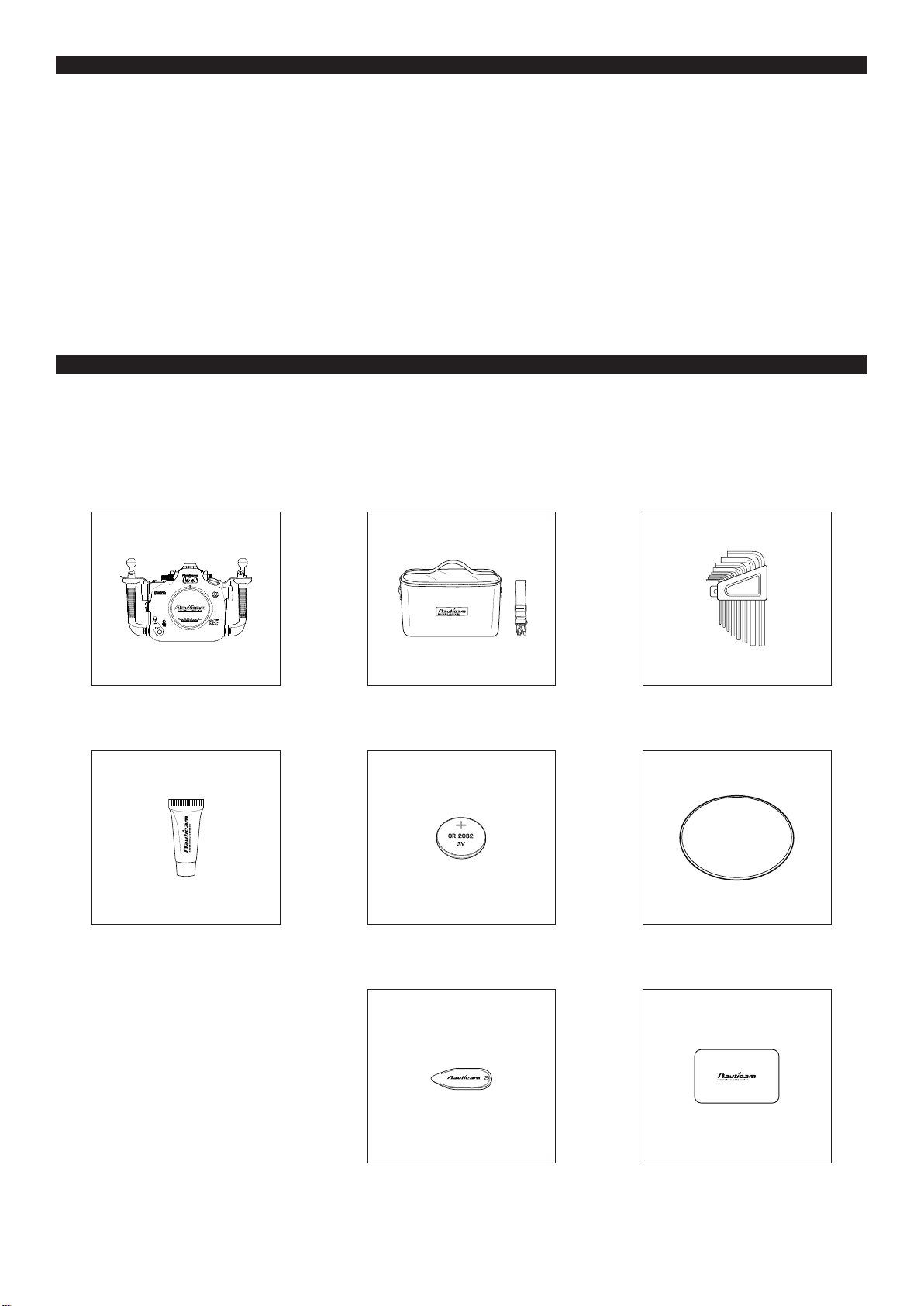

PACKAGE CONTENTS
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
After purchase, we suggest that
you reuse all packaging materials
for future travelling.
Panasonic CR2032 Battery
(pre-installed for Moisture Alarm)
Spare Main O-ring
Padded Travel Case Allen key set
O-ring Remover Manual Instruction Card
NA-XT5
(2 x Handles with Mounting Balls, 1 x Housing Cap,
2 x Optical Fiber Mount Caps, 2 x Stainless Steel Handle Brackets)
Lubricant
3
IMPORTANT INSTRUCTIONS
Water-tight test of the housing (without
camera inside) before usage is recom-
mended as well as any O-ring renewal
and port change.
Use only Nauticam lubricant on silicone
rubber O-ring.
Discontinue use immediately when there is
a sign of leakage.
Do not expose the housing in direct
sunlight for a prolonged period.
Prevent any sand or dust or water
penetration inside the housing. Be
extra careful when changing lens and
inserting or removing the camera.
This product is not intended for use by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
are supervised and/or given instruction by
a responsible person concerning use of
the product to ensure that they can use it
safely.
Do not seal the housing when travelling by
air as this may lead to a pressure difference
between the atmosphere and inside the
housing.
Only the accesories specied by
Nauticam must be used. Third-party
accessories may result in malfunctions
or damage to the product.
Do not stretch any O-rings excessively.
Only remove it using Nauticam O-ring
remover.
Do not open the housing in wet or sandy
environment. Protect the housing from
moisture and debris in order to prevent
malfunction or leakage.
1
3
5
7
9
11 12
4
6
8
10
2
Do not attempt to remove parts of the
housing yourself. Repairs must be done
at authorized service centers only.
The housing should be positioned on the a
stable and safe surface on land.
Delete button Housing unlock button
LCD/viewner lever Rear dial function button
Quick menu button
Focus select button
Down button
Up button
Display back button
Exposure lock button
Right button
Moisture alarm window
Left button
1 2
34
5
7
9
11
13
6
8
10
12
A
6
7
9
10
8
4
5
2
Menu/OK buttonA
1
3
1311
12
4
PART NAMES AND FUNCTIONS
Rear View
20
19
7
9
11
13
8
12
10
6
1
2
3
4
5
14
15
17
16
18
ISO lock release button M14 Accessory port
Fn button
Rear command dial
Lens release button
Port index mark
Shutter speed lock release button
ISO dial
Exposure compensation dial
Accessory mounting ball
M24 Accessory port
Main switch
STILL/MOVIE mode lever
Optical ber mount
Drive lever
M14 Accessory port
Shutter speed dial
Port lock safety button
Port locking lever
Focus mode selector
1
5
9
13
17
19
2
6
10
14
3
7
11
15
4
8
12
16
18
20
5
PART NAMES AND FUNCTIONS
Top + Front Views
6
PART NAMES AND FUNCTIONS
Back + Side Views
Zoom/Focus dial
Front command dial
Sacricial zinc anodes 1/4” Threaded tripod holes
Playback lever AF-ON lever
M5 Threaded holes
Shutter release lever
5
1
3
6
7
2
4
8
8
6
7
4
5
2
3
1
HOUSING MOUNT
M14 Accessory port
1
32
Compatible accessoriesHousing mount
25228 M5 Strobe mounting ball
M14 Vacuum valve II (pushbutton release)25624
2
1
4
3
6
5
5
5
M5 Accessory port
25086
25077 M24 Adaptor for HDMI 2.0 cable
M24D1R205-M28A1R170 HDMI 2.0 cable
M24 Accessory port4
5
6
M5 Threaded holes
1/4” -20 mounting threads
25218 Mounting ball set for tripod legs
17954
17960 Universal tripod plate
Universal Quadra-Pod Plate for Nauticam Housings
7
8
OPENING THE HOUSING
* drawings as illustrations only
depress housing unlock button
turn housing lock outward
lift up the back housing
1
2
3
9
CLOSING THE HOUSING
* drawings as illustrations only
before closing the housing, clean
and lubricate the main O-ring
make sure nothing is caught
between front and back housing
and that they are fully aligned
before locking
turn housing lock inward until you
hear and feel it click into place
housing locked in place securely
1
2
3
10
PREPARATION FOR USE
Installing the Camera - housing tray attachment
* drawings as illustrations only
1
4
2
3
unlock camera tray lever and
remove the tray from the housing
lock camera tray
* gently push the Drive lever &
Still/movie mode lever downwards
and make sure they are engaged
with the lever on the camera
*turn the blue Focus mode coupler
back in place
* place the zoom/focus knob in
place and make sure it is engaged
with lens gear
attach the camera tray by tightening
the tray screw into the tripod socket
of the camera
*lift up the Drive lever & Still/movie
mode lever each time before installing
the camera and make sure the ON/
LOCK/OFF lever is aligned with camera
control before sliding the camera into
the housing
*turn the blue Focus mode coupler
clockwise
*pull out the zoom/focus knob if
installing the camera with lens and
gear attached
slide the camera tray back into the
housing along the tray rail
