Nauticam NA-XT4 Bedienungsanleitung
NA - XT4
For Fujifilm X-T4 Camera
User Manual
Housing
MIL
Introduction 2
2
3
4
7
8
Package Contents
Important Instructions
Part Names and Functions
Opening the housing
Closing the housing
9
14
Preparation for Use
Recommended Accessory
PN 17157
15
16
17
Care/Storage
Warranty
Specifications
2
INTRODUCTION
PACKAGE CONTENTS
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
After purchase, we suggest that
you reuse all packaging materials
for future travelling.
Panasonic CR2032 Battery
(pre-installed for Moisture Alarm)
Spare Main O-ring
Padded Travel Case Allen key set
O-ring Remover Manual Instruction Card
NA-XT4
(2 x Handles with Mounting Balls, 1 x Housing Cap,
2 x Optical Fiber Mount Caps, 2 x Stainless Steel Handle Brackets)
Lubricant
3
IMPORTANT INSTRUCTIONS
Water-tight test of the housing (without
camera inside) before usage is recom-
mended as well as any O-ring renewal
and port change.
Use only Nauticam lubricant on silicone
rubber O-ring.
Discontinue use immediately when there is
a sign of leakage.
Do not expose the housing in direct
sunlight for a prolonged period.
Prevent any sand or dust or water
penetration inside the housing. Be
extra careful when changing lens and
inserting or removing the camera.
This product is not intended for use by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
are supervised and/or given instruction by
a responsible person concerning use of
the product to ensure that they can use it
safely.
Do not seal the housing when travelling by
air as this may lead to a pressure difference
between the atmosphere and inside the
housing.
Only the accesories specified by
Nauticam must be used. Third-party
accessories may result in malfunctions
or damage to the product.
Do not stretch any O-rings excessively.
Only remove it using Nauticam O-ring
remover.
Do not open the housing in wet or sandy
environment. Protect the housing from
moisture and debris in order to prevent
malfunction or leakage.
1
3
5
7
9
11 12
4
6
8
10
2
Do not attempt to remove parts of the
housing yourself. Repairs must be done
at authorized service centers only.
The housing should be positioned on the a
stable and safe surface on land.
4

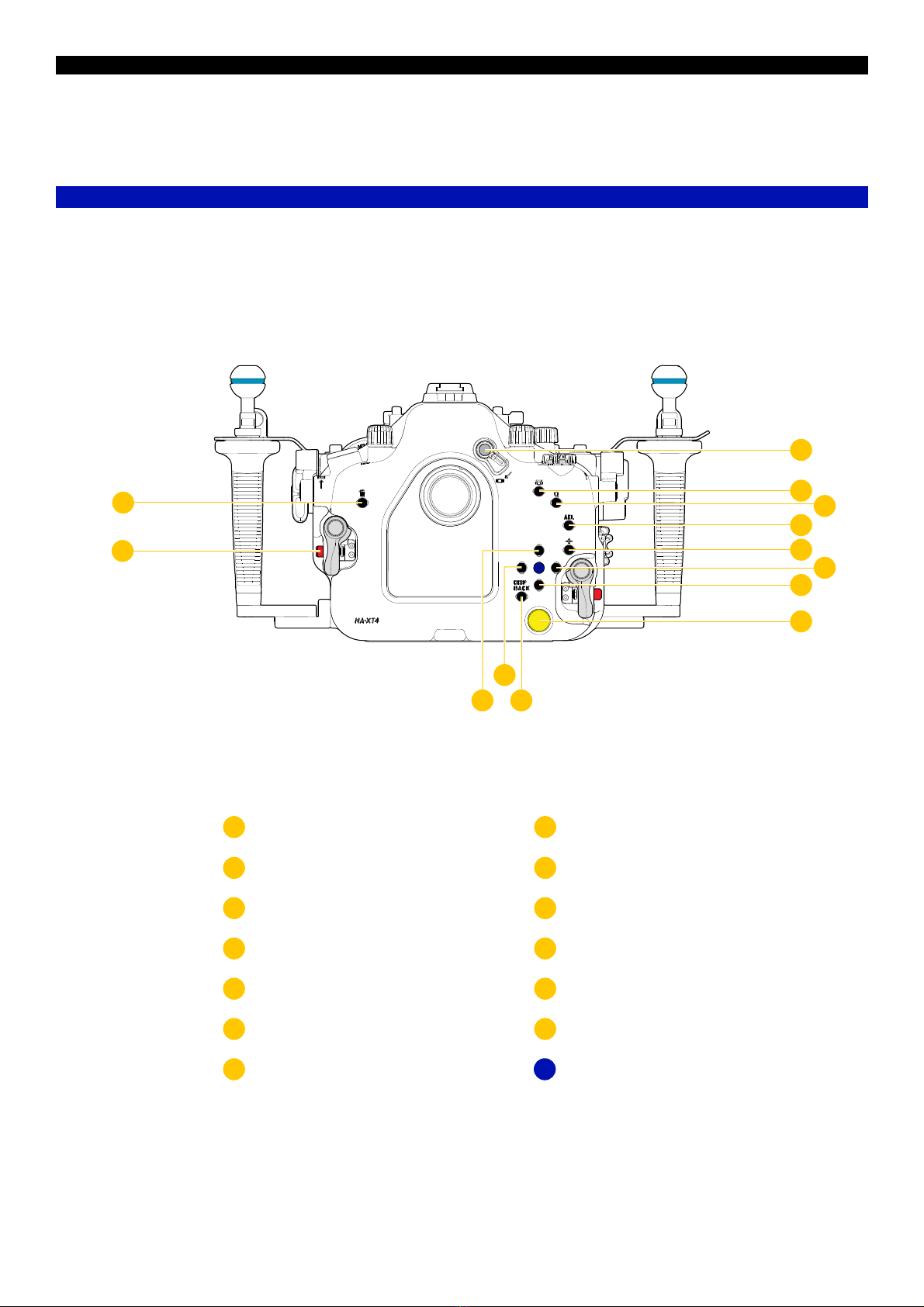

PART NAMES AND FUNCTIONS
Delete button Housing unlock button
LCD/viewfiner lever Rear dial function button
Quick menu button
Focus select button
Down button
Up button
Display back button
Exposure lock button
Right button
Moisture alarm window
Left button
1 2
3 4
5
7
9
11
13
6
8
10
12
Rear View
A
1311
12
6
7
9
10
8
45
2
Menu/OK buttonA
1
3
5

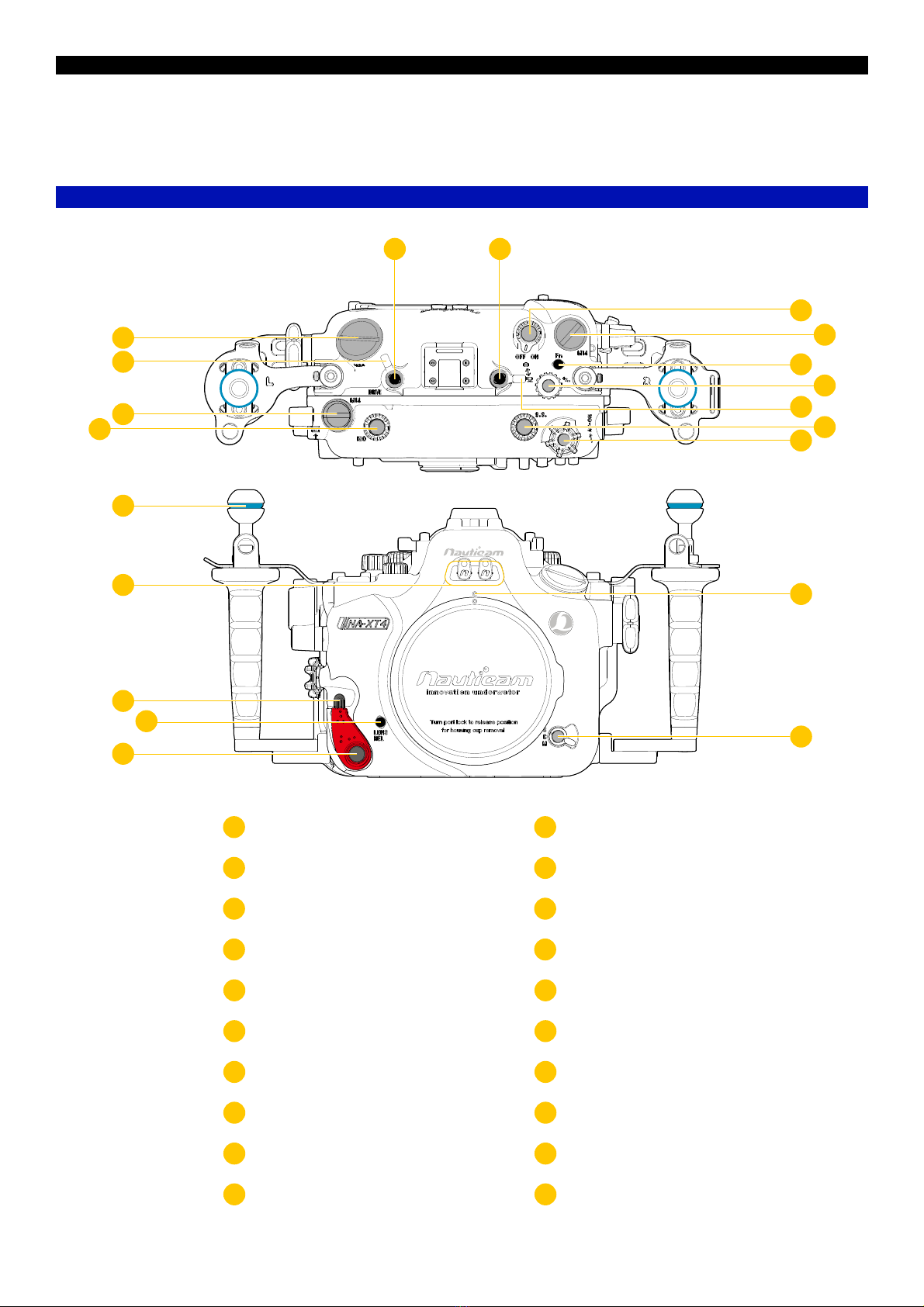

PART NAMES AND FUNCTIONS
Top + Front Views
20
19
8
10
12
9
13
11
7
3
1 2
4
5
6
14
15
17
16
18
ISO lock release button
M14 Accessory port
Fn button
Rear command dial
Lens release button
Port index mark
Shutter speed lock release button
ISO dial
Exposure compensation dial
Accessory mounting ball
M24 Accessory port
Main switch
STILL/MOVIE mode lever
Optical fiber mount
Drive lever
M14 Accessory port
Shutter speed dial
Port lock safety button
Port locking lever
Focus mode selector
1
5
9
13
17
19
2
6
10
14
3
7
11
15
4
8
12
16
18
20
6
PART NAMES AND FUNCTIONS
Back + Side Views
Zoom/Focus dial
Front command dial
Zinc Anodes
Playback lever
AF-ON lever
1/4” Threaded tripod holes
Shutter release lever
3
7
1
4
5
2
6
2
7
5
6
1
3
4
7

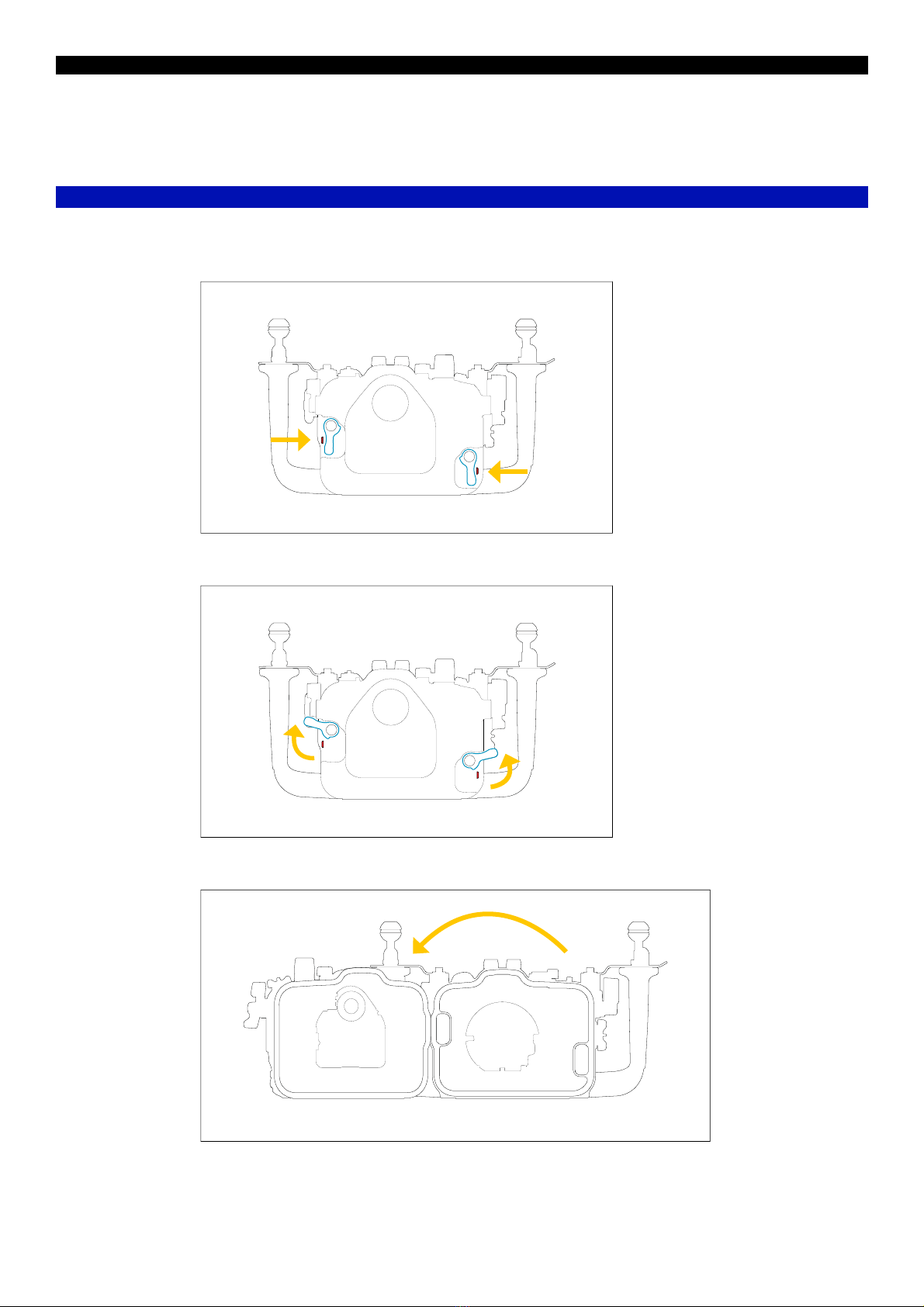

OPENING THE HOUSING
depress housing unlock button
turn housing lock outward
lift up the back housing
*
drawings as illustrations onl
y
1
2
3
8
CLOSING THE HOUSING
before closing the housing, clean
and lubricate the main O-ring
make sure nothing is caught
between front and back housing
and that they are fully aligned
before locking
turn housing lock inward until you
hear and feel it click into place
housing locked in place securely
1
2
3
*
drawings as illustrations onl
y
9
PREPARATION FOR USE
Installing the Camera - housing tray attachment
1
4
2
3
unlock camera tray lever and
remove the tray from the housing
lock camera tray
* gently push the Drive lever &
Still/movie mode lever downwards
and make sure they are engaged
with the lever on the camera
* place the zoom/focus knob in
place and make sure it is engaged
with lens gear
attach the camera tray by tightening
the tray screw into the tripod socket
of the camera
*
drawings as illustrations onl
y
*lift up the Drive lever & Still/movie
mode lever each time before installing
the camera
*pull out the zoom/focus knob if
installing the camera with lens and
gear attached
* please refer to page 10 for lens
installment before sliding in the camera
slide the camera tray back into the
housing along the tray rail
10
PREPARATION FOR USE
Port Mounting
depress safety button and rotate
anti-clockwise
lubricant the port O-ring before
mounting
align index mark
push port assembly straight in
rotate locking lever clockwise to
lock
1
2
3
*
drawings as illustrations onl
y
