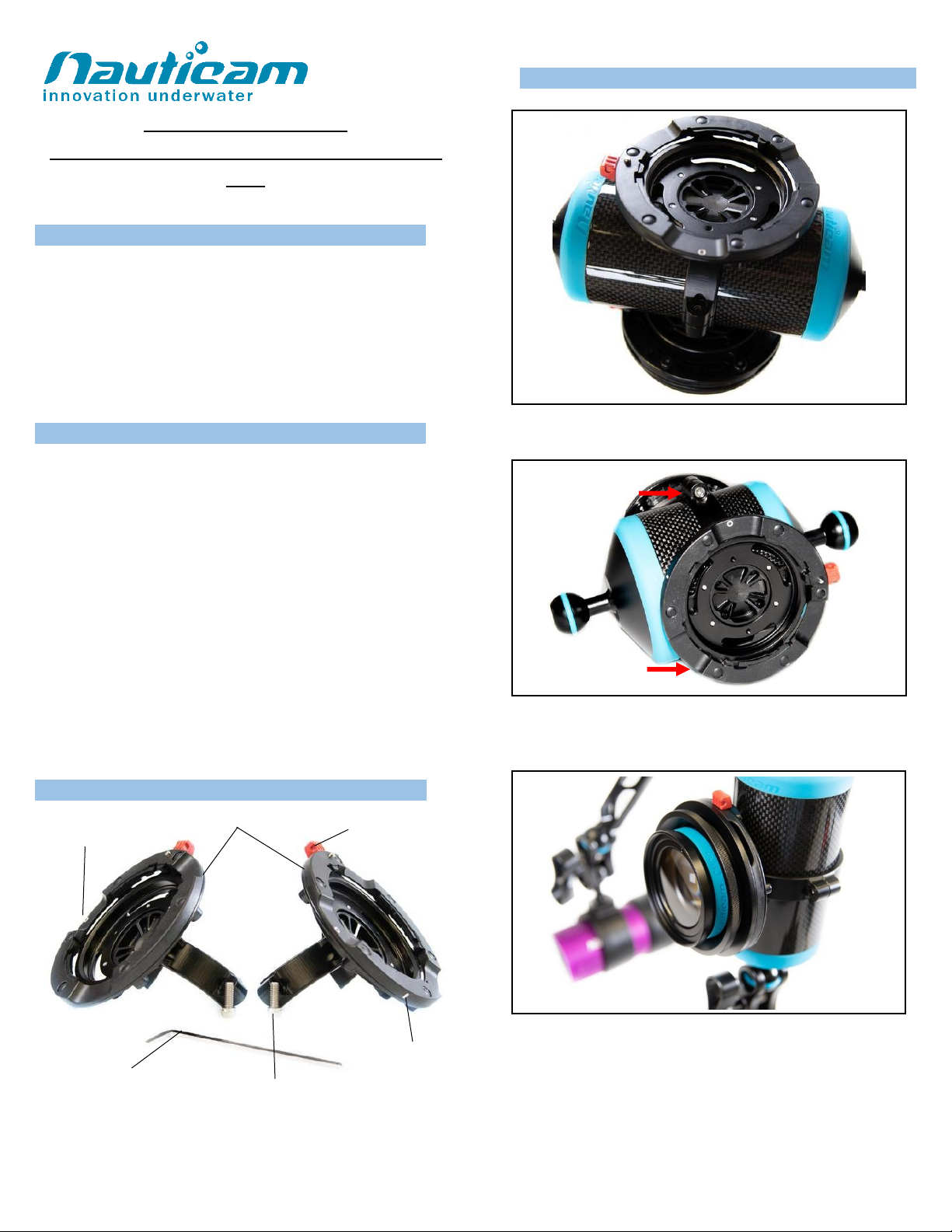

Instruction Manual for
Double Bayonet Holder for Ø 70 /Ø 90 Float
Arm
PN# 72232, #72234, #72242, #72244
FOREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
WARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the
original retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only
applies when the product is purchased in the territory where the
service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to
any equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
*Remark: #72232 is used as an example in this instruction manual, other same
kind of products will be slightly different in term of appearance.
Place the bayonet holder and bracket around the float arm.
Align the bayonet holder by the two screws holes, and secure them
by tightening the 2x screws.
Example: SMC with bayonet adaptor on the bayonet holder
--- continue on next page ---
IDENTIFICATION OF PARTS
INSTALL TO THE FLOAT ARM
Screws (2x)
Bayonet Holder (2x)
Allen Key
Lens Alignment ‘’I’’ mark
Lens Alignment Dot
Lens Release Button
Current as of 2019-12-27
--- continued from front page ---
SPECIFICATIONS
PN#
Description
Weight
72232
Double Bayonet Holder for Ø70 Float Arm
161g
72234
Double Bayonet Holder II for Ø70 Float Arm
160g
72242
Double Bayonet Holder for Ø90 Float Arm
171g
72244
Double Bayonet Holder II for Ø90 Float Arm
170g
COMPATIBILITY
Compatible Lenses:
83201 Wet Wide Lens 1 (WWL-1)
83203 Wet Wide Lens Compact (WWL-C)
83214 Bayonet Mount Adaptor for SMC/CMC
*ATTENTION: #72232 & #72242 are not compatible with WWL-C
Remark: Nauticam supports only e-manuals. Please download corresponding
product manuals on Nauticam.com website, or contact us for e-manuals.
