NCR External CX Keypad Module Handbuch

Kit Instructions

External CX Keypad Module

7772-K149

Issue A

The product described in this document is a licensed product of NCR Corporation.

NCR is a registered trademark of NCR Corporation. Product names mentioned in this publication may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is

permitted under the terms and conditions of an agreement you have with NCR, NCR's copyright notice

must be included.

It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software,

and firmware become available. NCR, therefore, reserves the right to change specifications without prior

notice.

All features, functions, and operations described herein may not be marketed by NCR in all parts of the

world. In some instances, photographs are of equipment prototypes. Therefore, before using this document,

consult with your NCR representative or NCR office for information that is applicable and current.

By NCR Corporation

Global Headquarters

864 Spring St NW

Atlanta, GA 30308

U.S.A.

Revision Record

Issue Date Remarks

AMay 2022 First Issue

External CX Keypad Module

This kit provides an external keypad module for the NCR CX7 All-in-One POS (7772).

Kit Contents

2 External CX Keypad Module

Installation Procedure

Warning: Disconnect the AC power cord from the AC outlet and wait 30 seconds

before servicing the terminal.

1. Lay the Display face down on a flat surface.

Note: Always use a soft material (cloth, foam) to protect the display screen when

placing the terminal face down.

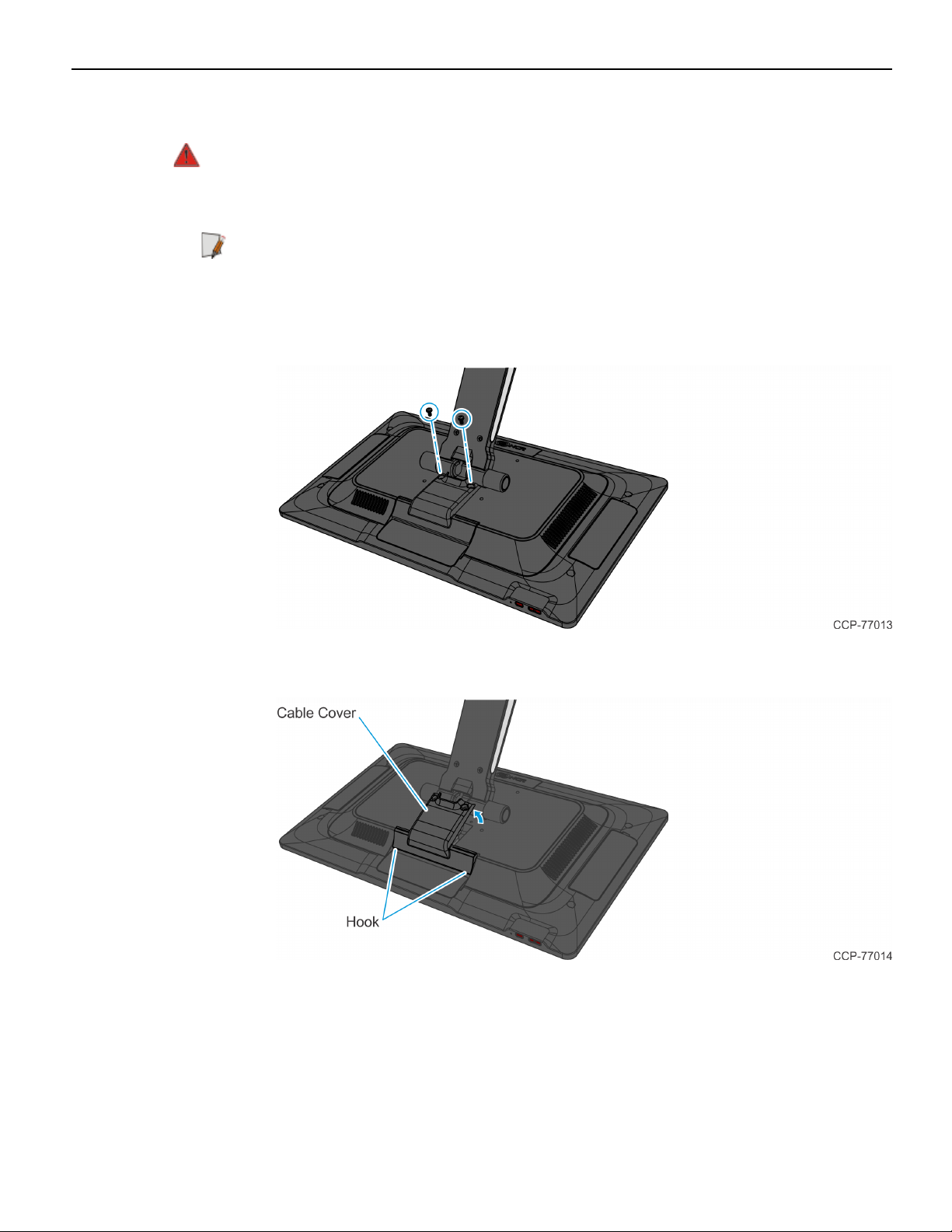

2. Remove the Cable Cover.

a. Remove the two (2) screws that secure the Cable Cover to the Back Cover.

b. Rotate and unhook the Cable Cover from the Back Cover.

External CX Keypad Module 3

3. Disconnect the Cables.

a. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the

Cable.

b. Remove the Ethernet Cable from the Cable Management Hook then disconnect

the Cable.

4. Loosen the two (2) captive screws that secure the Back Cover to the Display.

4 External CX Keypad Module

5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.

6. Route the Keypad Cable through the Port opening.

External CX Keypad Module 5

7. Route and secure the Cable under the Cable Management Hooks as shown, then

connect the Cable to the Motherboard (USBPort A).

8. Pull the excess cable through the Port opening and align the Keypad mounting holes

with the mounting holes on the display housing.

6 External CX Keypad Module

9. Secure the Keypad with two (2) screws.

10. Tuck the excess cable in the location shown.

External CX Keypad Module 7

11. Install the Keypad Back Cover.

a. Insert the Keypad Back Cover Tabs into the openings in the back of the Keypad

and snap into place.

b. Secure the Keypad Back Cover with two (2) screws.

12. Reinstall the Display Back Cover.

13. Reconnect the 180-degree USB-CCable and Ethernet Cable.

14. Reinstall the Cable Cover.
