NEC Dterm Analog Cordless Bedienungsanleitung

User’s Guide

Dterm Analog Cordless

Controls and Functions

1memory – Enters or

recalls numbers in mem-

ory.

2talk – Answers or places calls.

3tone – Switches to tone

dialing in pulse dial mode.

4redial – Redials the last

number.

5pause – Adds a timed pause

in a memory dialing sequence.

talk/battery low – An LED

that indicates when the phone

is in use or the battery is low.

7mute – Turns off the handset

microphone while you are

using the telephone.

8flash – Accesses call waiting

(if available), transfer and

conference calling.

9volume – Sets both the ringer

and earpiece volumes.

10 channel – Selects another

channel for clearer reception.

11 handset retainer – Holds the

handset in the base unit for

wall mounting.

12 status – An LED that

indicates the telephone is in

use or the handset is

charging.

13 page/find – Locates the

handset.

Connecting the Base Unit

1. Connect the telephone line cord to the “TEL LINE” jack on the base unit and to a telephone

outlet.

2. Connect the AC adapter to the DC IN 9V jack and to a standard 120 V AC wall outlet.

3. Set the base unit on a desk or tabletop and place the handset on the base unit.

4. Raise the antenna to a vertical position.

USING YOUR PHONE

Handset On Base Handset Off Base

Answer Call

Remove the handset from the base,

(AutoTalk) or press talk.

Pick up the handset and press talk.

Make Call

1 Remove the handset from the base,

(AutoTalk) or press talk.

1Presstalk.

2Thetalk/battery low LED lights. 2 The talk/battery low LED lights.

3 Listen for the dial tone. 3 Listen for the dial tone.

4 Dial the number. 4 Dial the number.

Hang Up

Return the handset to the base,

(AutoStandby) or press talk.

Press talk.

Redial

1 Remove the handset from the base,

(AutoTalk) or press talk.

1 Pick up the handset and press talk.

2 Listen for the dial tone. 2 Listen for the dial tone.

3 Press redial to dial the last number dialed. 3 Press redial to dial the last number dialed.

Before plugging the telephone line into your new telephone, the rechargeable

nickel-cadmium battery pack must be fully charged. Charge the battery for

approximately 15 to 20 hours without interruption.

Receiver, Ringer Tone and Volume Control

The telephone has two ringer tones and each tone has two volume levels.

While the telephone is idle, continue to press volume until you hear the ringer tone and

volume level you want.

The telephone has four receiver volume levels: Low, Medium, High, Maximum.

While on a call, continue to press volume until you hear the volume level you want. (When

you hang up, the telephone retains the last volume setting selected.)

Muting the Handset

The handset microphone can be temporarily turned off (muted) during a telephone conversation so

the person you are talking with cannot hear you. You can turn the microphone back on to resume

the conversation.

1. While on a call, press mute on the handset to turn the microphone off.

2. Press mute or talk to cancel mute. (The microphone is turned on.)

Flash Button

The flash button allows you to access services such as Centrex call waiting, call transfer,

conference calling and call hold.

1. During the conversation, press flash. (If accessing call waiting; this allows you to answer

the second caller.)

2. Press flash again. (This returns you to the previous call.)

Storing a Number

Your NEC Dterm Analog Cordless telephone has 10 memory locations for storing important or

frequently called telephone numbers.

1. Remove the handset from the base unit.

2. Press memory.(The talk/battery low LED flashes and a beep is heard).

3. Enter the telephone number you want to store (up to 20 digits).

4. Press memory and enter the memory location (0~9) you want to use.

You will hear a long beep and the talk/battery low LED stops flashing indicating the number

has been successfully stored. If you select any keys other than 0~9 or you exceed the

20-second limit, the handset beeps rapidly and no number will be stored.

Storing Mixed Tone/Pulse Numbers

If the telephone is set up for pulse dialing, mixed mode numbers can be stored to easily access

long distance services.

1. Remove the handset from the base unit.

2. Press memory. (The talk/battery low LED flashes and a beep is heard.)

3. Enter the number(s) to be dialed in pulse mode.

4. Press tone on the handset to enter a pause. (This also counts as one digit.)

5. Enter the number(s) to be dialed in tone mode.

6. Press memory and enter the memory location (0~9) you want to use.

The ability to pulse dial is dependent upon the telephone system and/or the outside lines to

which the Dterm Analog Cordless is connected.

Dialing a Stored Number

1. Remove the handset from the base unit.

2. Press talk.

3. Press memory and enter the memory location number (0~9) you want to dial. (If you select

a memory location that does not have a number stored in it, the handset beeps rapidly.)

4. The number is dialed.

Chain Dialing

After dialing a number you may be requested to enter a special access code, for example, when

performing a banking transaction.

To dial the number using chain dialing:

1. Remove the handset from the base unit.

2. Manually dial the telephone number.

3. Press memory and enter the memory location number (0~9) you want to dial.

Replacing a Stored Number

When you enter the memory location number, any number previously stored for the memory

location is replaced.

Erasing a Stored Number

1. Remove the handset from the base unit.

2. Press memory twice.

3. Enter the memory location number (0~9) you want to erase. (You will hear a long beep

confirming the number has been erased.)

Selecting a Different Channel

You can manually change the telephone channel for clearer operation. There are 30 factory-set

channels from which you can select. (Changing channels only works when the telephone is in

use.)

1. Remove the handset from the base unit.

2. Press channel.(The talk/battery low LED flashes, indicating the telephone is changing

channels.)

3. Continue step 2 until you find a clear channel.

Traveling Out of Range

When you begin to move too far away from the base unit, you will hear a clicking sound. As you

travel further out of range, the voice transmission begins to break up. Once you have passed the

range limits of the base unit, the call terminates.

Page/Find Button

Page/find only works when the telephone is not in use.

1. Press page/find on the base unit for a five-second beep.

2. Press and hold the page/find button for a longer beep.

3. Once the handset has been located; press talk on the handset to end the page/find feature.

4. If you do not wish to make a call at this time, press talk again to hang up.

Headset Installation

Your telephone may be used with an optional headset. To use this feature, simply plug the headset

into the headset jack on the handset. Your telephone is ready for handsfree conversation.

Setting the Dial Mode Switch

Place the switch in the “Tone” position for tone dialing, or the “Pulse” position for pulse dialing.

The ability to pulse dial is dependent upon the telephone system and/or the outside lines to which

the Dterm Analog Cordless is connected.

Charging the Battery

The plastic connectors will fit together only one way. Make sure the battery connector is properly

aligned.

1. Remove the handset battery cover.

2. Plug the battery cable into the handset and place the battery pack inside the battery

compartment.

3. Replace the battery cover.

4. Place the handset on the base to charge. (The handset can charge in either the face-up or

face-down position.)

Low Battery Indicator

When the battery pack in the handset needs to be charged, the talk/battery low indicator flashes.

If this occurs while you are on the telephone, you will hear an alert tone. Complete your call as

quickly as possible and return the handset to the base unit for charging.

Cleaning Battery Contacts

To maintain a good charge, it is important to clean all battery contacts on the handset and base unit

about once a month. Use a dry cloth or pencil eraser, if necessary. Do no use any liquids or

solvents.

Before plugging the telephone line into your new telephone, the rechargeable

nickel-cadmium battery pack must be fully charged. Charge the battery for

approximately 15 to 20 hours without interruption.

Beltclip Installation

1. Insert the beltclip into the holes on each side of the handset.

2. Press down firmly until it clicks into the holes.

If you have wall mounted the base, you cannot place the handset with the keypad facing

inside. Pull both sides of the beltclip out of the holes to remove.

Dterm Analog Cordless is hearing aid compatible.

Optional Available Parts

Part Description Stock Number

Headset with Foam Covered Ear and Microphone 730616

Replacement AC Adapter for Base Unit 760625

Replacement String-Type Beltclip 730624

Replacement Wall Mount Unit 730623

750229-0

The material contained herein is subject to change

without prior notice at the sole discretion of NEC America,

Inc.

Dterm®is a registered trademark of NEC Corporation.

AutoTalk, AutoStandby, Random Code, UltraClear Plus,

and AutoSecure are trademarks of Uniden America

Corporation.

Document Revision 1

For more information contact:

NEC America, Inc.

6555 N State Highway 161

Irving, TX 75039-2402

www.cng.nec.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NEC Schnurloses Telefon Handbücher

NEC

NEC DTL-12BT-1 series Bedienungsanleitung

NEC

NEC 910i Bedienungsanleitung

NEC

NEC Dterm Cordless Lite II Bedienungsanleitung

NEC

NEC DTL-8LD-1 Bedienungsanleitung

NEC

NEC MDview 232 Bedienungsanleitung

NEC

NEC SL1000 Bedienungsanleitung

NEC

NEC Aspire Cordless II Bedienungsanleitung

NEC

NEC IP3NA-BCH Bedienungsanleitung

NEC

NEC IP3NA-12TXHBT Bedienungsanleitung

NEC

NEC NCS Bedienungsanleitung

NEC

NEC Xen Topaz Gebrauchsanweisung

NEC

NEC DTL-12BT-1 - DT330 - Plus BCH Bedienungs- und Montageanleitung

NEC

NEC Dterm DTZ-8R-1 Bedienungsanleitung

NEC

NEC Dterm Cordless II Bedienungsanleitung

NEC

NEC DSX CORDLESS LITE II Bedienungsanleitung

NEC

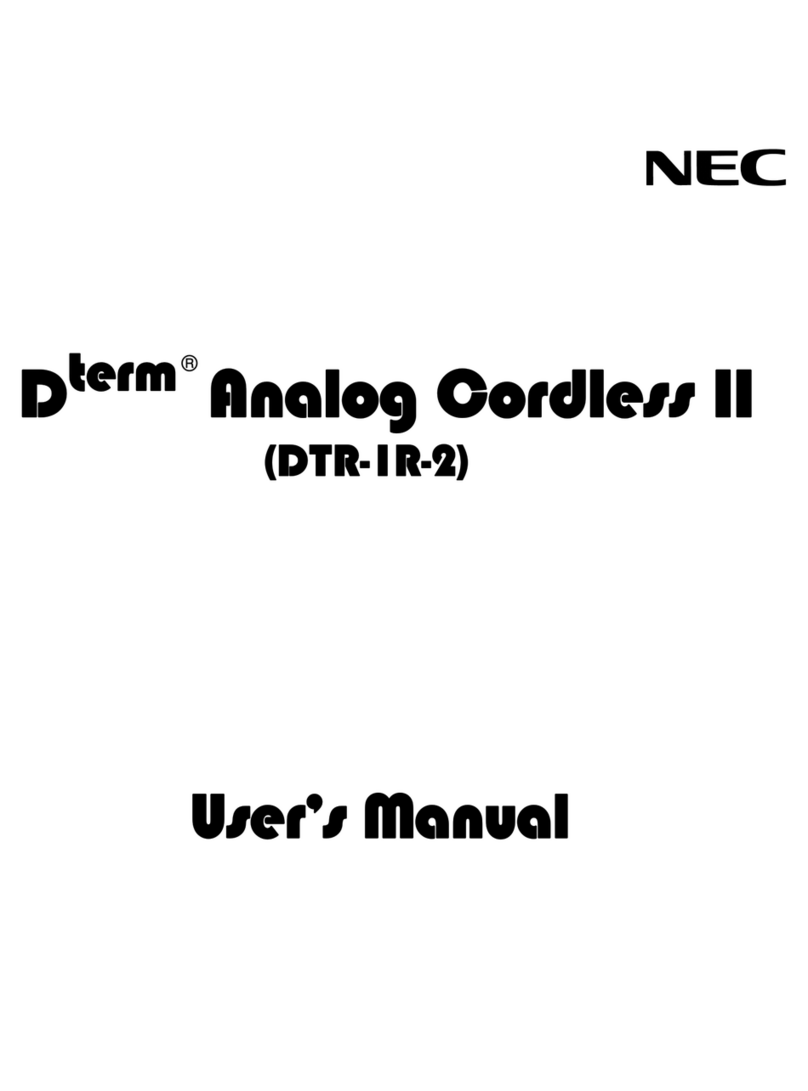

NEC DTR-IR-2 Bedienungsanleitung
