NEC 42XM5 - PlasmaSync - 42" Plasma Panel Bedienungsanleitung

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com Page 1 of 12PX-42XM5

Contents:

Product Description and Notes Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top and Bottom_______ Page 3

Rear Page 4

Left & Right Side _____________________________Page 5

Display Dimensions w/Optional Speakers and Stand Page 6

Optional Speakers and Stand Dimensions__ Page 7

Dimensions w/Optional Wall Mount Page 8

Dimensions w/Optional Portrait Wall Mount Page 9

Dimensions w/Optional Ceiling Mount Page 10

Connections Page 11

Control Codes Page 12

Product Description

Type: Plasma Display Screen Surface: Anti-Reflective

Resolution: 1024x768 Dimensions: 40”(W) x 24”(H) x 3.9”(D)

Aspect Ratio: 16:9 Weight: 59.5 lbs

Color Correction: AccuCrimson Color Filter FCC: Class B

Notes

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to

be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to

fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

Maximum Tilt Angles

Below are the maximum angles that the display can be tilted in landscape mode

Landscape 30° Max Tilt

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 2 of 12

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the

opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for

design review and recommendations.

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 3 of 12

Display dimensions

40.24

24.0

37.48

21.18

17.21

LED IR

12.280.79

0.79

CONTROL BUTTONS

AC INLET

POWER BUTTON

SPEAKER TERMINAL

20.3(SCREENAREA)

36.28 (SCREEN AREA) 1.98

1.9

0.18"

FILTER SURFACE

12.01

14.61 5.51

2.251.59

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 4 of 12

Display dimensions (cont.)

AC IN

(forSPEAKERM8x4)

20.87"

19.53"

4.96"

5.12"

4.96"

5.91"

for mount unit

8-M4 DEPTH 16

for mount unit

6-M8 DEPTH 18

17.52"

0.87"

4.02"

for PC

4-M4 DEPTH 10 20.87"

37.56"

for speaker

M8 DEPTH12

19.09"2.4"

10.45"

9.70"

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 5 of 12

Display dimensions (cont.)

LEFT SIDE VIEW RIGHT SIDE VIEW

0.0

1.59

3.86

0.60

0.5

3.548.4611.60

20.10

0.50

1.87

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 6 of 12

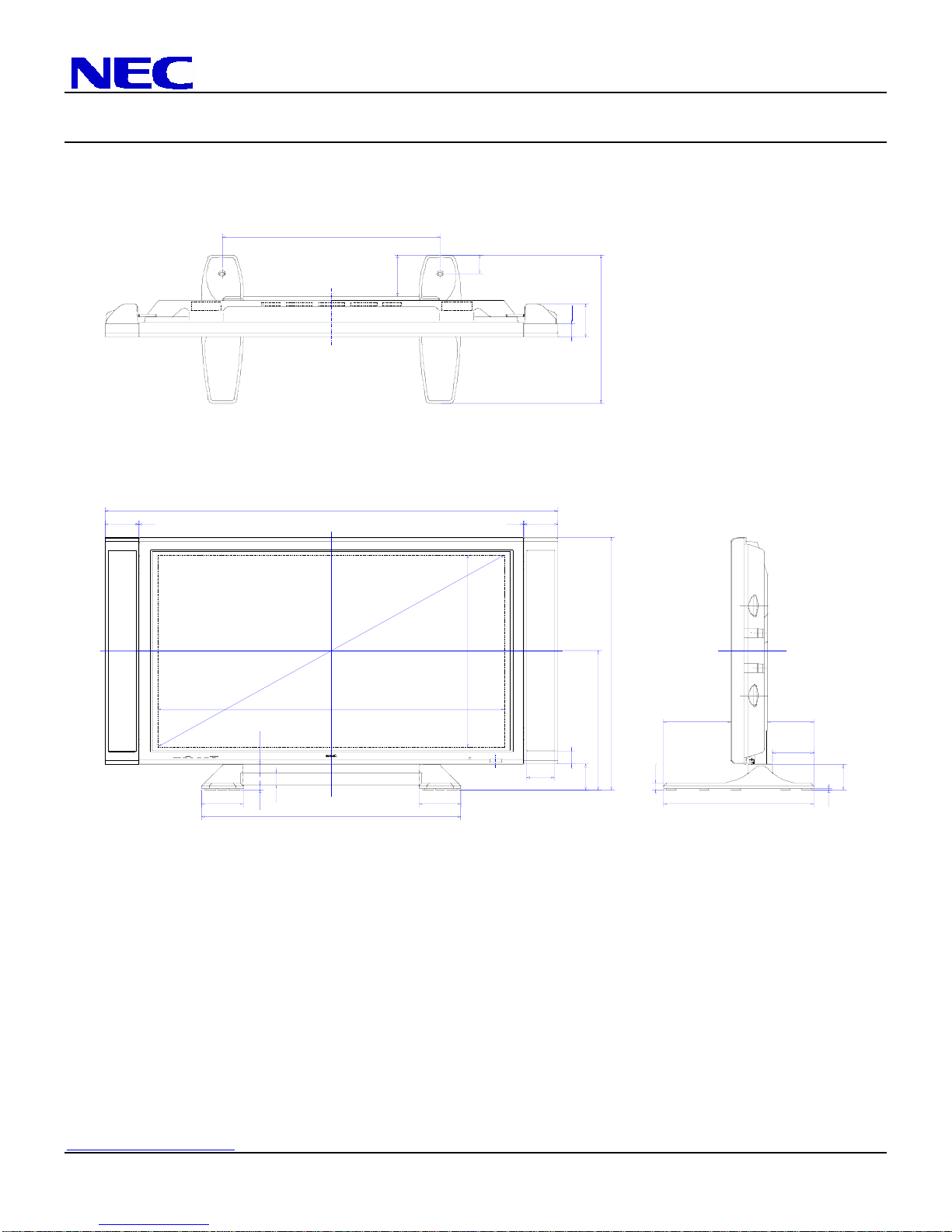

Dimensions with optional speakers and stand

TOP VIEW

RIGHT SIDE VIEW

1.38

2.91

3.540.04

3.54 0.04

47.40

1.38

3.50

0.12

2.68

4.00

0.71

15.75

1.97

4.004.00

0.53

1.30

1.00

2.74

26.75

14.75

22.84

5.00

16.00

7.00

27.00

20.3(SCREENAREA)

36.28 (SCREEN AREA)

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 7 of 12

Optional Speakers and Stand Dimensions

15.70

27.20

22.90

4.40

3.87

Table Top Stand (Part# PX-ST3U)

24.00

1.40

3.50

3.54 4.90

2.40

19.10

Optional Speaker (Part# PX-42SP3

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 8 of 12

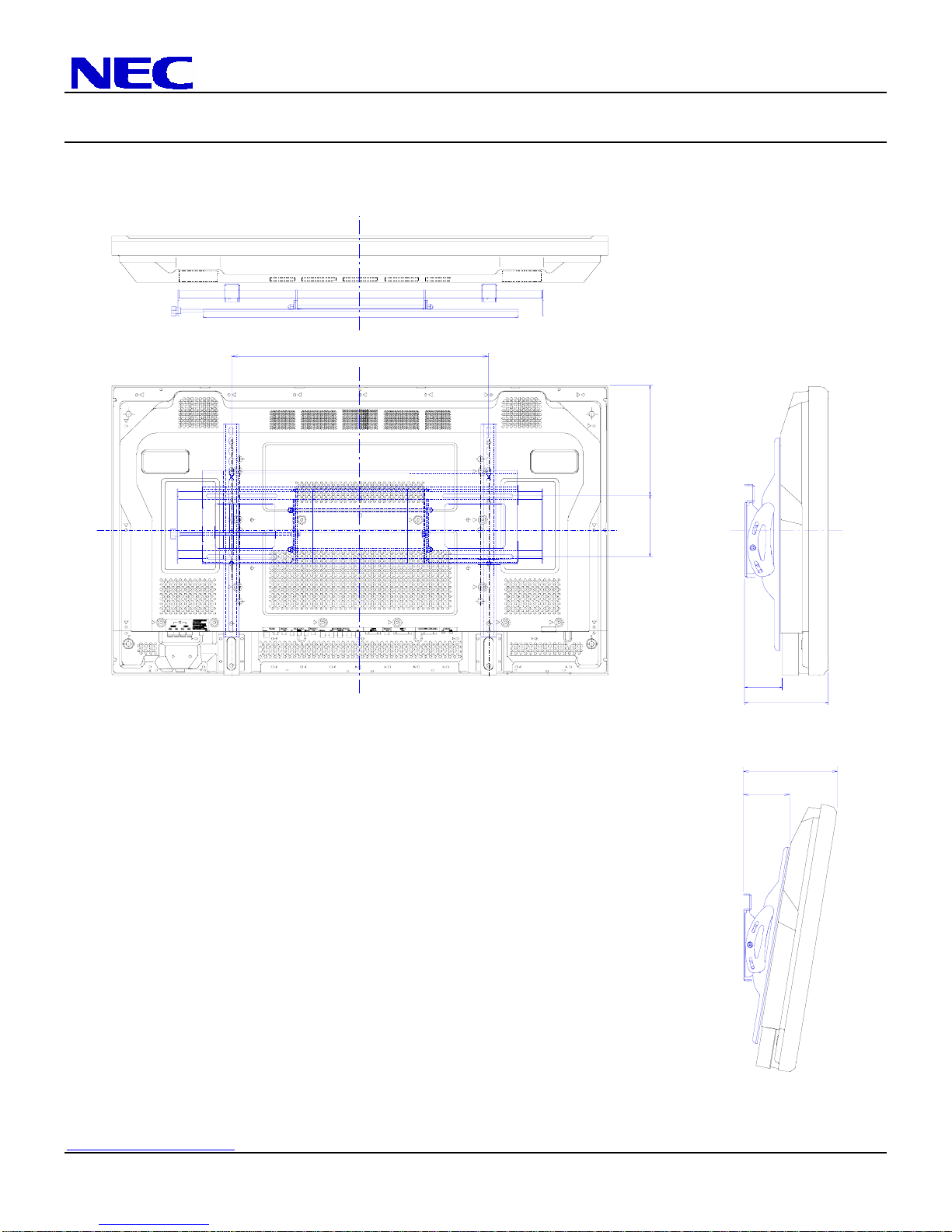

Dimensions with optional Wall Mount Kit (4250WMK)

F F F

AC IN

20.87

9.17

5.05

3.06

6.78

4.44

9.04

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 9 of 12

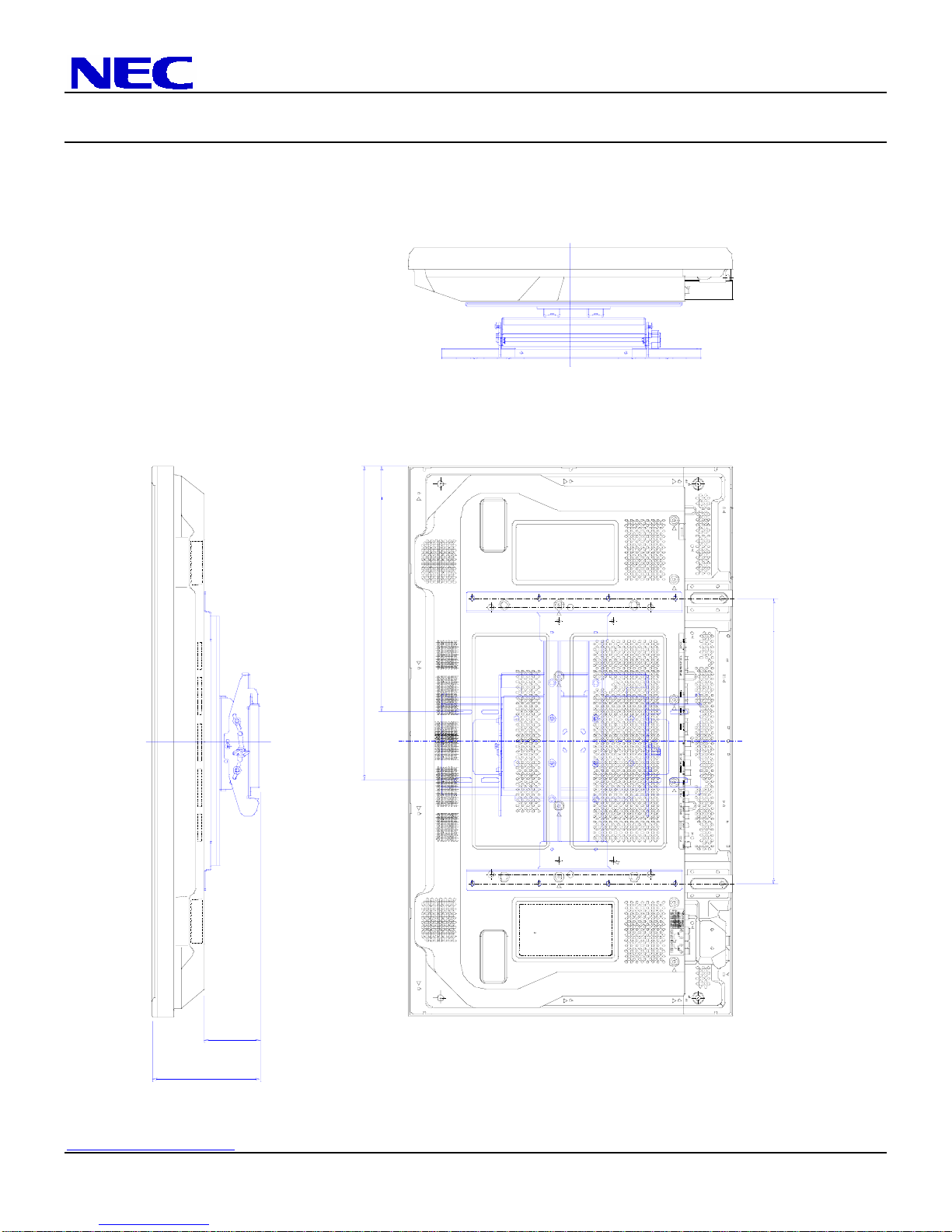

Dimensions with optional Portrait Wall Mount Kit (4250PMK)

23.02

18.02

20.87

4.16

7.98

NEC Corporation of America

Visual Systems Division

42XM5 Installation Guide

42” Plasma Display Rev 1.0

www.necvisualsystems.com PX-42XM5 Page 10 of 12

Dimensions with optional Ceiling Mount Kit (4250CMK)

FF F F

AC IN

20.87

4.57

8.25

Note: Optional Accessories

not included with 4250CMK
