NEC MultiSync UN552S-TMX9P Bedienungsanleitung

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

Parts List

o(4) UN552S , UN552VS, UN552, UN552V Displays

o(4) Onsite Service Warranties (ONSITEMN-3Y-17)

o(4) Peerless Pullout Wall Mounts (DS-VW775)

o(1) Peerless Wall Mount Spacer (DS-VWRS090)

o(1) 25ft Cat5e Patch Cable

o(1) IR/Remote Control Kit (KT-RC3)

o(1) SurgeX 4-Port Power Conditioner

o(1) Display Wall Calibrator Kit (KT-LFD-CC2)

NOTES:

oAny walls that this video wall solution is anchored to must be strong enough to support the displays and the

installation must be in accordance with any local building codes. All mounting apparatuses must make secure

contact to wooden studs.

oPlease read entire document before starting installation

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

1. For mounting information, please refer to Installation Instructions provided by Peerless

Industries, Inc. inside the box of the DS-VW775.

2. Connect the NEC display using the provided DisplayPort cables. Please note that in the

picture below, the IN connection is on the left and circled in red while the OUT connection is

on the right and circled in blue.

Connect the NEC display using the provided HDMI cables. Please note that in the picture

below, the IN connection is on the right side of the display and circled in red while the OUT

connection is located on the bottom of the display and circled in blue.

3. Connect the LAN cables that are located within the display box to daisy chain each display.

Note that the 25ft cat5e patch cable provided is optional and can be used for connecting the

source to display 1 within the wall. Note that in the picture below, LAN1 is on the left and

circled in red while LAN2 is on the right and circled in blue. LAN1 should be utilized as the

IN connection and LAN2 should be utilized as the OUT connection.The LAN daisy chain

can be utilized to pass RS232C, IR Remote or TCP/IP information to each display down the

daisy chain.

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

4. Screw the IR Receiver (KT-RC3) directly to the outside of the video wall and plug it directly

into the IR In terminal of Display 1 as shown below.

5. Power up all of the displays and make sure that the LAN power is on for each display. This

can be found in the External Control menu.

Note that LAN power is OFF out of the box so this will need to be changed for each display

within the wall.

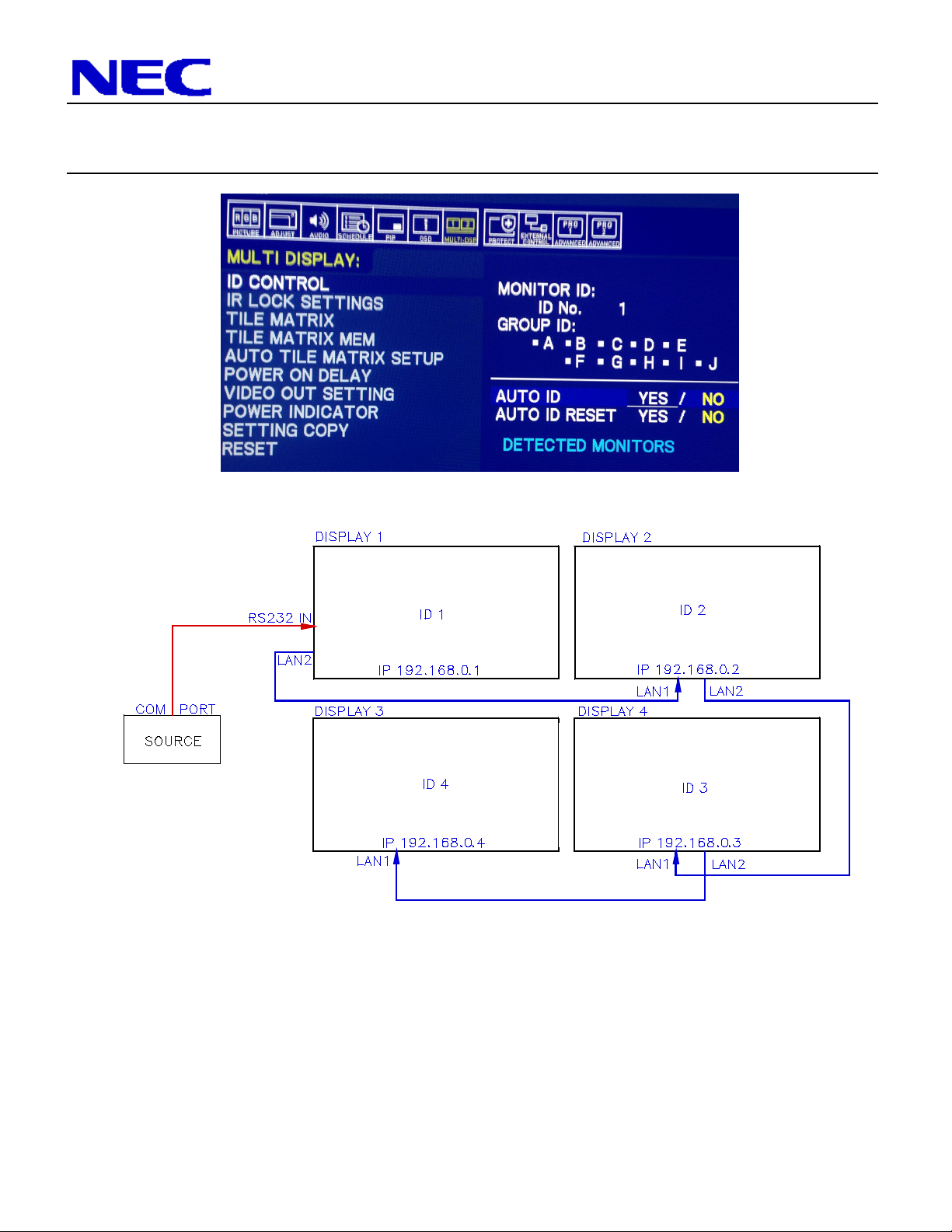

6. Go into the Multi-DSP menu of the display 1 which will be where you first started the LAN

daisy chain and enable the AUTO ID within the ID Control setting. This will automatically

set a monitor ID to each display along the LAN daisy chain. Note that the displays will

automatically identify each screen consecutively depending on how you LAN daisy chained

the units.

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

If the control setup is as pictured below, each display does not need a unique IP address

assigned to still control each individual monitor.

Note that a unique IP address is not necessary to communicate to all displays if display 1 is

not connected to a network. The displays will automatically assign themselves IP

addresses if no DNS is detected and the IP Setting within the IP Address Setting in the

External Control menu is set to AUTO. Note that this is the setting out of the box.

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

7. If display 1 is connected to a network or LAN is going into display 1, like the picture below,

each display will need a unique IP address to ensure that communication can successfully

go through the daisy chain from screen to screen.

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

8. Ensure that video source is connected to the DisplayPort1 (Daisy Chain In) or the HDMI1

(Daisy Chain In) interface of display 1. Note that the DisplayPort (Daisy Chain Out) on each

display can be used to output the DP1 or Option (DP) signals that are coming in to that

specific display whereas the HDMI Out (Daisy Chain out) will output the HDMI1, DVI, MP

and Option (TMDS) input signals. Please refer to the image below:

9. Go into the Multi-DSP menu to activate Auto Tile Matrix Setup as seen in the picture below.

Note that you will need to set the horizontal and vertical monitor dimensions before you

activate the Auto Tile Matrix. If done correctly and the LAN is daisy chained as shown on

the picture on the previous screen, the displays will automatically adjust so one large picture

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

fills the entirety of the wall. Activating Auto Tile Matrix changes the Tile Matrix, Tile Matrix

Mem, Input Signal, Video Out Setting and DisplayPort in the Terminal Settings menu.

Note that there is a limitation if High-bandwidth Digital Content Protection (HDCP) is

utilized. If inputting HDCP protected content through the HDMI, DP, DVI, or OPTION

terminal the content will be limited to the number of displays it will daisy chain to.

Please refer to the charts below.

Maximum number of Daisy Chain screens out via DisplayPort

Input/OSD fucntion

Signal

HDCP

Screens

Notes

DP1.1a

SST

Full HD

w/o HDCP

100

DP1.1a

SST

Full HD

HDCP1.x

DP1.2

MST

Full HD

w/o HDCP

DP1.2

MST

Full HD

HDCP1.x

DP1.1a

SST

UHD (30)

w/o HDCP

DP1.1a

SST

UHD (30)

HDCP1.x

DP1.2

MST

UHD (30)

w/o HDCP

DP1.2

MST

UHD (30)

HDCP1.x

DP1.2

SST

UHD (60)

w/o HDCP

DP1.2

SST

UHD (60)

HDCP1.x

DP1.2

MST

UHD (60)

w/o HDCP

DP1.2

MST

UHD (60)

HDCP1.x

Maximum number of Daisy Chain screens out via HDMI

Input/OSD function

Resolution

HDCP

Screens

Note

HDMI

mode1

Full HD

w/o HDCP

HDMI

mode1

Full HD

HDCP1.x

HDMI

mode1

Full HD

HDCP2.2

HDMI

mode1

UHD (30)

w/o HDCP

HDMI

mode1

UHD (30)

HDCP1.x

HDMI

mode1

UHD (30)

HDCP2.2

HDMI

mode2

UHD (60)

w/o HDCP

*Not available TileMatrix

HDMI

mode2

UHD (60)

HDCP1.x

*Not available TileMatrix

HDMI

mode2

UHD (60)

HDCP2.2

*Not available TileMatrix

DVI/OPS

Full HD

w/o HDCP

DVI/OPS

Full HD

HDCP1.x

DVI/OPS

UHD (30)

w/o HDCP

DVI/OPS

UHD (30)

HDCP1.x

Full HD

w/o HDCP

NEC Display Solutions of America, Inc.

QIG-TMX4P-552SVSV

UN552S-TMX9P, UN552VS-TMX9P, UN552-TMX9P, UN552V-TMX9P Rev 1.1

If you are experiencing issues with this setup, please call our Technical Support number at

(800) 632-4662
