NEC MultiSync X462S Bedienungsanleitung

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 1 of 8

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Requirements Page 2

Display Dimensions Page 3

Display Dimensions Page 4

Optional Table Top Stand Dimensions Page 5

Dimensions of Optional Wall Mount (WMK-4655S) Page 6

Input Terminals Page 7

Control Codes Page 8

Product Description

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1920 x 1080 Dimensions without stand: 41.7”(W) x 24.1”(H) x 1.8”(D)

Aspect Ratio: 16:9 Dimensions with stand: 41.7”(W) x 25.6”(H) x 13.0” (D)

FCC: Class B Weight without stand: 45.6 lbs / 20.7 kg

Power Consumption: 110W (typ) Weight with stand: 49.6 lbs / 22.5 kg

BTU’s: 375.34 BTU/hour Built-In Speaker

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Tilt Angle and Rotation

Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. When

orientated in face up or face down position, operating temperature for the unit changes. Rotate only clockwise for portrait orientation.

Operating Temperatures:

oLandscape: 5-40° Celsius; 41-104° Fahrenheit Face Up: 5-35° Celsius; 41-95° Fahrenheit

oPortrait: 5-40° Celsius; 41-104° Fahrenheit Face Down: 5-35° Celsius; 41-95° Fahrenheit

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 2 of 8

Ventilation Recommendations:

Dimensions below are minimum recommended for proper ventilation when the unit is in a recessed area.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other

means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 3 of 8

Display dimensions:

Note: When handle is set to ‘carrying’ mode (out), overall depth is 2.47”. When in ‘thin’ mode (in), overall depth is 1.70”

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 4 of 8

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 5 of 8

Optional Table Top Stand Dimensions (ST-4020):

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 6 of 8

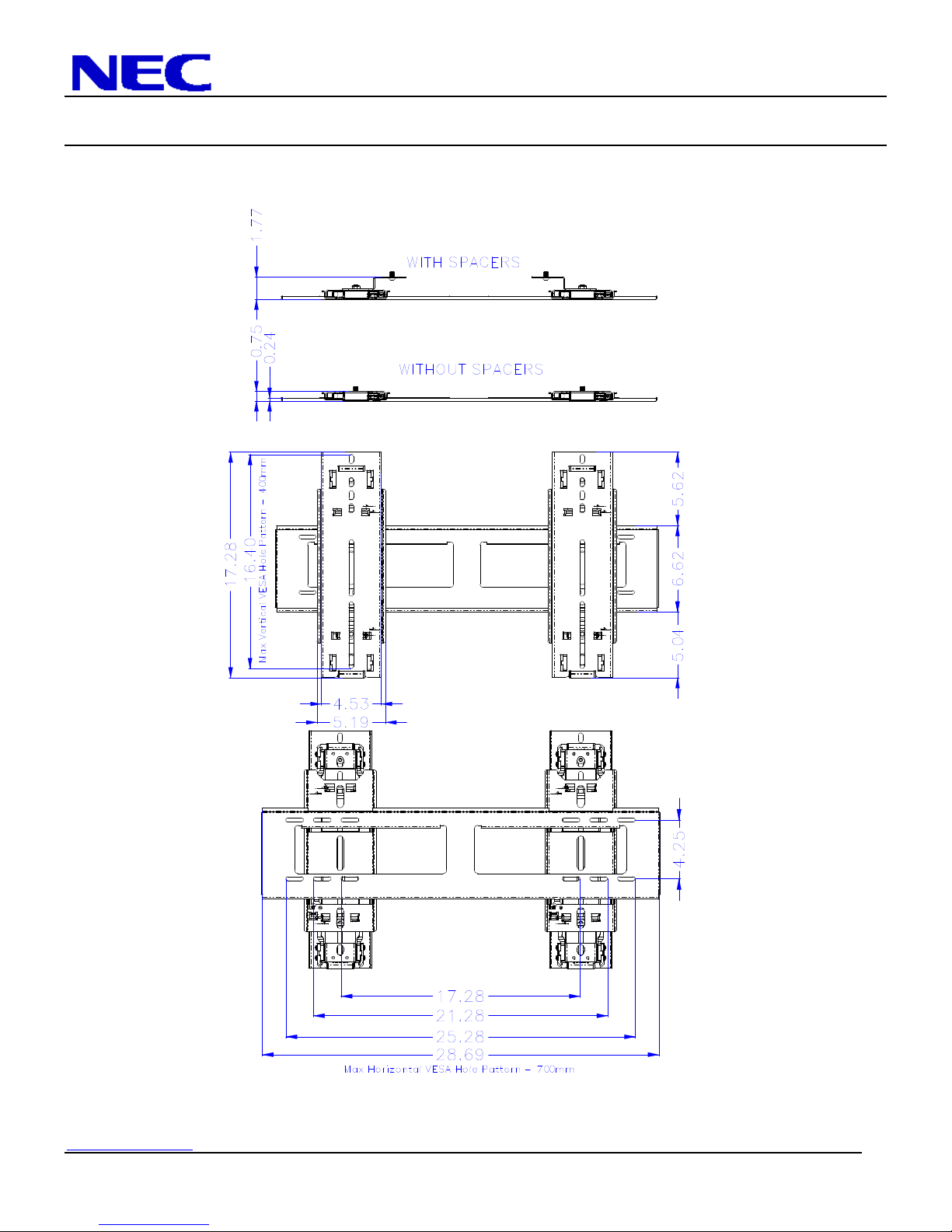

Dimensions with Optional Wall Mount Kit (WMK-4655S):

NOTE: Mount shown without offset spacers

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 7 of 8

Input Panels:

Bottom:

Side:

Handle Positioning:

Note:

Handle can be adjusted per screws that are included with the monitor. Instructions are included in the manual.

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com X462S Page 8 of 8

Control Codes:

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection:

Communication Protocol:

Interface: RS-232C Parity: None

Communication: Asynchronous Stop Bit: 1 bit

Baud Rate: 9600 bps Communication Code: Hex

Data Length: 8 bits

PC Control Connector (D-Sub 9P)

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

These connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).
