NEC Express5800/R320a

System Configuration Guide

Quad-

Core Intel Xeon Processor supported

4U Rackmount form factor

VMware vSphere4 supported

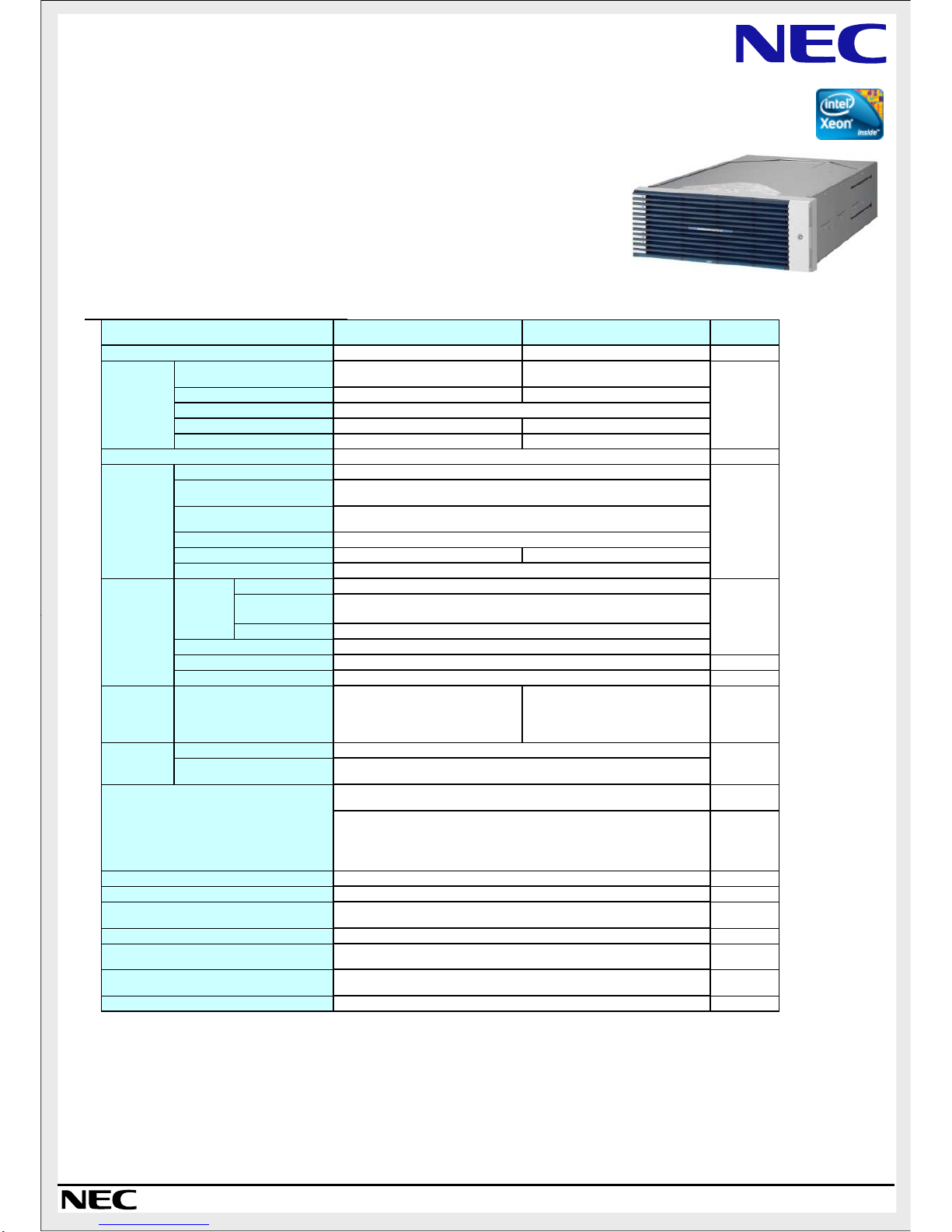

Specification Overview

Model

Express5800/R320a-E4

Product Number N8800-149F

CPU*1

Intel® Xeon® Processor

E5504

2GHz

4MB

4C/4T

Chipset

Memory*1

800MHz

Storage Drive bay Standard capacity

Maximum capacity

Maximum

DDR3 SDRAMDIMM, Registered

Memory type

Minimum

Standard Intel®

5500

Operating frequency (Max)

Error detection/correction

CPU

Clock Speed

No. of CPU (Standard/Max)

L3 Cache

Core (C)/ Thread (T) (1CPU)

SAS 2.4TB (8 ×300GB)

1st Edition August ’10

Hot plug

Interface and RAID

Optical Disk Drive

FDD

Expansion slot 　　　　2 × PCI Express 1.0

　　　　　　　(x4 lane, x8 socket)

Graphics

External Interface

External dimension (W x D x H)

Weight (Min / Max)

Power Supply

Power consumption (Max config, high load)

Operation Condition (Temperature, Humidity)

Included Accessories

Supported OS

*1 Specifications are for each CPU/IO module. Actual number is double that is specified due to duplication

*2 Logical Capacity

*3 Writing function is not supported

*4 The number of Slots in each CPU/IO module

Color ,Resolution [dot]

Installation Type / Video RAM

2x 1000BASE-T LAN connector

(1000BASE-T/100BASE-TX, RJ-45, 2× Rear)

1 × Management LAN connector

(100BASE-TX/10BASE-T, RJ-45, 1× Rear)

SAS 3Gb/s: RAID1 (Standard)

Supported slot

1 x Analog RGB (Mini D-Sub15 pin, 1x Rear),

4 x USB2.0 (1x Front, 3x Rear)

AC100V-240V±10%, 50/60Hz±3Hz,

483×736×178mm (Not including protrusion)

VMware vSphere4 update1

EXPRESSBUILDER

（

User's Guide, User's Guide (Setup), Key

SAS 2.4TB (8 ×300GB)

External drive (option)

Integrated in Server Management Controller / 32MB

During operation: 10 to 35

When stored: -10 to 55

16,777,216-color: 800x600, 1024x768

65,536-color: 1280x1024

NEC Express5800/R320a

-E4/M4

System Configuration Guide

Core Intel Xeon Processor supported

Express5800/R320a-E4

Express5800/R320a-M4 Redundancy

N8800-150F

Intel® Xeon® Processor

X5570

Redundant

2.93GHz

8MB

4C/8T Redundant

Redundant

1066MHz

Redundant

DDR3 SDRAM DIMM, Registered

ECC, x4 SDDC

96GB

(8GBDIMM×3×4)

5500

　+ GeminiEngine™(FPGA)

Memory less

4GB

(2GBDIMM×1×2)

2.5 inch HDD:

SAS 2.4TB (8 ×300GB)

1/ 2

1st Edition August ’10

Page 1

　　　　2 × PCI Express 2.0

　　　　　　　(x4 lane, x8 socket)*4 +

　　　　2 × PCI Express 1.0

(x4 lane, x8 socket)

Redundant

*1 Specifications are for each CPU/IO module. Actual number is double that is specified due to duplication

2x 1000BASE-T LAN connector

(1000BASE-T/100BASE-TX, RJ-45, 2× Rear)

*4、

1 × Management LAN connector

(100BASE-TX/10BASE-T, RJ-45, 1× Rear)

SAS 3Gb/s: RAID1 (Standard)

1 x Analog RGB (Mini D-Sub15 pin, 1x Rear),

4 x USB2.0 (1x Front, 3x Rear)

46kg/52kg

AC100V-240V±10%, 50/60Hz±3Hz,

2 x AC inlets

1400VA/1390W

483×736×178mm (Not including protrusion)

VMware vSphere4 update1

（

ESMPRO/ServerManager(for Windows)),

User's Guide, User's Guide (Setup), Key

SAS 2.4TB (8 ×300GB)

Supported

External drive (option)

DVD-RAM drive*3

Integrated in Server Management Controller / 32MB

During operation: 10 to 35

℃/ 20 to 80% (non condensation),

When stored: -10 to 55

℃

/ 20 to 80% (non condensation)

16,777,216-color: 800x600, 1024x768

65,536-color: 1280x1024

System Configuration Guide

736

Outward

1st Edition August ’10

178

Tower conversion kit

220

327

NEC Express5800/R320a-E4/M4

450

689

Page 2

1st Edition August ’10

483

804

592

System Configuration Guide

R320a-

E4 Quick configuration sheet:

Intel® Xeon®

Processor

E5504 CPU 2

Memory slot x 6

CPU slot x 2

CPU/IO module #0

2.5 inch HDD bay x 8

Intel® Xeon®

Processor

E5504 CPU 2

CPU slot x 2

CPU/IO module #1

Memory slot x 6

1st Edition August ’10

2.5 inch HDD bay x 8

DVD-RAM

NEC Express5800/R320a-E4/M4

E4 Quick configuration sheet:

Memory slot x 6

PSU

Onboard LAN

1000BASE-T x1

Low-profile PCI-Express x4×2

(x8 socket) #2

Onboard LAN

1000BASE-T x1

Management LAN x 1

Memory slot x 6

Low-profile PCI-Express x4 x2

(x8 socket)

Page 3

1st Edition August ’10

PSU

(x8 socket)

System Configuration Guide

R320a-M4

Quick configuration sheet:

2.5 inch HDD bay x 8

Low

Full-height

Intel® Xeon®

Processor

X5570 CPU 2

CPU slot x 2

CPU/IO module #1

2.5 inch HDD bay x 8

Full-height

Intel® Xeon®

Processor

X5570 CPU 2

Memory slot x 6

CPU slot x 2

CPU/IO module #0

Memory slot x 6

1st Edition August ’10

DVD-RAM

2.5 inch HDD bay x 8

NEC Express5800/R320a-E4/M4

PSU

Onboard LAN

1000BASE-T×1

Quick configuration sheet:

Low

-profile PCI-Express x4 x2

(x8 socket)

PCI-Express x4 x2

(x8 socket)

Onboard LAN

1000BASE-T×1

Low-profile PCI-Express x4x2

(x8 socket)

PCI-Express x4 x2

(x8 socket)

Management LAN x 1

Memory slot x 6

Page 4

1st Edition August ’10

PSU

(x8 socket)

System Configuration Guide

Notes for configuring FT server with VMware

N8800-149F

Express5800/R320a-E4 N8800-150F

Express5800/R320a-

Select main unit and add optional CPU, Memory, HDD, PCI cards, etc.

2. VMware license

1. FT server main unit

3. NEC Storage

VMware vSphere 4 Essentials

for 3 hosts

VMware vSphere 4 Essentials

Plus for 3 hosts

D3-10 D4-30

If needed, external storage can be connected for SAN boot and data disk.

Procure as system requirement.

The following are needed to configure FT server VMware model.

Select VMware license and optional license.

D8-

10/20/30

VMware vSphere 4 Advanced

for 1 processor

VMware vSphere 4 Enterprise

for 1 processor

1st Edition August ’10

5. Guest OS license

8. Backup server

7. NEC Storage management server

4. UPS

6. VMware vSphere Client

Procure as needed. (Local procurement)

A dedicated terminal is required for management of VMware vSphere 4 on the FT server.

Required when using NEC Storage.

Dedicated server is recommended for backup.

9. NEC ESMPRO Agent

Download from ITPF portal site.

NEC Express5800/R320a-E4/M4

Notes for configuring FT server with VMware

Select main unit and add optional CPU, Memory, HDD, PCI cards, etc.

VMware vSphere 4 Essentials

VMware vSphere 4 Standard

for 1 processor

If needed, external storage can be connected for SAN boot and data disk.

The following are needed to configure FT server VMware model.

10/20/30

E1-10

VMware vSphere 4 Enterprise

Plus for 1 processor

Page 5

1st Edition August ’10

A dedicated terminal is required for management of VMware vSphere 4 on the FT server.

(Local procurement)

System Configuration Guide

N8800-149F NEC Express5800/R320a-E4 (4C/E5504-VM)

Memory less, HDD less

Intel ® Xeon® Processor E5504 (2.0GHz) x 1, 4MB 3rd

cache, QPI speed 4.8GT/s

Memory less (Mandatory option, Minimum 4GB, Max 96GB), HDD less (SAS HDD),

DVD-RAM drive x1, 1000BASE-T 2ch as standard, PCI slot x2,

EXPRESSBUILDER (NEC ESMPRO Manager included)

Low-End rack mount

N8800-150F NEC Express5800/R320a-M4 (4C/X5570-VM)

Memory less, HDD less

Intel® Xeon® Processor X5570 (2.93GHz) x1, 8MB 3rd cache, QPI speed 6.4GT/s

Memory less (Mandatory option, Minimum 4GB, Max 96GB), HDD less (SAS HDD),

DVD-RAM drive x1, 1000BASE-T 2ch as standard, PCI slot x4,

EXPRESSBUILDER (NEC ESMPRO Manager included)

Mid-Range rack mount

FT server (main unit)

1st Edition August ’10

NEC Express5800/R320a-E4/M4

Memory less, HDD less

cache, QPI speed 4.8GT/s

Memory less (Mandatory option, Minimum 4GB, Max 96GB), HDD less (SAS HDD),

Intel® Xeon®

Processor E5504 VMware

vSphere4

Update1 supported

Memory less, HDD less

Intel® Xeon® Processor X5570 (2.93GHz) x1, 8MB 3rd cache, QPI speed 6.4GT/s

Memory less (Mandatory option, Minimum 4GB, Max 96GB), HDD less (SAS HDD),

Intel® Xeon®

Processor X5570 VMware

vSphere4

update1 supported

Page 6

1st Edition August ’10

System Configuration Guide

Processor

Sockets

Processors

2 logical

sockets

[Note]

- A pair of Quad-

Core Xeon Processor is installed as standard.

CPU kit contains a pair of the processors to install both CPU/IO Module #0 and CPU/IO

Module #1.

For R320a-E4

Socket #0: Standard Processor

Quad-

Core Intel Xeon Processor E5504, 2 GHz, 4 MB L3 Cache, QPI 4.8GT/s as standard

Socket #1: Additional Processor

N8801-041 CPU Kit(4C/E5504)

For R320a-M4

Socket #0: Standard Processor

Quad-

Core Intel Xeon Processor X5570, 2.93 GHz, 8 MB L3 Cache, QPI 6.4GT/s as standard

Socket #1: Additional Processor

N8801-042 CPU Kit(4C/X5570)

Memory

DIMM

Sockets DDR3-1066 Registered DIMM:

N8802

041

2GB Memory kit

Product List

12 logical

[Note]

8GB or more memory is recommended.

1st Edition August ’10

N8802

041

2GB Memory kit

N8802-042 12GB Memory kit

N8802-043 24GB Memory kit

12 logical

sockets

Memory configuration pattern

CPU Total MEM 1 2 3 4 5 6 12

4GB 2 2

6GB 2 2 2

8GB 2 2 2 2

10GB 2 2 2 2 2

12GB 2 2 2 2 2 2

12GB 4 4 4

24GB 4 4 4 4 4 4

24GB 8 8 8

36GB 8 4 8 4 8 4

48GB 8 88888

4GB*1 2

6GB 2 2 2

8GB 2 2

10GB 22222

12GB 2 2 2

16GB 2 2 2 2

20GB 22222

24GB 2222222

24GB 4 4 4

36GB 4 24242 2

48GB 4444444

48GB 8 8 8

72GB 8 4 8 4 8 4 4

96GB 8 8 8 8 8 8 8

*1: Memory interleave is valid except 2GB DIMM per CPU configuration.

DIMM Slot number

Standard CPU side

NEC Express5800/R320a-E4/M4

Core Xeon Processor is installed as standard.

CPU kit contains a pair of the processors to install both CPU/IO Module #0 and CPU/IO

Core Intel Xeon Processor E5504, 2 GHz, 4 MB L3 Cache, QPI 4.8GT/s as standard

Quad-Core Intel Xeon E5504, one pair

Core Intel Xeon Processor X5570, 2.93 GHz, 8 MB L3 Cache, QPI 6.4GT/s as standard

Quad-Core Intel Xeon X5570, one pair

2X 2 GB DIMM (1x 2GB/module)

8GB or more memory is recommended.

Page 7

1st Edition August ’10

2X 2 GB DIMM (1x 2GB/module)

6X 4 GB DIMM (3x 4GB/module)

6X 8 GB DIMM (3x 8GB/module)

11 10 9 8 7

2 2

222

2 2 2 2

22222

444

42424

44444

888

84848

88888

*1: Memory interleave is valid except 2GB DIMM per CPU configuration.

DIMM Slot number

2nd CPU side

System Configuration Guide

Hard disk drives

[Note]

Up to 16 hard disk drives can be installed in the system.

Be sure to install by double of hard disk drives in order to have the RAID

Also both of the hard disk drives must have same capacity and rotational speed.

2.5 inch SAS:

N8850-038

146.5GB 10k rpm SAS HDD

N8850-039

300GB 10k rpm SAS HDD

N8850-040

73.2GB 15k rpm SAS HDD

N8850-041

146.5GB 15k rpm SAS HDD

Product List

2.5 INCH

Disk bays

16 hot-swap

drive bays

Disk bay x 8

CPU/IO module#0

Mirror

#0 #2 #4

System Disk

The 73.2 GB HDD is recommended to install as system drive in order to

#1 #3 #5 #7

1st Edition August ’10

The 73.2 GB HDD is recommended to install as system drive in order to

reduce the time to resynchronize.

R320a-

E4/M4 have the enhanced remote management function "EXPRESSSCOPE Engine2" as standard.

Server Management

Onboard

RAS chip

EXPRESSSCOPE Engine 2 (Standard)

*There is Management LAN port (100/10BASE

* The mirroring function copies only changed files to resynchronize when replacing CPU/IO module, etc. in

order to save time. However, all data in the HDD need to be copied when replacing HDD to new one.

NEC Express5800/R320a-E4/M4

Up to 16 hard disk drives can be installed in the system.

Be sure to install by double of hard disk drives in order to have the RAID

-1 configuration.

Also both of the hard disk drives must have same capacity and rotational speed.

146.5GB 10k rpm SAS HDD

1X 146.5 GB HDD, w/ carrier

300GB 10k rpm SAS HDD

1X 300 GB HDD, w/ carrier

73.2GB 15k rpm SAS HDD

1X 73.2 GB HDD, w/ carrier

146.5GB 15k rpm SAS HDD

1X 146.5 GB HDD, w/ carrier

CPU/IO module #1

Disk bay x 8

System Disk

The 73.2 GB HDD is recommended to install as system drive in order to

#0 #2 #4 #6

#1 #3 #5 #7

Page 8

1st Edition August ’10

The 73.2 GB HDD is recommended to install as system drive in order to

E4/M4 have the enhanced remote management function "EXPRESSSCOPE Engine2" as standard.

EXPRESSSCOPE Engine 2 (Standard)

*There is Management LAN port (100/10BASE

-TX) on each CPU/IO module.

* The mirroring function copies only changed files to resynchronize when replacing CPU/IO module, etc. in

order to save time. However, all data in the HDD need to be copied when replacing HDD to new one.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NEC Server Handbücher

NEC

NEC Express5800/120Ra-1 Installations- und Betriebshandbuch

NEC

NEC N8800-184F Betriebsanleitung

NEC

NEC NEC Express5800 Series Betriebsanleitung

NEC

NEC Express5800/T120a-E N8100-1531F Bedienungsanleitung

NEC

NEC Express 5800/320Lb-R Bedienungsanleitung

NEC

NEC N8146-36 Bedienungsanleitung

NEC

NEC Express5800/120Ri-2 Bedienungsanleitung

NEC

NEC Express5800/R320d-M4 Series Bedienungsanleitung

NEC

NEC NEAX 2000IVS2 Benutzerhandbuch

NEC

NEC UNIVERGE SV9100 DT930 Bedienungsanleitung

NEC

NEC Express5800/R320c-M4 Bedienungsanleitung

NEC

NEC Univerge SV9100 Bedienungsanleitung

NEC

NEC 5800 Series Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC Express5800/B120b-d Bedienungsanleitung

NEC

NEC Express5800/R310g-E4 Bedienungsanleitung

NEC

NEC Express5800/53La Bedienungsanleitung

NEC

NEC Express 5800/320Lb Montage- und Bedienungsanleitung

NEC

NEC Express5800/120Rh-1 Bedienungsanleitung

NEC

NEC Express5800/R110g-1E Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC N8800-128F Bedienungsanleitung

NEC

NEC NEAX 7400 IMX Montageanleitung

NEC

NEC Express5800/R120g-1M Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung

Planet

Planet NAS-7410 Bedienungsanleitung
