NEC SX-Aurora TSUBASA A100-1 Bedienungsanleitung

SX-Aurora TSUBASA

A100-1

USER’S GUIDE

Revision 1.0b

The information in this User’s Guide has been carefully reviewed and is believed to be accurate. The vendor assumes

no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update

or to keep current the information in this Guide, or to notify any person or organization of the updates.

Please Note: For the most up-to-date version of this Guide, please see our website at

http://www.nec.com/en/global/prod/hpc/aurora/document/ .

NEC Corporation. ("NEC") reserves the right to make changes to the product described in this Guide at any time and

without notice. This product, including software and documentation, is the property of NEC and/ or its licensors, and is

supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted

by the terms of said license.

IN NO EVENT WILL NEC CORPORATION. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVEORCONSEQUENTIALDAMAGESARISINGFROMTHEUSEORINABILITYTOUSETHISPRODUCT

OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, NEC

CORPORATION. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR

USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,

INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

The products sold by NEC are not intended for and will not be used in life support systems, medical equipment,

nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical

systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic

property damage. Accordingly, NEC disclaims any and all liability, and should buyer use or sell such products for use

in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify,

defend and hold NEC harmless for and against any and all claims, demands, actions, litigation, and proceedings of

any kind arising out of or related to such ultra-hazardous use or sale.

Guide Revision 1.0

Release Date: Feb. 28, 2018

Unless you request and receive written permission from NEC Corporation., you may not copy any part of this

document. Information in this document is subject to change without notice. Other products and companies referred

to herein are trademarks or registered trademarks of their respective companies or mark holders.

SX-Aurora TSUBASA A100-1 User's Guide

Preface

About this guide

This Guide is written for professional system integrators and PC technicians. It provides

information for the installation and use of the SX-Aurora TSUBASA A100-1. Installation and

maintenance should be performed by experienced technicians only.

Please refer to the A100-1 server specifications page on our website for updates on supported

memory, processors and operating systems (http://www.nec.com/en/global/prod/hpc/aurora/document/).

Notes

For your system to work properly, please follow the links below to download all necessary

drivers/utilities and the user’s Guide for your server.

•

NEC product manuals: http://www.nec.com/en/global/prod/hpc/aurora/document/

•

Product safety info:

http://www.nec.com/en/global/prod/hpc/aurora/document/safety_information.pdf

This Guide may be periodically updated without notice. Please check the NEC website for

possible updates to the manual revision level.

Warnings

Special attention should be given to the following symbols used in this guide.

Warning! Indicates important information given to prevent equipment/property damage

or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Preface

Table of Contents

Chapter 1 Introduction

1.1 Overview.............................................................................................................................5

1.2 Unpacking the System........................................................................................................5

1.3 System Features.................................................................................................................6

1.4 Server Chassis Features....................................................................................................7

Control Panel.....................................................................................................................7

Front Features...................................................................................................................8

Rear Features....................................................................................................................9

1.5 System Block Diagram......................................................................................................10

1.6 Ports.................................................................................................................................11

1.7 LED...................................................................................................................................13

Chapter 2 Workstation Setup

2.1 Overview...........................................................................................................................14

2.2 Preparing for Setup...........................................................................................................14

Choosing a Setup Location .............................................................................................14

General Precautions........................................................................................................14

Chapter 3 Maintenance and BIOS Setting

3.1 Overview...........................................................................................................................15

Appendix A BIOS Codes

Appendix B Standardized Warning Statements for AC Systems

SX-Aurora TSUBASA A100-1 User's Guide

Chapter 1

Introduction

1.1 Overview

This chapter provides a brief outline of the functions and features of SX-Aurora TSUBASA

A100-1.

1.2 Unpacking the System

Inspect the box the SX-Aurora TSUBASA A100-1 was shipped in and note if it was damaged

in any way. If any equipment appears damaged, please file a damage claim with the carrier

who delivered it.

Decide on a suitable location for the rack unit that will hold the server. It should be situated in

a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and

electromagnetic fields are generated. It will also require a grounded AC power outlet nearby.

Be sure to read the precautions and considerations noted in Appendix B.

Chapter 1: Introduction

1.3 System Features

The following table provides you with an overview of the main features of the A100-1.

System Features

Motherboard

Supermirco X11DAi-N

Chassis

Supermicro SC732D3-1200B

CPU

Supports single Intel Xeon 6126/4108 (Socket P0-LGA3647) processor

Socket Type

Socket P0-LGA3647

Memory

96GB

Chipset

PCH C621

PCIe Card

Single Vector Engine 1.0 card

Hard Drives

One 3.5" hard drive

Power

Single 1200W power supply

Form Factor

Mid-tower

Dimensions

(WxHxD) 7.6 x 16.7 x 20.68 in. (193 x 424 x 525.3 mm)

Host Server

A100-1-VH

SX-Aurora TSUBASA A100-1 User's Guide

1.4 Server Chassis Features

Control Panel

The switches and LEDs located on the control panel are described below. See Chapter 4 for more details

on the control panel.

3 5

1 7

Figure 1-1. Control Panel View

Control Panel Features

Item

Feature

Description

USB 3.0 Ports

Front access USB 3.0 ports (2x)

NIC LED

Indicates network activity on the LAN port when flashing.

HDD LED

Indicates activity on the hard drive when flashing.

Information LED

See table below

Power Button

The main power button is used to apply or remove power from the power supply

to the server. Turning off system power with this button removes the main power

but maintains standby power. To perform many maintenance tasks, you must

also unplug system before servicing

Line Out

Line out jack

Mic

Microphone jack

Information LED

Status

Description

Continuously on and red

An overheat condition has occured.

(This may be caused by cable congestion.)

Blinking red (1Hz)

Fan failure, check for an inoperative fan.

Solid blue

Local UID has been activated. Use this function to

locate the server in a rackmount environment.

Blinking blue

Remote UID is on. Use this function to identify the

server from a remote location.

Chapter 1: Introduction

Front Features

A100-1 mid-tower chassis is a Supermicro SC732D3-1200B chassis. See the illustration

below for the features included on the front of the chassis.

Figure 1-2. Chassis Front View

Front Chassis Features

Item

Feature

Description

Fixed Drive Area

Supports two fixed 5.25" drives (such as a DVD-ROM)

Control Panel

Front control panel (see preceding page)

Internal HDD Cage (behind

bezel)

Supports four 3.5" hard drives in a rotatable cage

SX-Aurora TSUBASA A100-1 User's Guide

Rear Features

The illustration below shows the features included on the rear of the chassis.

Figure 1-3. Chassis Rear View

Rear Chassis Features

Item

Feature

Description

Power Supply

1200W power supply

I/O Backpanel

Rear I/O ports (see Section 1.6)

PCI Slots

Supports seven full-height, full-length PCI expansion cards

Chapter 1: Introduction

1.5 System Block Diagram

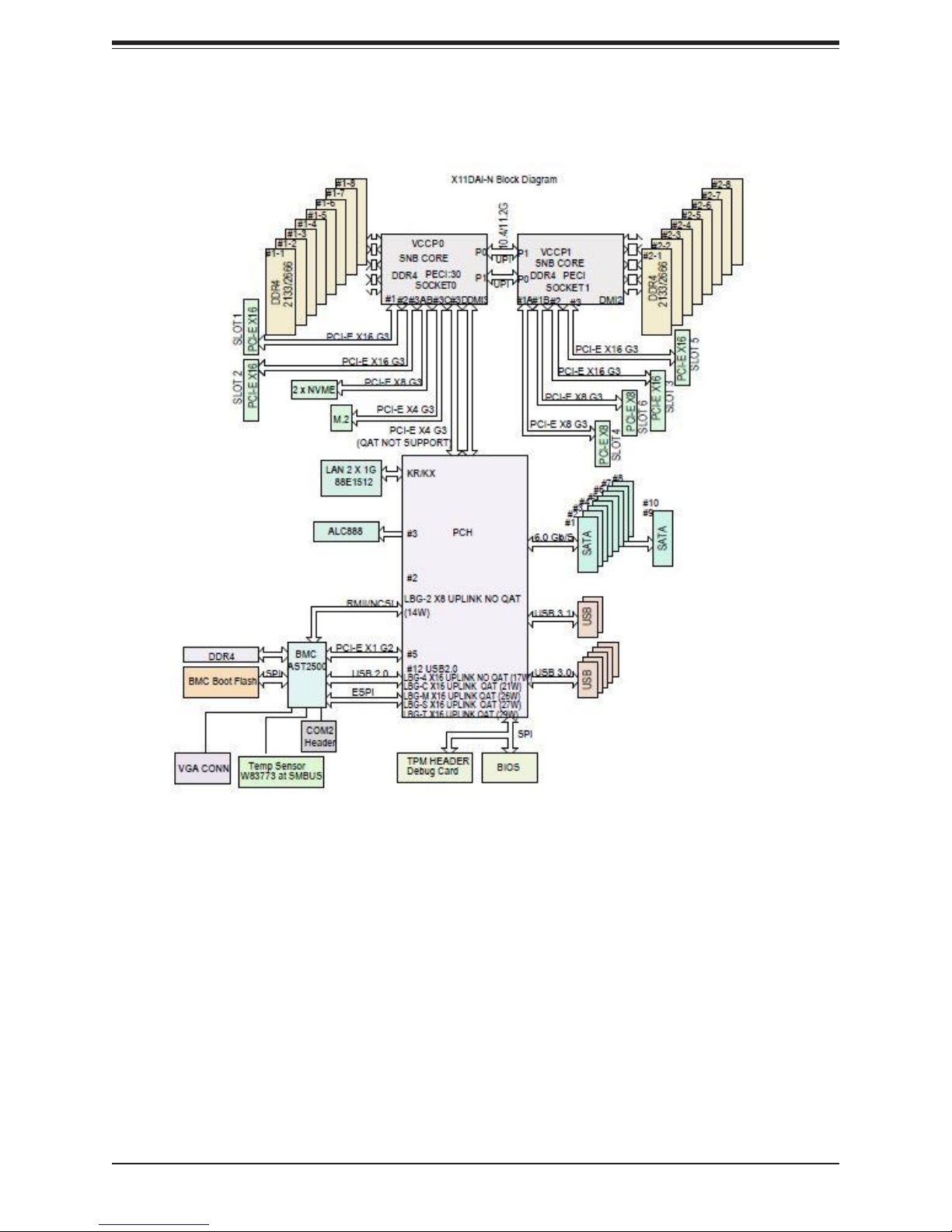

Figure 1-4. C621 Chipset: System Block Diagram

Note: This is a general block diagram and may not exactly represent the features on your

motherboard. See the Section 1.3 System Features for the actual specifications of your

motherboard.
