NEC MultiSync E705 SST Bedienungsanleitung
“MultiSync® E705 SST”
“MultiSync® E805 SST”
“MultiSync® P403 SST”
“MultiSync® P463 SST”
“MultiSync® P553 SST”
“MultiSync® P705 SST”
“MultiSync® P801 SST”
“MultiSync® X841UHD SST”
“MultiSync® X981UHD SST”
User’s Manual
User’s Manual
For using Touch Panel
1. Turn off the monitor.
2. Install the equipment.*1
- Using slot 2 type PC:
Connect the slot 2 type PC into the option board slot. Connect the B
type connector to the USB upstream port on the left
back side of the monitor and the A type connector to the downstream
port on the slot 2 type PC.
NOTE: Please refer to the slot 2 type PC’s manual for connection.
NOTE: When you set option board accessory other then slot 2 type
PC, touch function may not work.

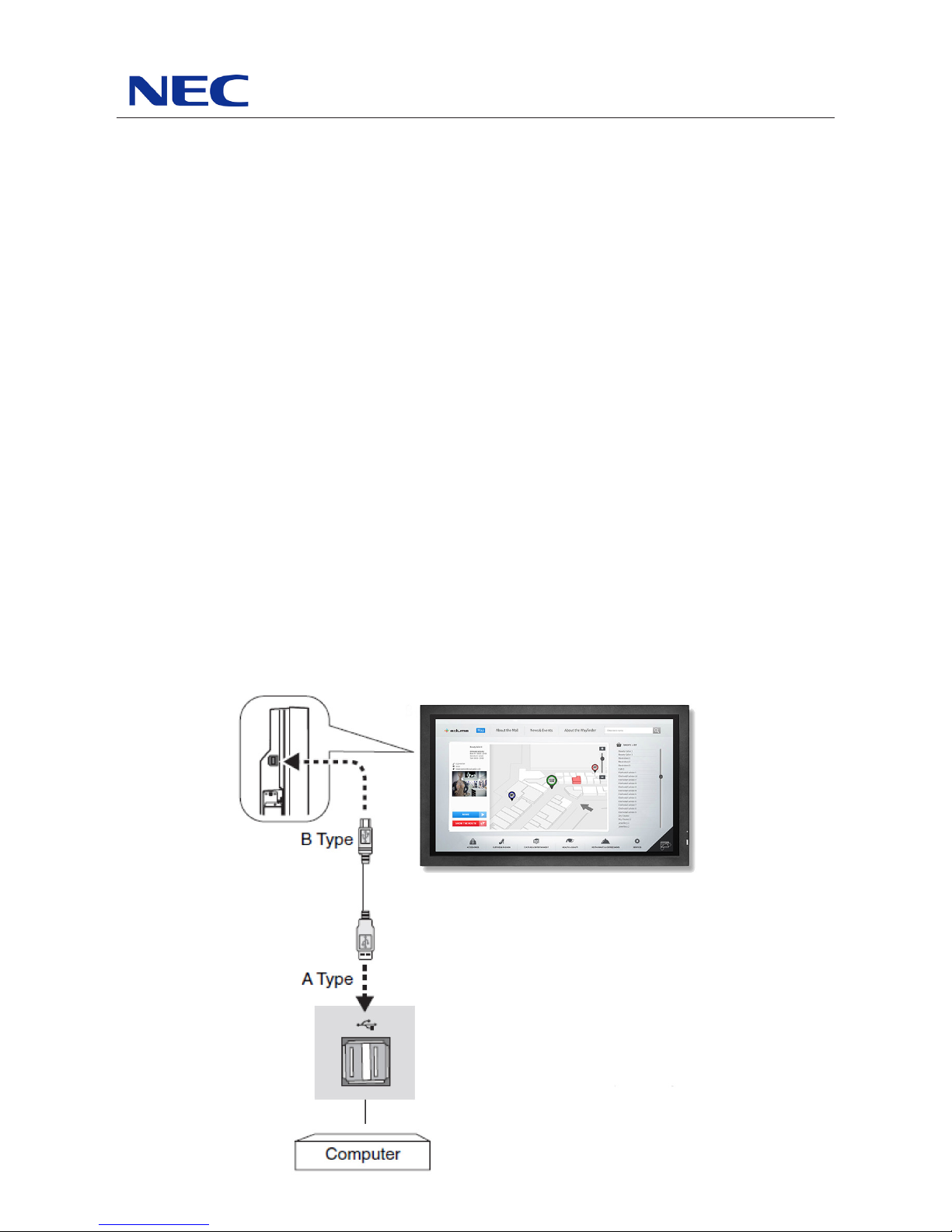

- Using external computer:
Connect the B type connector to the USB upstream port on the left
back side of the monitor and the A type connector to the downstream
port on the external computer (Figure 1).
3. Turn on the monitor.
*1: Please contact your NEC customer support for more detailed information.
Figure 1
User’s Manual
Operating System Support Summary
Monitor Setting
Select the input signal.
- Using slot 2 type PC. Select [OPTION]- Using external computer:
Select the input signal which is supplied by the PC connected to USB
connector.
NOTE: Touch function does not work in PIP mode.
NOTE: Intelligent Wireless Data (NFC) communication is not supported with
NEC ShadowSense touch screens.
NOTE: Calibration under Windows is an option which can only make the touch
screen work more accurate but it is not required.
i
‐
www.shadowsense.eu
User’s Manual
NEC Dashboard Configuration Tool
ShadowSense algorithms offer a variety of parameters that can be used to
customize the touch screen’s performance. The Dashboard software tool
provides customers with the ability to easily modify the behavior of the
touchscreen based on various use cases. It allows the user to adjust the
performance and touch characteristics of the touchscreen such as to provide
spurious touch and palm rejection, debris and static object recognition, rain
and fluid cancellation and to enable/disable various features, like automatic
pen & eraser detection.
NOTE: The NEC Dashboard configuration tool is available for download on
www.nec-display-solutions.com.
User’s Manual
1. Open start menu in Windows and select Control Panel.
2. Open Hardware and Sound settings.
Re-Calibrated
If the cursor fails to follow exact nger position, the screen can be
re-calibrated in the following way:
User’s Manual
3. Open Tablet PC Settings.
4. Press Calibrate button.
User’s Manual
5. If User Account Control window pops up, click yes.
6. When the calibration process begins, touch the middle of each cross that
appears in bold on the screen; crosses shall appear several times in each
corner of the screen. After touching the last cross, the calibration process
ends.
NOTE: If the touch is still not precise enough, the whole action can be
repeated.
User’s Manual
WEEE Mark (European Directive
2002/96/EC)
Within the European Union
EU-wide legislation, as implemented in each
Member State, requires that waste electrical
and electronic products carrying the mark (left)
must be disposed of separately from normal
household waste.
Disposal Instruction
NEC products are meeting all EU norms regarding safety, health and
environmental requirements.
This includes monitors and electrical accessories, such as signal
cables or power cords. When you need to dispose of your NEC display
products, please follow the guidance of your local authority, or ask the
shop where you purchased the product, or if applicable, follow any
agreements made between yourself and NEC.
The mark on electrical and electronic products only applies to the
current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside
the European Union, please contact your local authority
so as to comply with the correct disposal method.
NEC Display Solutions Europe GmbH
Landshuter Allee 12-14
D – 80637 München
Phone: +49 (0)89 99 699-0
Fax: +49 (0) 89 99 699-500
www.nec-display-solutions.com
