PX-TUAN-01 Instruction Manual

-1-

TableofContents

Chapter 1 Introduction

1.1 Important Notices ………………………………………………………………………….…….3

1.2 Product Functions ………………………………………………………………………….……3

1.3 Package Contents ………………………………………………………………………….……4

Chapter 2 Installation

2.1 Product Overview...........................................…...……………...................................….....5

2.1.1 Rear View of Main Body......……….....................................................…...……...........5

2.2 System Installation............................................................................………...…................7

2.2.1 Standard Connection…….………………….…………………………………………....7

2.2.3 Extended Connection for Split Screen Display ..…..………………………………....8

2.2.3 Audio/Video ………...……………………………………………………………...….....….9

2.2.4 Antenna……………………………..…………………………………………...…….......9

Chapter 3 Basic Settings

3.1 Initial Settings ................................................................…………................................…10

3.2 IR Remote Control – Tuner related…....................................……....................................12

3.3 IR Remote Control – NEC Plasma Display related... .................................………….......14

Chapter 4 Advanced Settings

4.1 MAIN MENU……….................................................................................…………….......16

4.2 SETTING UP…….................................................................................…………….........16

4.2.1 LANGUAGE……......................................................................…............…………....17

4.2.2 TV SYSTEM……......................................................................…............…………....17

4.2.3 CHANNEL Settings................…………………...........................................................18

4.2.4 CLOCK………………..............…………………..........................................................20

4.2.5 OSD…………………............………………….............................................................21

4.3 TELETEXT WEST/EAST Settings ……………...……………...…….…...………………….21

4.4 TTX CHARACTER Settings………………………………………………………………….22

4.5 FAST KEYS FUNCTIONS…………………………………………………………………….22

4.6 TELETEXT………………………….…….…...……………………….……………………….24

4.6.1 Open and Close Teletext ……………...….………..……………………………….…..24

4.6.2 Select a Teletext Page…………………..…...….…………………………………….…..24

4.6.3 Mix Teletext With Picture………………..…...….…………………………………….…..24

4.6.4 Display Hidden Text/Deactivate Teletext …………..…………...……………………….24

4.6.5 Double Height………………………………………..…………...……………………….24

Chapter 5 Other Information

5.1 Troubleshooting.......................….....….......................................................…………....25

5.2 Specifications..................................…..........................................................…………..26

5.3 Default Channel Tables................….............................................................…………..27

PX-TUAN-01 Instruction Manual

-2-

Chapter1 Introduction

Thank you for purchasing the PX-TUAN-01. This is an advanced multi-standard

(PAL/SECAM) Analogue TV Receiver/Tuner with integrated Stereo (NICAM/A2) and Teletext

decoder. It was designed and manufactured based on the PERFECT * principle and offers

the highest possible picture quality due to its digital processing of Video and Teletext signals.

Besides Composite Video and S-Video, it has a Component (YCbCr) output, which is

designed for NEC Plasma Displays.

For a very easy installation and operation the tuner has several unique features like, Auto

Detection of Video/Audio standard, Automatic Channel Installation (ACI**), Advanced

Channel Name Detection and Fastext. The tuner is supplied with all required adapter cables.

Additional (TV) Monitor OUT and (external) Video IN ports enable simultaneous display of TV

Video/TV Teletext and TV Video/external Teletext***, for use with the NEC Plasma Display

models 50XR4 and 61XR3.

For people with hearing problems, the PX-TUAN-01 has the facility to overlay the Video with

Teletext subtitles for simple recording on any standard VCR/DVR.

No additional hardware or software required. No need to learn complicated set-up

procedures. Just plug and play!

* The PERFECT principle is based on the following keywords:

Performance

Outstanding performance by sophisticated design and “state-of- the- art” components.

Easy to install

The product is supplied with all required accessories and auto-detects all relevant technical parameters in

different applications.

Reliability

Long-term reliability through the use of first class components and 100% inspection.

Features

Extensive features make the product multi-purpose.

Easy to operate

Software structure and operation is user friendly and “granny-proof”

Customer satisfaction

Product meets or exceeds customer’s expectations.

Technology

Latest technology and smart design ensure that the product outperforms existing products on the market.

** ACI offers very fast and fully automatic channel installation and labelling by means of a unique Teletext code

provided by cable operators.

*** In case the Teletext information is available in the Vertical Blanking Interval (VBI) lines.

PX-TUAN-01 Instruction Manual

-3-

1.1 Important Notices

Please use the PX-TUAN-01 under a normal environment.

1. Avoid the following circumstances:

• Exposure to direct sunlight or high temperatures

• Exposure to moisture or high humidity

• Positioning in unstable places

2. Do not attempt any repair yourself, since the warranty does not cover repair or attempted

repair by unauthorized personnel.

3. Unplug this product from AC outlet and remove batteries from the IR remote control when

left unused for a long time.

1.2 Product Functions

 Easy to install due to: pre-programmed channel table, auto-detection of TV and Audio

system, ACI and channel name detection from Teletext.

 Supports PAL-BG, PAL-I , PAL-DK , SECAM-L and SECAM-DK

(each with its own pre-programmed channel table).

 Advanced automatic scan will detect all channels in 45-862 MHz range.

 Teletext decoder, with Fastext, 10 page memory and detection of unused pages.

 Teletext decoder supports Pan-European, Cyrillic and Arabic characters.

 Decodes Teletext from C-Video IN signals (if Teletext is available in VBI lines).

 Stereo Audio decoder for German A2 (Zweiton) and NICAM 728.

 Master tune and fine-tune per channel (individual storage per channel).

 On screen display in several European languages.

 Accepts PAL,SECAM and NTSC signals at the Video Input.

 Direct access keys for most functions.

 NEC Plasma Display functions are supported by the remote control (dual function).

 Digital video processing and S-Video/Component outputs for highest picture quality.

 Simultaneous display of Video and Teletext (split -screen NEC Plasma Displays only).

 Returns to last TV channel after power failure.

PX-TUAN-01 Instruction Manual

-4-

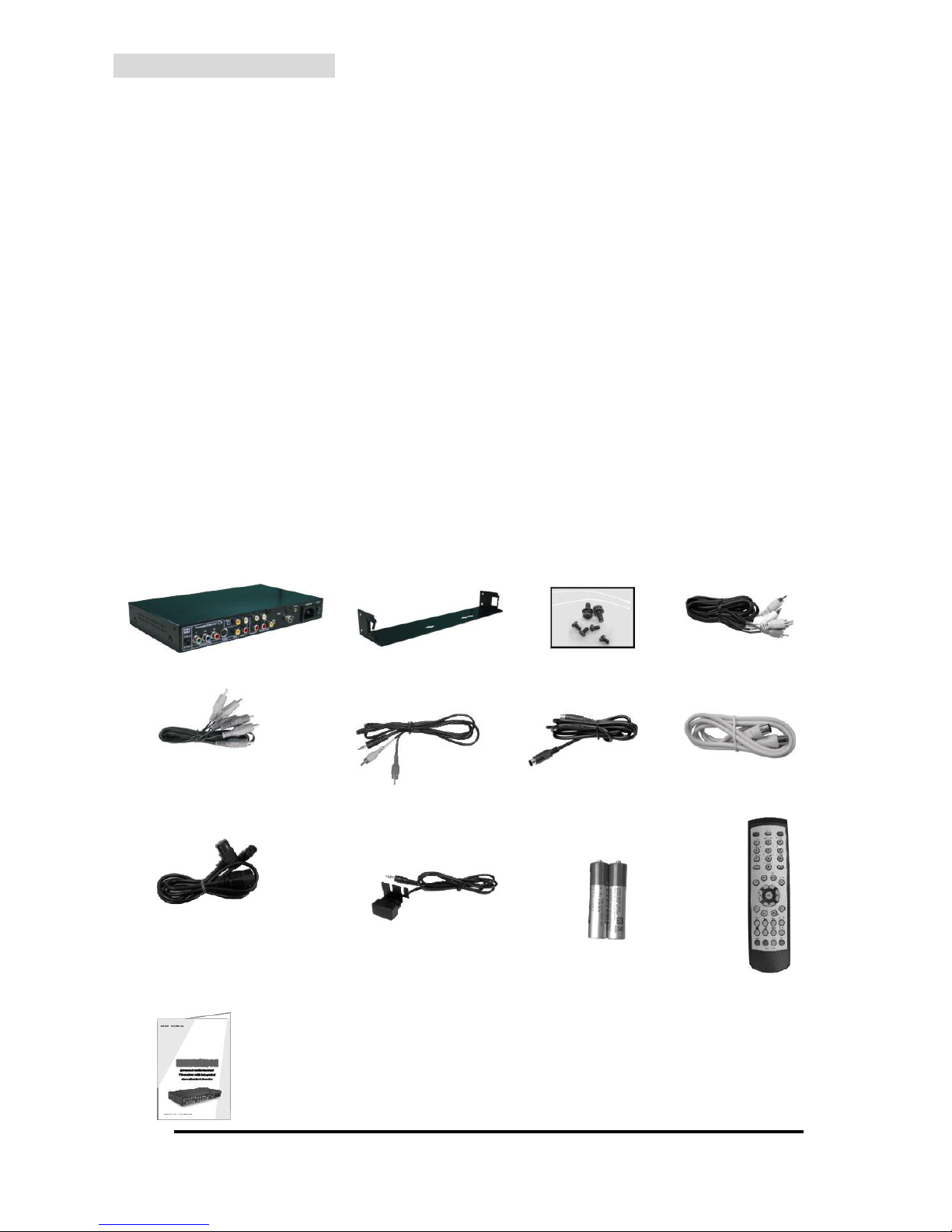

1.3 Package Contents

As you unpack the product, please make sure the following items were included. If any of

these items are missing, call your local dealer.

1. Main body………...………………………………………………….…………….……...x1

2. Bracket………..…………………………………….……………..…….…………………x1

3. Accessories kit…...…………………………...……………......................................... x1

4. A/V cable (Yellow, Red, White)..............………….............………….........................x1

5. YCbCr cable (Green, Blue, Red)………………………………………………………. x1

6. Audio cable (Red, White) .......................…………...................................................x1

7. S-Video cable……………………..……….……………............................................. x1

8. RF cable..........…………........................................…........………….……...………..x1

9. Power cable (Y-type to be used with the display power cable)..……………….....x1

10. IR sensor.........……........................................................….............…………..........x1

11. AAA batteries........…....................................................……….............….........x2

12. IR remote control...........…................……………..............………..………...…......x1

13. User Manual....…...........….............………………….........................……………......x1

1. Main body 2. Bracket 3. Accessories kit 4. A/V cable

5. YCbCr cable 6. Audio cable 7. S-Video cable 8. RF cable

9. Y-shaped power cable 10. IR sensor 11. AAA batteries 12. IR remote control

13. User manual

PX-TUAN-01 Instruction Manual

-5-

Chapter2 Installation

2.1 Product Overview

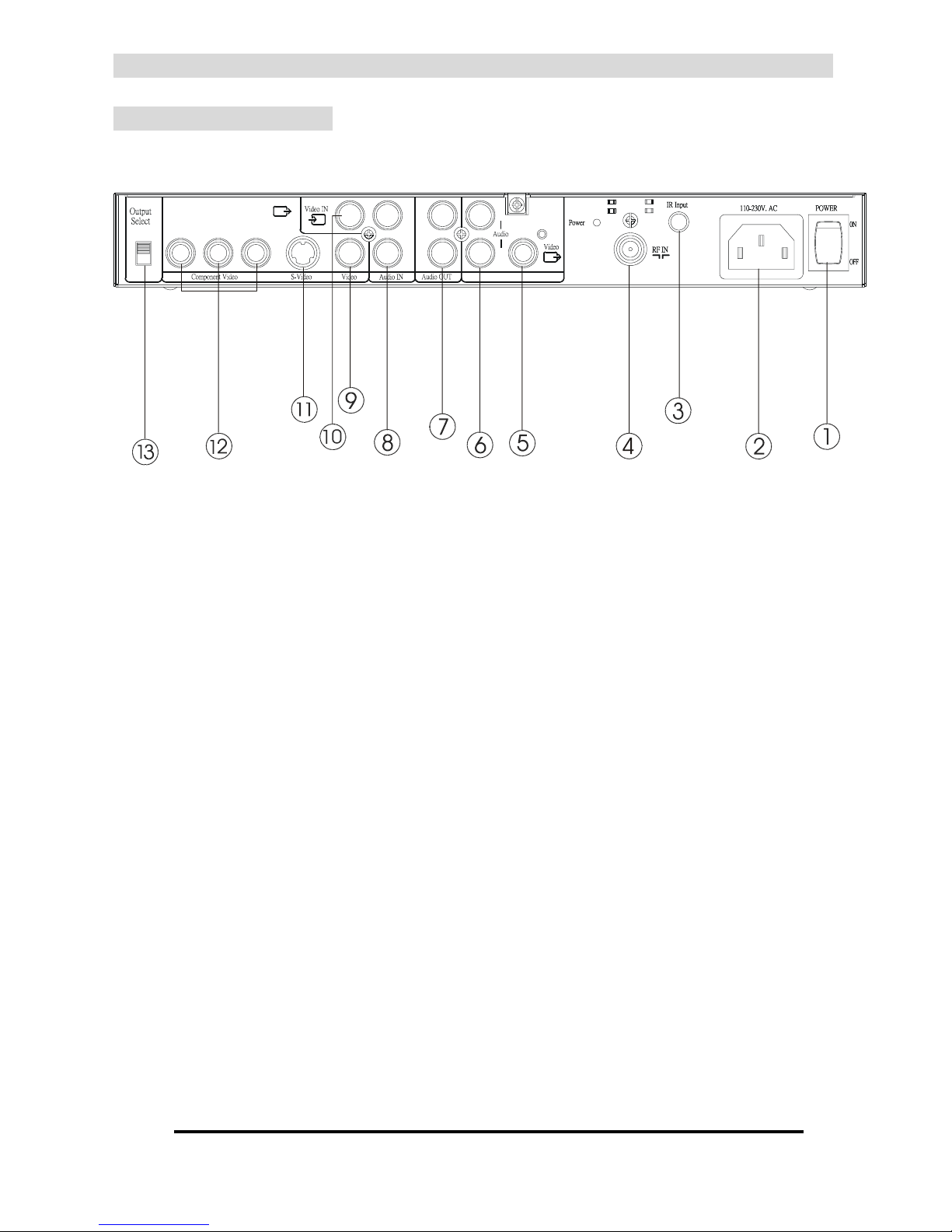

2.1.1 Rear View of Main Body

Monitor

OUT

Y Cb Cr

S-Video

Processed Video OUT

Cb Y Cr

①POWER ON/OFF

Use the power switch to select power ON or OFF.

② POWER IN

Connect one of the outputs of the supplied special power cable adapter (Y- type) to this

input. The other output of the power cable adapter should be connected to the display’s

power input. The original power cord of the display should be connected to the input of the

power cable adapter.

③ IR Input

Connect the IR sensor connection cable to the IR input.

④ RF IN

Connect the RF coaxial cable from your Cable TV network or terrestrial antenna.

⑤ Monitor OUT – Video (unprocessed “raw” Video)

This output always provides the video picture from the actual tuned TV channel. It can be

used to monitor the TV picture irrespective of the mode of the processed video outputs.

This enables you to have a simultaneous display of TV picture and Teletext for use with

NEC Plasma Display models 50XR4 and 61XR3. This output signal is not controlled by the

video settings of the tuner’s processed Video outputs but is processed solely through the

superior 3D Video decoder integrated in the NEC Monitor Display, resulting in an

outstanding TV picture.

⑥ Monitor OUT – Audio L+R

Provides always the L/R decoded audio signal from the tuner.

The Audio signal is not controlled by the Audio settings of the processed audio outputs.

PX-TUAN-01 Instruction Manual

-6-

⑦ Audio OUT

Provides the L/R decoded audio signal from tuner or an external source.

Connect with the audio inputs of your display or audio amplifier.

⑧ Audio IN

Connect with the audio output of an external source.

⑨ Processed Composite Video OUT

Connect with the Composite Video input of your NEC Plasma Display. This output provides

digitally processed video or Teletext signal from the TV tuner or external Video Input

source. This output has lowest picture quality, in particular for Teletext signals.

⑩ Video IN

Connect with the Video output of an external source.

⑪ Processed S-Video OUT

This output has same function as the Composite output but with higher quality.

⑫ Processed Component Video OUT

This output has same function as Processed Composite Video/S-Video output but with

higher quality, in particular for Teletext signals. To maintain the high quality, always use the

correct type of cable (with green/blue/red connectors).

Don’t use A/V cables (with yellow/red/white connectors).

⑬Output Select

Select the required output format, either YCbCr or S-Video. It is recommended to use the

YCbCr mode.

PX-TUAN-01 Instruction Manual

-7-

2.2 System Installation

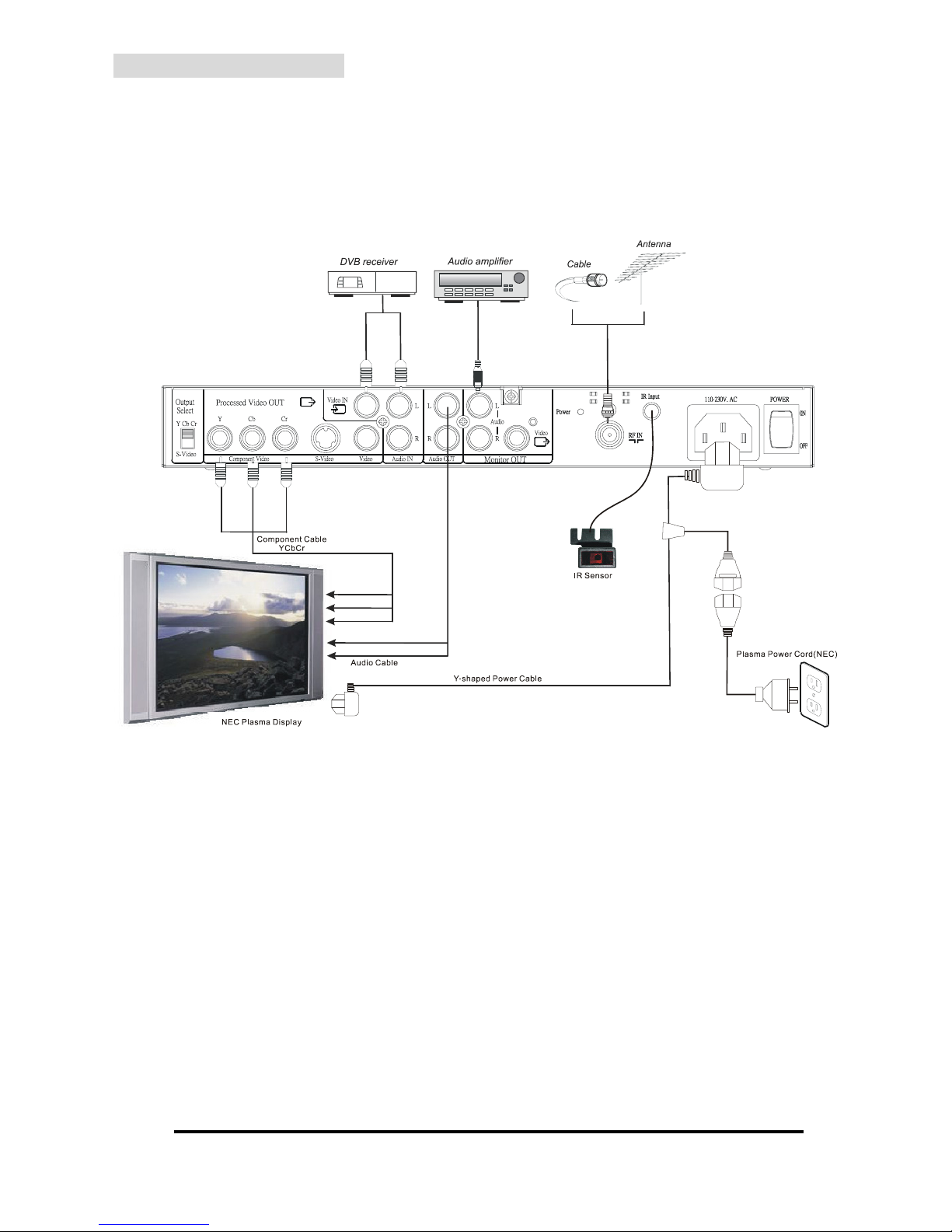

2.2.1 Standard Connection

Please refer to the example closest to your configuration

Please turn off the power of all devices before connection!

PX-TUAN-01 Instruction Manual

-8-

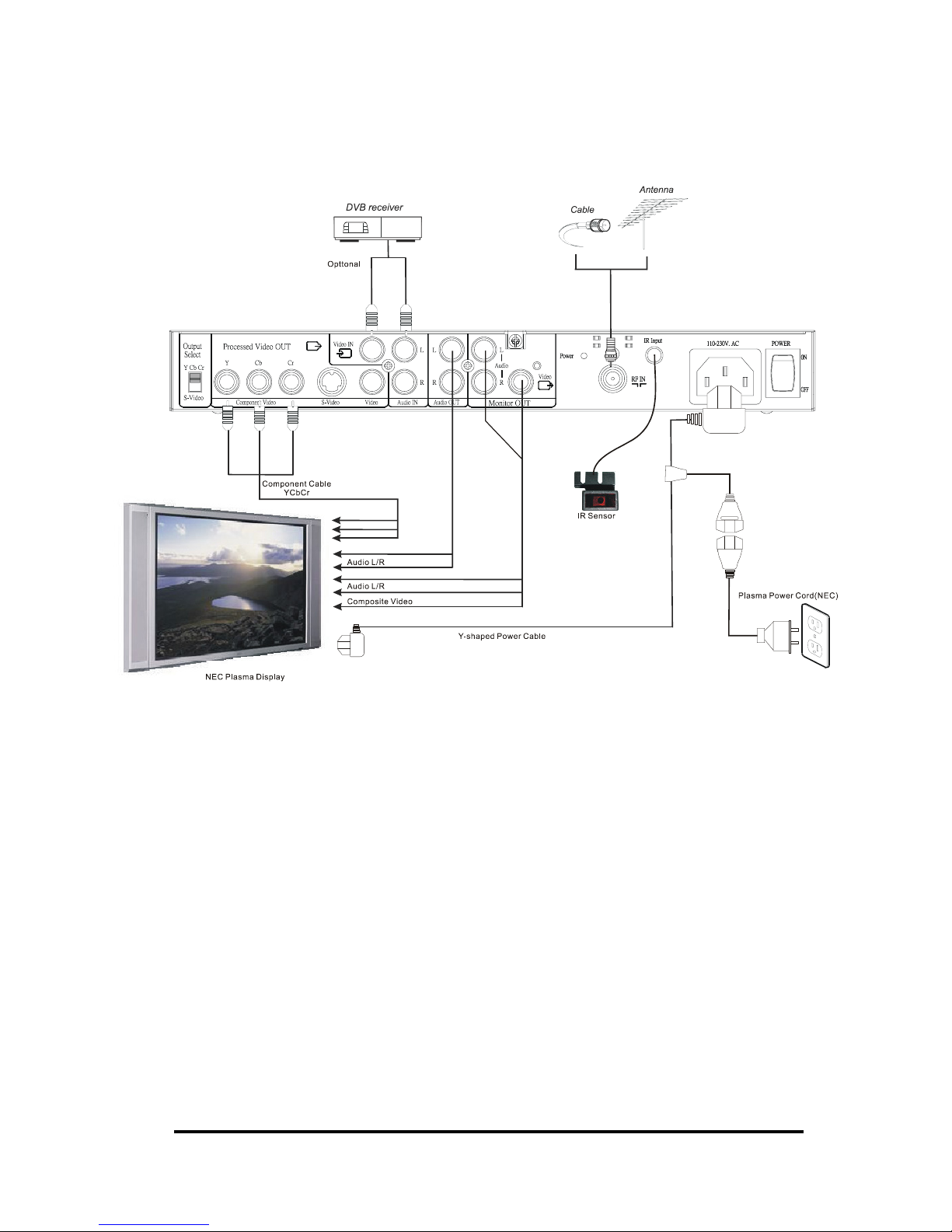

2.2.2 Extended Connection for Split Screen Display

Please refer to the example closest to your configuration

Please turn off the power of all devices before connection !

PX-TUAN-01 Instruction Manual

-9-

2.2.3 Audio/Video

For audio connection, use the Audio L+R connectors (RCA, white+red).

Connect the “Audio OUT” to the “Audio INPUT” of the NEC Plasma Display.

Make sure that the used Audio INPUT is linked with the used Video INPUT (double check in

NEC “AUDIO” settings menu)

For video connection use the YCbCr (RCA, green+blue+red) cable.

Connect the YCbCr OUTPUT of the tuner box with the YCbCr (DVI/HD) INPUT of the

NEC Plasma Display (please double check that switch of the tuner box is in YCbCr mode).

If for whatever reason you can’t use the YCbCr INPUT of your NEC Plasma Display, you may

use the processed S-Video or Composite connection.

The MONITOR Video Output of the tuner will only display the actual received TV channel.

This output has no OSD (On Screen Dislay) information and no Teletext.

2.2.4 Antenna

It’s important to use high quality coaxial cable and connectors (with a high screening of more

than 60dB as supplied in the package).

A lower quality coaxial cable and connectors can cause serious picture quality

problems due to interference and/or reflections!

PX-TUAN-01 Instruction Manual

-10-

Chapter 3 Basic Settings

3.1 Initial Settings

The PX-TUAN-01 has been designed to comply with the plug and play principle. It’s very

easy to set up due to several smart and unique features. If you are connected to a cable

network (providing ACI information) the tuner will automatically recognize the ACI information

during scanning and program the tuner according to the list as provided by the cable operator.

If no ACI information is available, the tuner will detect most channel names from Teletext

information, if available, and copy them into the channel label table.

Remark:

For your convenience the Tuner remote control unit has double functions (NEC Plasma Display +

Tuner mode). In the initial setting procedure we recommend to use your actual NEC remote control to

operate the display and to use the Tuner remote control only to operate the Tuner. After setting up has

been successfully completed you may find it more convenient to operate your NEC display with the

Tuner remote control.

After having made the connections, as described in 2.2, follow the following steps:

-1- Install the supplied AAA batteries into remote control.

-2- Make sure the power main switch on the tuner box is in “ON” position.

Press the “ON” key on the remote control. Both Display and Tuner are operated by this command

(be sure that power LED of Display and Tuner are both “Green”)

-3- Select the appropriate Input of your NEC display and this will display the blue background picture

generated by the PX-TUAN-01.

-4- Press “Tuner” key on the remote control. On the blue screen the text “Tuner” will appear.

If this is NOT the case, don’t go to next point but double check all previous steps.

-5- The default OSD language is English. If this is your desired language go to the next point.

If you prefer another language, press the Yellow key on the remote control and select desired

language from the OSD it with "▲" or "▼" key and confirm with pressing the “OK” key.

-6- The default TV system is PAL BG (for most of continental Europe). If this is OK go to next point.

If your TV system is PAL-I (UK, Ireland) or SECAM (France and other countries), press the BLUE

key and select desired standard with "▲" or "▼" key and confirm with the “OK” key. The tuner

will automatically change the A/V settings (for ALL channels) and load the correct programmed

channel table (see section 5.3).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere NEC Fernsehempfänger Handbücher

NEC

NEC NHD-2000 Bedienungsanleitung

Beliebte Fernsehempfänger Handbücher anderer Marken

Edision

Edision Piccollino Bedienungsanleitung

Matsui

Matsui DTR1 Bedienungsanleitung

Dyon

Dyon Raptor Bedienungsanleitung

Strong

Strong SRT 2401 Betriebsanleitung

TerraTec

TerraTec CINERGY DT USB XS DIVERSITY Gebrauchsanweisung

Haier

Haier 34F9K Bedienungsanleitung

TechniSat

TechniSat DigiCom 1 Bedienungsanleitung

Haier

Haier LT19A1 Bedienungsanleitung

Triax

Triax CR 317 Bedienungsanleitung

DirecTV

DirecTV D10-300 Bedienungsanleitung

Motorola

Motorola VIP2502W Bedienungsanleitung

ActionTec

ActionTec WirelessTV Bedienungsanleitung

Motorola

Motorola VIP1200 Series Bedienungsanleitung

Xoro

Xoro HRT 1300 Bedienungsanleitung

Motorola

Motorola DH6200 Bedienungsanleitung

Manhattan

Manhattan Plaza DS-100 Bedienungsanleitung

Micro Prose

Micro Prose MPI-500 Bedienungsanleitung

TechniSat

TechniSat DIGIT ISIO S Gebrauchsanweisung
