Neilsen CT2206 Bedienungsanleitung
100LB WALK BEHIND SPREADER CT2206
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
1
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety
and health requirements of the EC Directive based on its design and type, as
brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description: 100 LB WALK-BEHIND SPREADER
Model: CT2206
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
Harmonized standards
EN ISO 12100:2010, EN ISO 13854:2019,
EN ISO 14120:2015, EN ISO 13857:2019
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
sign
Gurcharan Tony Singh Sanghera
2021-07-05
2
1. SPECIFICATIONS
Capacity: 100LB
Spread Width: 10'-12'/3048mm-3658mm
Plastic Tyre: 12"
Coverage: 20000 sq/ft
Heavy duty nylon gear.
Rate setting control on handle for precise adjustments.
Accessories: screen & rain cover
2. GENERAL SAFETY INSTRUCTIONS
Warning: When using tool, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment. Read all instructions
before using this tool!
STAY ALERT. Do not operate the machine while under the influence of drugs,
alcohol, or any medication that could affect your ability to use it properly. Do not
use this machine when you are tired or distracted from the job at hand. Be aware
of what you are doing at all times. Use common sense.
AVOID DANGEROUS CONDITIONS. Make sure there is adequate surrounding
workspace. Cluttered areas invite injuries. Keep your work area clean with
sufficient light. Keep the area around the machine clear of obstructions, grease,
oil, rubbish & other debris which could cause persons to fall onto moving
parts.
INSPECT YOUR MACHINE. Check all bolts, nuts & screws for tightness before
each use, especially those securing guards & drive mechanisms. Vibration
during use, may cause these to loosen. Replace damaged, missing or
failed parts before using. Warning labels carry important information. Replace
any missing or damaged warning labels.
CRUSH AND CUT HAZARDS. Always keep your hands and feet clear from
moving parts while operating the equipment. Always keep the work area clean
and clear when operating.
3
CONDITIONS. We recommend the machine is not used during winds. This may
affect the spreading pattern.
DRESS PROPERLY. Do not wear loose clothing, gloves, scarfs, neckties
or jewellery (rings, wrist watches), which can be caught in moving parts.
DO NOT OVERREACH. Keep proper footing and balance at all times
when using the machine. Never stand on the machine. Serious injury could occur
if the machine is tipped or if the moving parts are unintentionally contacted. Do
not store anything above or near the machine, where anyone might stand on the
machine to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT. Keep hands & feet out of the
way of all moving parts. Do not place any part of your body or any tool e.g. in
moving parts of the machine during operation.
DO NOT FORCE TOOL. Always work within the rated capacity. Do not operate
for a purpose for which it was not intended.
MAINTAIN YOUR MACHINE WITH CARE. Clean the machine immediately after
use. Keep the machine clean to ensure it operates to its full & safest
performance. When maintaining this machine, only the manufacturer’s original
replacement parts should be used.
PROTECT THE ENVIRONMENT. Take left over materials to an authorised
collection point or follow the stipulations in the country where the machine is
used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT. When not in use, the machine should be stored in a
dry location. Keep the machine away from children and others not qualified to
use it.
OPERATION SPEED. Do not exceed 6 mph, to avoid personal injury and/or
equipment damage.
TYRE INFLATION. WARNING! Over-inflated tyres can explode and cause
serious injury. Avoid injury by NEVER over inflating tyres beyond the maximum
pressure printed on the side of the tyre wall. ALWAYS use FOOT or HAND pump
inflation devices.
This is a garden/domestic product, therefore extended use over abrasive
surfaces (e.g. concrete, tarmac etc.) could cause premature wear on the tyres.
4

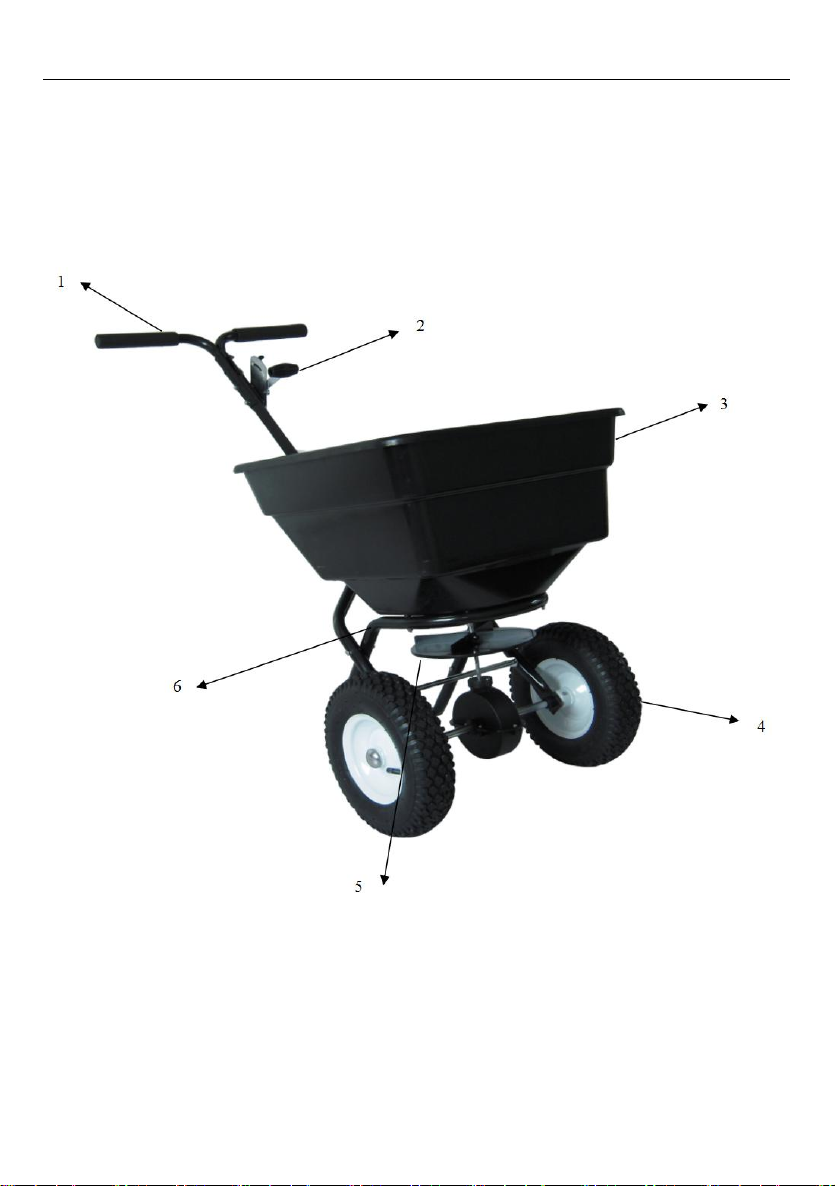

3. CONTROLS AND FEATURES IDENTIFICATION
Read this owner’s manual before operating the equipment. Familiarize yourself
with the location and function of the controls and features. Save this manual for
future reference.
1) Handle – Pushes and moves the spreader easily.
2) Flow Control – Controls the flow of material being spread.
3) Hopper – Do not exceed rated load capacity 100lb.
4) Tires / Wheel – Do not exceed recommended rated 25 PSI.
5) Impeller - Evenly distributes material.
6) Support Leg – Stabilizes load and spreader.
5
4. ASSEMBLY AND OPERATING INSTRUCTIONS
1. HELPFUL HINTS:
READ THE INSTRUCTIONS BEFORE ASSEMBLY
This push spreader is designed to spreader a wide range of materials (Fertilizer
and Grass Seed). Materials such as Powders, Manure, Top Soil, Gravel, and
Mulch have the wrong physical characteristics and should not be used with this
spreader. Never exceed the rated load capacity of 100lbs when operating the
spreader.
Your spreader needs to be pushed at three miles per hour, which is a brisk
walking speed. Slower or faster speeds will change the spread patterns. Wet
spreading material will also change the spread pattern and flow rate. Clean your
spreader thoroughly after each use. Wash between the shut off plate and bottom
of the hopper.
Ensure that the FRONT of the gear box points to the front of the spreader. The
impeller must turn clockwise. Reversing the gear box will cause the impeller to
turn counter clockwise. Clean the impeller plate after each use. Spreading
material stuck on the impeller blades will cause uneven spreading.
Do not open the gear box or dirt may enter these gears are permanently
lubricated at the factory.

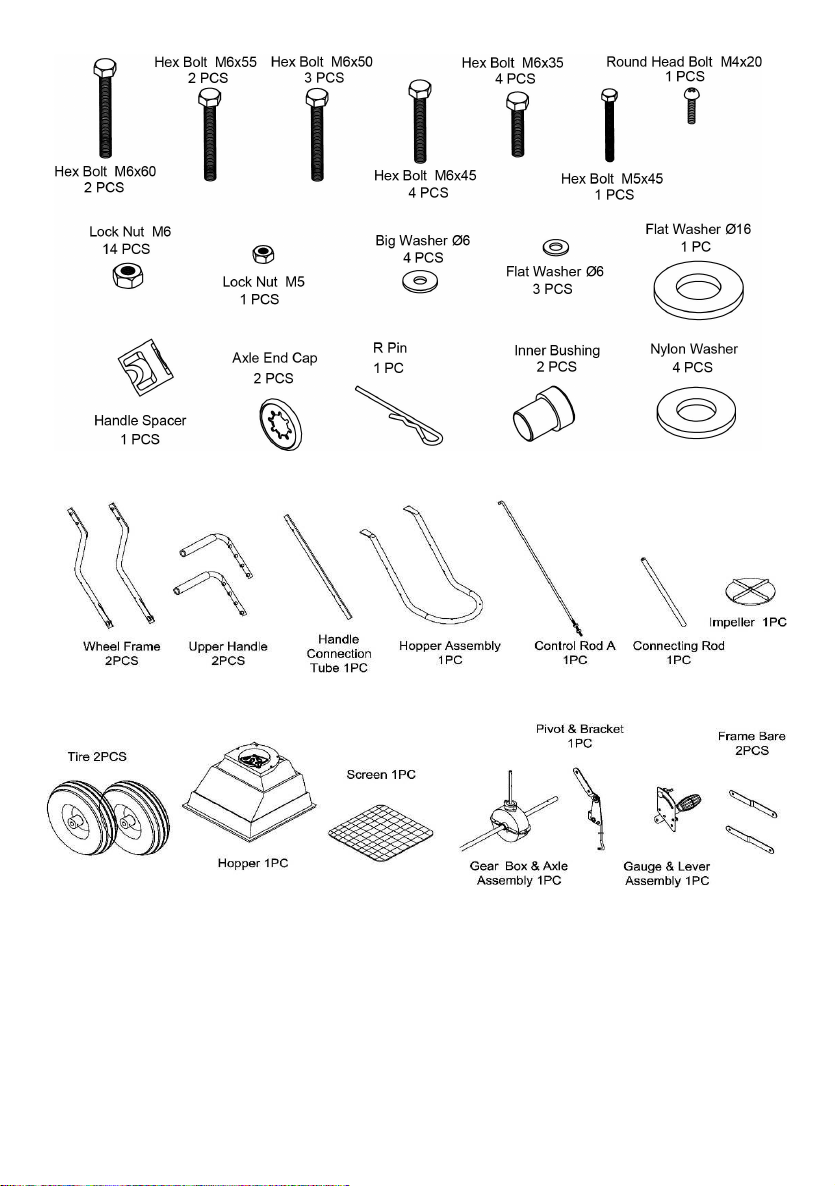

2. PUSH SPREADER COMPONENT PARTS AND ASSEMBLE.
Take all parts out of the shipping crate and inspect components to ensure there
are no missing pieces before starting to assemble the push spreader follow steps
1 through 8.
TOOLS REQUIRED
Rubber Hammer
8mm Wrench
10mm Wrench
Phillips Screwdriver
6
3. ASSEMBLY
STEP 1: Install impeller onto the Gear Box
1.Insert Screw M4x20 through impeller then through gear box axle.
7
STEP 2: Install Wheel Assembly Frame on the Gear Box
1. Make sure the hole on axle of gear box is on the right side of the assembly as
shown below. Attach one end of frame brace to hopper frame assembly using
bolts M6 x 35 and lock nuts M6.
2. Insert two bolts M6 x 35 into the connecting cross rod through the wheel
assembly frames and frame braces. Insert bolts M6x60 through the wheel
assembly frames onto hopper frame assembly, put on lock nuts M6 and loosely
tighten.
Bolt M6x35
8
STEP 3: Insert Inner Axle Bushing into Outer Axle Bushing
1. Make sure everything has been tightened. Install the right tire assembly to
right axle using bolt M5 x 45 and lock nut M5, and then install nylon washer and
end cap onto right axle using a wooden or rubber hammer.
2. Install the left tire assembly to left axle, put a nylon washer and flat washer
Ø16 and install the end cap onto the left axle using a wooden or rubber hammer.
9

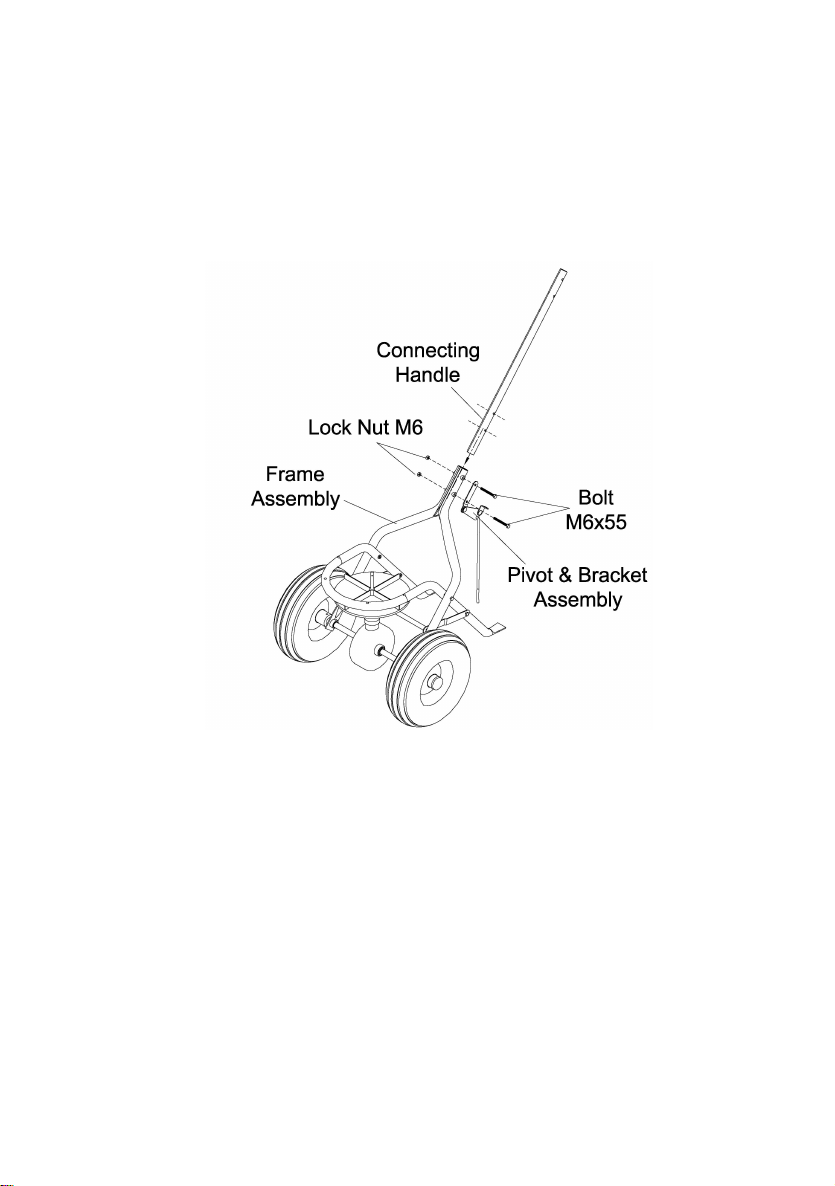

STEP 4: Installing Connecting Handle
1. Put the connecting handle between the two lower handles of the wheel frame
assembly.
2. Attach the pivot & bracket assembly to the lower handles of the wheel frame
assembly using bolts M6x55 and lock nuts M6.
3. Tighten all nuts and bolts starting with the first step DO NOT OVER
TIGHTEN.
