HD IR Waterproof Fixed Network Camera Quick Start Guide

Version 1.0.1

Welcome

Thank you for purchasing our network camera!

This quick start guide is designed to be a reference tool for your system.

Please keep this start guide well for future reference.

Please open the accessory bag to check the items one by one in accordance with the list below.

Contact your local retailer ASAP if something is missing or damaged in the bag.

Before your operation please read the following instructions carefully.

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please

note: Do not connect two power supplying sources to the device at the same time; it may result

in device damage!

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series network camera should be installed in a cool, dry place away from direct sunlight,

inflammable, explosive substances and etc.

Please keep it away from the electromagnetic radiation object and environment.

Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.

Otherwise it may result in CCD (CMOS) optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

Thunder-proof device is recommended to be adopted to better prevent thunder.

The grounding studs of the product are recommended to be grounded to further enhance the reliability

of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens

surface.

Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to

dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the

device.

Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.

Dome enclosure is the optical component, do not touch the enclosure when you are installing the

device or clean the enclosure when you are doing maintenance work. Please use professional optical

clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result

in poor IR effect of camera with IR function.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera Unit

Quick Start Guide

iii

Table of Contents

1Structure........................................................................................................................1

1.1 Multiple-function Combination Cable.................................................................1

1.2 Framework and Dimension...............................................................................2

1.3 Bidirectional talk................................................................................................3

1.3.1 Device-end to PC-end.................................................................................3

1.3.2 PC-end to the Device-end...........................................................................3

1.4 Alarm Setup......................................................................................................4

1.4.1 Alarm IN/OUT Connection..........................................................................4

2Device Installation .........................................................................................................6

3Quick Configuration Tool...............................................................................................7

3.1 Overview...........................................................................................................7

3.2 Operation..........................................................................................................7

4Web Operation ..............................................................................................................9

4.1 Network Connection..........................................................................................9

4.2 Login and Logout..............................................................................................9

Appendix Toxic or Hazardous Materials or Elements ........................................................11

1 Structure

1.1 Multiple-function Combination Cable

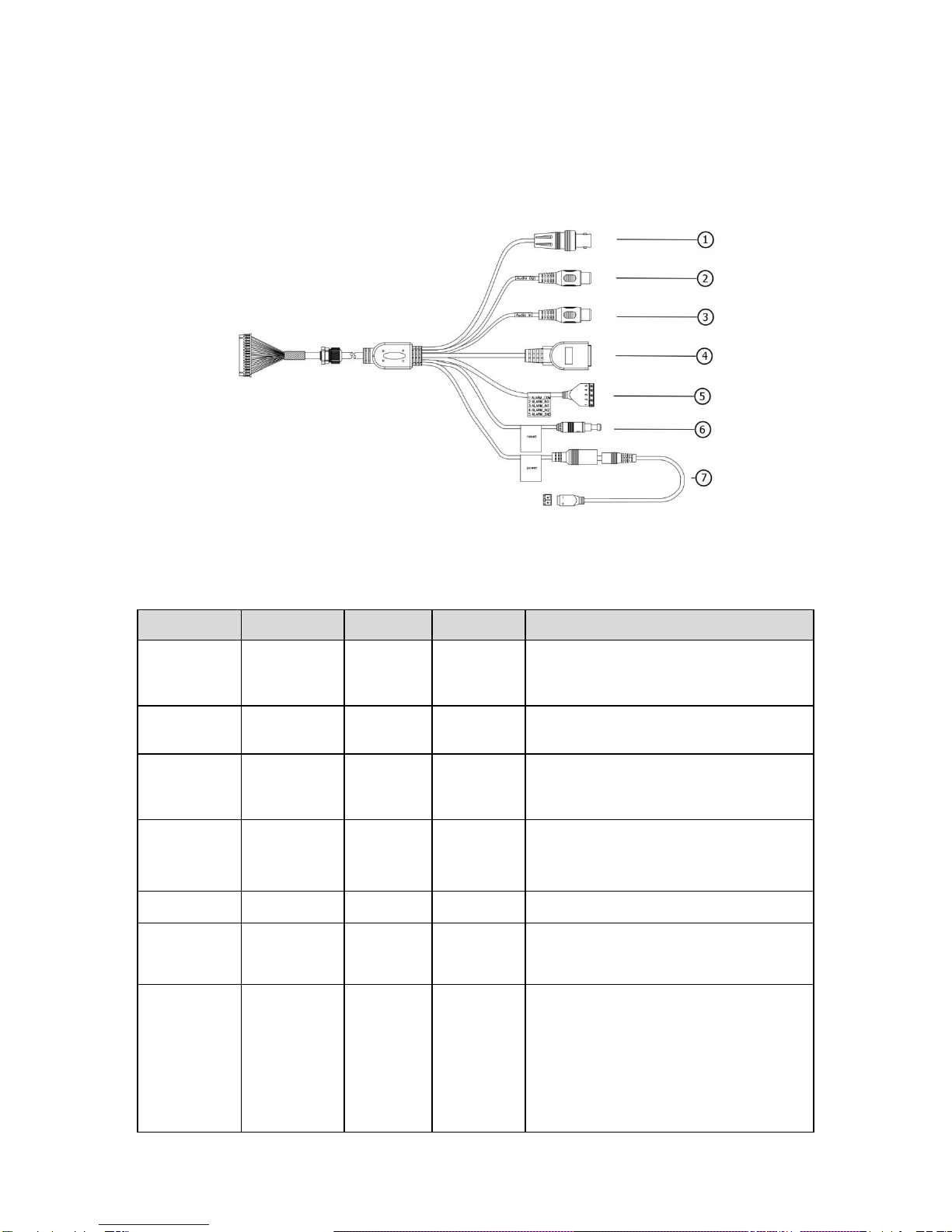

You can refer to the following figure for multiple-function combination cable information. See

Figure 1-1.

Figure 1-1 Multiple-function combination cable

Please refer to the following sheet for detailed information.

No.

Port Name

Function

Connection

Note

VIDEO OUT

Video

output

port

BNC

Output analog video signal. It can

connect to the TV monitor to view the

video.

AUDIO IN

Audio

input port

RCA

Input audio signal. It can receive the

analog audio signal from the pickup.

AUDIO OUT

Audio

output

port

RCA

Output audio signal to the devices such

as the sound box.

LAN

Network

port

Ethernet

port

Connect to standard Ethernet

cable.

Support PoE.

I/O

I/O port

Includes alarm input and output.

RESET

Reset

button

The reset button is to restore device

factory default setup.

POWER

Power

input port

Power port. Input DC 12V or AC 24V

power.

Please connect the DC5.5 round port

to 2-pin converter cable when you

are using AC 24V power.

For a standard DC 12V device, DC5.5

round port is not included.

Please refer to the follow sheet for detailed pin information.

Port Name

Name

Note

I/O Port

ALARM_COM

Alarm output public port.

ALARM_NO

Alarm output port. It is to output the alarm signal to the

alarm device.

NO: normal open alarm output port.

ALARM_IN1

Alarm input port 1. It is to receive the on-off signal from

the external alarm source.

ALARM_IN2

Alarm input port 2. It is to receive the on-off signal from

the external alarm source.

GND

Ground port

1.2 Framework and Dimension

Please refer to the following two figures for dimension information. The unit is mm. See Figure 1-

2 and Figure 1-3.

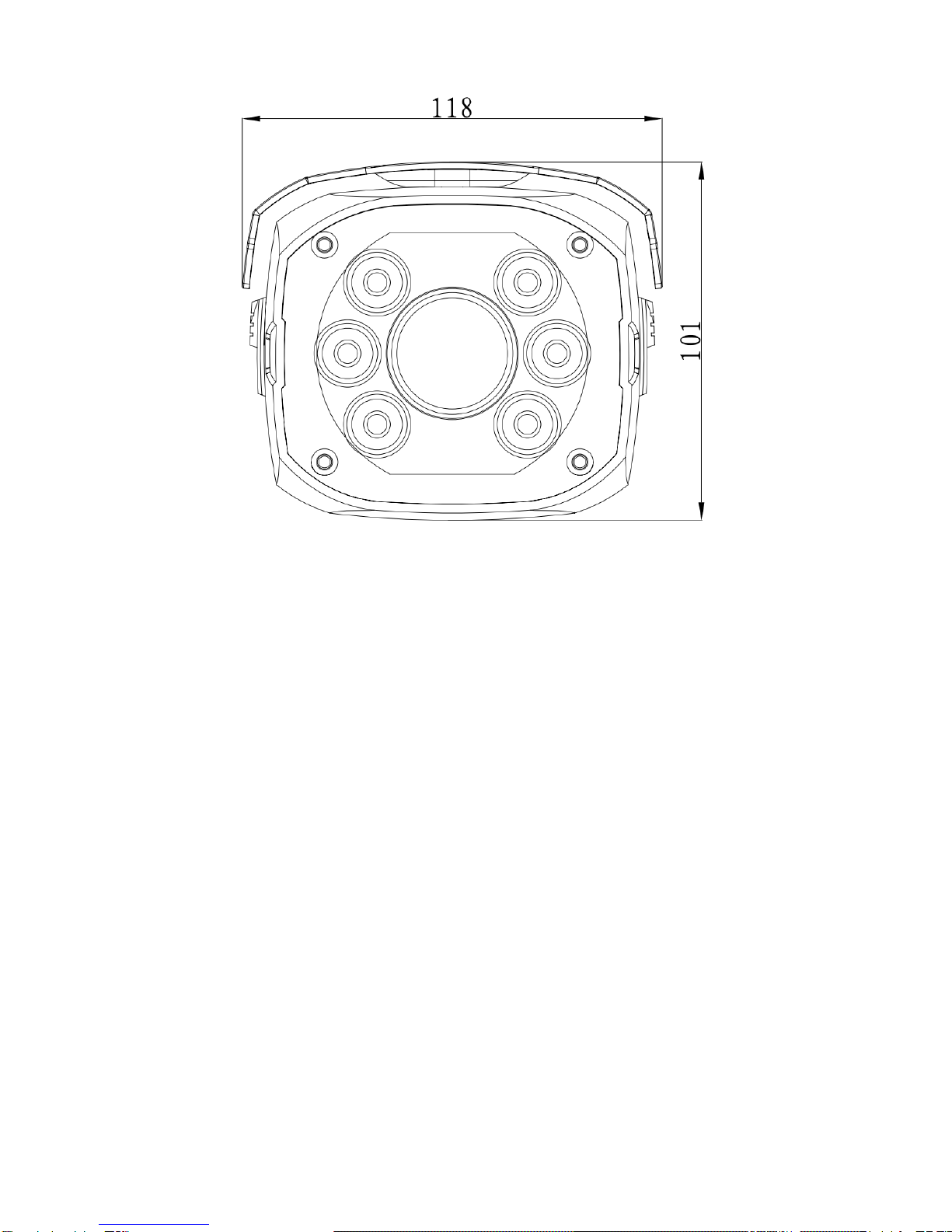

Figure 1-2 Dimension illustration 1

Figure 1-3 Dimension illustration 2

1.3 Bidirectional talk

1.3.1 Device-end to PC-end

Device Connection

Step 1: Please connect the speaker or the MIC to the audio input port of the device.

Step 2: Then connect the earphone to the audio output port of the PC.

Step 3: Login the Web and then click the Talk button to enable the bidirectional talk function. You

can see the button becomes orange after you enabled the bidirectional talk function. Click Talk

button again to stop the bidirectional talk function.

Listening Operation

At the device end, speak via the speaker or MIC, and then you can get the audio from the

earphone or sound box at the pc-end.

1.3.2 PC-end to the Device-end

Device Connection

Step 1: Connect the speaker or the MIC to the audio input port of the PC.

Step 2: Then connect the earphone to the audio output port of the device.

Step 3: Login the Web and then click the Talk button to enable the bidirectional talk function. You

can see the button becomes orange after you enabled the audio talk function. Click Talk button

again to stop the bidirectional talk function.

Please note the on-site listening operation is null during the bidirectional talk process.

Listening Operation

At the PC-end, speak via the speaker or MIC, and then you can get the audio from the earphone

or sound box at the device-end.

1.4 Alarm Setup

The alarm interface is shown as in Figure 1-4.

Figure 1-4 Alarm

Please follow the steps listed below for local alarm input and output connection.

1) Connect the alarm input device to the alarm input port (No.3 pin or No.4 pin) of the I/O cable.

2) Connect the alarm output device to the alarm output port (No.2 pin) and alarm output public

port (No.1 pin). The alarm output port supports NO (normal open) alarm device only.

3) Open the Web, go to the Figure 1-4. Please set the alarm input 01 port for the first channel of

the I/O cable (No.3 pin). Then you can select the corresponding type (NO/NC.)

4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is

the No.2 pin of the I/O cable.

1.4.1 Alarm IN/OUT Connection

Please refer to the following figure for alarm input information. See Figure 1-5.

Alarm input: When the input signal is idle or grounded, the device can collect the different

statuses of the alarm input port. When the input signal is connected to the 5V or is idle, the

device collects the logic “1”. When the input signal is grounded, the device collects the logic “0”.

Figure 1-5 Alarm input

Please refer to the following figure for alarm output information. See Figure 1-6.

Port ALARM_COM and Port ALARM_NO composes an on-off button to provide the alarm output.

If the type is NO, this button is normal open. The button becomes off when there is an alarm

output.

Figure 1-6 Alarm output

2 Device Installation

Important

Please make sure the installation surface can min support the 3X weight of the camera

and the bracket.

Please follow the steps listed below to install the device. Please refer to Figure 2-1 for reference.

Please line up the installation holes of the bottom of the device to the installation holes in

the front part of the bracket. Then insert the screws to the holes to fasten the device on

the bracket.

Dig four holes in the wall or the surface, and then input the expansion bolts to the holes

and secure.

Put the four fixed holes of the bottom of the bracket to the four holes you just dug in the

wall or surface. Put the four fixed screws to the four holes of the bracket and then secure

firmly. Finally you can fix the bracket on installation surface.

Figure 2-1 Device installation illustration
