NetComm NF15ACV Bedienungsanleitung

QUICK START GUIDE

NetCommWireless

NF15ACV

VDSL / ADSL Dual Band AC1200

WiFi Gigabit Modem Router

with Voice

QSG-00086 rev1 NF15ACV.indd 1 22/12/2015 10:28 am

VDSL / ADSL Dual Band AC1200 WiFi Gigabit Modem Router with Voice - NF15ACV

WELCOME

Thank you for choosing a NetComm Wireless VDSL/ADSL Dual Band AC1200 WiFi Gigabit Modem

Router with Voice. This guide is designed to get you up and running quickly with your new router. More

advanced conguration instructions can be found in the user guide which can be downloaded from

www.netcommwireless.com

PACKAGE CONTENTS

This package includes:

VDSL/ADSL Dual Band AC1200 WiFi

Gigabit Modem Router with Voice

(NF15ACV)

WiFi security card RJ45 Ethernet cable

RJ11 Telephone cable

Quick Start Guide

Power supply (12V/1.5A)

Warranty card

2.4GHz - 2.4GHz -

5GHz - 5GHz -

If any of these items are missing or damaged, please contact your retailer or distributor.

QSG-00086 rev1 NF15ACV.indd 2 22/12/2015 10:29 am

VDSL / ADSL Dual Band AC1200 WiFi Gigabit Modem Router with Voice - NF15ACV

SETUP YOUR ROUTER

1. Connect the included power adapter to the power socket on the rear of the router then connect the

other end of it to a wall power outlet.

2. Connect your internet service to the router.

DSL connections

a. Attach one end of the included Telephone cable to the DSL port on the back of the router. Attach

the other end to the telephone wall socket.

DSL WAN

Off

Tel 1

12VDC 1.5Amp

1 2 3 4Eth

DSL WAN 2

Off

Tel 1

12VDC 1.5Amp

1 2 3 4Eth

QSG-00086 rev1 NF15ACV.indd 3 22/12/2015 10:29 am

VDSL / ADSL Dual Band AC1200 WiFi Gigabit Modem Router with Voice - NF15ACV

DSL WAN 2

Off

Tel 1

12VDC 1.5Amp

1 2 3 4Eth

WAN/Fixed line connections (such as NBN/UFB)

b. Attach one end of the included Ethernet cable to the blue WAN port on the back of the router.

Attach the other end to your xed line modem.

QSG-00086 rev1 NF15ACV.indd 4 22/12/2015 10:29 am

VDSL / ADSL Dual Band AC1200 WiFi Gigabit Modem Router with Voice - NF15ACV

CONNECTING VIA AN ETHERNET CABLE

If you want to connect your computer to the router via Ethernet cable, follow these instructions.

1. Connect an Ethernet cable to one of the yellow LAN ports on the back of the NF15ACV router.

2. Connect the other end of the Ethernet cable to your computer.

NOTE: There is only one Ethernet cable supplied. If you require more than one Ethernet cable, any

standard Ethernet cable is suitable.

CONNECTING VIA WIFI

1. Ensure WiFi is enabled on your device (e.g. computer/smartphone/gaming console).

2. Scan for wireless networks in your area and connect to the network name that matches the

Wireless Network Name found on the Wireless Security Card (included in the box).

3. When prompted for your wireless security settings, enter the Wireless Security Key listed on your

Wireless Security Card.

DSL WAN 2

Off

Tel 1

12VDC 1.5Amp

1 2 3 4Eth

QSG-00086 rev1 NF15ACV.indd 5 22/12/2015 10:29 am

VDSL / ADSL Dual Band AC1200 WiFi Gigabit Modem Router with Voice - NF15ACV

CONNECTING THE ROUTER TO THE INTERNET

These steps guide you through conguring an Ethernet WAN connection. To congure a Mobile

Broadband connection, please refer to the product User Guide available at www.netcommwireless.com

1. After you have established a connection to the router using the previous steps, open your web

browser and type http://192.168.20.1 into the address bar at the top of the web browser window

and press Enter.

2. Enter admin into both the Username and Password elds and click OK.

The Status page is displayed.

3. From the menu on the left side of the screen, select the Wizard item.

The Wizard is displayed.

QSG-00086 rev1 NF15ACV.indd 6 22/12/2015 10:29 am

VDSL / ADSL Dual Band AC1200 WiFi Gigabit Modem Router with Voice - NF15ACV

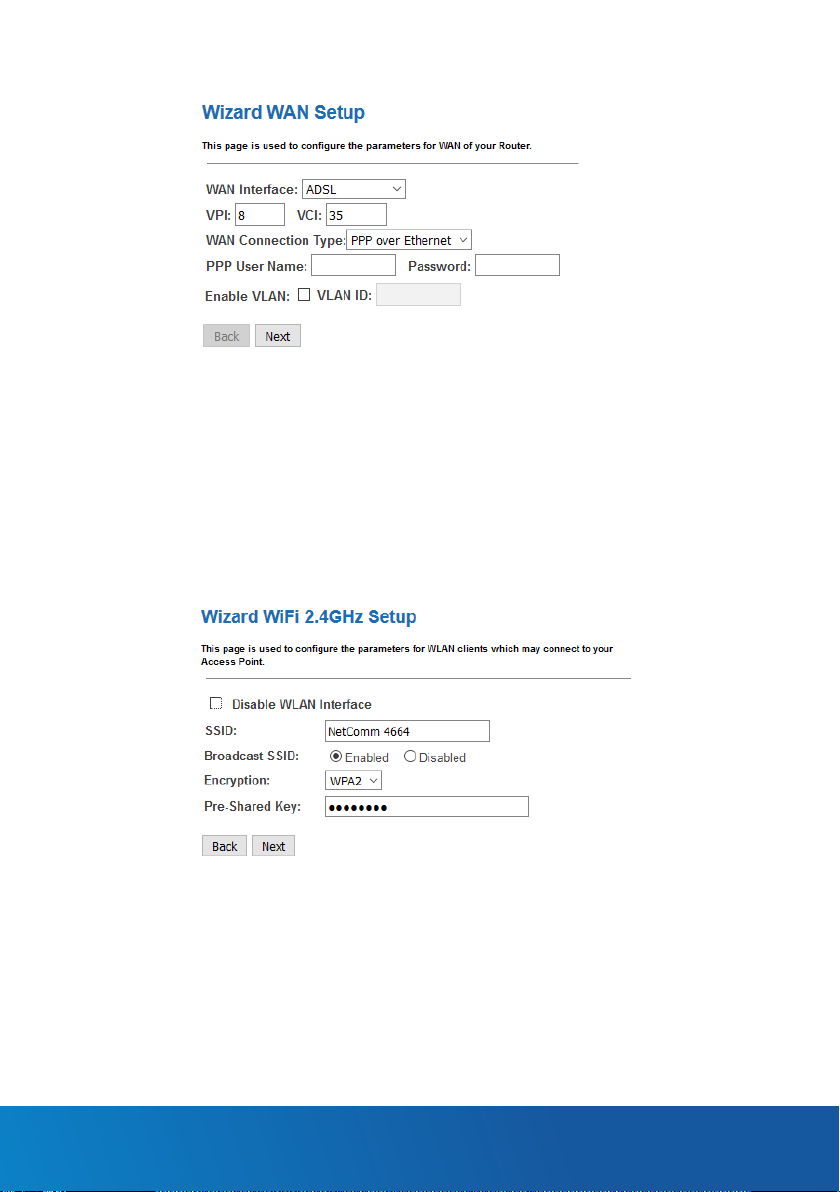

4. From the WAN Interface drop down list, select your internet connection type.

5. Enter the details in the remaining elds as required by your ISP. If you do not have the details

required, contact your ISP.

6. By default, the 2.4GHz WiFi radio is turned on and the SSID (network name) is being broadcast.

This means it is discoverable by wireless client devices when they perform a scan of nearby access

points on the 2.4GHz spectrum. Use this page of the wizard to enable or disable the 2.4GHz WiFi

radio and SSID Broadcast status or change the SSID name, Encryption type and the Pre-Shared

Key. When you have nished, click the Next button.

QSG-00086 rev1 NF15ACV.indd 7 22/12/2015 10:29 am

QSG-00086 rev1

7. By default, the 5GHz WiFi radio is turned on and the SSID (network name) is being broadcast. This

means it is discoverable by wireless client devices when they perform a scan of nearby access

points on 5GHz spectrum. Use this page of the wizard to enable or disable the 5GHz WiFi radio and

SSID Broadcast status or change the SSID name, Security key type and the Security key. When you

have nished, click the Next button.

8. This page allows you to congure the “administrator” and “user” passwords used to access the

conguration pages. We highly recommend that you change the password from the default setting

to protect your router from unauthorized access. From the User Name drop down list, select the

admin or user account then enter the old password and new passwords in the respective elds.

When you have nished, click the Submit button.

A pop-up message is displayed informing you that the router must be rebooted for the changes to

take effect.

9. Click the OK button. The router reboots with the new settings and connects to the internet using the

settings you specied.

QSG-00086 rev1 NF15ACV.indd 8 22/12/2015 10:29 am
