XAVB1401 Powerline AV+

200 Mini Set

User Manual

XAV1401 Powerline AV+ 200 Mini Set User Manual

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form or by any means without the written permission of NETGEAR, Inc.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online,

visit us at http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries): Check the list of phone numbers at

http://support.netgear.com/app/answers/detail/a_id/984.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of

NETGEAR, Inc. and/or its subsidiaries in the Unitied States and/or other countries. Information is subject to

change without notice. Other brand and product names are registered trademarks or trademarks of their

Statement of Conditions

To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes

to the products described in this document without notice. NETGEAR does not assume any liability that may occur

due to the use, or application of, the product(s) or circuit layout(s) described herein.

Revision History

Publication Part Number Version Publish Date Comments

202-10954-01 v1.0 December 2011 First publication

Contents |3

Contents

Chapter 1 Installation and Basic Configuration

How the XAV1401 Fits in Your Network. . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Powerline XAV1401 Nano Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

XAV1401 Product Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

LED and Feature Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installing Your Powerline XAV1401 Nano . . . . . . . . . . . . . . . . . . . . . . . . . .7

Prepare for Installation: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connecting a Powerline AV+ 200 Nano to the Router. . . . . . . . . . . . . . . . .8

Adding Adapters to Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Understanding Powerline Network Security. . . . . . . . . . . . . . . . . . . . . . . .10

Set the Encryption Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Chapter 2 Using the XAV1401 Powerline Utility

Installing the Powerline Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Powerline Utility Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Security Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Return to the Default Network Encryption Key. . . . . . . . . . . . . . . . . . . .14

Change the Name of a Powerline Device. . . . . . . . . . . . . . . . . . . . . . . .15

Turn LEDs On or Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Set the Powerline Encryption Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Reset a Device to Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Add a Device to a Powerline Network . . . . . . . . . . . . . . . . . . . . . . . . . .18

Chapter 3 Troubleshooting

Product Registration and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Basic Functioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

LED Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Problems after Changing the Network Encryption Key . . . . . . . . . . . . . . .23

Appendix A Supplemental Information

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Appendix B Notification of Compliance

Index

Chapter 1. Installation and Basic Configuration |4

1. Installation and Basic Configuration

This chapter describes how to install and configure the XAVB1401 Powerline AV+ 200 Mini Set.

It also explains the security features and how to customize the encryption key for added security.

How the XAV1401 Fits in Your Network

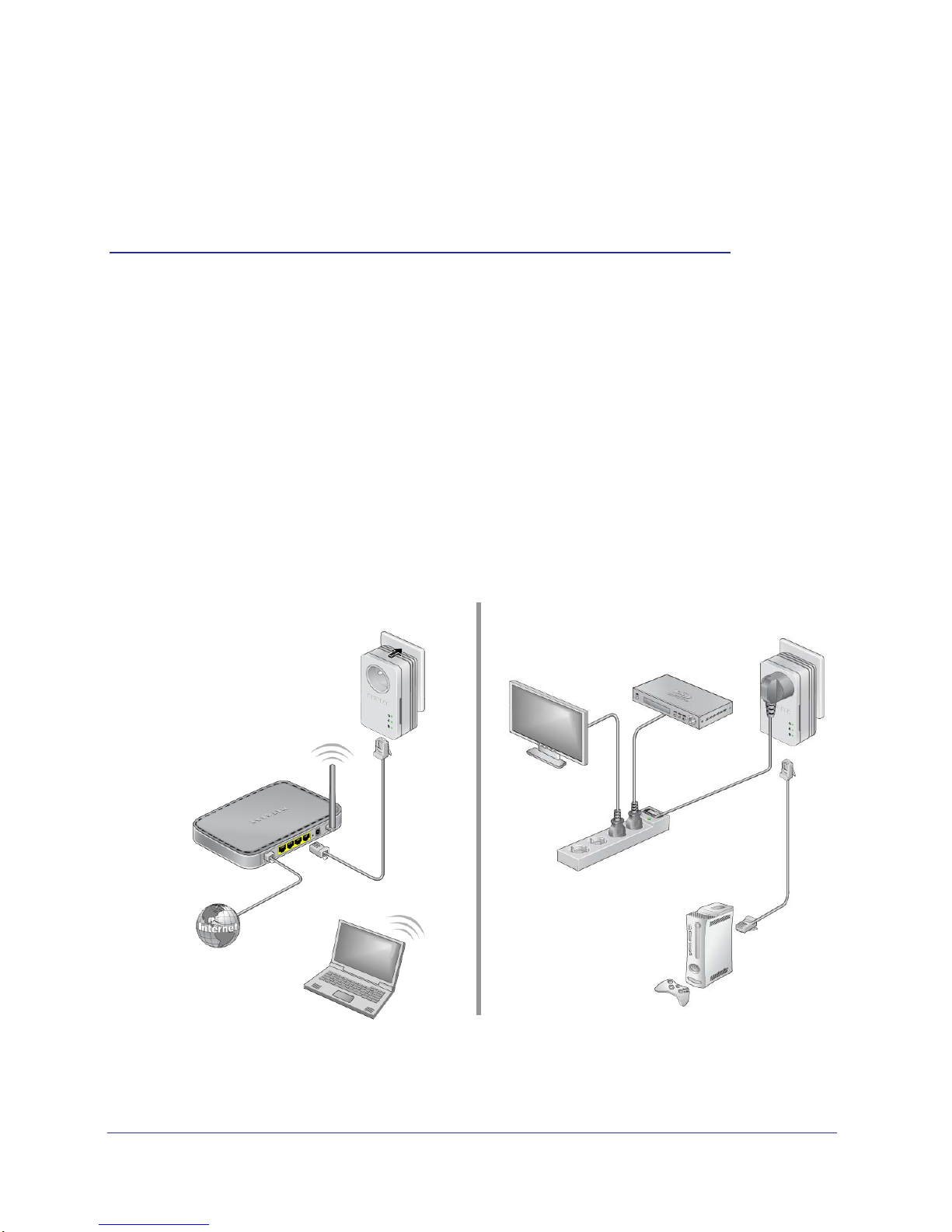

You can use one or more XAV1401 adapters to extend your Ethernet network anywhere in

your house using your existing electrical power lines. following illustration shows an existing

Powerline network with one Powerline device Room 1, and second Powerline device added

in Room 2:

Room 1 Room 2

Figure 1. Powerline Adapter Connected to an Ethernet Network

Chapter 1. Installation and Basic Configuration |5

XAV1401 Powerline AV+ 200 Mini Set User Manual

Powerline XAV1401 Features

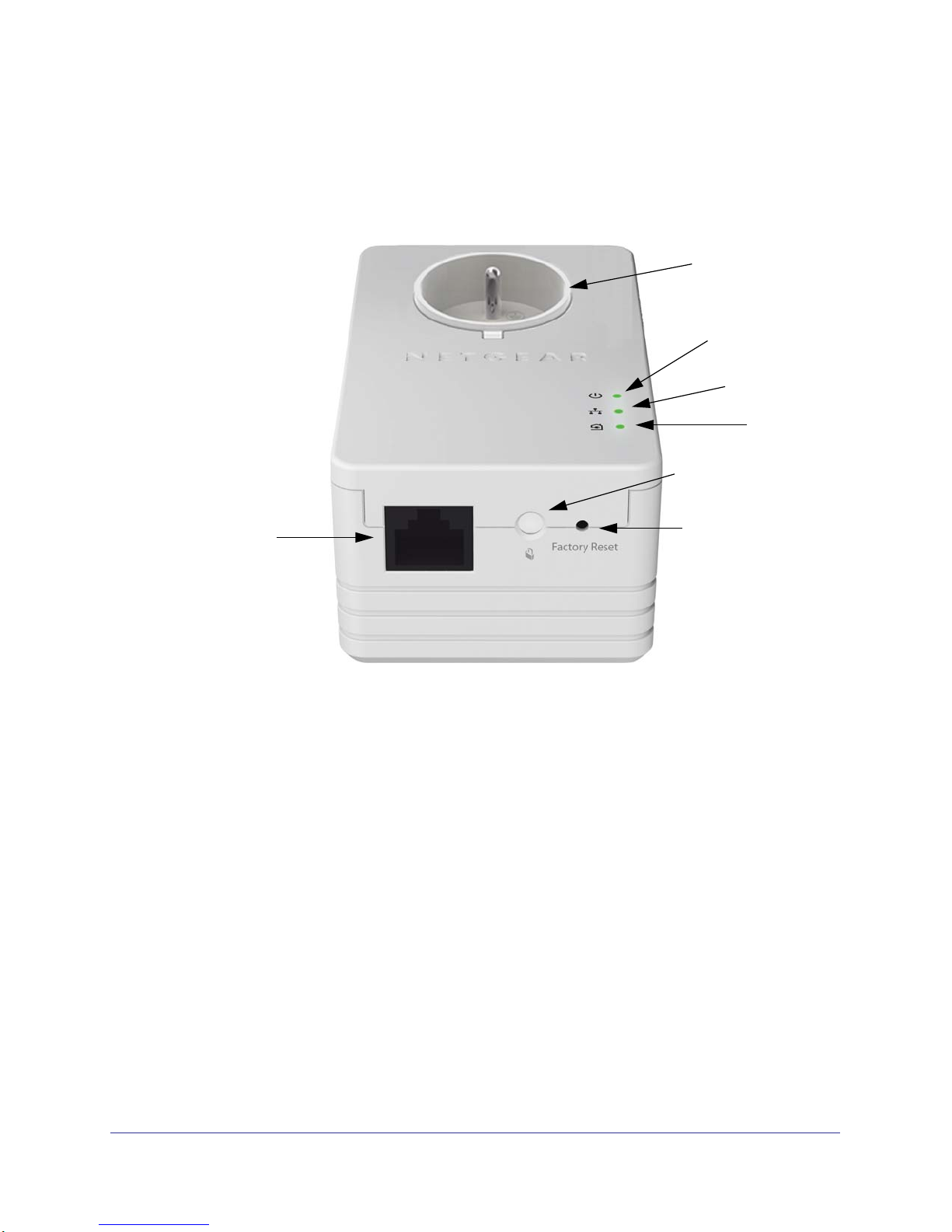

The following illustration shows the front and bottom panels of the XAV1401:

Security

button

Factory

Reset

button

Filtered

AC Socket

Ethernet

port

Power

LED

Ethernet

LEDPowerline

LED

Figure 2. XAV1401 Powerline Adapter

XAV1401 Product Label

The product label on the rear panel of the XAV1401 contains the items listed below:

• Model number

• MAC address

• Device password

• Serial number

LED and Feature Descriptions

The following table describes the buttons, status LEDs, and Ethernet port on the XAV1401

Powerline adapter.

6|Chapter 1. Installation and Basic Configuration

XAV1401 Powerline AV+ 200 Mini Set User Manual

Table 1. Model Number Feature Descriptions

Table 2.

Item Description

Power

LED • Solid green. The electrical power is on.

• Blinking green.The adapter is in the process of restarting or setting up security.

• Amber. Power saving mode. The unit enters power saving mode if the Ethernet port is not

linked for more than 10 minutes.

• Off. There is no electrical power, or has been turned off through the Powerline utility.

Powerline

LED • Solid. The adapter is connected to a Powerline network.

• Blinking. The adapter is sending or receiving data.

• Off. The adapter has not found any other compatible Powerline devices using the same

encryption key, or has been turned off through the Powerline utility.

The Pick A Plug feature lets you pick the electrical outlet with the strongest link rate,

indicated by the color displayed by the LED:

Green: Link rate > 80 Mbps

(Best) - Good for HD video Amber: Link rate >50, < 80 Mbps

(Better) - Good for SD Video Red: Link rate < 50 Mbps

(Good) - Good for data

Ethernet LED • Solid. The Ethernet port is linked, but there is no activity.

• Blinking. There is traffic on the Ethernet port.

• Off. There is no Ethernet connection, or it has been turned off through the Powerline utility.

Factory

Reset Press the Factory Reset button for 1 second, then release to return the Powerline adapter to

its factory default settings.

Security

Button If you set security on your other adapters, after you plug your new AV adapter into the wall

socket, press its security button for 2 seconds; then press the Security button on any

adapter in your existing network for 2 seconds. Both buttons must be pressed within 2

minutes.

Note: The Security button does not work in power saving mode. The unit enters power

saving mode if the Ethernet port is not linked for more than 10 minutes.

Ethernet Port Plug one end of the Ethernet cable that comes with the XAVB1401 Powerline AV+ 200 Mini

Set into this port and the other end either into your router, or into the computer or other

peripheral devices.

Chapter 1. Installation and Basic Configuration |7

XAV1401 Powerline AV+ 200 Mini Set User Manual

Installing Your XAV1401

Prepare for Installation:

1. Before you begin, verify the following:

• Your Ethernet network is set up.

• An Ethernet port is available on your router.

• Your Internet connection is working.

• An Ethernet port is available on each computer that will use an XAV1401 and is

configured to work on your network. Usually, the default configuration settings

(TCP/IP and DHCP) are fine.

2. Familiarize yourself with the XAV1401 Powerline adapter.

The front panel has three lights: Power, Powerline, and Ethernet. The side panel has a

Security button, and a Reset button. The Ethernet port is located on the bottom of the

adapter. See Figure 2 on page 5.

3. Plan the location of your Powerline devices:

• Use an electrical outlet that is not controlled by a wall

switch to avoid someone unknowingly turning off the

power to the outlet.

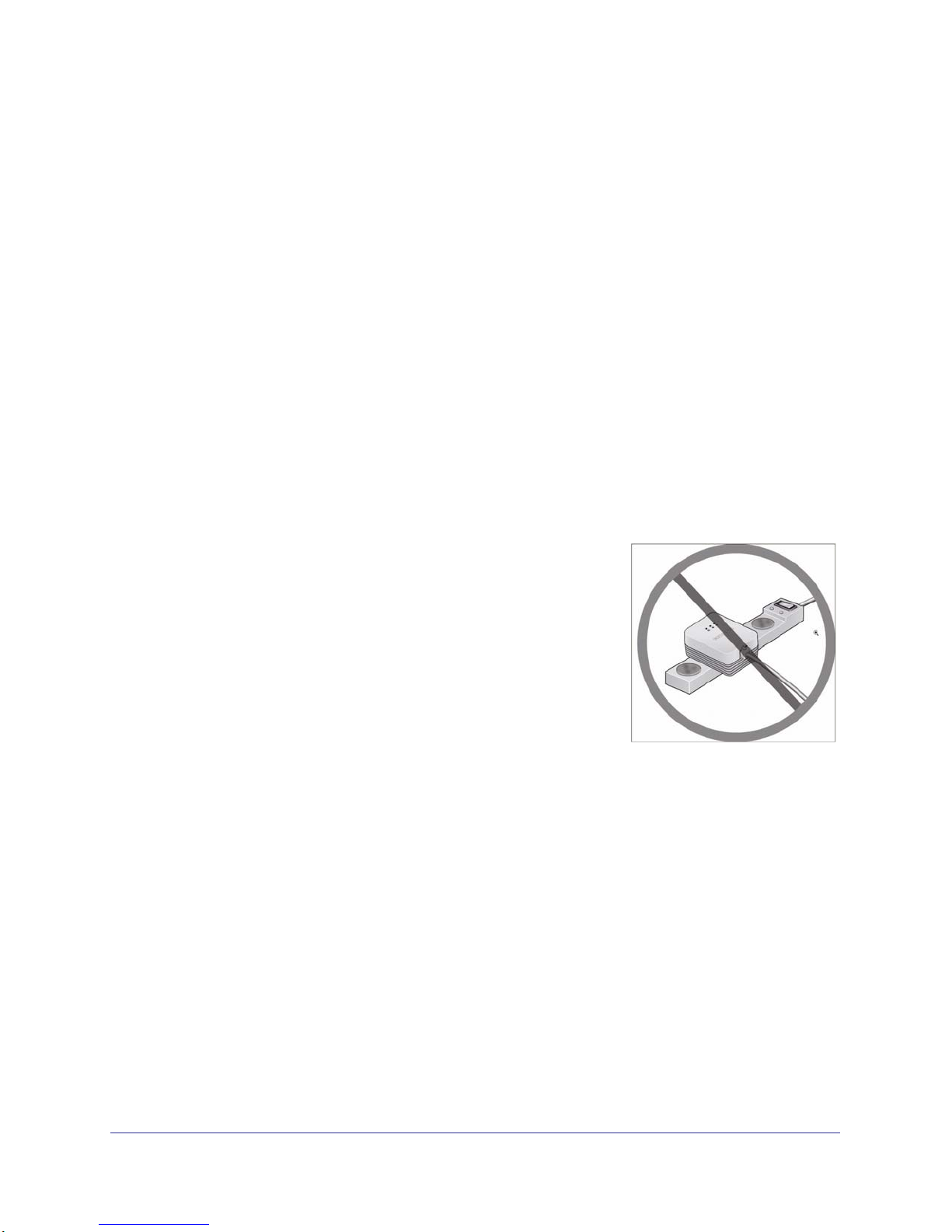

• Do not connect the XAV1401 to a power strip,

extension cord, or surge protector as this might

prevent it from working correctly, or reduce the

network performance.

• Avoid using the XAV1401 in an electrical outlet that is

located near an appliance that uses a lot of power,

such as a washer or dryer, or a refrigerator. This could

potentially prevent the adapter from working correctly,

or reduce network performance.

8|Chapter 1. Installation and Basic Configuration

XAV1401 Powerline AV+ 200 Mini Set User Manual

Connecting an XAV1401 to the Router

1. Plug an XAV1401 into a power outlet near your router.

Use the supplied gray Ethernet cable to connect from the XAV1401 to a LAN port on your

router so that the Powerline network can gain access to the Internet. The Power and

Ethernet LEDs on the XAV1401 should turn on.

Note: It is not necessary to disconnect your router from your computer.

Figure 3. Connecting the XAV1401 to a Router

2. Once the Powerline adapter is plugged in and power is first applied, check to see that the

Power LED is on.

3. After approximately 10 seconds, check to see that:

a. The Power LED is solid green.

b. The Powerline LED is lit.

c. The Ethernet LED is on or blinks.

XAVB1401

Supplied Ethernet cable

Router

Laptop PC

Chapter 1. Installation and Basic Configuration |9

XAV1401 Powerline AV+ 200 Mini Set User Manual

Adding Adapters to Your Network

Once the first adapter is installed and connected to your router, you can easily add adapters

into your network.

To add Powerline adapters:

1. Be sure the first Powerline adapter is connected to your router.

2. Plug additional Powerline adapters into power outlets near the other computers and

additional peripheral devices to be included in your Powerline network.

3. Use the gray Ethernet cable from the XAV1401

package to connect from the

Figure 4. Add an adapter

Powerline adapter

to an Ethernet port located on the other

computer or peripheral device.

4. Wait for each Powerline adapter to be

recognized by the Powerline network.

The Power, Ethernet, and Powerline LEDs

should turn on. This could take as little as 5

seconds, or up to 80 seconds. For details

about how the LEDs work, see Table 1 on

page 6.

5. Test to make sure that each computer connected

to an XAV1401 can access the Powerline

network.

For example, be sure that you can access the

Internet from a remote computer.

One way to test this is to install the Powerline

utility and use it to view all the computers

connected by the Powerline AV Ethernet adapter.

CAUTION:

NETGEAR recommends that you secure your Powerline network from

unauthorized access. This is especially relevant in settings such as

apartment buildings. See Understanding Powerline Network Security on

page 10.

10 |Chapter 1. Installation and Basic Configuration

XAV1401 Powerline AV+ 200 Mini Set User Manual

Understanding Powerline Network Security

A Powerline network consists of two or more Powerline adapters using the same network

encryption key. Securing your network is crucial. By encrypting the information you send over

the XAV1401 Powerline adapter, you help to keep it secure from hackers. If you do not set up

security on your network, anyone nearby with a Powerline network can potentially use their

connection to gain access to your network and information you send over the Internet. This is

especially relevant in settings such as apartment buildings, office buildings, dorm rooms, and

other more populated areas.

Powerline devices connected to the same network must use an identical encryption key. The

security used by the XAV1401 is similar to the SSID and encryption keys used in wireless

networks, but you do not need software to configure Powerline XAVB1401 Mini Sets.

There are two ways to secure your Powerline network.

• Use the Security button located on the Powerline adapter to automatically generate a

random encryption key. See Set the Encryption Key .

• Use the XAV1401 Powerline Utility to configure your Powerline network with an

encryption key that you specify. If you are already using Powerline or HomePlug devices

then you will need to use the Powerline Utility. If not already installed, the Powerline Utility

should be installed on your computer. See Installing the Powerline Utility on page 12.

For information about using the XAV1401 Powerline Utility to configure Powerline

security, see Chapter 2.

Note: To return the XAV1401 Powerline adapter to its factory default

settings, see Reset a Device to Factory Settings on page 17.

Set the Encryption Key

You can use the Security button to change the default encryption key and set a private

encryption key instead. The default encryption key is HomePlugAV.

Note: Before you change the Encryption key, you need to install the

Powerline adapters and get them up and running. Otherwise, they

might not be able to communicate with each other.

To set a private encryption key:

1. Verify that all the XAV1401 Powerline adapters to be configured are plugged in to an

electrical outlet.

2. On the first XAV1401, press its Security button for 2 seconds.

Inhaltsverzeichnis

Andere NETGEAR Adapter Handbücher

NETGEAR

NETGEAR XAVB5201 Bedienungsanleitung

NETGEAR

NETGEAR XAV5001 - Powerline AV 500 Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV2501 - Powerline AV Ethernet Adapter Bedienungsanleitung

NETGEAR

NETGEAR Wg111v2 - Usb Wifi Card Includes Driver Cd Bedienungsanleitung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

NETGEAR

NETGEAR WNA1100 - Wireless-N 150 USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR WG111 Bedienungsanleitung

NETGEAR

NETGEAR FA511 - 32-bit CardBus PC Card Mobile Bedienungsanleitung

NETGEAR

NETGEAR WG111T - 108 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR RangeMax Wireless USB 2.0 Adapter WPN111 WPN111NA... Bedienungsanleitung

NETGEAR

NETGEAR WPN111 - RangeMax Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR MCA1001 - MoCA Coax-Ethernet Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV101 - Powerline AV EN Adapter Bridge Bedienungsanleitung

NETGEAR

NETGEAR WG111v3 - 54 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR WN511B - Next Wireless Pc Card Bedienungsanleitung

NETGEAR

NETGEAR PTVU1000 Bedienungsanleitung

NETGEAR

NETGEAR FA411 Bedienungsanleitung

NETGEAR

NETGEAR Powerline 500 Bedienungsanleitung

NETGEAR

NETGEAR HDX101 - Powerline HD EN Adapter Bridge Bedienungsanleitung

NETGEAR

NETGEAR XAV2101 - POWERLINE AV 200 NANO ADAPTER Bedienungsanleitung

NETGEAR

NETGEAR WNHD3004 - High Performance Wireless-N HD Home Theatre... Bedienungsanleitung

NETGEAR

NETGEAR HA501 - 802.11a Wireless 32-Bit Card Bus... Bedienungsanleitung

NETGEAR

NETGEAR A6200 Bedienungsanleitung

NETGEAR

NETGEAR WPN111 - RangeMax Wireless USB 2.0 Adapter Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung

RCA

RCA AH57R Bedienungsanleitung

Koolatron

Koolatron AC16 Bedienungsanleitung
