1. Package Checklist
2. Storage Enclosure Description
3
3
5. LCD Configuration 16
4. Switch Mode 11
3. Enclosure Installation 7
6. CLI Manager 19
22
CLI Command
18
LCD setup item hierarchical menu
11
4.1 mode 1
14
4.2 mode 2
15
4.3 mode 3
3
2.1 Front panel
4
2.2 Rear panel
5
6
2.3 Alarm Mute
2.4 Firmware Update for Microprocessor
3Go Top ↑
1. Package Checklist
2. Storage Enclosure Description

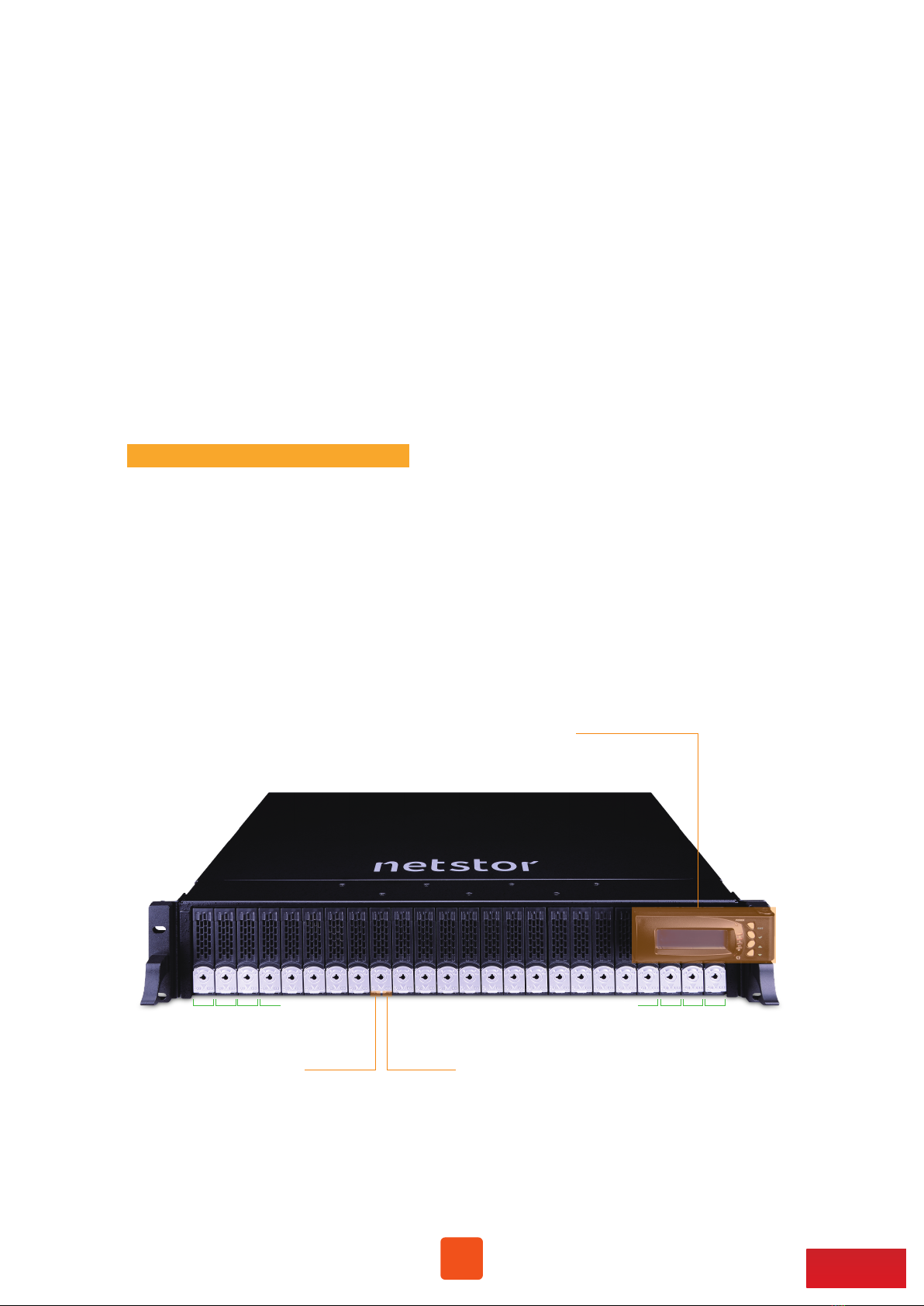

2.1 Front panel
Before the installation of the enclosure, verify that the items below are
included in the package:
。A. NS388P enclosure × 1
。B. U.2 SSD drive tray (already installed in NS388P) × 24
。C. U.2 SSD mounting screw × 96
。D. Key for U.2 SSD drive tray × 2
。E. Power cords × 2
Optional: (number of host cards and cables depends on which mode selected; see section 4)
。F. Host card
。G. HD mini-SAS (SFF-8644) to HD mini-SAS (SFF-8644) data cables
1. Activity indicator LED
。Flashing blue – Access
。Red – U.2 SSD fails
2. U.2 SSD presence LED
。White – Power on
3. LCD module
1Slot No. 2 3 ...... ...... 22 23 24
* Please check the requirements in Section 4.
4Go Top ↑

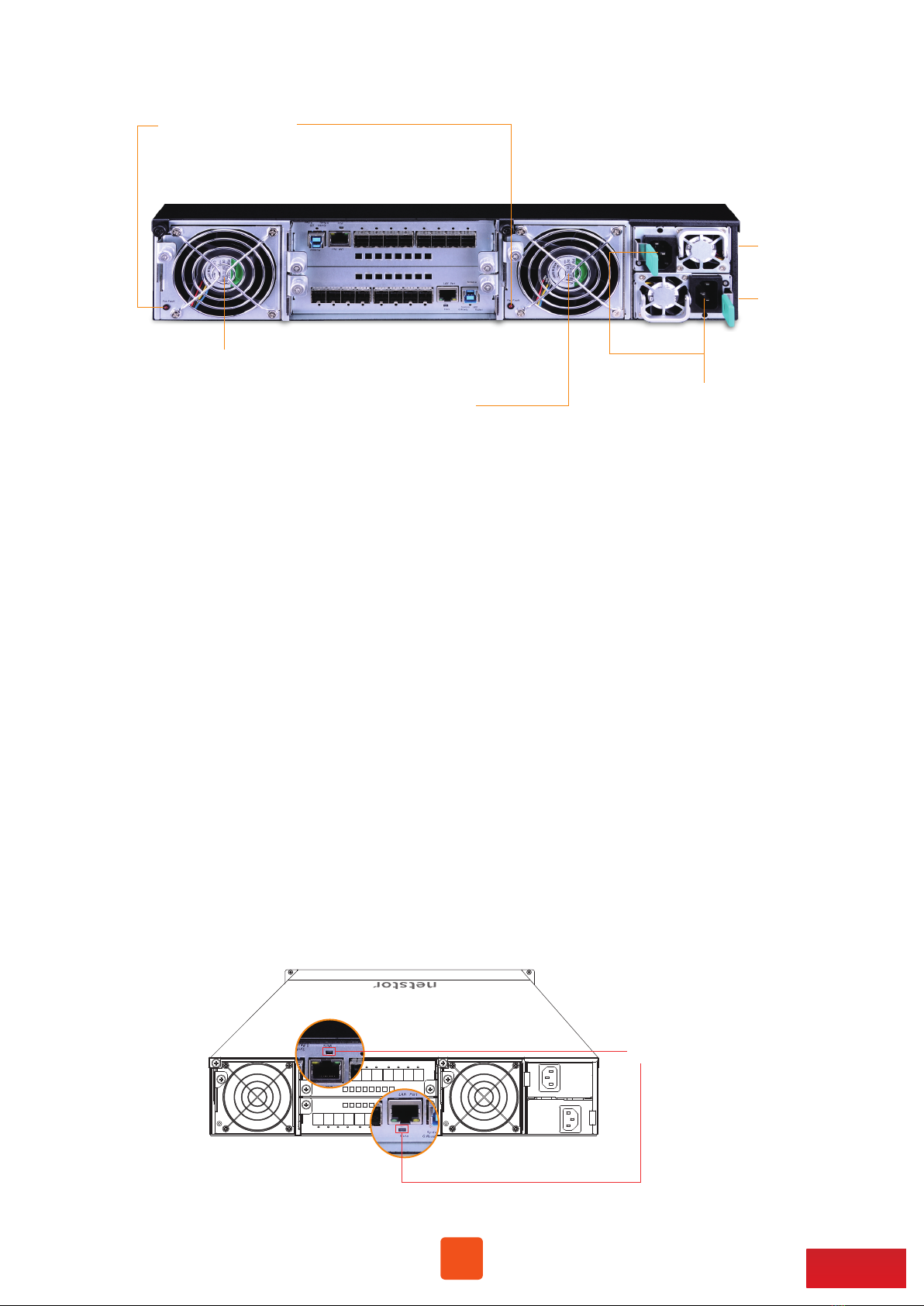

2.2 Rear panel
A.
4. Upstream/downstream
port indicator LED
。Solid blue – upstream port
。Flashing blue – downstream port
4. Upstream/downstream
port indicator LED
。Solid blue – upstream port
。Flashing blue – downstream port
9. Quad port HD mini-SAS
(SFF-8644) connectors
10. PCIe switch board A
11. PCIe switch board B
2. Mute button
。To mute buzzer beeping
inside the enclosure
2. Mute button
。To mute buzzer beeping
inside the enclosure
3. Link indicator LED
。Solid red – PCIe link is not at full lanes
。No light – PCIe link is at full lanes
3. Link indicator LED
。Solid red – PCIe link is not at full lanes
。No light – PCIe link is at full lanes
7. System status LED
。Green – normal
。Red – failure event occurs
7. System status LED
。Green – normal
。Red – failure event occurs
5. RJ-45 LAN port supporting
CLI configuration without
firmware update function
6. USB Type-B port supporting
full CLI configuration
6. USB Type-B port supporting
full CLI configuration
8. Quad port HD mini-SAS
(SFF-8644) connectors
A.B. B.
5Go Top ↑

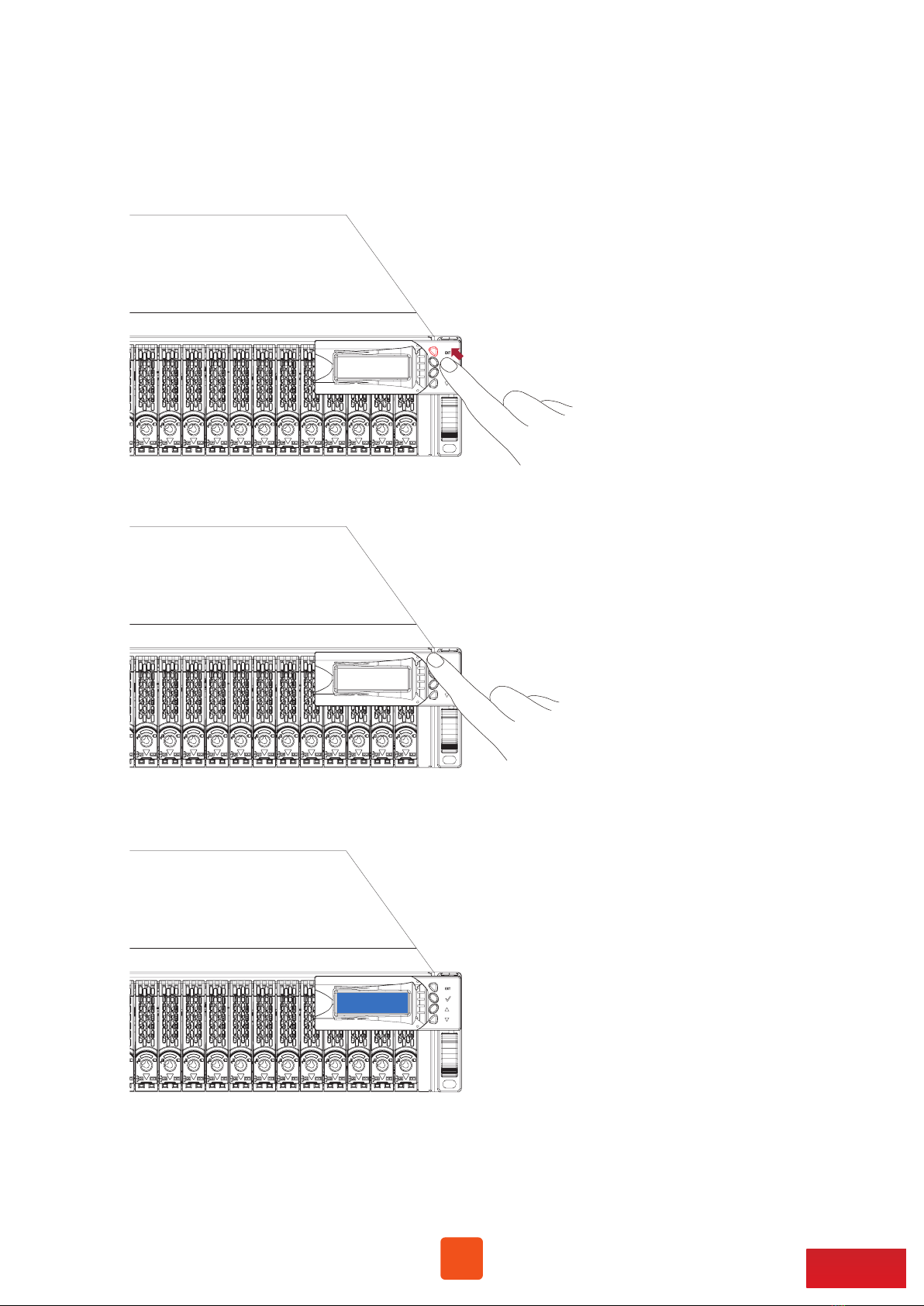

2.3 Alarm Mute
B. 1. Fan status LED
。Normal – No light
。Failure – Red
14. PSU 1
15. PSU 2
16. Power cord receptacles
12. Hot-swappable fan 1
13. Hot-swappable fan 2
Mute buttons
As any of the followings (a) through (e) occurs, the buzzer on the switch
board inside NS388P enclosure will beep.
(a) rear cooling fan failure
(b) over-temperature within the enclosure
(c) voltage abnormal
(d) electric current abnormal
(e) power supply unit failure
There are three ways to mute the buzzer beeping; either of the three
methods can be used to conduct the mute action:
[1] press PCIe switch board A or B’s mute button under the LAN port at
rear of the enclosure.
[2] press the mute button on LCD module (see page 16)
[3] use the ‘buz off’ command at CLI (see page 26)
6Go Top ↑
2.4 Firmware Update for Microprocessor
The user can use LCD module for updating switch board’s microprocessor firmware.
After you have finished the LCD firmware update steps on page 18, follow the
procedure below for the completion of the firmware update.
On operating system’s desktop, a virtual USB window folder will pop up.
Copy and paste the new firmware file (.srec) into the FW folder, and then
copy and paste the update.txt file into the virtual USB window folder as
shown in the above screenshot. After that, the firmware update will
progress automatically.
Note: Both switch controller boards A and B must be done with the firmware update.
8Go Top ↑

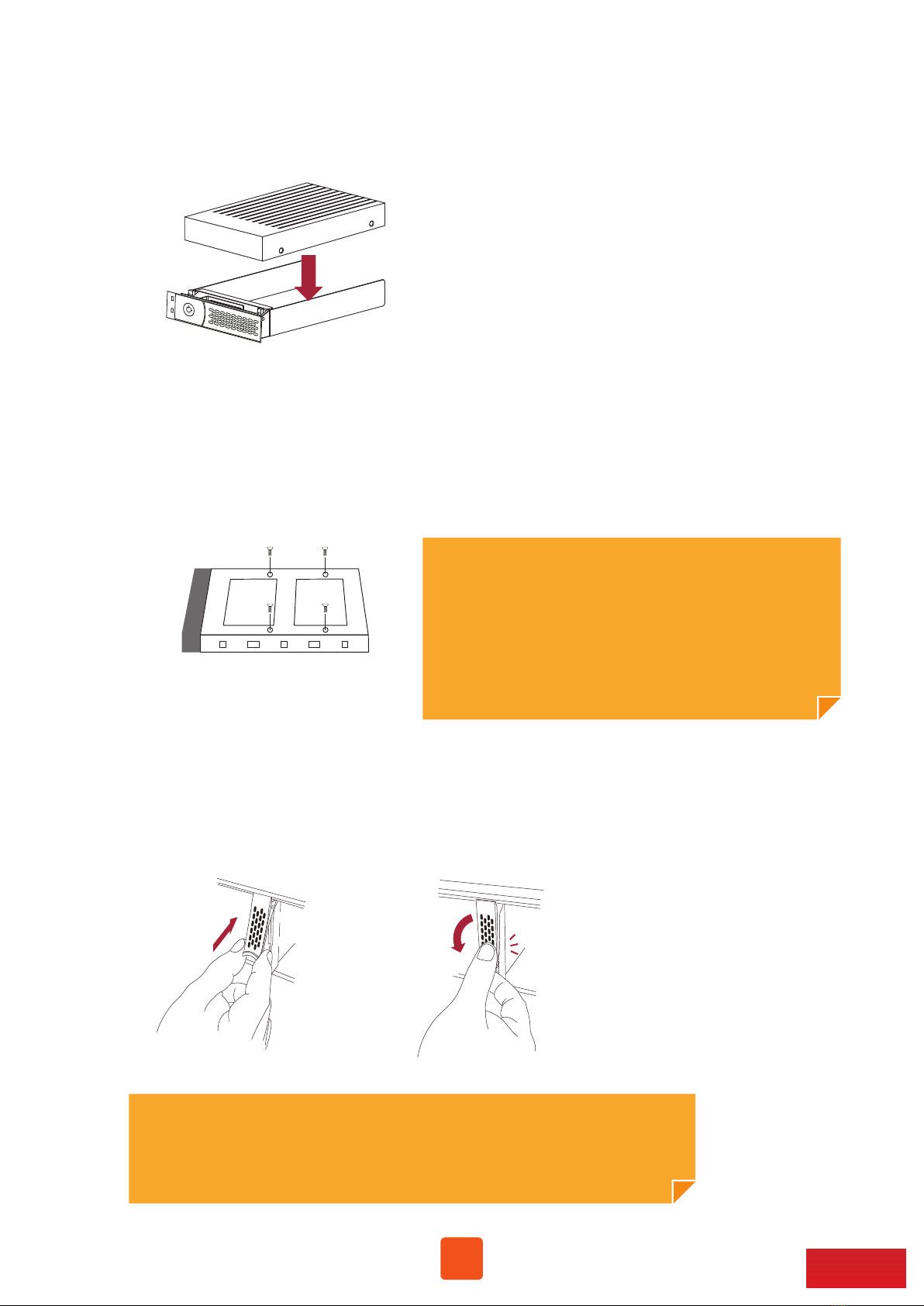

3. Place a U.2 drive tray on a flat and level surface, and then attach the 2.5” U.2
NVMe SSD into the tray.
4. Adopt four of the screws provided, and fasten the U.2 NVMe SSD on the tray.
Tighten each screw to fasten the U.2 NVMe SSD snugly to the drive tray. Do
not tighten the screws overly.
5. Insert the U.2 drive module into the NS388P enclosure correctly until its
lever appears to shut, and then press the lever to close until it clicks to
ensure that the U.2 drive module is within the enclosure.
※Do not force the levers to close while you insert U.2 drive modules
into the enclosure. If a lever does not close smoothly, draw out and
insert the U.2 drive module again, and then press the lever to close.
Clicks!
※ You must verify the heads of the four screws are
level with the U.2 drive tray while the 2.5” U.2
NVMe SSD is attached to the tray; otherwise, a
screw may take hold of the tray from the bottom
side and prevent you to pull the tray out of the
enclosure.
9Go Top ↑
6. Repeat steps 2 to 5 for further U.2 NVMe SSD drives.
7. Connect NS388P enclosure to the host card in server/computer through
the HD mini-SAS (SFF-8644) to HD mini-SAS (SFF-8644) data cables.
Connection types between NS388P and host server are shown at section 4
of the user’s manual.
8. The NS388P enclosure is with redundant PSU, so connect one end of the
two power cords to the two power receptacles at rear of NS388P enclosure,
and then connect the other end of the two power cords to the power outlets.
Host Computer
Power
Power
