VOPEX-USBV-2/4

USB Keyboard, Video, and Mouse

Splitter/Hub

Installation and Operation Manual

OPEX®Series

Front and Rear View of VOPEX-USBV-4

TRADEMARK

VOPEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.

in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the

right to make changes in the product design without reservation and without notification to its users.

TABLE OF CONTENTS

INTRODUCTION.............................................................................................................................................................1

LIMITATIONS..................................................................................................................................................................1

MATERIALS....................................................................................................................................................................1

FEATURES AND FUNCTIONS.......................................................................................................................................2

INSTALLATION...............................................................................................................................................................3

Monitor Connection......................................................................................................................................................3

Mouse Connection.......................................................................................................................................................3

Keyboard Connection..................................................................................................................................................3

CPU Connection..........................................................................................................................................................4

Hub Ports.....................................................................................................................................................................4

Power-Up.....................................................................................................................................................................4

OPERATION ...................................................................................................................................................................5

Keyboard Command Mode..........................................................................................................................................5

Mice and Trackballs with MACs ..................................................................................................................................6

International SUN Keyboards......................................................................................................................................6

Hub Ports.....................................................................................................................................................................7

AUDIO SUPPORT OPTION............................................................................................................................................7

SPECIFICATIONS ..........................................................................................................................................................7

TROUBLESHOOTING....................................................................................................................................................8

WARRANTY INFORMATION..........................................................................................................................................8

TABLE OF FIGURES

Figure 1- Connect User 1 Keyboard, Mouse, and Monitor.................................................................................................................3

Figure 2- Connect the VOPEX to the CPU ........................................................................................................................................4

Figure 3- Connect other devices to Hub Ports...................................................................................................................................4

NTI VOPEX-USBV-2 KVM SPLITTER

INTRODUCTION

The VOPEX-USBV-2/4 (VOPEX) is a USB KVM Splitter and 3-Port Hub. It enables the control of one USB enabled CPU through

two (or four) separate USB keyboards, USB mice, and VGA monitors and it enables the connection of 3 additional USB devices

(other than keyboards or mice). Each user is able to have complete control of a CPU, provided they don't try to access it at the

same time. While the user access is controlled by separate modes of operation, each user monitor will show the same image at

all times. The 3 hub ports (for printer, scanner, camera, etc.) will be connected to the CPU at all times.

OPTION: Audio support to enable each user to connect stereo speakers to receive audio signals from the connected CPU- add

"-A" to the part number (i.e. VOPEX-USBVA-2/4)

Types of User Input Devices Supported:

•USB keyboard with Windows layout

•USB keyboard with SUN layout

•USB keyboard with MAC layout

•USB Mouse - (up to 3 buttons)

•USB IntelliMouse (scroll wheel)

•Mouse-Trak trackball

•Logitech, Kensington and Microsoft Wheelmouse or Trackball on Mac CPUs with special drivers

•Logitech Cordless Elite Duo keyboard and mouse

•Crystal Vision keyboard with touchpad

•Gyration keyboard/mouse

•NTI USB-PS/2 Adapter

•NTI USB-SUN Adapter

Types of Shared Devices Supported:

•USB 2.0 compliant (low/full speed).

•Plug-n-Play specification supported

Types of CPUs Supported:

Any USB CPU supporting USB version 1.0 or above including:

•USB WINxx

•USB MAC

•USB SUN

LIMITATIONS

•The USB ports on the VOPEX are USB 2.0 (low/full speed) compatible. Any USB 2.0 device connected to the VOPEX will be

regulated to USB 2.0 low/full speeds.

MATERIALS

Materials included with this kit:

•VOPEX-USBV-2/4 2/4-Port USB KVM Splitter

•USB-AB-1M-ST 1 Meter Transparent USB A-B Device Cable

•VEXT-3 3 Foot M-F VGA Video Cable

•120 or 240VAC @ 50 or 60Hz-5VDC/2.0A AC Adapter (2-Port models)

-Or –

120 or 240VAC @ 50 or 60Hz-5VDC/6.0A AC Adapter (4-Port models)

•SA-3-MM 3 Foot M-M 3.5mm Stereo Audio Cable (Models with audio support only)

•This manual

NTI VOPEX-USBV-2 KVM SPLITTER

FEATURES AND FUNCTIONS

1. Power Switch- to power up or power down the VOPEX.

2. Power LED- for visual indication of splitter's power status

3. Mode Status LED’s- for visual indication of splitter's operating mode

4. Mode Switch- press to manually switch between operating modes

5. VIDEO- 15HD male connector- for connecting the video cable from the CPU

6. MONITOR x- 15HD female connectors- for connection of the user video monitors

7. 5VDC- connection jack for the AC adapter

8. DEVICES x- USB type A female connectors- for connection of the cables from USB devices

9. USER x DEVICES- USB type A female connectors- for connection of user USB device(s)

10. CPU- USB type B female connector- for connection of the devices cable from the CPU

NTI VOPEX-USBV-2 KVM SPLITTER

INSTALLATION

FYI: It is not necessary to disconnect power to the CPU and monitor(s) before installation.

Monitor Connection

1. Disconnect the monitor cable at the CPU and reconnect it to the "MONITOR 1" port on the VOPEX. (See Fig. 1)

2. Plug a second monitor (or optional VEXT-xx extension cable) into the "MONITOR 2" port on the VOPEX.

Note: "xx" in VEXT-xx indicates the length of the cable in feet. Many lengths are available. Contact your VPI

salesperson or visit our web site at http://www.vpi.us for details.

Note: The monitor connected to “MONITOR 1” will send DDC data to the connected CPU. Be sure to connect a monitor

to “MONITOR1” to ensure the CPU has the required video configuration information to work properly.

Mouse Connection

1. Disconnect the mouse at the CPU and reconnect it to one of the female USB type A 'USER 1 DEVICES" ports on the

VOPEX.

2. Connect a second mouse (or optional USB extension cable NTI USB2-AA-5M) to the female USB type A "USER 2 DEVICES"

ports on the VOPEX.

Keyboard Connection

1. Disconnect the keyboard at the CPU and reconnect the keyboard to the remaining female USB type A "USER 1 DEVICES"

port on the VOPEX.

2. Connect a second keyboard (or optional USB extension cable NTI USB2-AA-5M) to the remaining female USB type A "USER

2 DEVICES" ports on the VOPEX.

Figure 1- Connect User 1 Keyboard, Mouse, and Monitor

NTI VOPEX-USBV-2 KVM SPLITTER

CPU Connection

1. Connect the male USB type A connector end of the USB-AB-1M-ST cable into the device port on the CPU.

2. Connect the male USB type B connector of the same cable to the "CPU" port on the VOPEX.

3. Connect the male 15HD connector end of the VEXT-3 into the CPU’s video port. (See Fig. 2)

4. Connect the female 15HD connector end of the VEXT-3 into the "VIDEO" port on the VOPEX.

Figure 2- Connect the VOPEX to the CPU

Hub Ports

If desired, connect additional USB devices to

each of the three "Hub Ports". These ports

will be powered and operational anytime the VOPEX

and CPU are powered ON. See Fig. 3.

Power-Up

If not already ON, turn ON power to the CPU,

monitors, and VOPEX.

Figure 3- Connect other devices to Hub Ports

NTI VOPEX-USBV-2 KVM SPLITTER

OPERATION

Mode Selection

The VOPEX comes equipped with four (VOPEX-USBV-2) or six (VOPEX-USBV-4) modes of operation. To manually toggle

between modes, depress the MODE button once each time a mode change is desired. The VOPEX will cycle through the modes

of operation, then return to the first mode (1 to 2, 2 to 3, 3 to 4, etc). The following table details the modes of operation.

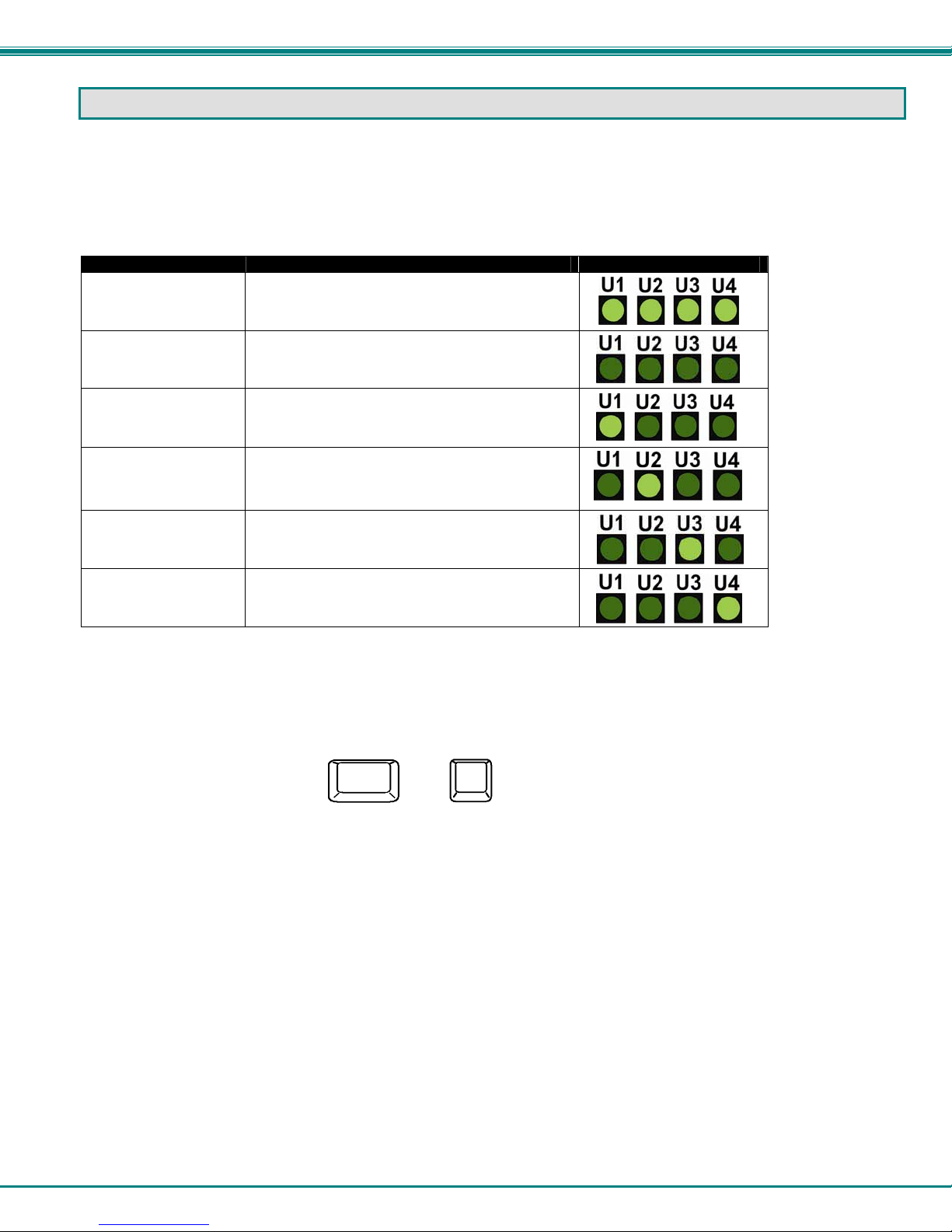

MODE DESCRIPTION INDICATOR LEDS

1- INSTANTANEOUS Both users have control of the CPU

simultaneously.

2- DELAY The first user with an active device gets control of

CPU. The second user is locked out until after 5

seconds of inactivity from the first user.

3- USER 1 "USER 1" has sole access. Other users are

locked out.

4- USER 2 "USER 2" has sole access. Other users are

locked out.

5- USER 3 "USER 3" has sole access. Other users are

locked out.

6- USER 4 "USER 4" has sole access. Other users are

locked out.

Keyboard Command Mode

In order to control the other features of the VOPEX with the keyboard, Command Mode must be enabled. To enter

Command Mode from the keyboard:

Press

When the Command Mode is enabled, all 3 status lights on the keyboard will illuminate and both LED’s on the VOPEX will blink

continuously to indicate Command Mode is enabled. See the table below for functions that are available while in Command

Mode.

NOTE: The user must exit Command Mode in order for the CPU to switch to the selected mode. To exit Command Mode,

press ESC on the keyboard. The mouse will not operate while in Command Mode.

NOTE: While in Command Mode, when a proper programming command is entered and is recognized by the switch, the

LED’s on the keyboard will flash once to indicate acceptance. The user must exit Command Mode (by pressing ESC) to

see a change take effect in the switch operation.

NOTE: The VOPEX will automatically exit Command Mode after 5 seconds of inactivity by the user if the user does not

manually exit Command Mode.

Ctrl ~(ACCENT

KEY)

NTI VOPEX-USBV-2 KVM SPLITTER

The following functions exist while in Command Mode:

Key Combination Description of Function

<X>-<key>-<Y> Select a new key sequence to use to enter Command Mode – Replace <key> with the desired key

to follow <Ctrl> with.

<L> - <x> - <x> Select the country code of the keyboard being used with a USB SUN CPU (see Country Codes

chart on page 6)

<V> - <Enter> This will print the version of the code in the VOPEX to a text editor window (i.e. Windows Notepad)

for use when troubleshooting the VOPEX. Note: The text editor should be open prior to entering

Command Mode.

<M> Configure the CPU port to connect to a MAC CPU (see "Mice and Trackballs with MACs" on pg. 6.

<W> Configure the CPU port to connect to a Windows or SUN CPU

<D> - <x> Select the operating mode, x=1 for Instantaneous Mode, x=2 for Delay Mode, x=3 User 1 Mode, x=4

for User 2 mode, x=5 for User 3 mode, x=6 for User 4 mode. (Modes are described in the table on

page 5.)

<P> - <x> Select the default mode to have the VOPEX enter upon power-up.

<Esc> Exit Command Mode

Mice and Trackballs with MACs

The VOPEX can be configured to enable full functionality between mice and trackballs having two or more buttons and a USB

MAC CPU. By default, the CPU port on the VOPEX is configured for use with a WINDOWS or SUN CPU and has no special

translation for using multi-function mice and trackballs when a MAC CPU is connected. Using the commands in Command Mode

above, either enable or disable this feature as needed.

NOTE: Be sure to re-configure the port for connection to a WINDOWS or SUN CPU if a MAC CPU is removed and a

WINDOWS or SUN CPU is then connected.

International SUN Keyboards

The VOPEX can recognize international layouts for Sun keyboards. To use an international Sun keyboard, follow this procedure:

1. Disconnect the CPU from the VOPEX

2. Connect the international keyboard to be used to the VOPEX

3. Power down the VOPEX for at least 3 seconds

4. Power up the VOPEX

5. Reconnect the CPU to the VOPEX

It is also possible to configure the VOPEX to emulate a specific international Sun keyboard regardless of what actual keyboard is

connected. This is recommended when the CPU needs the layout code (i.e. a SUN CPU) and the keyboard doesn't have an

explicit layout code (i.e. some Windows keyboards). To do this, manually set the VOPEX to indicate the international keyboard

identification number to the CPU using the following procedure:

1. Connect the keyboard to be used to the VOPEX

2. Power down the VOPEX for at least 3 seconds

3. Power up the VOPEX

4. Enter Command Mode (<Ctrl> - <`>)

5. Type Lxx, where xx is the number from the list below that corresponds to the desired country code

6. Exit Command Mode

7. Power down the VOPEX for at least 3 seconds

8. Power up the VOPEX

9. Reboot the CPU connected to the VOPEX

Country Codes

00 Not Supported 10 Greek 20 Persian (Farsi) 30 Taiwan

01 Arabic 11 Hebrew 21 Poland 31 Turkish

02 Belgian 12 Hungary 22 Portuguese 32 UK

03 Canadian-Bilingual 13 International (ISO) 23 Russia 33 US

04 Canadian-French 14 Italian 24 Slovakia 34 Yugoslavia

05 Czech Republic 15 Japan (Katakana) 25 Spanish 35-99 Reserved

06 Danish 16 Korean 26 Swedish

07 Finnish 17 Latin American 27 Swiss/French

08 French 18 Netherlands/Dutch 28 Swiss/German

09 German 19 Norwegian 29 Switzerland

NTI VOPEX-USBV-2 KVM SPLITTER

Hub Ports

The three connections labeled "Hub Ports" can be used to connect any USB device, such as a printer, scanner,

camera, etc. for continuous operation at USB 2.0 compliant (low or full) speeds. These ports are not controlled by

the VOPEX.

AUDIO SUPPORT OPTION

If your VOPEX has the audio support option built-in (VOPEX-USBVA-2/4), there are 3.5mm stereo audio jacks for the connection

of the audio from the CPU and to self-powered stereo speakers for each user. Each user will receive audio signals at all times.

Audio support provides the following additional features:

•Audio signals from the same CPU that keyboard, mouse, and video signals are from can be received by each user.

•Audio inputs accept any standard line level audio (4Vp-p).

•Audio outputs are capable of driving self-powered speakers or headphones.

A SA-3-MM 3-foot 3.5mm stereo audio cable has been provided to connect the audio from the CPU to the VOPEX (Additional

3,6,10,15,25,35,50 and 100 foot lengths are available from NTI).

SPECIFICATIONS

Size: Each unit is 8.5”W x 6”D x 2.6”H

Power: Powered by 120 or 240VAC @ 50 or 60Hz-5VDC/2.0A AC Adapter (2-Port VOPEX) or 6.0A AC Adapter (4-Port VOPEX)

Connections: 15HD VGA & SGA compatible

USB Type A female device connectors

USB Type B female CPU connector

User audio

orts

udio In port for

connection from CPU

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Network Technologies Schalten Handbücher

Network Technologies

Network Technologies ST-2U Bedienungsanleitung

Network Technologies

Network Technologies NODEMUX HD Series Bedienungsanleitung

Network Technologies

Network Technologies NTI VOPEX VOPEX-USBV Bedienungsanleitung

Network Technologies

Network Technologies NTI UNIMUX UNIMUX-USBV-4 Bedienungsanleitung

Network Technologies

Network Technologies SERIMUX-S-x Bedienungsanleitung

Network Technologies

Network Technologies PWR-RMT-RBT Bedienungsanleitung

Network Technologies

Network Technologies RACKMUX-V15 Bedienungsanleitung

Network Technologies

Network Technologies ST-2U Bedienungsanleitung

Network Technologies

Network Technologies KEEMUX-P2 Bedienungsanleitung

Network Technologies

Network Technologies KEEMUX-Px Bedienungsanleitung

Network Technologies

Network Technologies UNIMUX-DVI-xHD Bedienungsanleitung

Network Technologies

Network Technologies NTI PRIMUX PRIMUx-UZR Bedienungsanleitung

Network Technologies

Network Technologies UNIMUX-USBV-xO Bedienungsanleitung

Network Technologies

Network Technologies KEEMUX-USBV-xU Bedienungsanleitung

Network Technologies

Network Technologies ST-xUO Bedienungsanleitung

Network Technologies

Network Technologies ST-nXm-U Bedienungsanleitung

Network Technologies

Network Technologies KEEMUX PS/2 KVM Bedienungsanleitung

Network Technologies

Network Technologies SERIMUX-CS-x Bedienungsanleitung

Network Technologies

Network Technologies SM-nXm-C5AV-LCD Bedienungsanleitung

Network Technologies

Network Technologies DVI-4 Bedienungsanleitung

Network Technologies

Network Technologies NTI High Density DVI USB KVM Switch... Bedienungsanleitung

Network Technologies

Network Technologies UNIMUX series Bedienungsanleitung

Network Technologies

Network Technologies KVM Switch Bedienungsanleitung

Network Technologies

Network Technologies PRIMUX-16X64 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
