In the world of studio microphones, the numbers “47”, “67”
and “87” have associations that inspire enthusiasm among
professionals in the field. It is of course no coincidence that
the name of the new TLM 67 contains the number “67”. In
many respects, the TLM 67 is based on the “workhorse” of
the 1960s, the legendary U 67. Like the U 67, the TLM 67
incorporates the K 67 capsule. In addition, the special new
circuit design closely reproduces the sound characteristics
of the classic U 67, without the use of tubes. Similar Neu-
mann circuit technology has already proved very successful
in the TLM 49.
The TLM 67 is extremely versatile. Its three switchable
directional characteristics (omnidirectional, cardioid and
figure-8), selectable 10 dB pre-attenuation and high-pass
filter permit detailed adjustments to be made, depending
upon the specific recording situation.
Exterior design
The TLM 67 is a large-diaphragm condenser microphone in
the classic Neumann style, with a unique dual-color design.
The stylish pearl-gray of the microphone body combined
with the classic Neumann nickel lends the microphone a
touch of distinctive individuality.
The legendary, frequently imitated design of the Neumann
U 67 was the first to be developed by Neumann employees
in collaboration with the famous German designer, Wilhelm
Braun-Feldweg. The design of the TLM 67 represents a con-
temporary development of that of the U 67, transferring
its positive impact to the present era. The enhanced exte-
rior design thus links past and future microphone design
trends.
On the occasion of its 80th anniversary, the Neumann com-
pany is honoring its founder, Georg Neumann, with a three-
dimensional metal emblem on the front of the TLM 67. The
distinctive Neumann attraction is conveyed in every detail
of the microphone.
Applications
Due to its extensive control features, the TLM 67 is suitable
for a wide range of applications. In addition to its primary
role as a vocal microphone for all types of music and spoken
voice, in orchestral recordings the TLM 67 can be used as a
main microphone and as a spot microphone for individual
instruments.
Acoustic features
The TLM 67 is addressed from the side. The front is indica-
ted by the Neumann logo.
A large wire mesh grille encloses the elastically mounted
double diaphragm capsule. The directional characteristics
omnidirectional, cardioid or figure-8 can be selected via a
switch below the grille. The selected setting is indicated by
a symbol shown in a window above the switch.
Features
• Sound characteristics based on the legendary U 67
• Three switchable directional characteristics
(omnidirectional, cardioid and figure-8)
• Switchable high-pass filter and pre-attenuation
• Transformerless circuit technology
• New dual-color exterior design
Application Hints*
• Extremely versatile
• Vocal microphone (soloists and background choir)
• Broadcasting, dubbing and voiceovers
• Overhead microphone
• Spot microphone, and suitable e.g. for strings, especially
cello and double bass, as well as piano
Delivery Range
TLM 67 microphone, Case
Catalog No.
TLM 67 ................................................. pgr.............. 008605
Electrical features
The letters “TLM” stand for “transformerless microphone”.
In the TLM 67, an electronic circuit is used rather than a
conventional output transformer. Like a transformer, the
circuit ensures good common mode rejection, effectively
suppressing interference signals that affect the balanced
modulation line. The microphone can operate at sound
pressure levels of up to 105 dB without distortion, and has
a dynamic range of 94 dB (A-weighted), without the use of
the pre-attenuation switch.
Filter and pre-attenuation
The pre-attenuation switch on the back of the microphone
can be used to reduce transmission levels by approx. 10 dB.
It should be used only when there is a risk of overloading
following devices due to very high sound pressure levels.
Use of the switch does not increase the dynamic range of
the microphone, but rather shifts it by 10 dB, to higher
sound pressure levels. The other switch on the back of the
microphone can be used to change the cutoff frequency of
the built-in high-pass filter, so as to suppress the effects
of impact sound and wind noise, or to compensate for the
proximity effect.
Operational reliability
Elastic mounting of the capsule supplies protection from
the transmission of structure-borne noise. If required, the
EA 87 elastic suspension and WS 87 windscreen are availa-
ble as accessories, for further suppression of structure-bor-
ne and wind noise. The PS 15 or PS 20 a popscreen can be
used if the microphone is to be addressed at close range.
* These are just some of the most common applications. We recommend additional experimentation to gain maximum use from this microphone.
TLM 67
Georg Neumann GmbH • Ollenhauerstr. 98 • 13403 Berlin • Germany • Tel.: +49(30)417724-0 • Fax: -50 • E-Mail: headoffi[email protected], [email protected]
Errors excepted, subject to changes • Printed in Germany • Publ. 05/08 527761
Technical Data
Acoustical operating principle ..............Pressure gradient transducer
Directional pattern....................................... Omni/cardioid/figure-8
Frequency range...................................................... 20 Hz...20 kHz
Sensitivity at 1 kHz into 1 kohm .............................. 10/18/9 mV/Pa
Rated impedance.............................................................. 50 ohms
Rated load impedance........................................................1 kohms
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)................65/70/64 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) ......78/83/77 dB
Equivalent noise level, CCIR1) .....................................29/24/30 dB
Equivalent noise level, A-weighted1) ........................ 16/11/17 dB-A
Maximum SPL (tube characteristic)2):
for THD < 0.5 % .................................................. 110/105/111 dB
for THD < 5 %.......................................................130/125/131 dB
Maximum output voltage......................................................–1 dBu
Dynamic range of the microphone amplifier:
(A-weighted) for < 0.5% THD (for < 5% THD) ................ 94 (104) dB
Power supply........................................................................... P48
Matching connector microphone...........................................XLR3M
Weight ..................................................................................490 g
Diameter/Length...........................................................56/200 mm
®Neumann is a registered trademark of the Georg Neumann GmbH in certain countries.
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS 2) measured as equivalent el. input signal

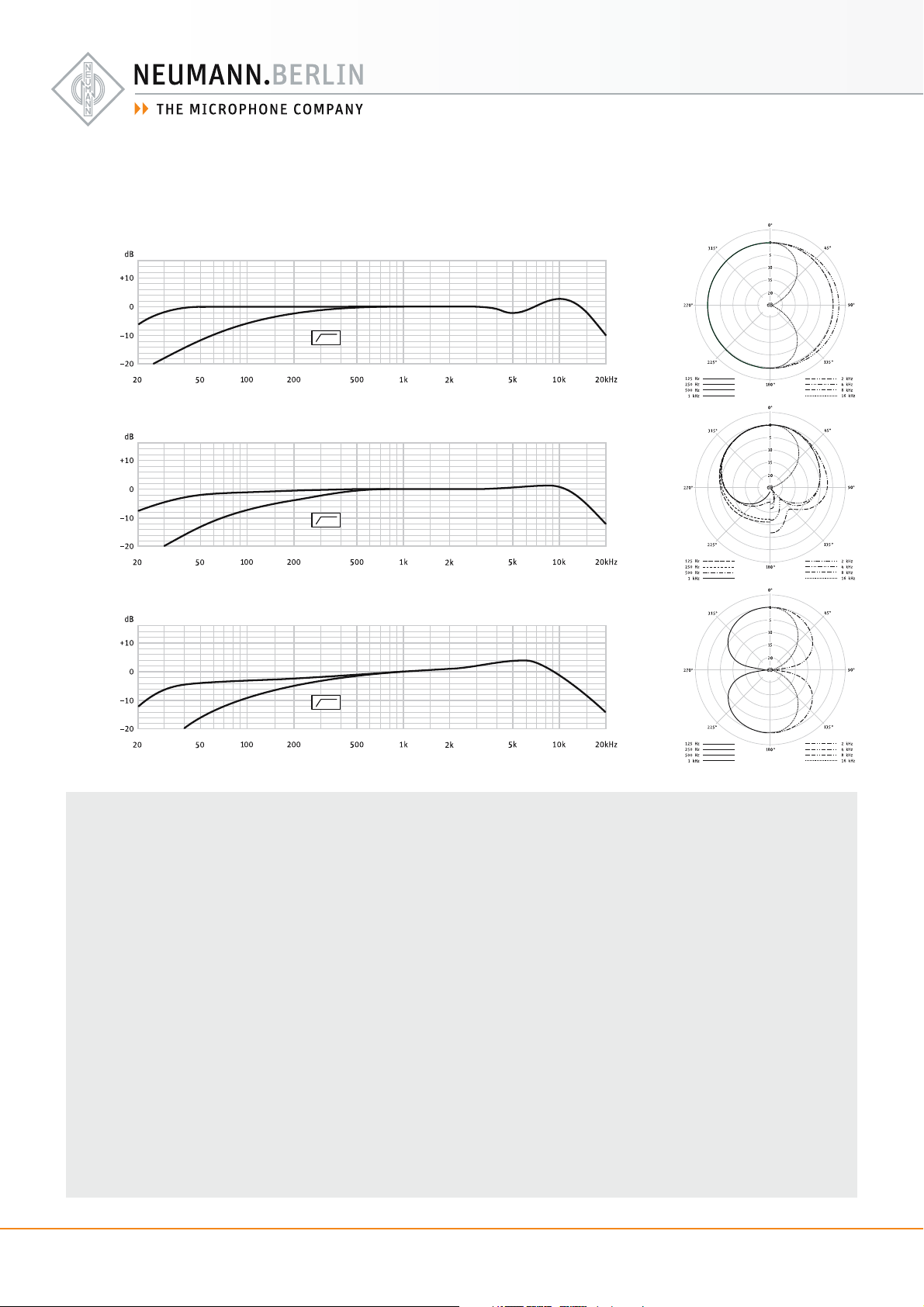

Omni
Cardioid
Figure-8
measured in free-field conditions (IEC 60268-4), tolerance ±2 dB
Selection of Accessories
Elastic suspension, EA 87 ....................... ni................ 007297
Auditorium hanger, MNV 87.................... ni ................ 006804
Stand mount, SG 87............................... blk .............. 008619
Windscreen, WS 87 ................................ blk .............. 006753
Popscreen, PS 15 .................................. blk .............. 008472
Popscreen, PS 20 a ............................... blk .............. 008488
Battery supply, BS 48 i........................... blk .............. 006494
Battery supply, BS 48 i-2 ....................... blk .............. 006496
Power supply, N 248 EU......................... blk .............. 008537
Power supply, N 248 US ........................ blk .............. 008538
Power supply, N 248 UK ........................ blk .............. 008539
Microphone cable, IC 3 mt ..................... blk .............. 006543
Microphone cable, IC4........................... ni ................ 006547
Microphone cable, IC4 mt...................... blk .............. 006557
A complete survey and detailed descriptions of all accessories are
contained in the accessories catalog
Meaning of color codes:
pgr = pearl gray, blk = black, ni = nickel, gry = gray
